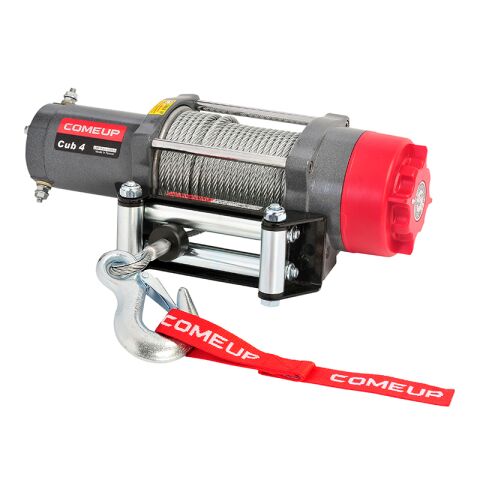

COMEUP Cub 4 12V STD, 4000lbs, steel rope

COME UP

UTV electric winch, 12V, 4000lbs (1814 kg), steel rope, sealed permanent magnet motor, 3 stage planetary gear

  • Manufacturer  COME UP
  • Product Code  123920
  • Product EAN   8592590017350
  • Shipping Weight  13,700 kg
IN STOCK
Price € 500 Price excl. VAT € 413,22 Shipping Information
  • 800-3245
    SHARK Universal Tool Holder (2pcs), (32-45mm) SHARK Universal Tool Holder (2pcs), (32-45mm)
    • NEW IN STOCK
    • RECOMMENDED

    IN STOCK
    Universal multi-purpose heavy-duty tool holders, UV & salt water resistant, size 32-45 mm, 2...
    Price excl. VAT € 14,84 Price incl. VAT € 18
  • 123920
    COMEUP Cub 4 12V STD, 4000lbs, steel rope COMEUP Cub 4 12V STD, 4000lbs, steel rope

    IN STOCK
    UTV electric winch, 12V, 4000lbs (1814 kg), steel rope, sealed permanent magnet motor, 3 sta...
    Price excl. VAT € 413,22 Price incl. VAT € 500
  • 883873
    COMEUP Wireless Remote Control RF-24DP-D for Cub 2/3/4 COMEUP Wireless Remote Control RF-24DP-D for Cub 2/3/4

    IN STOCK
    Wireless Remote Control for Come UP winches, 2.4 GHz, ergonomic design fits comfortably with...
    Price excl. VAT € 134,63 Price incl. VAT € 163
  • 76-086
    AirMan ResQ Scout 12 V Compressor +100 ml Tire Sealant - Tire Mobility KIT AirMan ResQ Scout 12 V Compressor +100 ml Tire Sealant - Tire Mobility KIT
    • NEW IN STOCK
    • RECOMMENDED

    IN STOCK
    Repair kit for fixing flat tires, for motorcycles, ATVs and scooters, repairs punctures up t...
    Price excl. VAT € 28,10 Price incl. VAT € 34
  • 258036
    Kimpex winch bumper 6pcs Kimpex winch bumper 6pcs

    IN STOCK
    Winch Bumper, prevents the cable from breaking, improved design, installation in seconds, He...
    Price excl. VAT € 92,56 Price incl. VAT € 112
  • 881CUB4
    Universal plate CUB4

    IN STOCK
    Universal mounting plate for attaching the ComeUp Cub 4 winch to ATV, with pre-drilled holes...
    Price excl. VAT € 16,86 Price incl. VAT € 20

COMEUP ATV Winch Cub 4, 12V, 4000lbs, Steel rope

Features:

  • 4,000 lb (1,814 kg) line pull
  • Power in and power out
  • Winch drum centred avoids the interference of rope and provides streamlined appearance
  • Mechanical load holding and dynamic brake for 100% braking
  • High efficiency, low amp draw and sealed permanent magnet motor
  • Full metal 3 stage planetary gear train for greater pulling force
  • Sliding pin and ring gear clutch for rapid wire rope payout
  • Weather sealed contactor gives better water proof and lower amp. draw
  • E/e marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*01

Specifications / part numbers:

  • Winch Part Number: PN 123920
  • Maximum line pull: 4,000 lbs (1,814 kg)
  • Motor: Permanent magnet 800W/1.0HP 12V DC motor
  • Gear train: 3-stage planetary gears
  • Gear ratio: 191:1
  • Brake: Mechanical & dynamic
  • Clutch: Sliding pin and ring gear
  • Control: Handlebar rocker switch
  • Wire rope: 5.5 mm x 15.2 m (7/32" x 50'), galvanized aircraft A7 x 19
  • Winch construction: Aluminum die cast housings and drum
  • Rotation of winch: Wire rope shall be under-wound orientation only

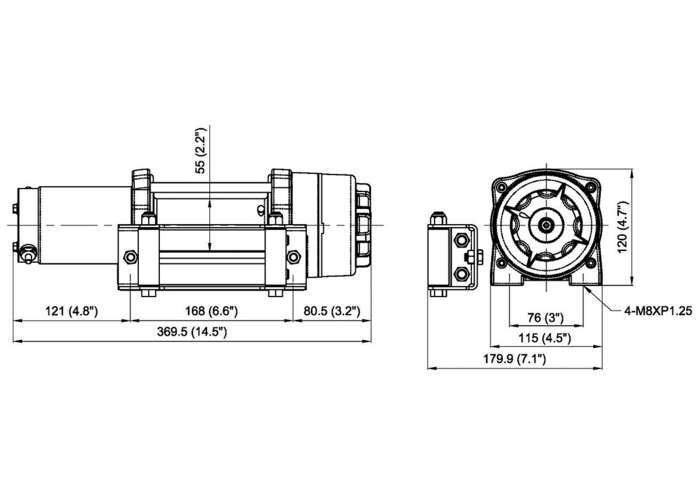

  • Drum size: 55 x 119 mm (2.2" x 4.7")
  • Mounting bolts pattern: 76 x 168 mm (3"x 6.6")

Line pull and rope capacity:

Layer of Wire Rope Pull by layer kg / lbs Total rope m / ft
1st layer 1,814 / 4,000 4.0 / 13.2
2nd layer 1,535 / 3,385 8.8 / 28.8
3rd layer 1,331 / 2,933 14.2 / 46.7
4th layer 1,174 / 2,588 15.2 / 50

Line speed and amp. draw (1st layer of rope on the drum):

Linep pull, kg / lbs Line speed, mpm / fpm Amp. draw, A
No Load 6.0 / 19.7 20
227 / 500 3.9 / 12.8 45
454 / 1,000 3.4 / 11.2 70
680 / 1,500 3.1 / 10.2 90
907 / 2,000 2.9 / 9.5 120
1,134 / 2,500 2.7 / 8.9 150
1,361 / 3,000 2.4 / 7.9 180
1,588 / 3,500 2.2 / 7.2 210
1,814 / 4,000 2.0 / 6.6 230


Warning!
* The winch is not intended to be used in any manner for the movement or lifting of persons.
* The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

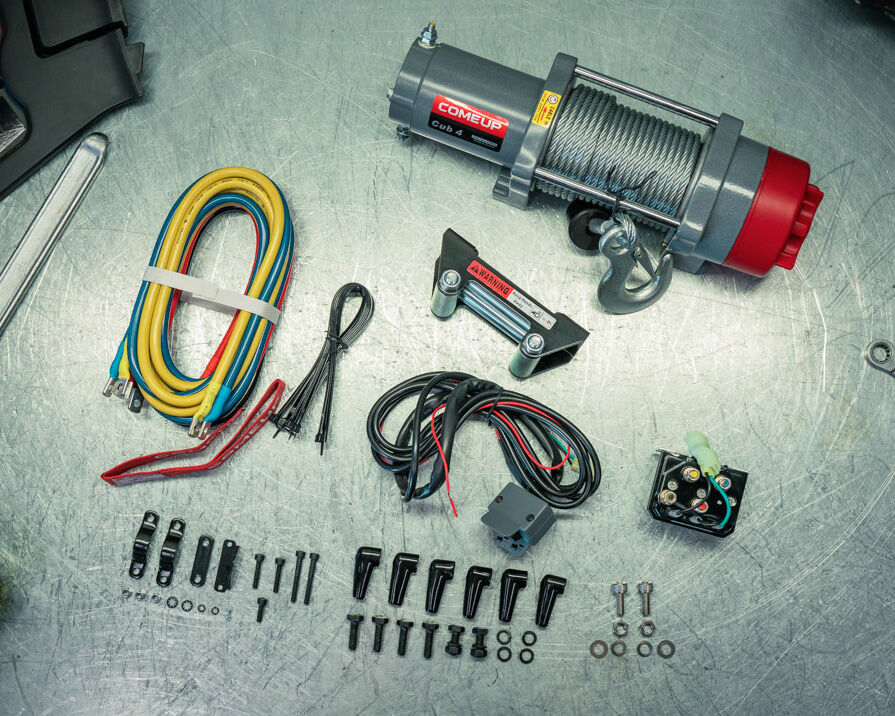

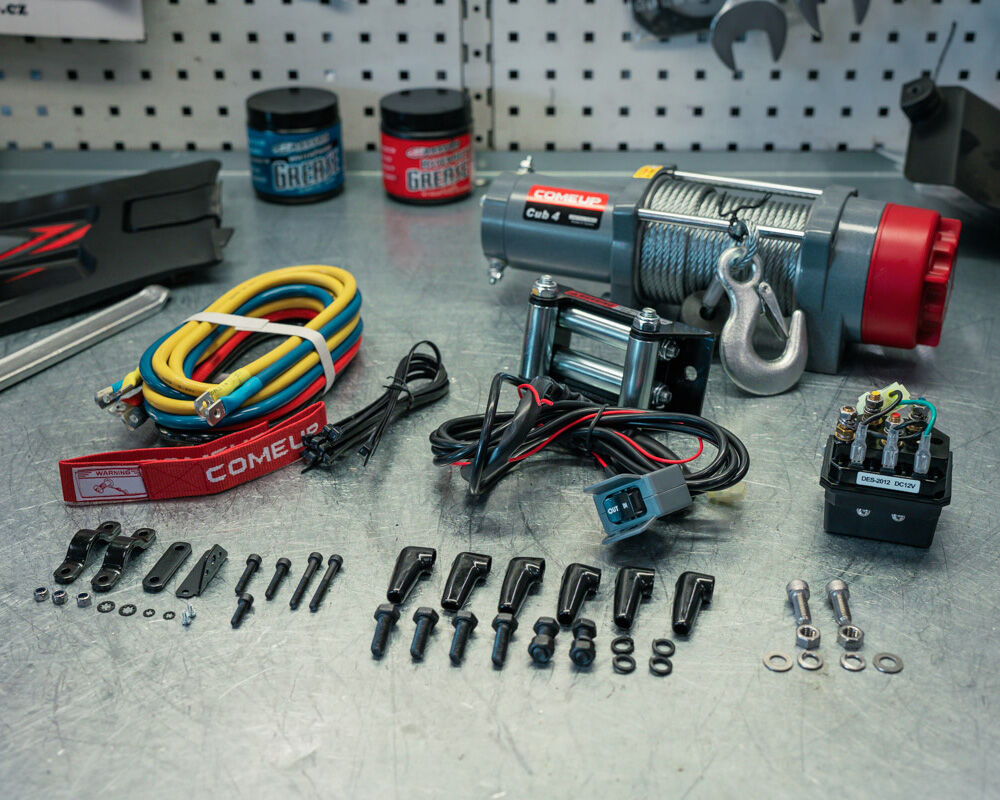

Standard accessories:

  • Handheld rocker switch w/socket wiring, PN 881003
  • 4 way roller fairlead, PN 880132
  • Wire rope w/safety hook, PN 880268
  • Colour coded wirings and 6 gauge battery leads

Optional accessories:

  • Wireless remote control, PN 881286
  • Base plate, PN 880269
  • Remote control PN 881305
  • Snatch Block, PN 881080

Package:

  • Winch weight: 8.9 kg / 19.6 lbs (including wire rope)
  • Gross weight: 13.1 kg / 28.9 lbs
  • Box dimensions (L x D x H): 380 x 362 x 144 mm (15" x 14.3" x 5.7")​

Manufacturer: COMEUP
Manufacturer's website: www.comeupwinch.com
Distributor's website: www.aspgroup.eu

Product Code 123920
Product EAN 8592590017350
Shipping Weight 13,700 kg
