COMEUP Cub 4s 12V STD, 4000lbs, synthetic...

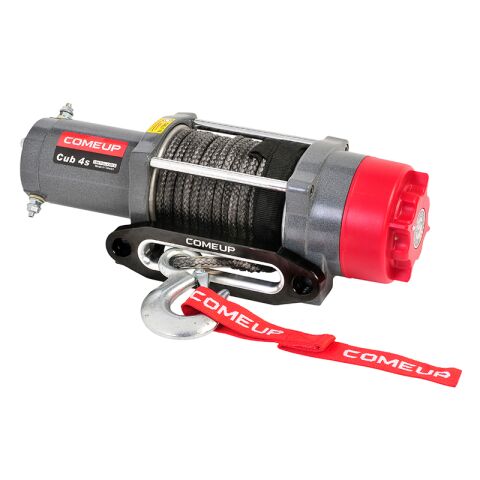

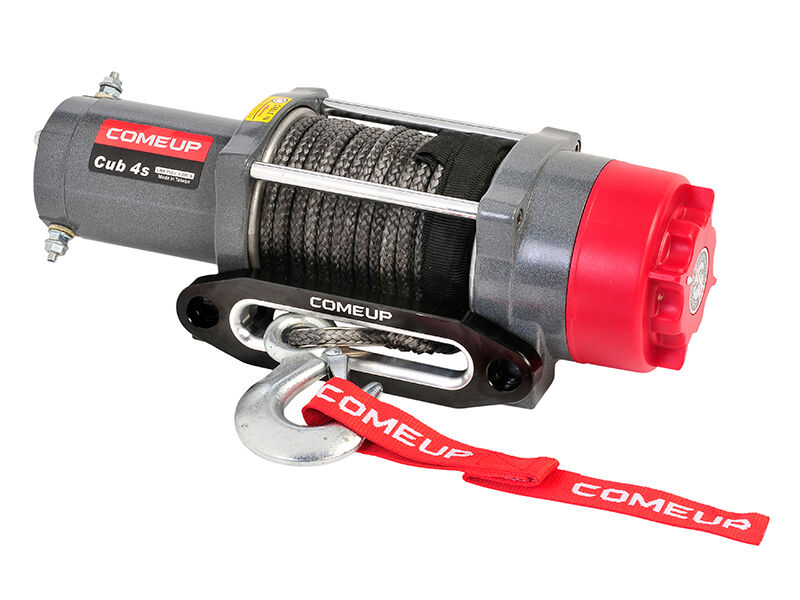

COMEUP Cub 4s 12V STD, 4000lbs, synthetic rope

UTV electric winch, 12V, 4000lbs (1814 kg), synthetic rope, sealed permanent magnet motor, 3 stage planetary gear

Manufacturer: COME UP

Product Code: 129410

Product EAN : 8592590017374

Shipping Weight: 12.5 kg

ON THE WAY

Price excl. VAT € 404,79 Price incl. VAT € 489,80 Shipping Information

258036

Kimpex winch bumper 6pcs

IN STOCK

Price excl. VAT € 92,56 Price incl. VAT € 112

258030

Kimpex Winch Bumper 1pcs

ON REQUEST

Price excl. VAT € 16,53 Price incl. VAT € 20

76-086

AirMan ResQ Scout 12 V Compressor +100 ml Tire Sealant - Tire Mobility KIT

RECOMMENDED

IN STOCK

Price excl. VAT € 28,10 Price incl. VAT € 34

883873

COMEUP Wireless Remote Control RF-24DP-D for Cub 2/3/4

IN STOCK

Price excl. VAT € 134,63 Price incl. VAT € 162,90

800-3245

SHARK Universal Tool Holder (2pcs), (32-45mm)

NEW IN STOCK
RECOMMENDED

IN STOCK

Price excl. VAT € 14,71 Price incl. VAT € 17,80

880268

Steel rope With Hook 5.5mm x 15.2m for Cub 4

ON THE WAY

Price excl. VAT € 57,27 Price incl. VAT € 69,30

881CUB4

Universal plate CUB4

IN STOCK

Price excl. VAT € 16,86 Price incl. VAT € 20,40

881081

Snatch Block With Hook max. load 2,7t

ON THE WAY

Price excl. VAT € 37,11 Price incl. VAT € 44,90

Product Code	129410
Product EAN	8592590017374
Manufacturer	COME UP
Shipping Weight	12.5 kg

COMEUP Cub 4s winch

Advanced 4,000 lbs of pulling capacity with Synthetic Rope.

Features:

4,000 lb (1,814 kg) line pull
Power in and power out
Winch drum centred avoids the interference of rope and provides streamlined appearance
Mechanical load holding and dynamic brake for 100% braking
High efficiency, low amp draw and sealed permanent magnet motor
Full metal 3 stage planetary gear train for greater pulling force
Sliding pin and ring gear clutch for rapid synthetic rope payout
Weather sealed contactor gives better water proof and lower amp. draw
15.2 m (50 ft) of 5.5 mm (7/32") synthetic rope from Dyneema's SK-75 supplied
E/e marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*01

Specification / part numbers:

Part Number: PN 129410
Maximum line pull: 4,000 lb (1,814 kg)
Motor: Permanent magnet 800w/1.0hp 12V DC motor
Gear train: 3-stage planetary gears
Gear ratio: 191:1
Brake: Mechanical & dynamic
Clutch: Sliding pin and ring gear
Control: Handlebar rocker switch
Rope (mm x m): 5.5 x 15.2 (7/32" x 50'), synthetic SK-75
Winch construction: Aluminum die cast housings with steel drum
Rotation of winch: Rope shall be under-wound orientation only
Drum size (mm x mm): 55 x 119 (2.2" x 4.7")
Mounting bolts pattern (mm x mm): 76 x 168 (3"x 6.6")

Line pull and rope capacity:

Layer of rope	Pull by Layer kg / lb	Total Rope m / ft
1st Layer	1,814 / 4,000	4.0 / 13.2
2nd Layer	1,535 / 3,385	8.8 / 28.8
3rd Layer	1,331 / 2,933	14.2 / 46.7
4th Layer	1,174 / 2,588	15.2 / 50

Line speed and amp. draw (1st layer of rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
No Load	6.0 / 19.7	20
227 / 500	3.9 / 12.8	45
454 / 1,000	3.4 / 11.2	70
680 / 1,500	3.1 / 10.2	90
907 / 2,000	2.9 / 9.5	120
1,134 / 2,500	2.7 / 8.9	150
1,361 / 3,000	2.4 / 7.9	180
1,588 / 3,500	2.2 / 7.2	210
1,814 / 4,000	2.0 / 6.6	230

Warning:
* The winch is not intended to be used in any manner for the movement or lifting of personnel. * The rated line pull shown is based on the first layer of rope on the drum. * The rope winding on the drum shall remain 5 wraps from the drum.

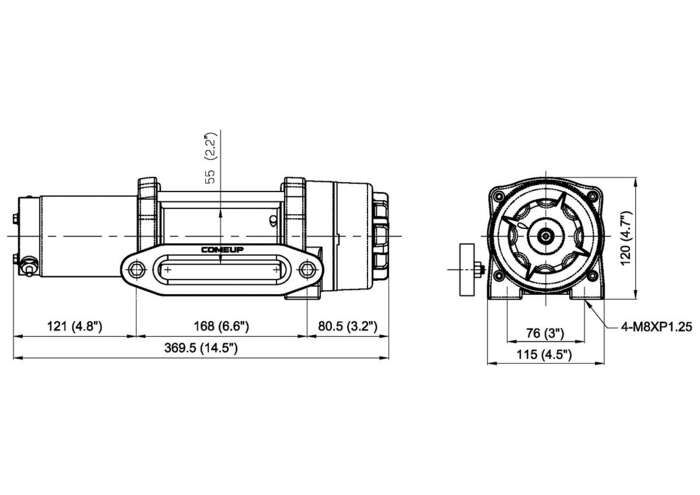

Dimensions (mm/in):

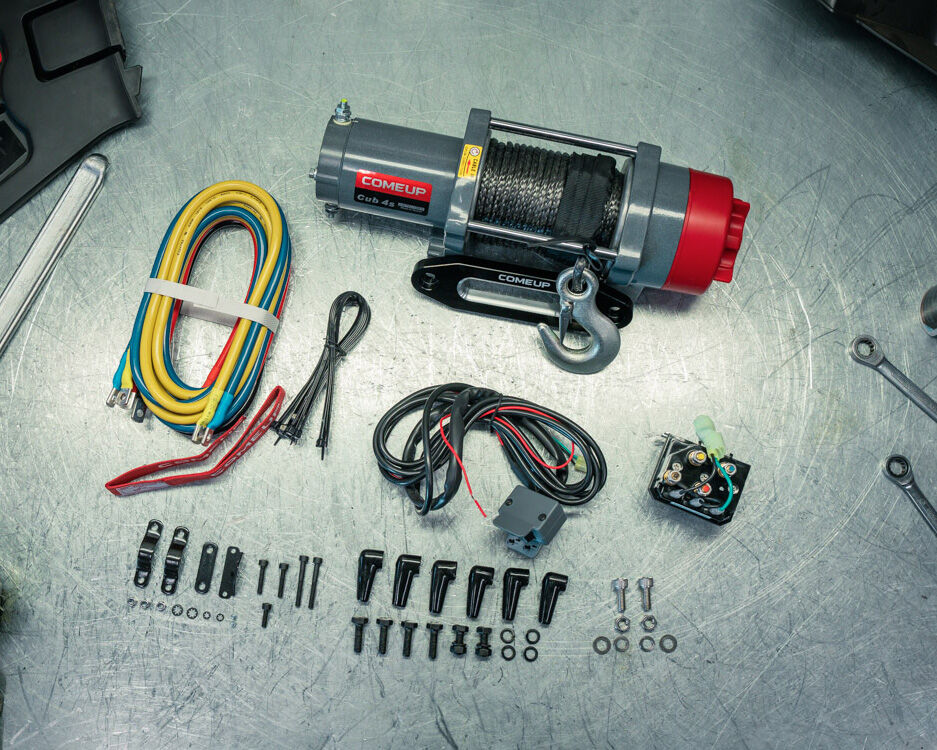

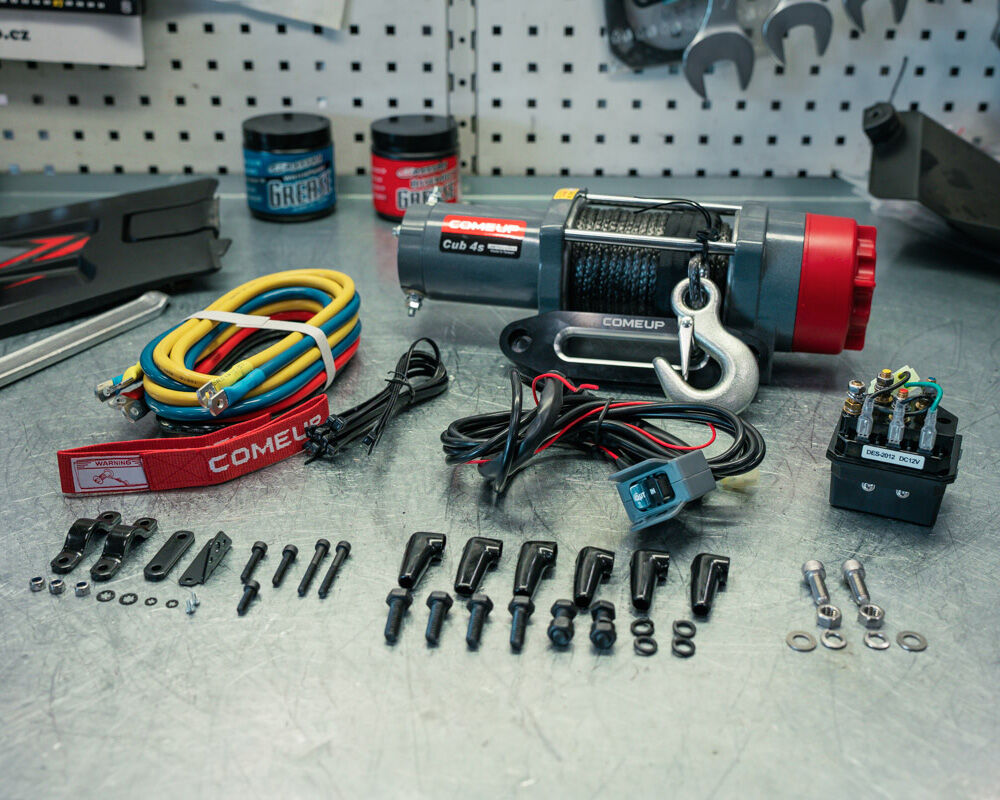

Standard accessories:

Handheld rocker switch w/socket wiring, PN 881003
Hawse fairlead, PN 881072
Synthetic rope w/safety hook, PN 881064
Colour coded wirings and 6 gauge battery leads

Optional accessories:

Wireless remote control, PN 881286
Snatch Block, PN 881080
Base plate, PN 880269
Remote control PN 881305

Package:

Winch weight: 8 kg / 17.6 lb (including rope)
Gross weight: 12 kg / 26.4 lb
Box dimension (L x D x H): 380 x 362 x 144 mm (15" x 14.3" x 5.7")

Manufacturer: COMEUP
Manufacturer's website: www.comeupwinch.com
Distributor's website: www.aspgroup.eu
