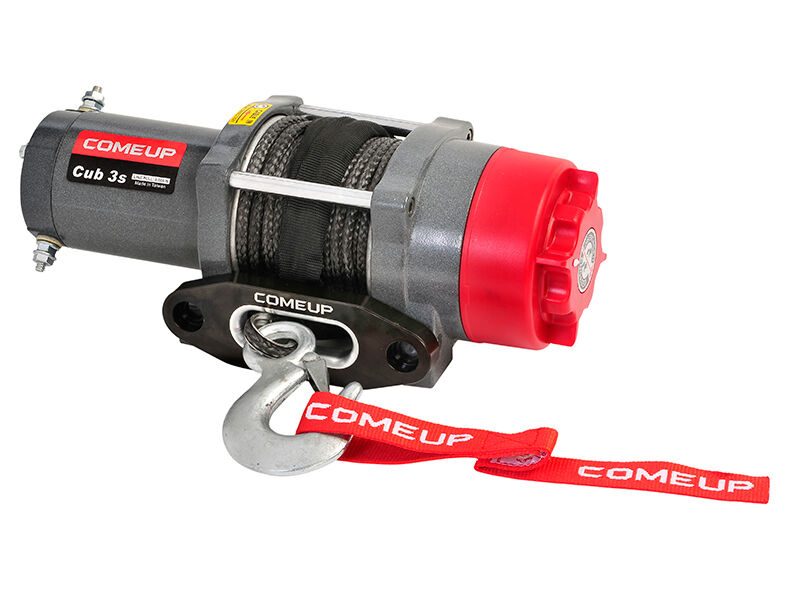

COMEUP ATV Winch Cub 3s

COMEUP ATV Winch Cub 3s, 12V, 3000lbs, synthetic rope.

Features:

• 3,000 lb (1,361 kg) line pull
• Power in and power out
• Winch drum centred avoids the interference of rope and provides streamlined appearance
• Mechanical load holding and dynamic brake for 100% braking
• High efficiency, low amp draw and sealed permanent magnet motor
• Full metal 3 stage planetary gear train for greater pulling force
• Sliding pin and ring gear clutch for rapid synthetic rope payout
• Weather sealed contactor gives better water proof and lower amp. draw
• 15.2 m ( 50 ft) of 4.8 mm ( 3/16") synthetic rope from Dyneema's SK-75 supplied
• E/e marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*0

Specification / part numbers:

• Part Number: PN 129300
• Maximum line pull: 3,000 lb (1,361 kg)
• Motor: Permanent magnet 800w/1.0hp 12V DC motor
• Gear train: 3-stage planetary gears
• Gear ratio: 138.5:1
• Brake: Mechanical & dynamic
• Clutch: Sliding pin and ring gear
• Control: Handlebar rocker switch
• Rope size (mm x m): 4.8 x 15.2 (3/16" x 50'), synthetic SK-75
• Winch construction: Aluminum die cast housings and drum
• Rotation of winch: Rope shall be under-wound orientation only

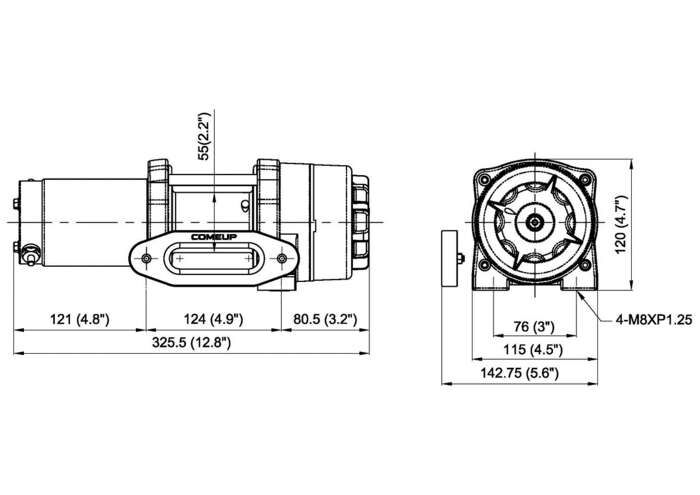

• Drum size (mm x mm): 55 x 75 (2.2" x 3")
• Mounting bolts pattern (mm x mm): 76 x 124 (3"x 4.9"*Limited lifetime warranty

Line pull and rope capacity:

Line speed and amp. draw (1st layer of rope on the drum):

Warning:
* The winch is not intended to be used in any manner for the movement or lifting of personnel. * The rated line pull shown is based on the first layer of rope on the drum. * The rope winding on the drum shall remain 5 wraps from the drum.

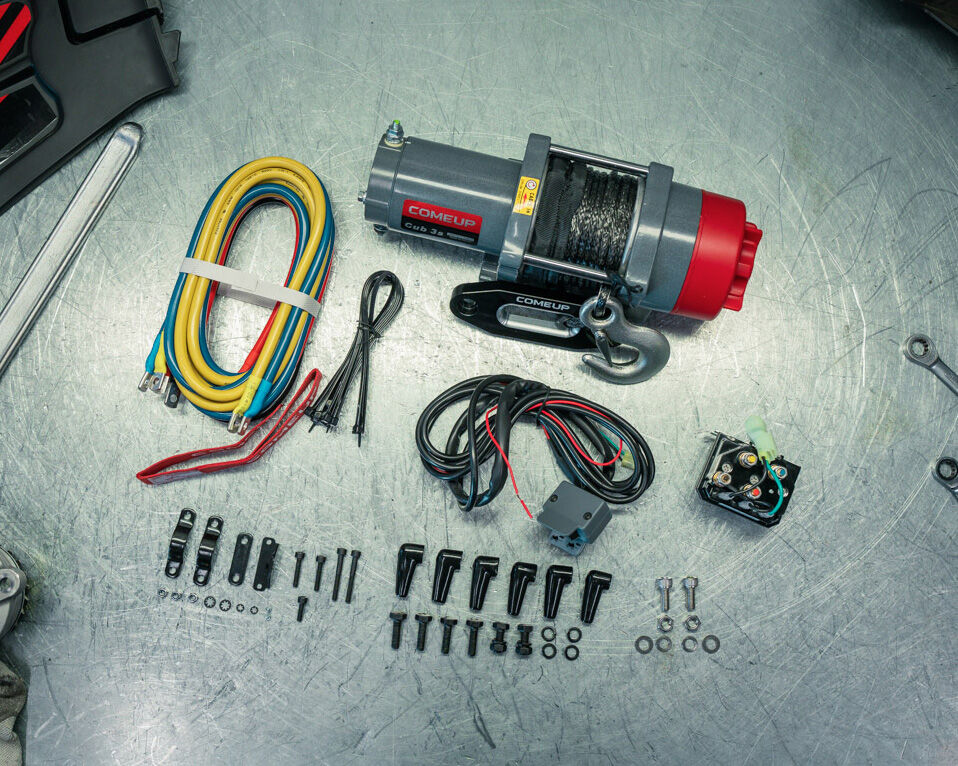

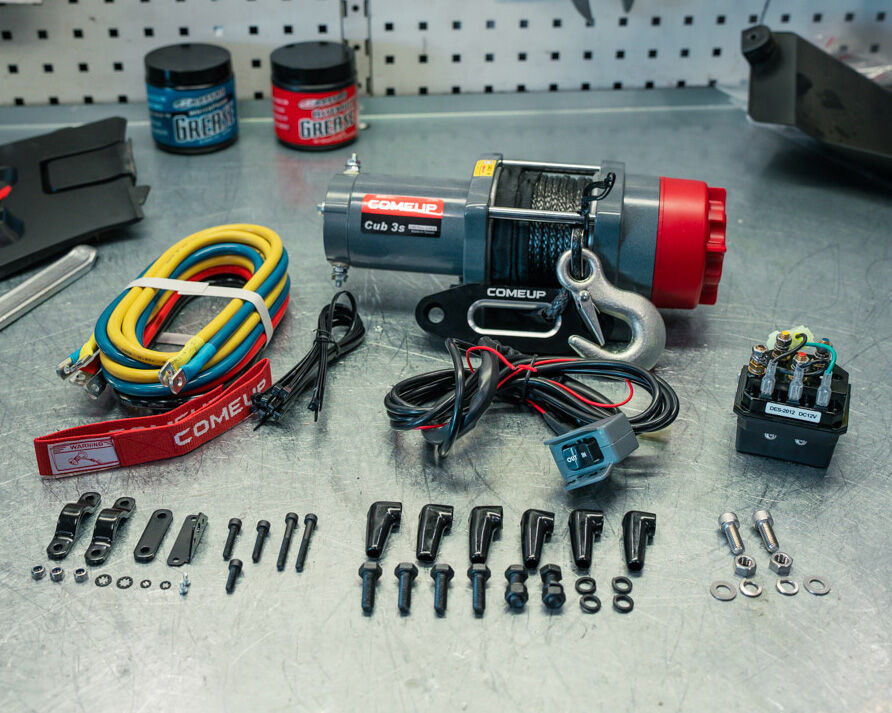

Standard accessories:

• Handlebar rocker switch w/socket wiring, PN 881003
• Hawse fairlead, PN 881072
• Synthetic rope w/safety hook, PN 881063
• Colour coded wirings and 6 gauge battery leads

Optional accessories:

• Wireless remote control, PN 881286
• Handheld remote control w/10' (3m) cord, PN 881289
• Base plate, PN 880232
• Snatch block, PN 881081
• Remote control PN 881305

Package:

• Winch weight: 7.2 kg / 15.9 lb (including rope)
• Gross weight: 11.5 kg / 25.3 lb
• Box dimension (L x D x H): 349 x 331 x 144 mm (13.7" x 13" x 5.7")

Manufacturer: COMEUP
Manufacturer's website: www.comeupwinch.com
Distributor's website: www.aspgroup.eu
