COMEUP Cub 3 12V STD, 3000lbs, steel rope

COME UP

ATV electric winch, 12V, 3000lbs (1361 kg), steel rope, sealed permanent magnet motor, 3 stage planetary gear

  • Manufacturer  COME UP
  • Product Code  123561
  • Product EAN   8592590017343
  • Shipping Weight  12,700 kg
IN STOCK
Price € 367 Price excl. VAT € 302,98 Shipping Information
  • 800-3245
    SHARK Universal Tool Holder (2pcs), (32-45mm) SHARK Universal Tool Holder (2pcs), (32-45mm)
    • NEW IN STOCK
    • RECOMMENDED

    IN STOCK
    Universal multi-purpose heavy-duty tool holders, UV & salt water resistant, size 32-45 mm, 2...
    Price excl. VAT € 14,84 Price incl. VAT € 18
  • 883873
    COMEUP Wireless Remote Control RF-24DP-D for Cub 2/3/4 COMEUP Wireless Remote Control RF-24DP-D for Cub 2/3/4

    IN STOCK
    Wireless Remote Control for Come UP winches, 2.4 GHz, ergonomic design fits comfortably with...
    Price excl. VAT € 134,63 Price incl. VAT € 163
  • 76-086
    AirMan ResQ Scout 12 V Compressor +100 ml Tire Sealant - Tire Mobility KIT AirMan ResQ Scout 12 V Compressor +100 ml Tire Sealant - Tire Mobility KIT
    • RECOMMENDED

    IN STOCK
    Repair kit for fixing flat tires, for motorcycles, ATVs and scooters, repairs punctures up t...
    Price excl. VAT € 28,10 Price incl. VAT € 34
  • 258030
    Kimpex Winch Bumper 1pcs Kimpex Winch Bumper 1pcs

    IN STOCK
    Winch Bumper, prevents the cable from breaking, improved design, installation in seconds, He...
    Price excl. VAT € 16,53 Price incl. VAT € 20
  • 258036
    Kimpex winch bumper 6pcs Kimpex winch bumper 6pcs

    IN STOCK
    Winch Bumper, prevents the cable from breaking, improved design, installation in seconds, He...
    Price excl. VAT € 92,56 Price incl. VAT € 112
  • 881081
    Snatch Block With Hook max. load 2,7t

    ON REQUEST
    Snatch Block, doubles your winches pulling power, assists in double lined and angle pulls 2 ...
    Price excl. VAT € 37,11 Price incl. VAT € 45
  • 881CUB3
    Universal plate CUB3

    IN STOCK
    Universal mounting plate for attaching the ComeUp Cub 3 winch to ATV, with pre-drilled holes...
    Price excl. VAT € 50,58 Price incl. VAT € 61
  • 880230
    Steel rope With Hook 4.8mm x 15.2m for Cub 3

    ON REQUEST
    Steel wire rope 4,8mm x 15.2m for COMEUP Cub 3 ATV Winch, galvanized aircraft A7 x 19, with ...
    Price excl. VAT € 53,97 Price incl. VAT € 65

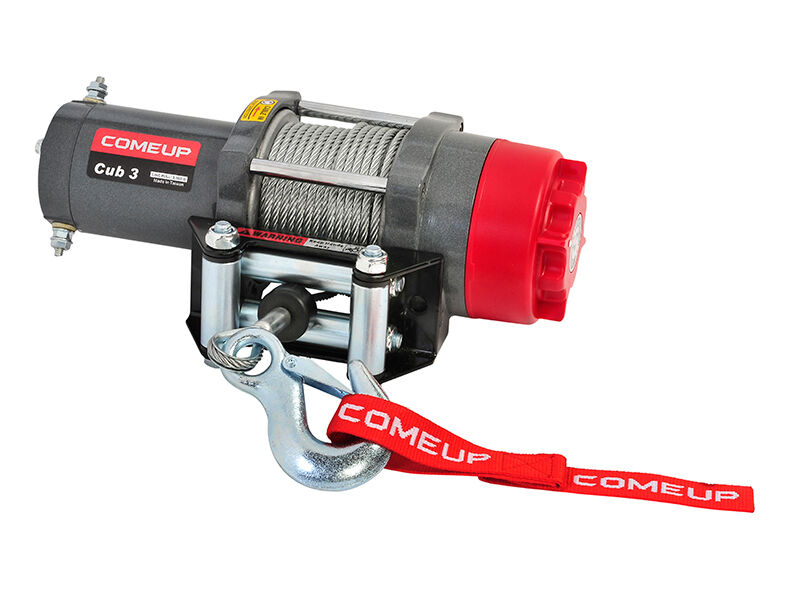

COMEUP ATV Winch Cub 3, 12V, 3000lbs, Steel rope

ATV electric winch, 3000lbs (1361 kg).

Features:

  • 3,000 lb (1,361 kg) line pull
  • Power in and power out
  • Winch drum centred avoids the interference of rope and provides streamlined appearance
  • Mechanical load holding and dynamic brake for 100% braking
  • High efficiency, low amp draw and sealed permanent magnet motor
  • Full metal 3 stage planetary gear train for greater pulling force
  • Sliding pin and ring gear clutch for rapid wire rope payout
  • Weather sealed contactor gives better water proof and lower amp. draw
  • E/e marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*01

Specifications / part numbers:

  • Winch Part Number: PN 123561
  • Maximum line pull: 3,000 lb (1,361 kg)
  • Motor: Permanent magnet 800w/1.0hp 12V DC motor
  • Gear train: 3-stage planetary gears
  • Gear ratio: 138.5:1
  • Brake: Mechanical & dynamic
  • Clutch: Sliding pin and ring gear
  • Control: Handlebar rocker switch
  • Wire rope: 4.8 mm x 15.2 m (3/16" x 50'), galvanized aircraft A7 x 19
  • Winch construction: Aluminum die cast housings and drum
  • Rotation of winch: Wire rope shall be under-wound orientation only

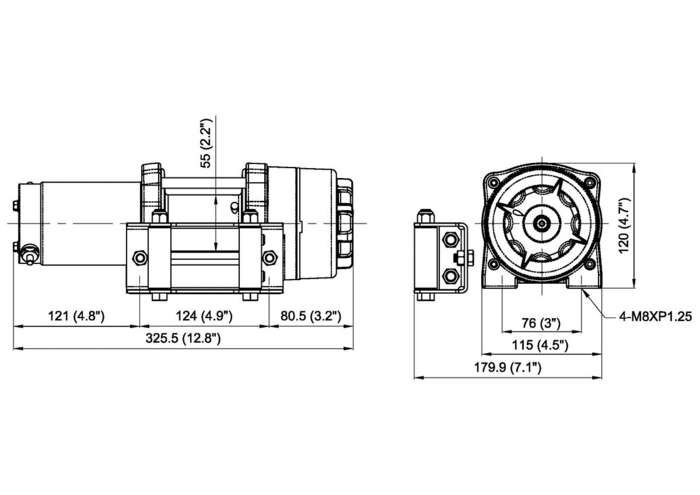

  • Drum size: 55 x 75 mm (2.2" x 3")
  • Mounting bolts pattern: 76 x 124 mm (3"x 4.9")

Line pull and rope capacity:

Layer of Wire Rope Pull by layer kg / lbs Total rope m / ft
1st layer 1,361 / 3,000 2.8 / 9.3
2nd layer 1,173 / 2,585 6.1 / 20.1
3rd layer 1,030 / 2,271 9.9 / 32.5
4th layer 918 / 2,025 14.1 / 46.3
5th layer 829 / 1,827 15.2 / 50

Line speed and amp. draw (1st layer of rope on the drum):

Line pull, kg / lbs Line speed, mpm / fpm Amp. draw, A
No Load 6.8 / 22.2 20
227 / 500 5.7 / 18.7 45
454 / 1,000 4.8 / 15.6 75
680 / 1,500 3.8 / 12.5 105
907 / 2,000 3.0 / 9.8 140
1,134 / 2,500 2.5 / 8.0 180
1,361 / 3,000 2.0 / 6.7 230

Warning:
* The winch is not intended to be used in any manner for the movement or lifting of persons.
* The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

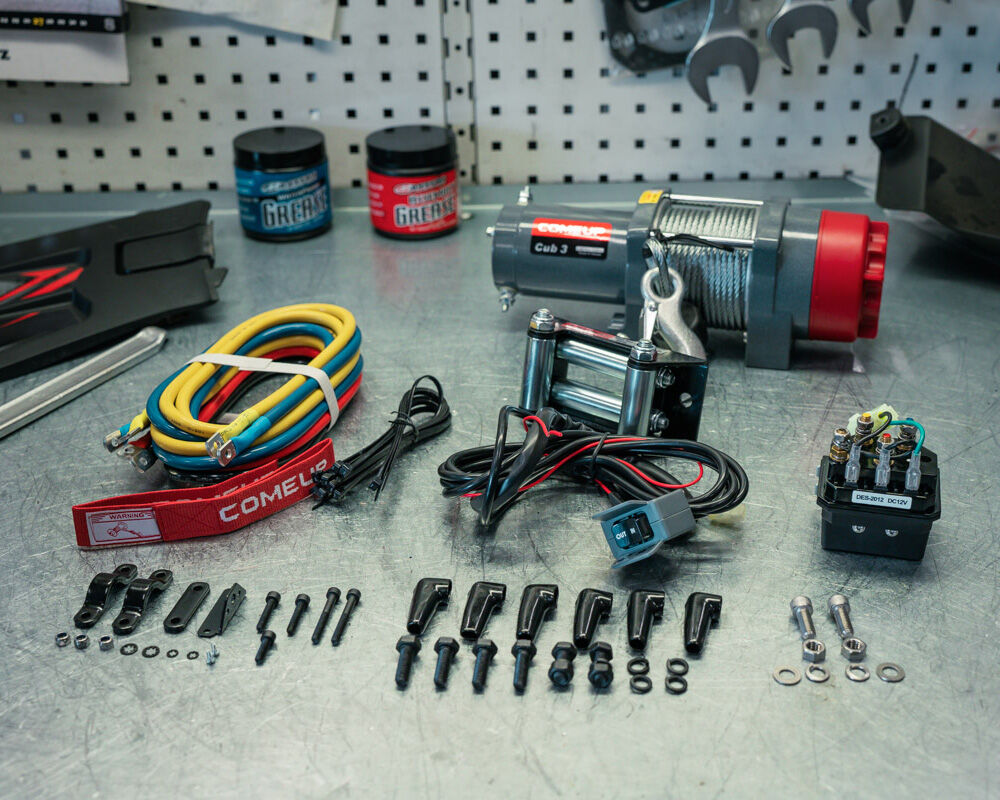

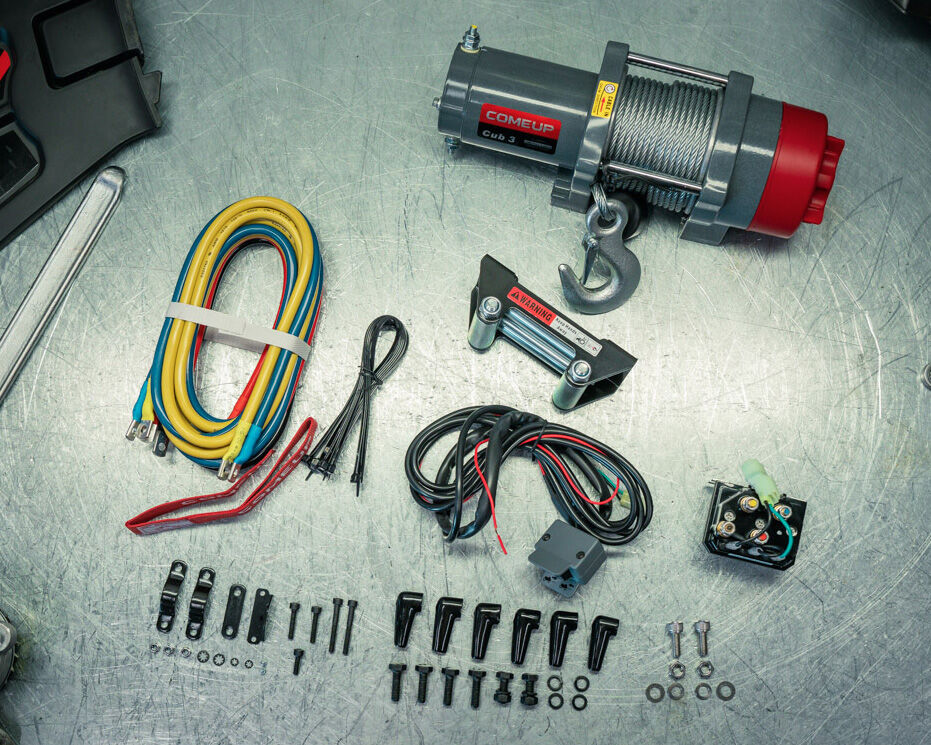

Standard accessories:

  • Handlebar rocker switch w/socket wiring, PN 881003
  • 4 way roller fairlead, PN 880231
  • Wire rope with safety hook, PN 880230
  • Colour coded wirings and 6 gauge battery leads

Optional accessories:

  • Wireless remote control, PN 881286
  • Handheld remote control w/10' (3m) cord, PN 881289
  • Base plate, PN 880232
  • Snatch block, PN 881081
  • Remote control PN 881305

Package:

  • Winch weight: 8.2 kg / 18 lbs (including wire rope)
  • Gross weight: 12.5 kg / 27.6 lbs
  • Box dimensions (L x D x H): 349 x 331 x 144 mm (13.7" x 13" x 5.7")

Manufacturer: COMEUP
Manufacturer's website: www.comeupwinch.com
Distributor's website: www.aspgroup.eu

Product Code 123561
Product EAN 8592590017343
Shipping Weight 12,700 kg
