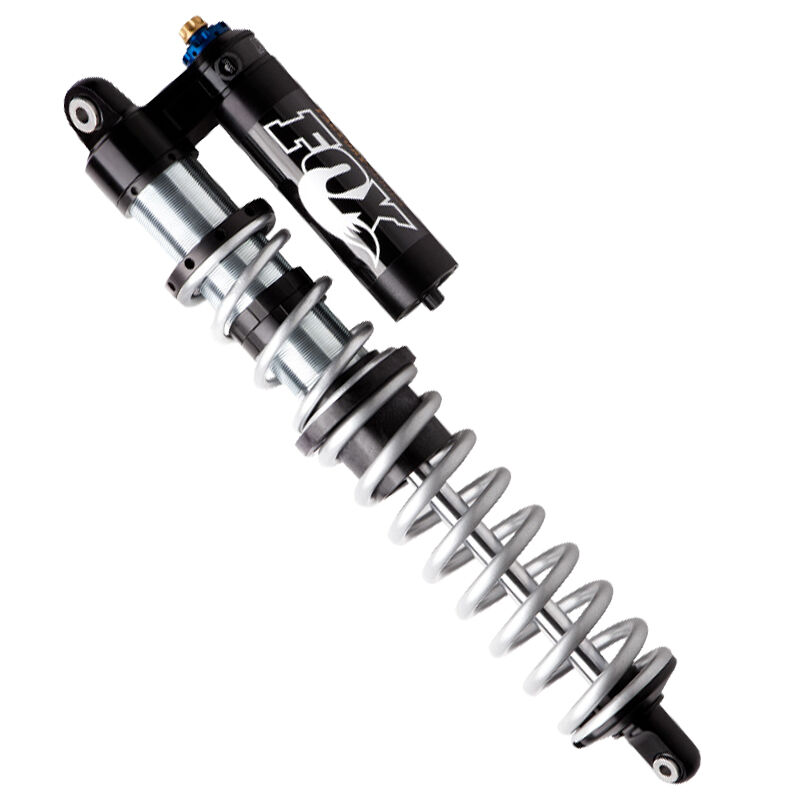

Fox 2.5 Podium, Internal Bypass, Front Coilover, 8.5, DSC

Fox 2.5 PODIUM® Internal Bypass shocks deliver race-proven, position-sensitive damping technology and performance in a hassle-free, bolt-on kit. Our patented position-sensitive internal bypass technology contains inner passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. The new shocks allow for a plush, predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving—designed to bolt right on to your stock UTV. The Dual Speed Compression (DSC) adjuster provides versatility and precise tuning. A simple twist of either of the adjuster knobs allows for twelve separate low-speed and ten high-speed compression levels. Increased cooling capability is achieved through the shock's 2.5-inch remote reservoir with a large hose. Fox 2.5  PODIUM® Internal Bypass shocks also share many of the same components that our race-proven Trophy Truck shocks use including: stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil, and high-temp Viton® seals.

Features:

• Terrain type: Race, Trail and Sand
• 2.5" smooth bore and honed seamless alloy body
• Zinc-plated for long lasting finish
• 2.5" smooth bore and honed seamless alloy external reservoir
• Black-anodized, CNC-machined 6061-T6 billet aluminum components

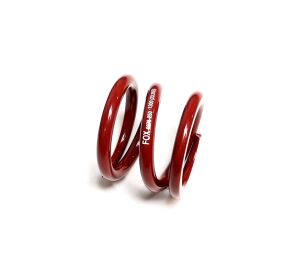

• Spring Dual Coil
• 22 mm 17-4 H900 stainless steel hard-chrome plated shaft
• 6061-T6 hard-anodized, high flow aluminum piston
• Valving: 7 compression stages. 4 rebound stages
• Direct replacement for your stock UTV
• Sold in pairs

Adjustments

• Dual Speed Compression (DSC)
• Spring Preload
• Spring Crossover

​Technology:

• DSC (Dual Speed Compression)
  With DSC, you can adjust the shock's high and low-speed compression damping by simply turning the external adjusters.

• Internal Bypass
  Fox patented Internal Bypass technology offers position sensitive damping that adapts to any terrain on and off the road, providing a plush, predictable ride everywhere you go.

Manufacturer: Fox Shox USA
