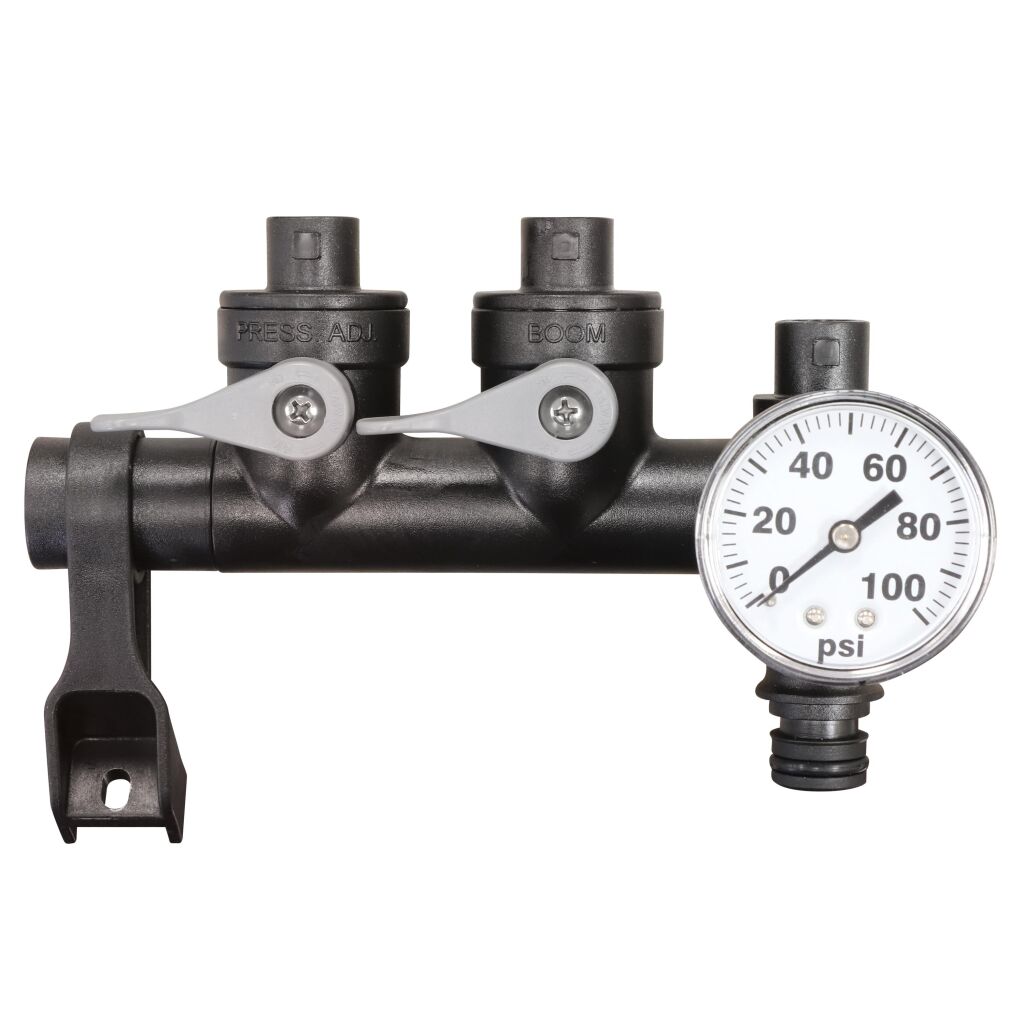

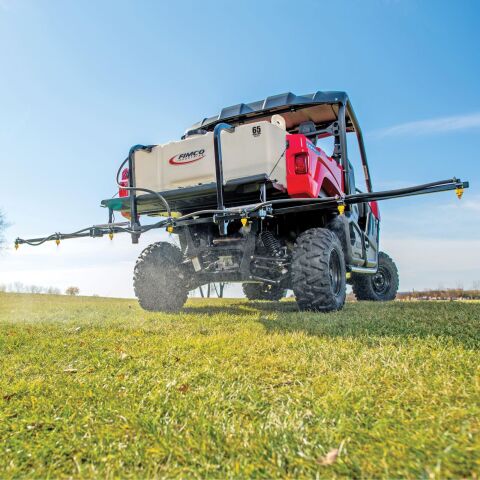

The FIMCO UTV 7 Nozzle Sprayer is designed to work with UTV and lawn tractors for even spraying & applying of insecticides and herbicides, desinfection etc. The UV resistant, polymer tank has large tethered lid for easy access and is completely drainable. This sprayer features the best in class High Flo High Performance 17 l/min Pump with inline fuse protection. The Deluxe Pistol Grip Handgun distributes up to 12m horizontal spray, 8,5m of vertical spray and comes with 7,5m hose. The 7 Nozzle boom offers 3,6m of total spray coverage and FIMCO exclusive manifold conveniently places pressure control and boom operation at your fingertips to fine tune your spray pattern.

Features:

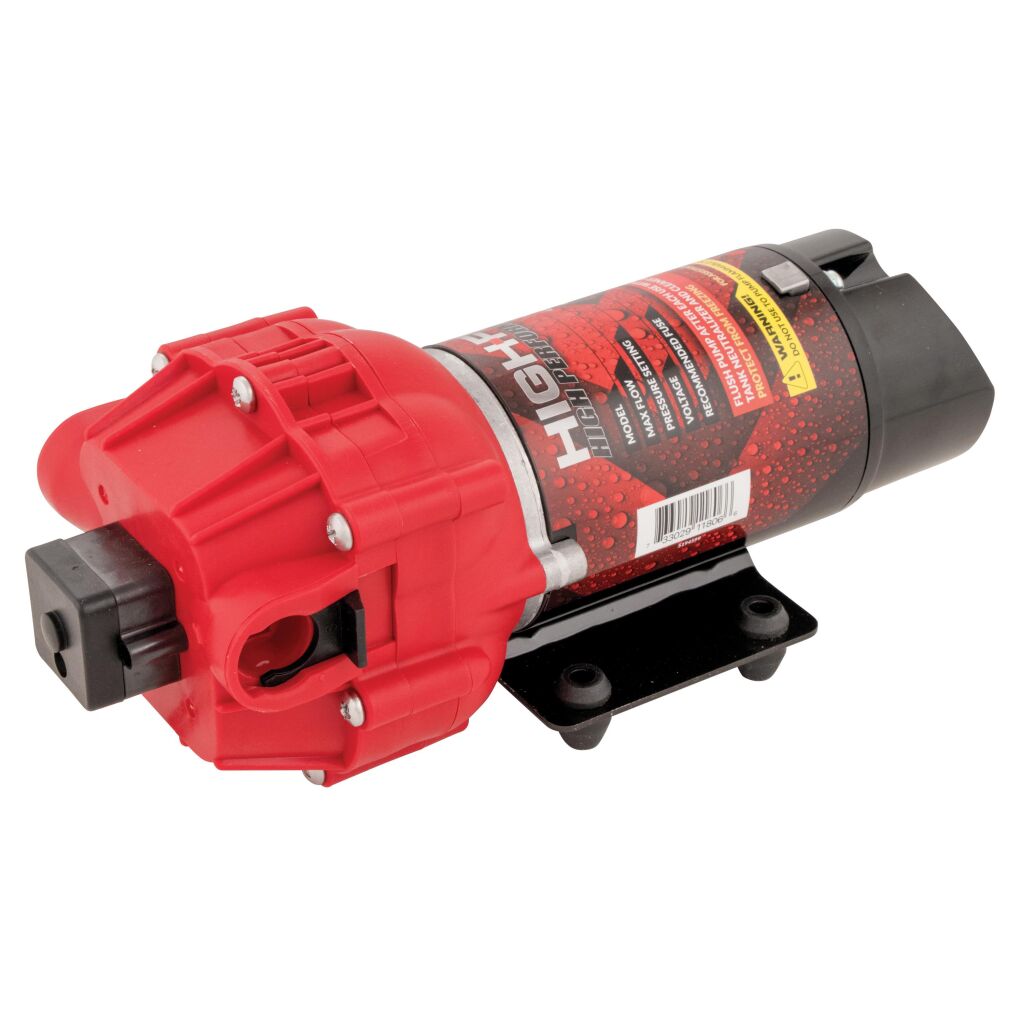

• Best in class 17 l/min High Flo High Performance pump with internally fan cooled motor for longer pump life

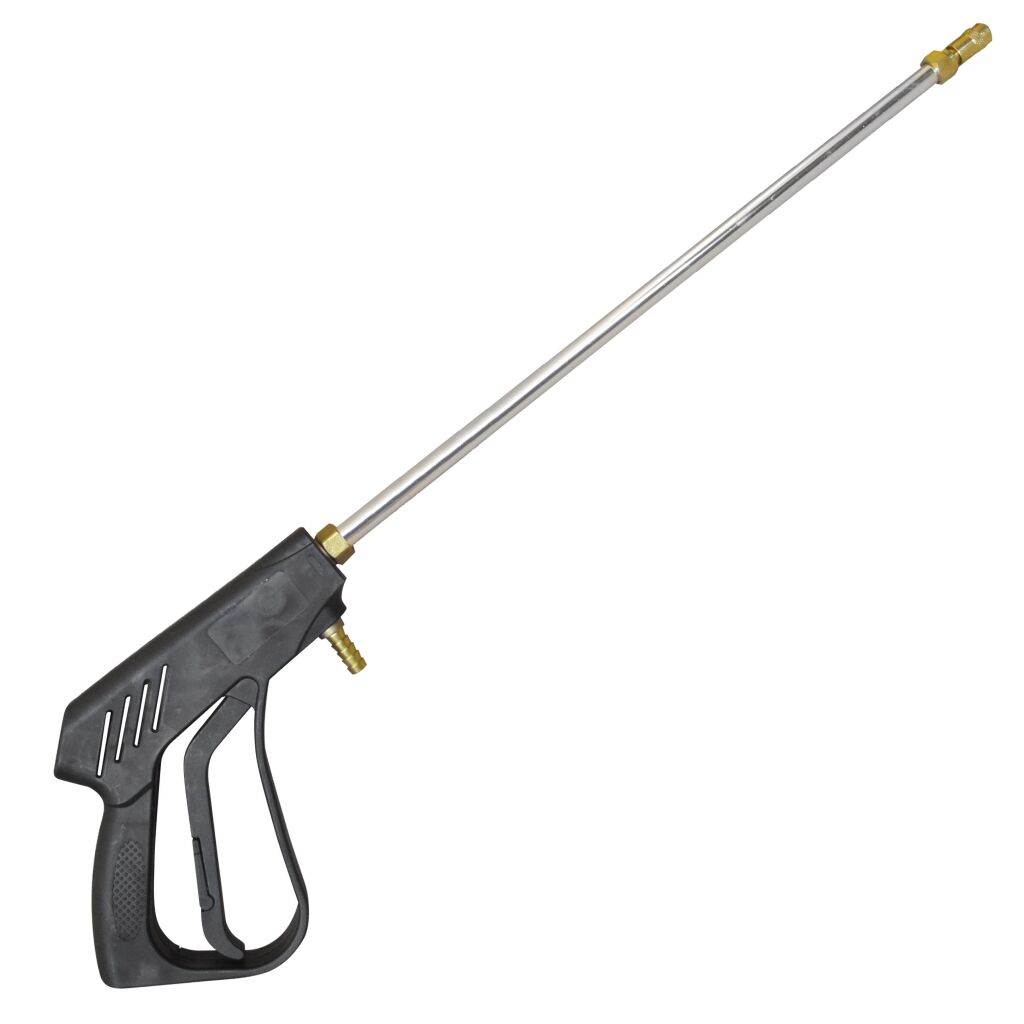

• Deluxe pistol grip handgun delivers up to 12m of horizontal spray and 8,5m of vertical spray
• Ergonomic polymer handle and precision brass tip.
• 7,5m of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
• Durable 245L tank features molded-in baffles, transport handles and measuring lid which eliminates the need for additional measuring cups

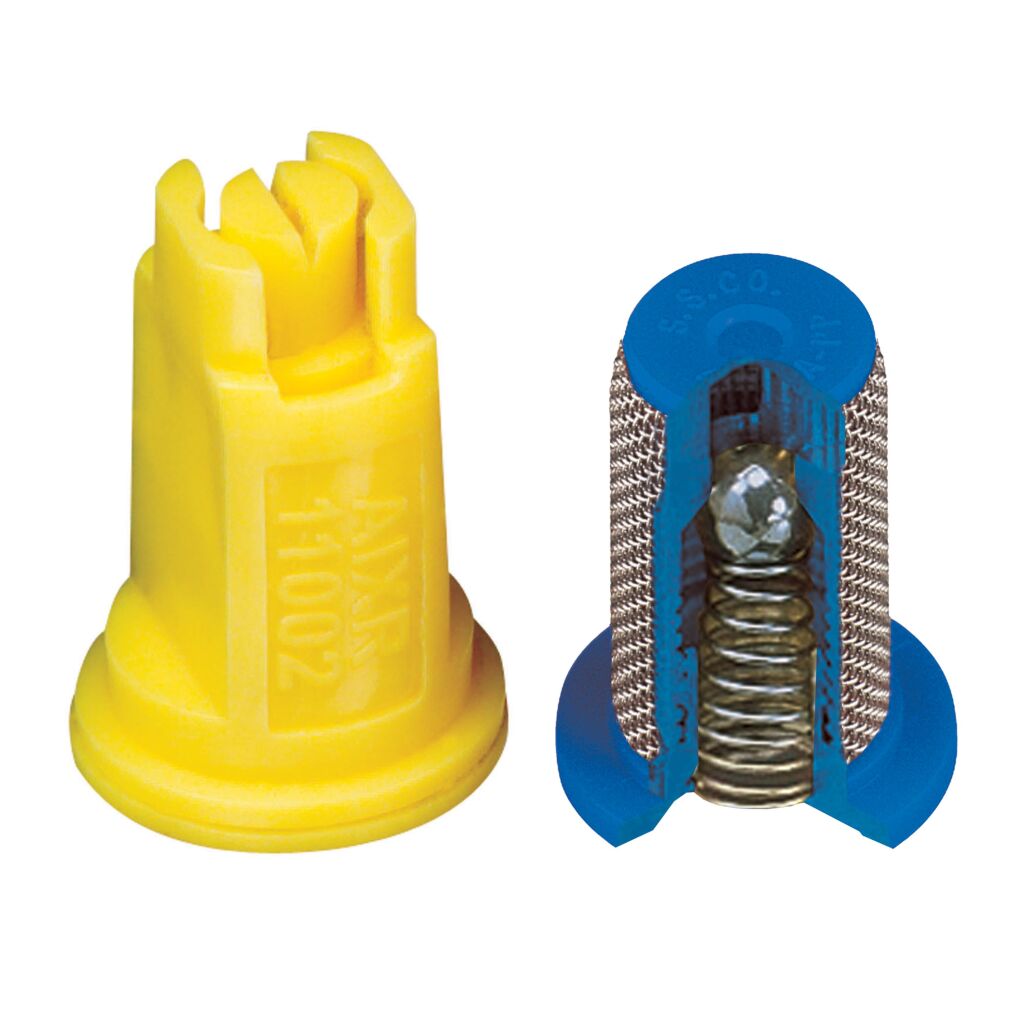

• Folding 7 nozzle delivers 3,6m of total spray coverage, features Teejet® tips and is spring loaded for easy deployment, use and storage
• Innovative top mounted boom design means you don't have to remove your tailgate to install the sprayer

Manufacturer: Fimco USA
www.fimcoindustries.com

• fimco-utv-5302830-manual-cz.pdf
• fimco-utv-5302830-manual-en.pdf
