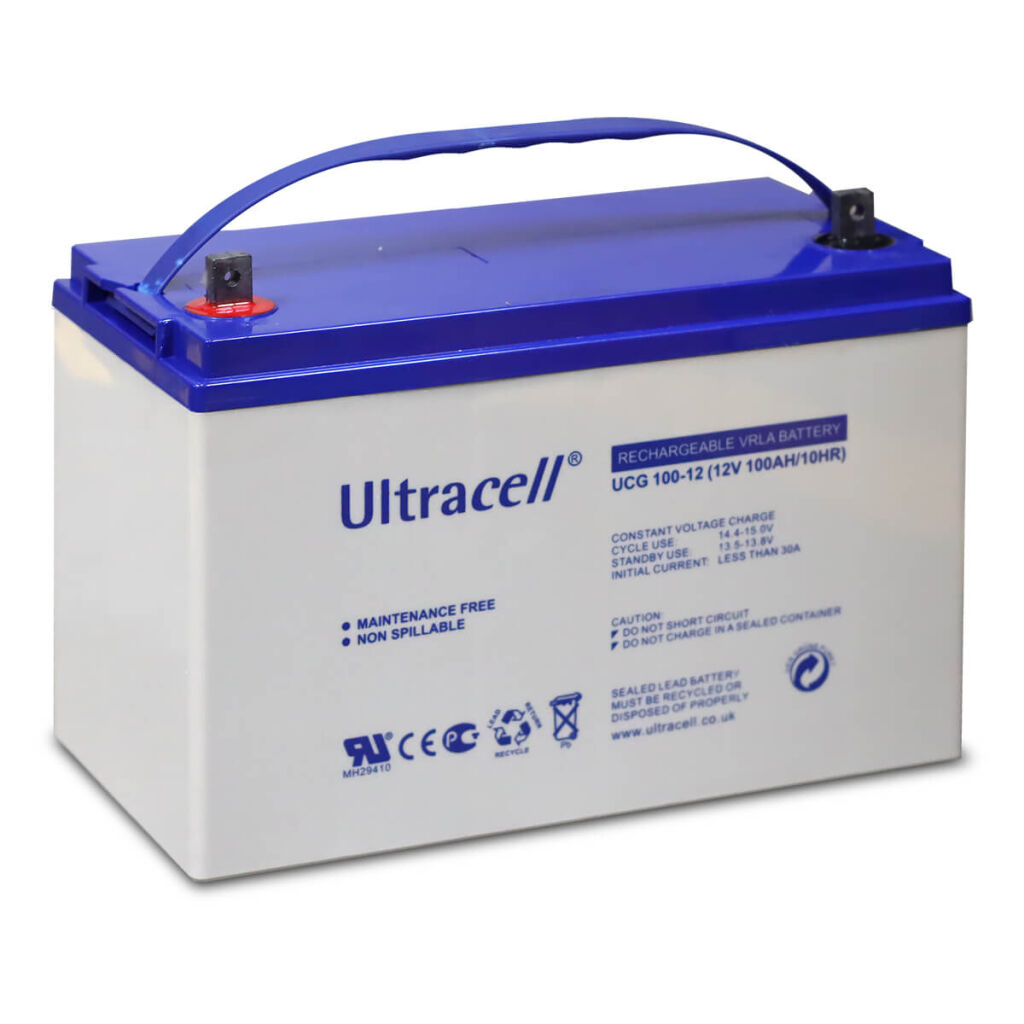

UCG Ultracell UCG100-12, 12V/100Ah, Linhai ATV Electric

UCG Ultracell UCG100-12, 12V, Linhai ATV Electric

Ultracell UCG series traction gel batteries. These are sealed lead-acid batteries in the VRLA design. It is a design in which the internal pressure is regulated by means of valves (VRLA - valve regulated lead acid = valve-controlled lead-acid accumulators). GEL technology, the battery does not contain a liquid electrolyte, the electrolyte is solidified in a hybrid gel (combination with AGM), and thus it is firmly bound in the bowels of the battery cells, thus preventing its leakage. The extra strong cell grid ensures high cyclic resistance of the battery. The excellent "price / quality / performance" ratio ranks Ultracell UCG batteries among the best-selling batteries on the market. Ultracell UCG batteries can also be used for stand-by applications, where the batteries are permanently powered and serve as a backup source in the event of a power failure. They are especially suitable where there are frequent outages or where the batteries are deeply discharged.

Properties:
• hybrid GEL = electrolyte is bound in a hybrid gel (combination with AGM)
• higher maximum discharge currents
• absolutely maintenance-free (in terms of water replenishment)
• Much longer cycle life than a conventional flooded battery
• during cyclic operation, charging voltage 14.4 - 14.9V at a temperature of 25 ° C
• when operating the backup power supply, charging voltage 13.5 - 13.8V at a temperature of 25 ° C
• resistance to deep discharge (better resists deep discharge)
• vibration-proof
• non-pourable block - leak-proof, the battery can work permanently at an angle of inclination of up to 90 °
• It is not a dangerous product of the FAA and IATA categories

Ultracell battery UCG series, optimal life is given in cycles at a temperature of 20 ° C, the number of cycles with regular discharge to 50% D.O.D. (D.O.D. = depth of discharge, 50% energy is removed from the battery) is about 800 cycles.

These traction batteries are designed primarily for the following applications:
• power supply for ELECTRIC MOTORS (golf carts, fishing boats, etc.)
• CARRIVES (caravans, trailers, external power supplies)
• SHIPS, BOATS, SAILING BOATS (for electric motor and for powering appliances on board)
• SOLAR DEVICE (cyclic charging and discharging - solar energy accumulated in the battery)
• MOBILE TRAFFIC MANAGEMENT SYSTEMS, SEMAPHORS, WARNING SIGNS
• can also be used for industrial applications
