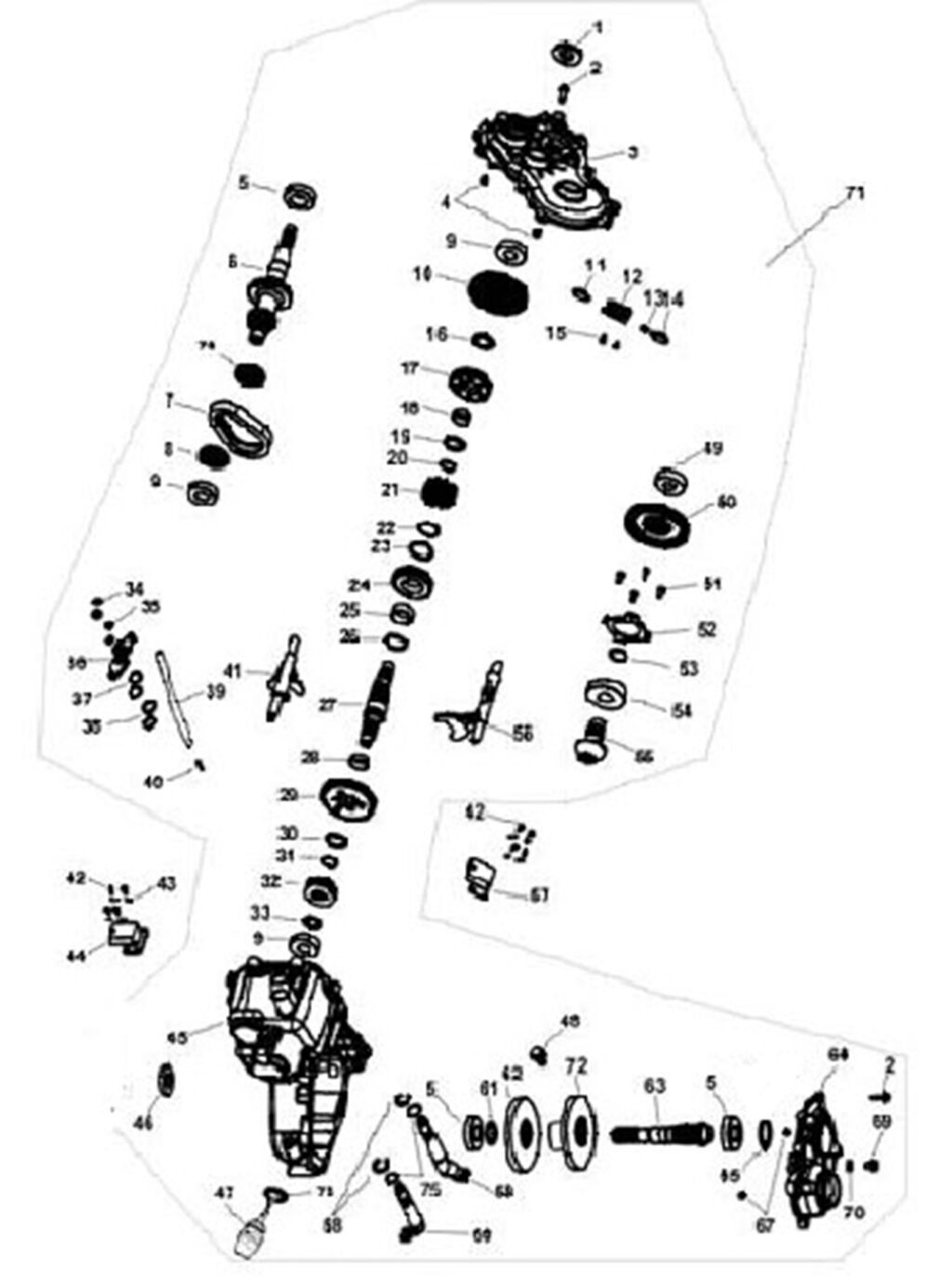

TRANSMISSION

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_111_ATV260-B
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
76 25223 SPEED SENSOR  1
ON REQUEST
Detail
54 BEARING 6305ST (Item nr. 54) 10074 BEARING 6305ST  1 € 12,31 € 15
IN STOCK
53 SNAP RING (Item nr. 53) 21453 SNAP RING  1 € 2,40 € 3
IN STOCK
52 21351 BEARING RETAINER PLATE  1 € 3,47 € 4
ON REQUEST
51 10073 SCREW M6X10  4
ON REQUEST
Detail
50 GEAR HELICAL 46T (Item nr. 50) 21350 GEAR HELICAL 46T  1 € 42,31 € 51
IN STOCK
49 BEARING 6204C3 (Item nr. 49) 10063 BEARING 6204C3  1 € 7,60 € 9
IN STOCK
48 10219 SCREW Of ATV300-D EFI T3b  1
ON REQUEST
Detail
47 DIPSTICK (Item nr. 47) 21475 DIPSTICK  1 € 2,89 € 3
IN STOCK
46 Oil Seal 25X47X8 (Item nr. 46) 21201 Oil Seal 25X47X8  1 € 2,40 € 3
IN STOCK
45 21345a GEARCASE,RH  1
ON REQUEST
Detail
44 GEAR INDICATOR SWITCH (UP) (Item nr. 44) 21344 GEAR INDICATOR SWITCH (UP)  1 € 52,23 € 63
IN STOCK
43 WASHER Φ4 (Item nr. 43) 10071 WASHER Φ4  8 € 2,15 € 3
IN STOCK
42 10007 SCREW ST 4X10  8 € 8,76 € 11
ON REQUEST
41 SHIFT FORK HIGH/REVERSE (Item nr. 41) 21341 SHIFT FORK HIGH/REVERSE  1 € 59,67 € 72
ON REQUEST
40 Vent Tube Fitting (Item nr. 40) 21340 Vent Tube Fitting  1 € 2,40 € 3
IN STOCK
39 21339 Vent Tube  1 € 2,23 € 3
ON REQUEST
55 PINION SHAFT 10T (Item nr. 55) 21455 PINION SHAFT 10T  1 € 142,48 € 172
IN STOCK
56 SHIFT FORK LOW (Item nr. 56) 21456 SHIFT FORK LOW  1 € 59,34 € 72
ON REQUEST
57 GEAR INDICATOR SWITCH (DOWN) (Item nr. 57) 21457 GEAR INDICATOR SWITCH (DOWN)  1 € 44,63 € 54
IN STOCK
75 O-RING 14X2.65 (Item nr. 75) 10123 O-RING 14X2.65  4 € 2,40 € 3
IN STOCK
74 21477 SPROCKET Of ATV300-D EFI T3b  1 € 15,37 € 19
ON REQUEST
73 O-Ring 18×2.65 (Item nr. 73) 10122 O-Ring 18×2.65  1 € 2,40 € 3
RE STOCKING
72 27071 OIL PLATE  1
ON REQUEST
Detail
71 21471 TRANSMISSION ASSY  1
ON REQUEST
Detail
70 21470 WASHER  1 € 2,40 € 3
IN STOCK
69 DRAIN BOLT (Item nr. 69) 21469 DRAIN BOLT  1 € 2,40 € 3
IN STOCK IN 3 days
68 21468 COVER Of ATV300-D EFI T3b  1 € 32,15 € 39
ON REQUEST
67 Locating Pin (Item nr. 67) 21104 Locating Pin  2 € 2,40 € 3
IN STOCK
65 21465 SHIM 1  1 € 2,40 € 3
RE STOCKING
63 SHAFT REAR OUTPUTA (USE WITH SPEED SENSOR) (NEW MODEL) (Item nr. 63) 70354 SHAFT REAR OUTPUTA (USE WITH SPEED SENSOR) (NEW MODEL)  1 € 55,62 € 67
IN STOCK
62 GEAR (Item nr. 62) 21462 GEAR  1 € 142,48 € 172
RE STOCKING
61 THRUST WASHER (Item nr. 61) 21461 THRUST WASHER  1 € 2,40 € 3
IN STOCK
60 SHIFT ROD HIHG/REVERSE (Item nr. 60) 21460 SHIFT ROD HIHG/REVERSE  1 € 19,09 € 23
IN STOCK
59 SHIFT LOW (Item nr. 59) 21459 SHIFT LOW  1 € 17,36 € 21
IN STOCK
58 10075 SNAP RING  2
ON REQUEST
Detail
38 21338 WASHER  2 € 2,40 € 3
ON REQUEST
37 10069 CIRCLIP 19  2 € 2,56 € 3
ON REQUEST
17 GEAR 31T (Item nr. 17) 21217 GEAR 31T  1 € 38,84 € 47
IN STOCK
16 SPACER (Item nr. 16) 21216 SPACER  1 € 2,40 € 3
IN STOCK
15 10001 Cross Recessed Pan Head Screw M5×12  2 € 8,76 € 11
ON REQUEST
14 INTERLOCK PIN (Item nr. 14) 21211 INTERLOCK PIN  1 € 4,38 € 5
IN STOCK
13 21213 SPRING Of ATV300-D EFI T3b  1 € 2,40 € 3
ON REQUEST
12 21212 INTERLOCK BRACKET Of ATV300-D EFI T3b  1 € 2,40 € 3
ON REQUEST
10 GEAR, HELICAL 35T (Item nr. 10) 21210 GEAR, HELICAL 35T  1 € 43,39 € 53
IN STOCK
9 BEARING 6204 (Item nr. 9) 10062 BEARING 6204  3 € 7,36 € 9
IN STOCK
8 GEAR 16T Of ATV300-D EFI T3b (Item nr. 8) 21208 GEAR 16T Of ATV300-D EFI T3b  1 € 27,02 € 33
ON REQUEST
7 CHAIN (Item nr. 7) 21207 CHAIN  1 € 56,53 € 68
IN STOCK
6 INPUT SHAFT (USE WITH HIGH-POWER CLUTCH) (Item nr. 6) 21206b INPUT SHAFT (USE WITH HIGH-POWER CLUTCH)  1 € 99,17 € 120
IN STOCK
5 Bearing 6205C3 (Item nr. 5) 10061 Bearing 6205C3  3 € 7,77 € 9
ON REQUEST
3 MAIN COVER (USE WITH HIGH-POWER CLUTCH) (Item nr. 3) 21203b MAIN COVER (USE WITH HIGH-POWER CLUTCH)  1 € 61,32 € 74
ON REQUEST
2 Hexagon Flange Bolt M8×1.25×28 (Item nr. 2) 10060 Hexagon Flange Bolt M8×1.25×28  17 € 8,02 € 10
IN STOCK
18 NEEDLE BEARING 25 (Item nr. 18) 21218 NEEDLE BEARING 25  1 € 4,55 € 5
IN STOCK
19 Washer 25.5B (Item nr. 19) 21219 Washer 25.5B  1 € 2,40 € 3
IN STOCK
20 Circlip 25 (Item nr. 20) 10064 Circlip 25  1 € 2,40 € 3
IN STOCK
36 BELLCRANK (Item nr. 36) 21336 BELLCRANK  2 € 3,88 € 5
RE STOCKING
35 WASHER 8 (Item nr. 35) 10068 WASHER 8  2 € 7,19 € 9
IN STOCK
34 THRUST NUT M8 (Item nr. 34) 10067 THRUST NUT M8  2 € 2,40 € 3
IN STOCK
33 21333 THRST WASHER Of ATV300-D EFI T3b  1 € 2,40 € 3
ON REQUEST
32 ENGAGEMENT (Item nr. 32) 21332 ENGAGEMENT  1 € 33,80 € 41
IN STOCK
30 THRUST WASHER (Item nr. 30) 21223 THRUST WASHER  1 € 2,40 € 3
IN STOCK
29 GEAR 35T (Item nr. 29) 21329 GEAR 35T  1 € 43,31 € 52
IN STOCK IN 3 days
27 SHAFT (Item nr. 27) 21327 SHAFT  1 € 47,19 € 57
IN STOCK
25 NEEDLE BEARING 25 (Item nr. 25) 21225 NEEDLE BEARING 25  1 € 5,45 € 7
IN STOCK
24 SPROCKET 24T (Item nr. 24) 21224 SPROCKET 24T  1 € 43,14 € 52
IN STOCK IN 3 days
22 SNAP RING (Item nr. 22) 10065 SNAP RING  1 € 2,40 € 3
ON REQUEST
21 DOG GEAR (Item nr. 21) 21221 DOG GEAR  1 € 16,94 € 21
IN STOCK IN 3 days
Product Code LINHAI_1_111_ATV260-B
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 260/300
Select MODEL: 260
