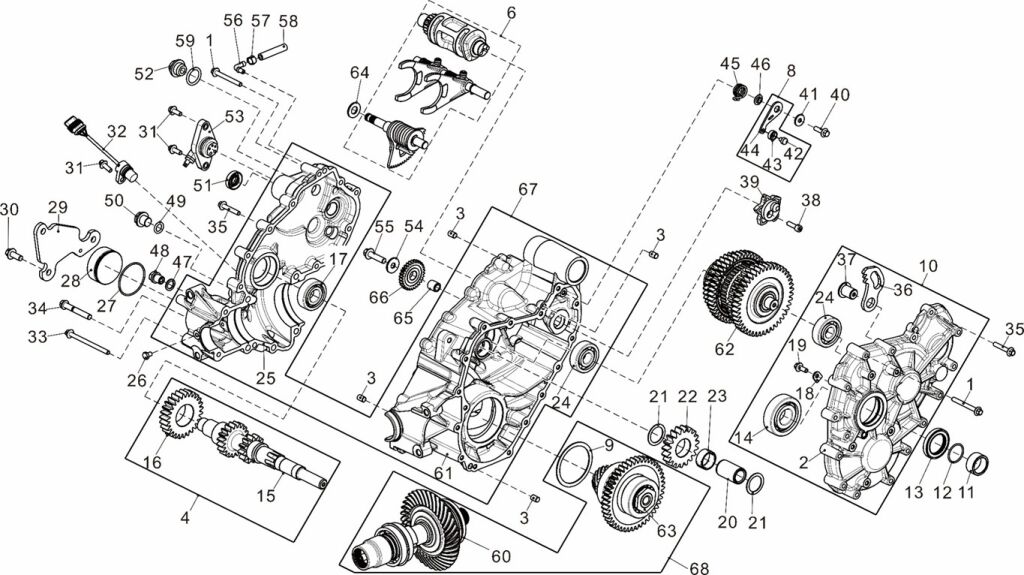

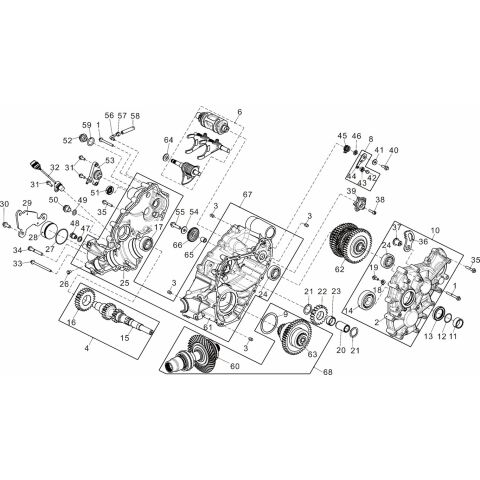

TRANSMISSION EXPLODED VIEW

  • Product Code  LIN_5_E19-1_Landforce-1000
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
68 87689 Final Output Bevel Gear Assembly (No.9, 60, 63 used in pairs)  1 € 585,87 € 709
IN STOCK IN 13 days
48 87348 Drain bolt  1 € 2,64 € 3
ON THE WAY
47 87347 Shim  1 € 2,15 € 3
ON THE WAY
46 87312 Shim  1
ON REQUEST
45 87311 Rocker arm torsion spring  1
ON REQUEST
44* 87310 Gear Locking Rocker Arm (unavailable) - Only complete 87591  1
ON REQUEST
43* 87309 Gear Locking Wheel (unavailable) - Only complete 87591  1
ON REQUEST
42* 87308 Swing Rivet  1
ON REQUEST
41 87307 Shim  1
ON REQUEST
39 87306 Plum Blossom Cam  1 € 15,62 € 19
ON THE WAY
38 12196 Bolt M6X20  1 € 2,15 € 3
ON THE WAY
37* 87305 Cross-shaft bushing (unavailable) - Only complete 87592  1 € 9,50 € 11
ON THE WAY
36* 87304 Parking Swing Arm (unavailable) - Only complete 87592  1 € 10,17 € 12
ON THE WAY
34 11959 Bolt M8X55  5
ON REQUEST
33 87346 Bolt M6X85  2 € 2,15 € 3
ON THE WAY
32 87345 Speed Sensor  1 € 22,31 € 27
ON THE WAY
49 87349 Sealing ring for fastening bolts  1 € 2,15 € 3
ON THE WAY
50 87350 Tightening bolt  1 € 2,23 € 3
ON THE WAY
67 87688 Intermediate Housing Assembly (No.17, 24, 25, 61 used in pairs)  1 € 405,21 € 490
IN STOCK IN 13 days
66 87330 Intermediate transition gear  1 € 15,04 € 18
ON THE WAY
65 87329 Bushings  1 € 5,70 € 7
ON THE WAY
64 87328 Washer  1 € 2,15 € 3
ON THE WAY
63* 87595 Drive Bevel Gear Assembly  1 € 273,88 € 331
IN STOCK IN 13 days
62 87594 Secondary Shaft Assembly  1 € 470,41 € 569
ON THE WAY
61* 87320 Intermediate box  1 € 253,97 € 307
ON REQUEST
60* 87593 Driven Bevel Gear Assembly  1 € 322,31 € 390
ON REQUEST
58 87357 Oil pipe 6X10X400  1 € 2,15 € 3
ON THE WAY
57 87356 Earless clamp  1 € 2,15 € 3
ON THE WAY
56 87355 Vent pipe  1 € 2,15 € 3
ON THE WAY
54 87331 Shim  1 € 2,15 € 3
ON THE WAY
53 87354 Display Switch  1 € 20,83 € 25
ON THE WAY
52 87275 Fuel cap  1 € 2,15 € 3
IN STOCK IN 25 days
51 87351 Oil seal  2 € 4,88 € 6
ON THE WAY
29 87344 Plug cover  1 € 6,28 € 8
ON THE WAY
28 87343 Plug  1 € 7,11 € 9
ON THE WAY
6 87589 Shifting Device Assembly  1 € 219,59 € 266
IN STOCK IN 13 days
5 87588 Rear Box Assembly  1 € 139,34 € 169
ON REQUEST
4 87587 Input Shaft Assembly  1 € 151,16 € 183
ON THE WAY
3 87277 Positioning Pin  4 € 2,15 € 3
ON THE WAY
2* 87276 Front Box (unavailable) Only complete 87592  1 € 101,82 € 123
ON THE WAY
1 11446 Bolt M6X55  15 € 2,15 € 3
IN STOCK IN 25 days
59 O-RING 18×3.55 (Item nr. 59) 10844 O-RING 18×3.55  1 € 2,40 € 3
IN STOCK
55 BOLT M8×30 (Item nr. 55) 11347 BOLT M8×30  1 € 8,02 € 10
IN STOCK
40 10110W BOLT M6X20  1 € 8,76 € 11
IN STOCK IN 25 days
35 10186W BOLT M6X35 (FLANGE)  11 € 8,76 € 11
IN STOCK IN 25 days
31 BOLT M6X16 (Item nr. 31) 10183W BOLT M6X16  3 € 8,76 € 11
IN STOCK
30 Hexagon Flange Bolt M8×20 (Item nr. 30) 11492 Hexagon Flange Bolt M8×20  3 € 2,40 € 3
IN STOCK
24* Bearing 6303 (Item nr. 24*) 26013 Bearing 6303  2 € 12,81 € 16
IN STOCK IN 25 days
17* BEARING 6204 (Item nr. 17*) 10062 BEARING 6204  1 € 7,36 € 9
IN STOCK
7 87590 Intermediate Box Assembly  1 € 260 € 315
ON REQUEST
8 87591 Rocker Arm Assembly  1 € 24,21 € 29
ON THE WAY
27 87342 O-ring  1 € 2,15 € 3
ON THE WAY
26 12187 Bolt M6X8  1 € 2,15 € 3
IN STOCK IN 25 days
25* 87341 Rear Box  1 € 134,30 € 162
ON REQUEST
23 87293 Needle roller bearing  1 € 2,15 € 3
ON THE WAY
22 87292 Reverse Transition Gear  1 € 20,58 € 25
ON THE WAY
21 87291 Shim  2 € 2,15 € 3
ON THE WAY
20 87290 Bushings  1 € 5,04 € 6
ON THE WAY
18* 87289 Bearing Retaining Plate (unavailable) - Only complete 87592  1 € 2,15 € 3
ON THE WAY
16* 87288 High-Speed Active Gear (unavailable) - Only complete 87587  1
ON REQUEST
15* 87287 Input shaft (unavailable) - Only complete 87587  1
ON REQUEST
13 87286 Oil seal  1 € 6,03 € 7
ON THE WAY
12 87285 O-ring  1 € 2,15 € 3
ON THE WAY
11 87284 Bushings  1 € 8,68 € 11
ON THE WAY
10 87592 Front Box Assembly  1 € 142,73 € 173
ON THE WAY
9* 87282 Bearing shim (unavailable) - Only complete 87688  1 € 2,15 € 3
ON THE WAY
14* BEARING 6305C3 (Item nr. 14*) 10855 BEARING 6305C3  1 € 32,81 € 40
IN STOCK
