Transmission Exploded View

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_131_LH800U-2D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
45 Engagement C (Item nr. 45) 84032 Engagement C  2 € 33,14 € 40
ON REQUEST
57 O-Ring 9.5X1.8 (Item nr. 57) 21615 O-Ring 9.5X1.8  1 € 2,40 € 3
IN STOCK
58 84052 O-Ring 14.5X3  1 € 7,19 € 9
RE STOCKING

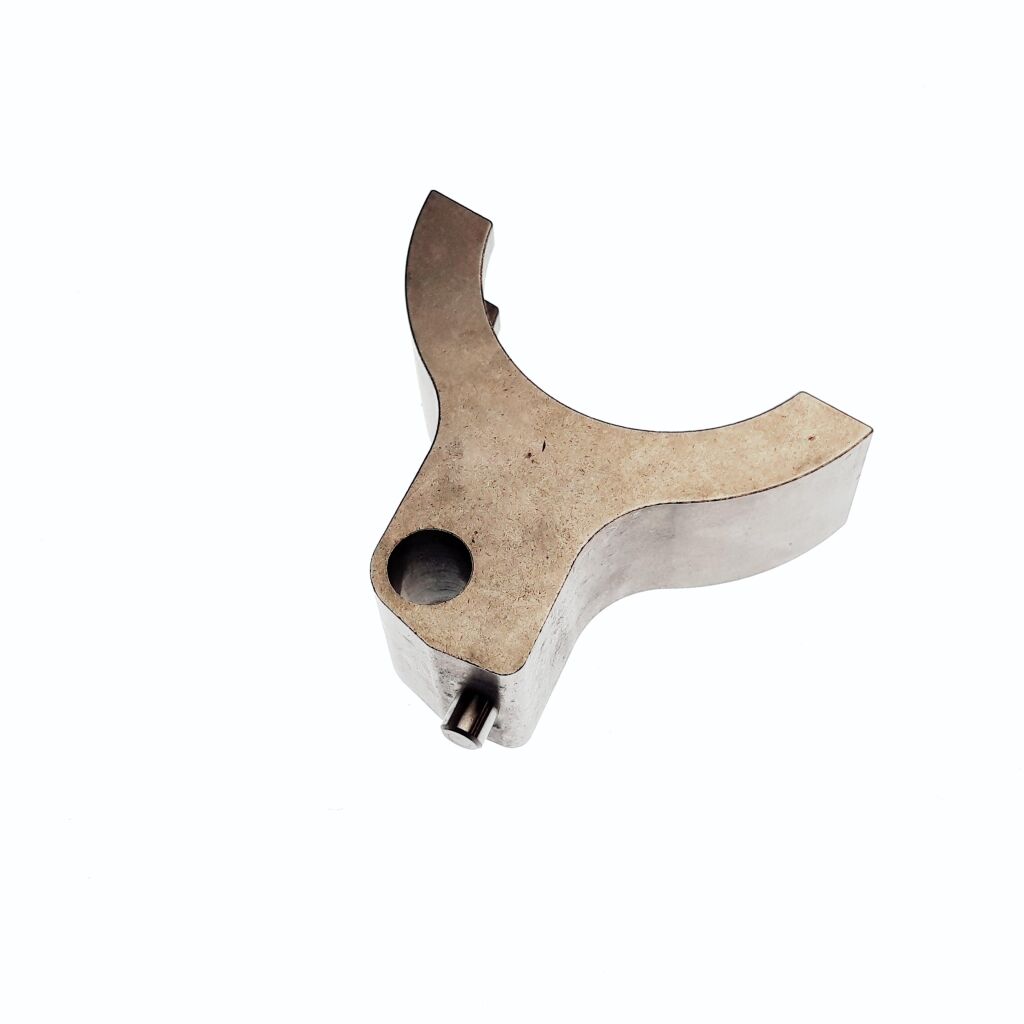

59 Shift Fork (Item nr. 59) 84020 Shift Fork  2 € 42,15 € 51
ON REQUEST
60 84051 Drum, Fork Shift  1 € 111,65 € 135
ON REQUEST
61 Guide Shaft, Shift Fork (Item nr. 61) 84053 Guide Shaft, Shift Fork  1 € 16,69 € 20
IN STOCK
62 84040 Output Shaft  1 € 97,52 € 118
ON REQUEST
63 84041 Gear, Output  1 € 116,69 € 141
ON REQUEST
64 84009 Engagement B, Front Drive  1 € 52,89 € 64
ON REQUEST
65 10164 Cirlip 24  1 € 7,19 € 9
ON REQUEST

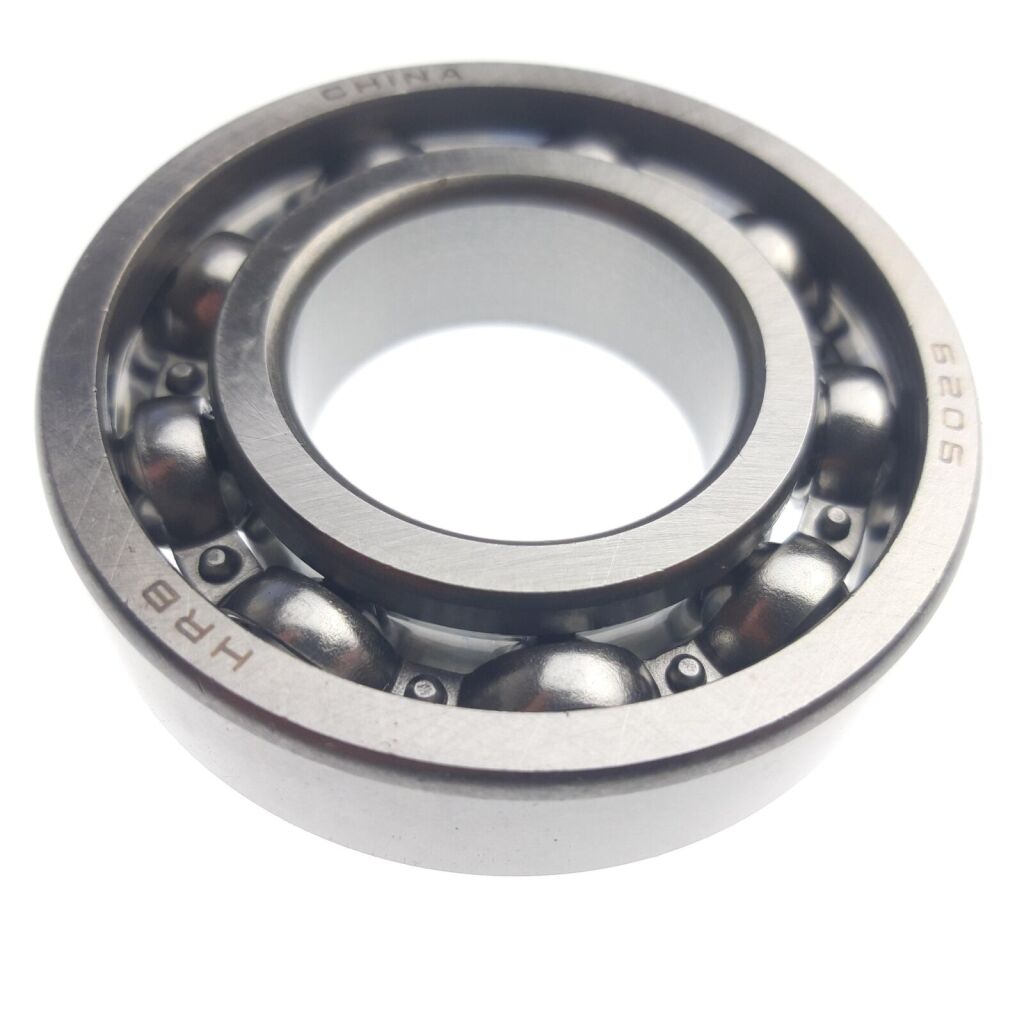

56 Bearing 6205C3 (Item nr. 56) 10061 Bearing 6205C3  1 € 7,77 € 9
ON REQUEST
55 Driven Gear, High Speed (Item nr. 55) 84035 Driven Gear, High Speed  1 € 47,52 € 57
IN STOCK
46 Circlip 25 (Item nr. 46) 10064 Circlip 25  1 € 2,40 € 3
IN STOCK
47 Washer 25.5B (Item nr. 47) 21219 Washer 25.5B  2 € 2,40 € 3
IN STOCK
48 Bearing 25X29X13 (Item nr. 48) 84038 Bearing 25X29X13  2 € 6,69 € 8
IN STOCK
49 Driven Gear, Reverse (Item nr. 49) 84039 Driven Gear, Reverse  1 € 48,43 € 59
IN STOCK
50 84034 Washer 25.5A  1 € 2,56 € 3
ON REQUEST
51 Driven Gear, Low Speed (Item nr. 51) 84037 Driven Gear, Low Speed  1 € 54,71 € 66
ON REQUEST
52 84033 Side Shaft  1 € 62,23 € 75
ON REQUEST
53 Engagement A (Item nr. 53) 84030 Engagement A  1 € 30,91 € 37
IN STOCK
54 84036 Bearing 28X33X17  1 € 7,69 € 9
ON REQUEST
66 84043 Cover, Gear Box Case  1 € 103,14 € 125
ON REQUEST
67 Hexagon Flange Bolt M8×1.25X50 (Item nr. 67) 10403 Hexagon Flange Bolt M8×1.25X50  12 € 2,40 € 3
IN STOCK
79 84044 Case, Front Drive  1 € 52,64 € 64
ON REQUEST
80 Gasket (Item nr. 80) 84047 Gasket  1 € 3,14 € 4
IN STOCK
81 84046 Cover  1 € 7,44 € 9
ON REQUEST

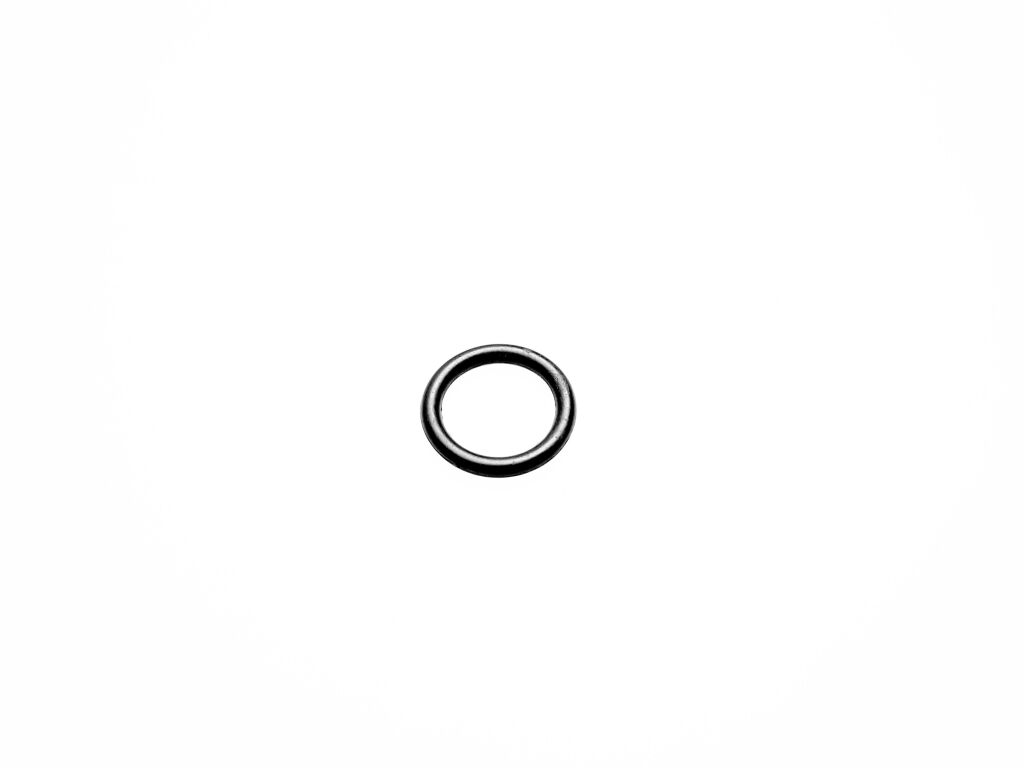

82 O-Ring (Item nr. 82) 73013 O-Ring  1 € 2,56 € 3
IN STOCK

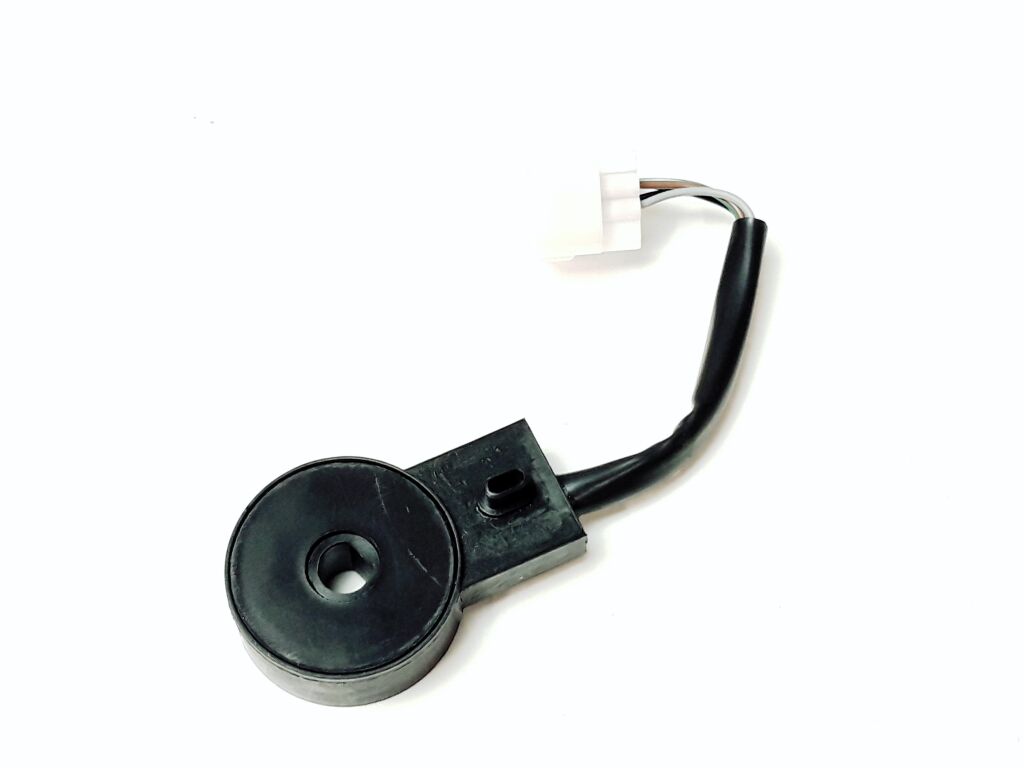

83 ELECTROMAGNETIC VALVE ASSEMBLY (Item nr. 83) 71978 ELECTROMAGNETIC VALVE ASSEMBLY  1 € 135,45 € 164
ON REQUEST
84 10739 BOLT M8×25  4 € 8,02 € 10
ON REQUEST
85 10871 Bolt M8X120  1 € 2,81 € 3
ON REQUEST
86 84163 Transmission Assy  1 € 1 363,47 € 1 650
ON REQUEST
87 O-Ring 18×2.65 (Item nr. 87) 10122 O-Ring 18×2.65  1 € 2,40 € 3
RE STOCKING
78 84021 Shaft, Front Drive  1 € 54,96 € 67
ON REQUEST
77 BEAR 6205 (Item nr. 77) 10778 BEAR 6205  2 € 9,42 € 11
IN STOCK
68 84045 Oil Seal 28X40X7  1 € 2,31 € 3
IN STOCK IN 16 days
69 84010 Plug Pin, Fork Shift Shaft  1 € 2,56 € 3
ON REQUEST

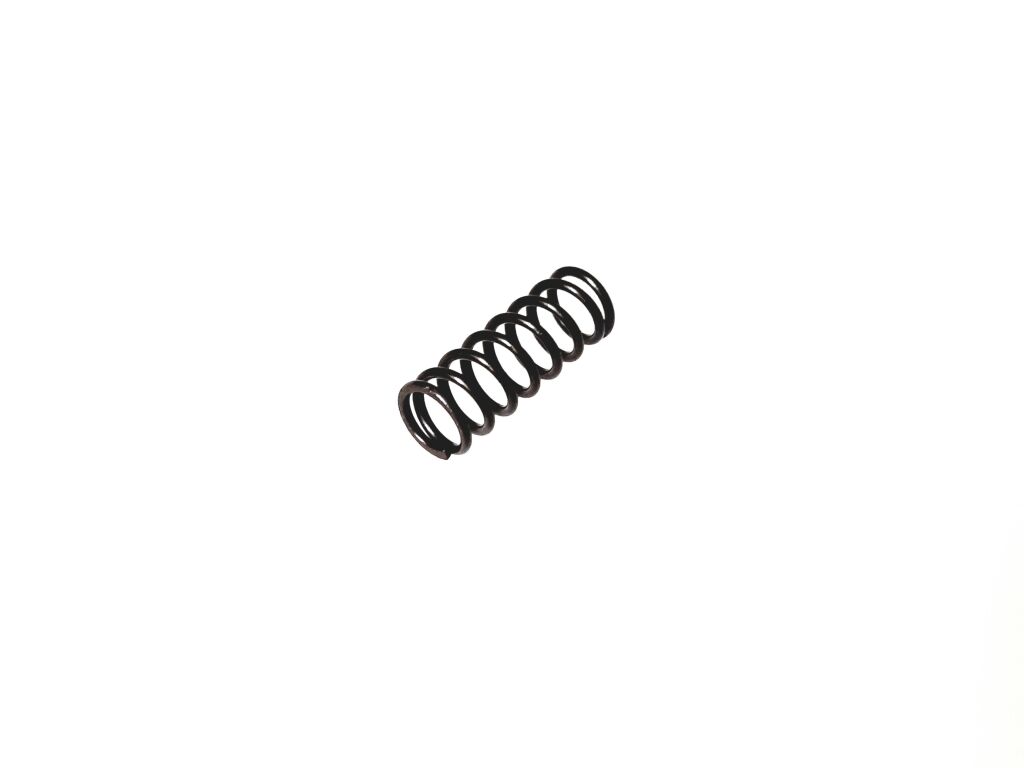

70 84011 Spring  2 € 9,34 € 11
ON REQUEST
71 84012 Fork Shift Comp.  1 € 20,83 € 25
ON REQUEST
72 84013 Shaft, Fork Shift  1 € 10,41 € 13
ON REQUEST
73 84014 Srping, Lever Of Fork Shift  1 € 3,64 € 4
ON REQUEST
74 84015 Lever, Fork Shift  1 € 5,45 € 7
ON REQUEST
75 84016 Engagement A, Front Drive  1 € 38,51 € 47
ON REQUEST
76 10885 Circlip 52  1 € 10,50 € 13
ON REQUEST
88 70235 Cover,Oil  1 € 2,23 € 3
ON REQUEST
1 THRUST NUT M8 (Item nr. 1) 10067 THRUST NUT M8  1 € 2,40 € 3
IN STOCK
13 DRAIN BOLT M12X1.5 (Item nr. 13) 50105 DRAIN BOLT M12X1.5  1 € 2,40 € 3
IN STOCK
14 WASHER DRAIN PLUG 12MM (Item nr. 14) 1309283 WASHER DRAIN PLUG 12MM  1 € 2,40 € 3
IN STOCK
15 Hexagon Flange Bolt M6×16 8.8 (Item nr. 15) 10140 Hexagon Flange Bolt M6×16 8.8  1 € 2,40 € 3
IN STOCK

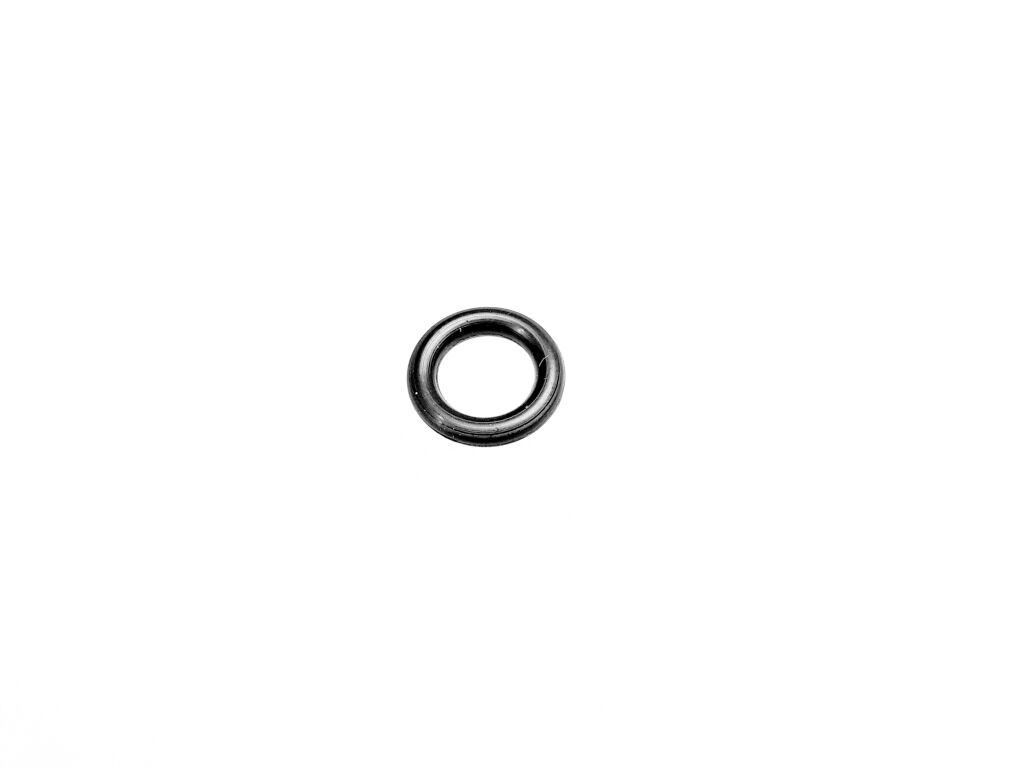

16 O-Ring 10X1.8 (Item nr. 16) 10291 O-Ring 10X1.8  2 € 8,02 € 10
IN STOCK
17 Driven Gear, Gear Shift (Item nr. 17) 84006 Driven Gear, Gear Shift  1 € 10,91 € 13
ON REQUEST
18 Shaft, Gear Shift (Item nr. 18) 84007 Shaft, Gear Shift  1 € 37,52 € 45
IN STOCK
19 Guide Tube, Oil Dip-Stick (Item nr. 19) 84048 Guide Tube, Oil Dip-Stick  1 € 37,52 € 45
IN STOCK
20 O-Ring 6.4X1.8 (Item nr. 20) 84019 O-Ring 6.4X1.8  2 € 7,19 € 9
IN STOCK

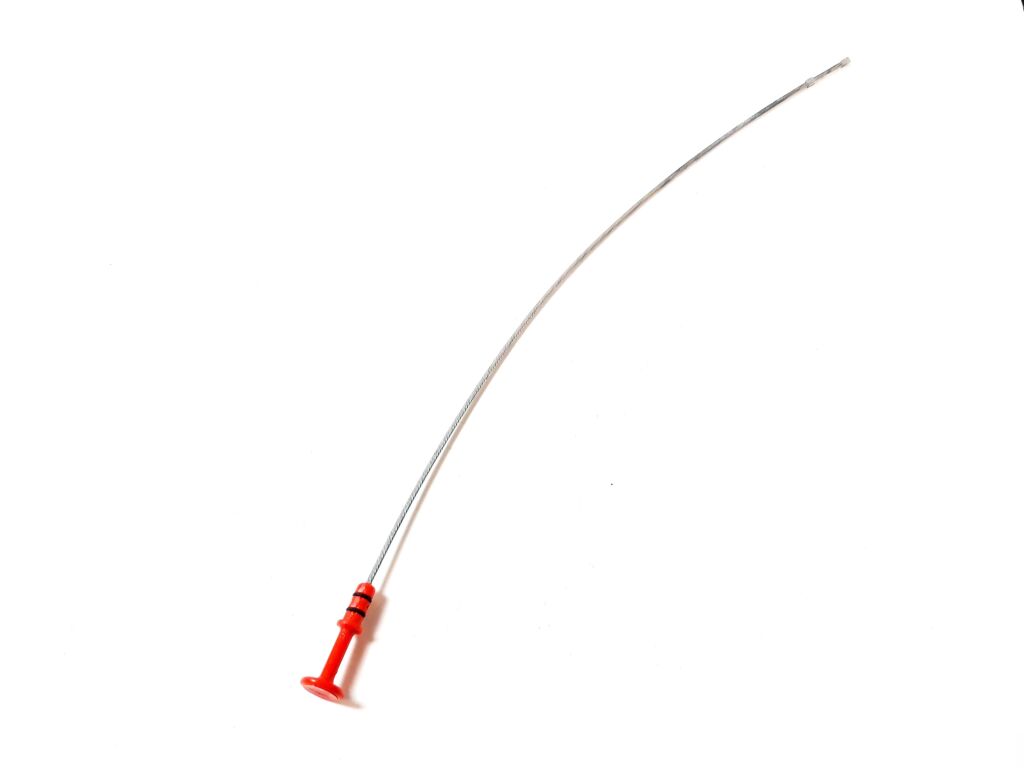

21 Oil Dip-Stick Component (Item nr. 21) 84049 Oil Dip-Stick Component  1 € 6,86 € 8
IN STOCK
12 Oil Seal 25X47X8 (Item nr. 12) 21201 Oil Seal 25X47X8  2 € 2,40 € 3
IN STOCK
11 Camshaft, Gear Shift (Item nr. 11) 84005 Camshaft, Gear Shift  1 € 13,64 € 16
IN STOCK
2 WASHER 8 (Item nr. 2) 10068 WASHER 8  1 € 7,19 € 9
IN STOCK
3 Shift Bracket (Item nr. 3) 84001 Shift Bracket  1 € 18,76 € 23
IN STOCK
4 RING 11 (Item nr. 4) 10767 RING 11  1 € 8,43 € 10
IN STOCK
5 Gear Shift Component (Item nr. 5) 84050 Gear Shift Component  1 € 64,63 € 78
IN STOCK
6 BOLT M6X16 (Item nr. 6) 10183W BOLT M6X16  9 € 8,76 € 11
IN STOCK
7 Cover (Item nr. 7) 84002 Cover  1 € 24,96 € 30
IN STOCK
8 Spring (Item nr. 8) 84003 Spring  1 € 10,17 € 12
IN STOCK
9 O-Ring 13.2X1.8 (Item nr. 9) 10887 O-Ring 13.2X1.8  1 € 7,19 € 9
IN STOCK
10 Stop Swing Lever, Gear Shift (Item nr. 10) 84004 Stop Swing Lever, Gear Shift  1 € 11,49 € 14
IN STOCK
22 Drive Gear, Gear Shift (Item nr. 22) 84008 Drive Gear, Gear Shift  1 € 13,72 € 17
IN STOCK IN 16 days

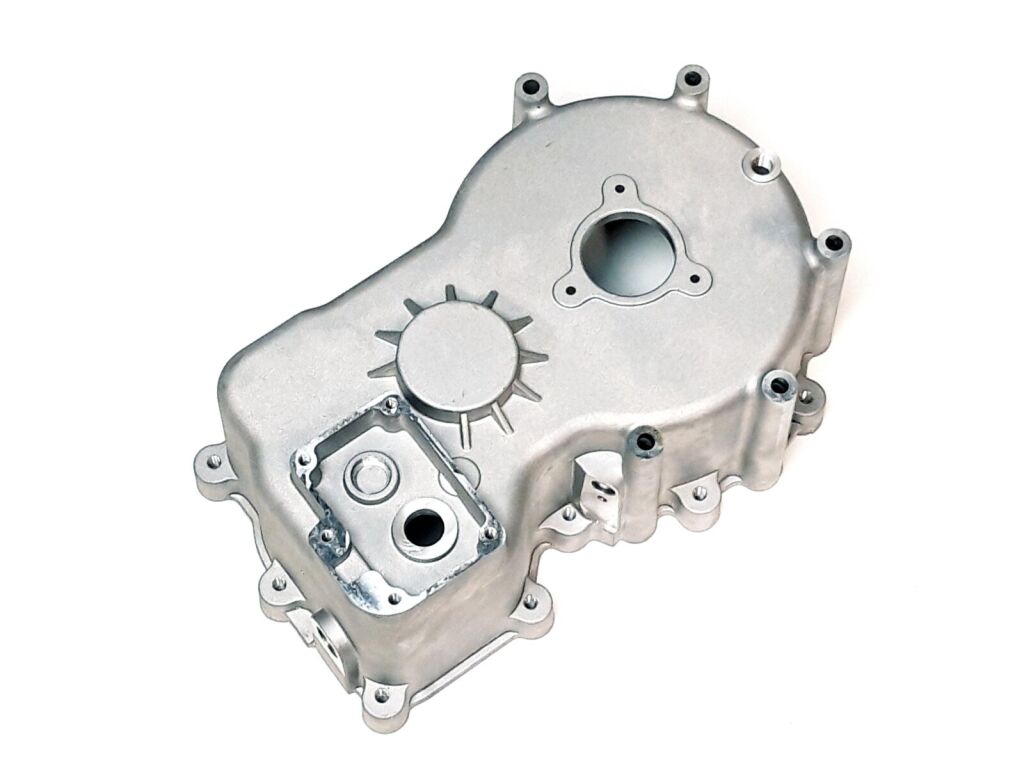

23 Case, Gear Box (Item nr. 23) 84042 Case, Gear Box  1 € 137,44 € 166
IN STOCK
35 84028 Washer 15.5  1 € 7,19 € 9
ON REQUEST
36 84017 Bushings  1 € 31,98 € 39
ON REQUEST
37 84018 Gear Counter, Reverse  1 € 28,76 € 35
ON REQUEST
38 84029 Shaft Counter, Reverse  1 € 24,38 € 30
ON REQUEST
39 Drive Gear, Low Speed (Item nr. 39) 84024 Drive Gear, Low Speed  1 € 29,75 € 36
IN STOCK
40 Drive Gear, High Speed (Item nr. 40) 84022 Drive Gear, High Speed  1 € 41,07 € 50
IN STOCK
41 Bearing 206 (Item nr. 41) 10808 Bearing 206  3 € 15,21 € 18
ON REQUEST
42 Bearing 6303 (Item nr. 42) 26013 Bearing 6303  1 € 12,81 € 16
IN STOCK
43 Engagement B (Item nr. 43) 84031 Engagement B  1 € 22,56 € 27
IN STOCK
34 10768 RING 15  1 € 7,19 € 9
ON REQUEST
33 84161 Shaft  1 € 82,81 € 100
IN STOCK IN 16 days
24 Vent Tube Fitting (Item nr. 24) 21340 Vent Tube Fitting  1 € 2,40 € 3
IN STOCK
25 29530 Spring Clip  1 € 8,51 € 10
ON REQUEST
26 21339 Vent Tube  1 € 2,23 € 3
ON REQUEST
27 Locating Pin (Item nr. 27) 21104 Locating Pin  2 € 2,40 € 3
IN STOCK
28 BEARING 6204 (Item nr. 28) 10062 BEARING 6204  1 € 7,36 € 9
IN STOCK
29 10769 RING 28  4 € 8,43 € 10
ON REQUEST
30 84023 Washer 28.5A  4 € 10,17 € 12
ON REQUEST
31 84026 Drive Gear, Reverse  1 € 29,59 € 36
ON REQUEST
32 84025 Washer 28.5B  1 € 10,17 € 12
ON REQUEST
44 Spring Washer (Item nr. 44) 84027 Spring Washer  2 € 16,28 € 20
IN STOCK
Product Code LINHAI_1_131_LH800U-2D
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI UTV 800
Select MODEL: LH800U 2D
