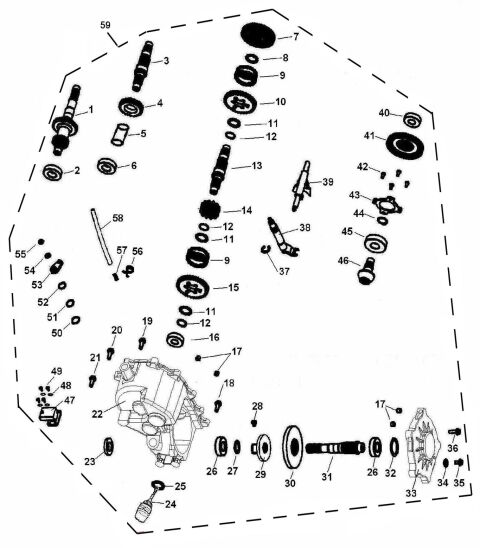

TRANSMISSION COMP

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_136_ATV200-B
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
59 29681 TRANSMISSION COMP  1
ON REQUEST
Detail
28 21464 THRUST BUTTON  1
ON REQUEST
Detail

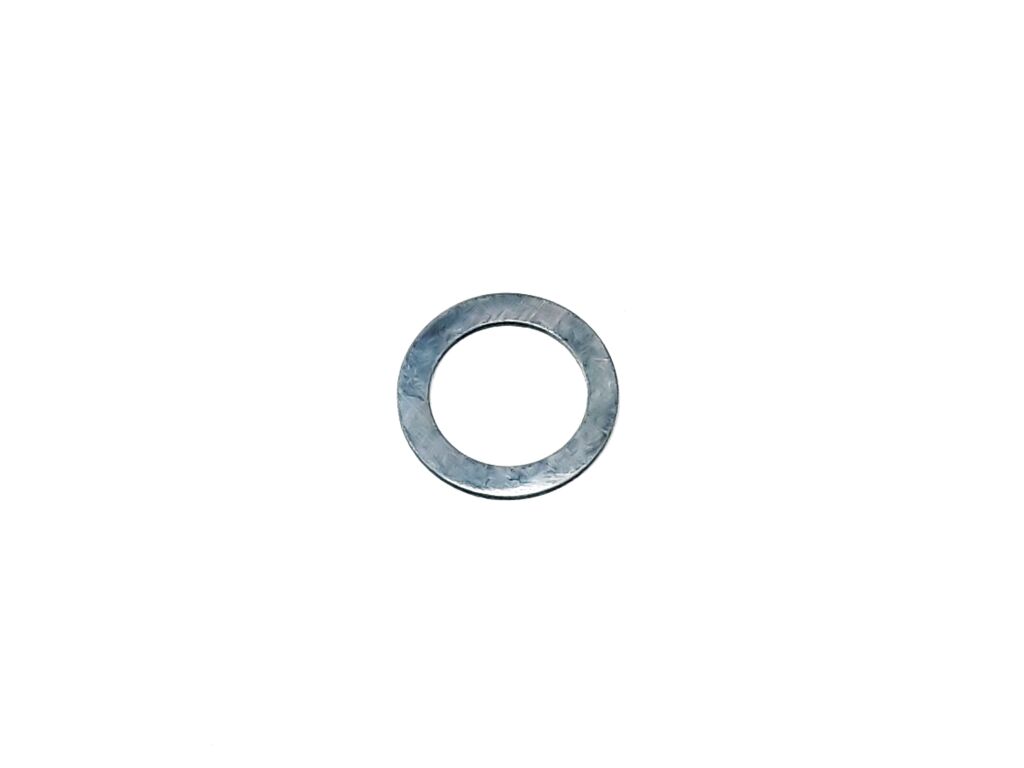

27 THRUST WASHER (Item nr. 27) 21461 THRUST WASHER  1 € 2,40 € 3
IN STOCK
24 50084A DIPSTICK  1
ON REQUEST
Detail
22 29543 GEARCASE,RH  1
ON REQUEST
Detail
19 29540 BOLT M8X35  5
ON REQUEST
Detail
16 29519 BEARING 6202c3  1
ON REQUEST
Detail
8 29545 THRUST WASHER  1
ON REQUEST
Detail
7 29555 GEAR  1
ON REQUEST
Detail
5 29551 BUSH  1
ON REQUEST
Detail
4 29552 GEAR  1
ON REQUEST
Detail
3 29554 SHAFT  1
ON REQUEST
Detail
2 29520 BEARING 6301  1
ON REQUEST
Detail
29 27071 OIL PLATE  1
ON REQUEST
Detail
31 21463 SHAFT REAR OUTPUT  1 € 42,81 € 52
ON REQUEST
32 21465 SHIM 1  1 € 2,40 € 3
RE STOCKING
51 21338 WASHER  1 € 2,40 € 3
ON REQUEST
46 29547 GEAR  1
ON REQUEST
Detail

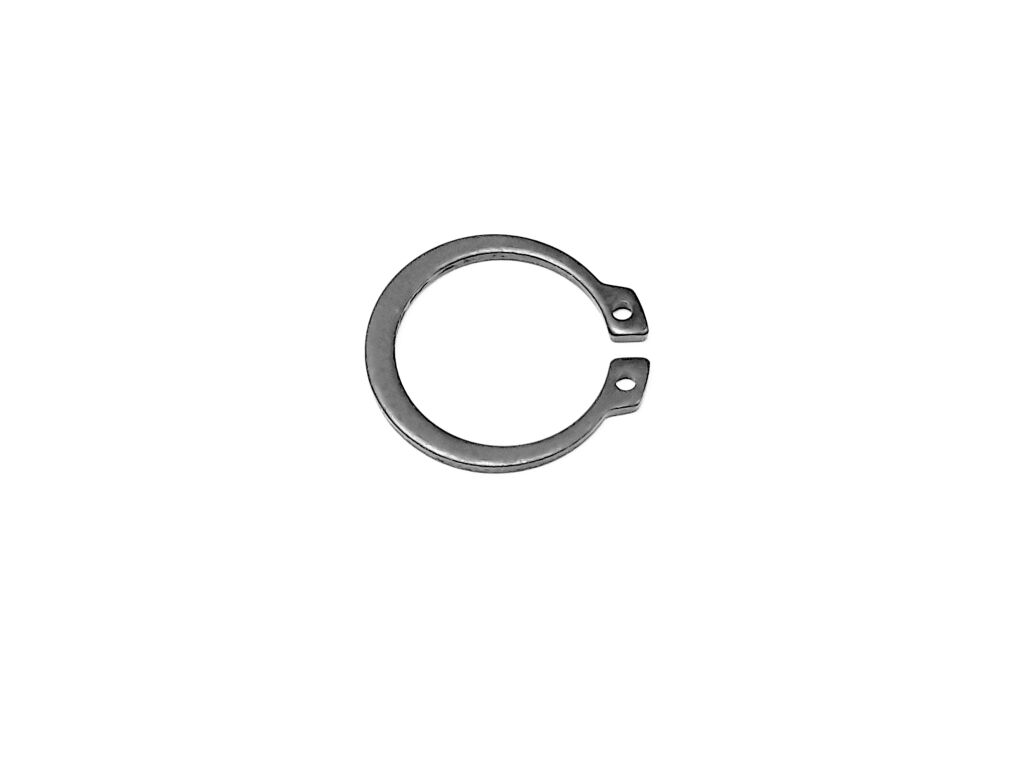

44 SNAP RING (Item nr. 44) 21453 SNAP RING  1 € 2,40 € 3
IN STOCK
43 21351 BEARING RETAINER PLATE  1 € 3,47 € 4
ON REQUEST
42 10073 SCREW M6X10  4
ON REQUEST
Detail
41 29548 GEAR HELICAL 46T  1
ON REQUEST
Detail
39 29544 SHIFT FORK  1
ON REQUEST
Detail
38 29542 SHIFT ROD  1
ON REQUEST
Detail
37 10075 SNAP RING  1
ON REQUEST
Detail
35 21469 DRAIN BOLT  1 € 2,40 € 3
IN STOCK IN 17 days
34 21470 WASHER  1 € 2,40 € 3
IN STOCK
33 29549 COVER  1
ON REQUEST
Detail
1 29553 INPUT SHAFT  1
ON REQUEST
Detail
58 21339 Vent Tube  1 € 2,23 € 3
ON REQUEST
57 Vent Tube Fitting (Item nr. 57) 21340 Vent Tube Fitting  1 € 2,40 € 3
IN STOCK
23 Oil Seal 25X47X8 (Item nr. 23) 21201 Oil Seal 25X47X8  1 € 2,40 € 3
IN STOCK

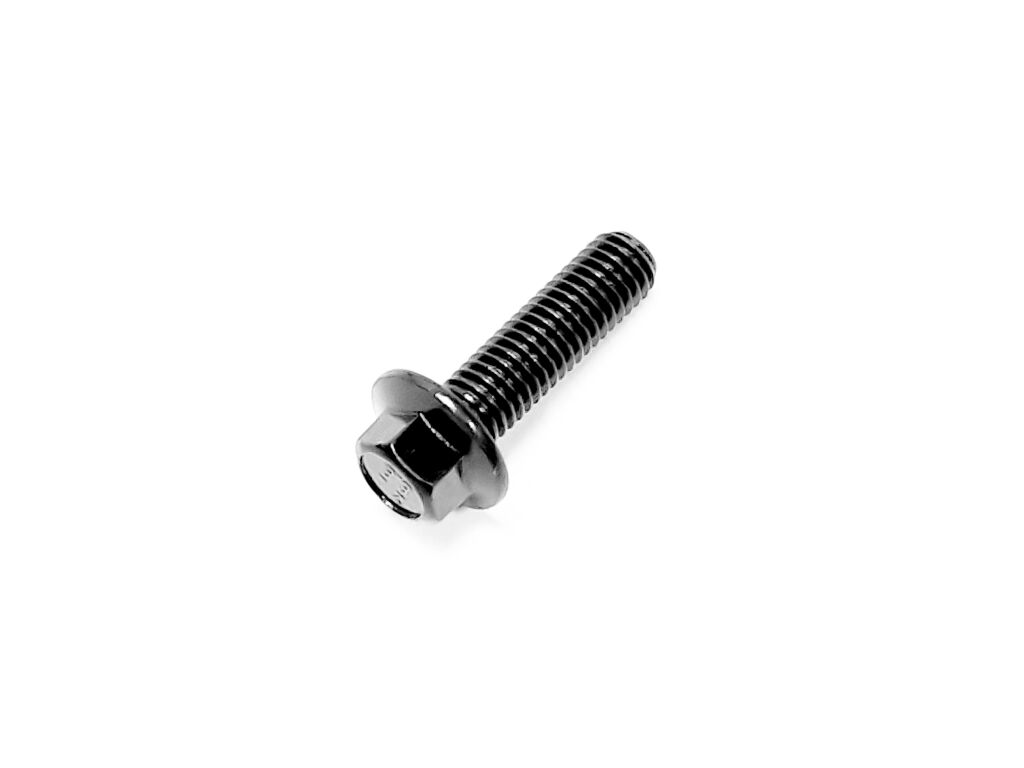

21 Hexagon Flange Bolt M8×1.25X50 (Item nr. 21) 10403 Hexagon Flange Bolt M8×1.25X50  1 € 2,40 € 3
IN STOCK
20 Hexagon Flange Bolt M8×1.25×55 (Item nr. 20) 10511 Hexagon Flange Bolt M8×1.25×55  1 € 2,40 € 3
IN STOCK
18 10078 BOLT M8X30  1 € 8,02 € 10
ON REQUEST
17 Locating Pin (Item nr. 17) 21104 Locating Pin  4 € 2,40 € 3
IN STOCK
15 GEAR (Item nr. 15) 29550 GEAR  1 € 64,30 € 78
IN STOCK
14 DOG GEAR (Item nr. 14) 29671 DOG GEAR  1 € 13,55 € 16
IN STOCK
13 SHAFT (Item nr. 13) 29556 SHAFT  1 € 22,23 € 27
IN STOCK

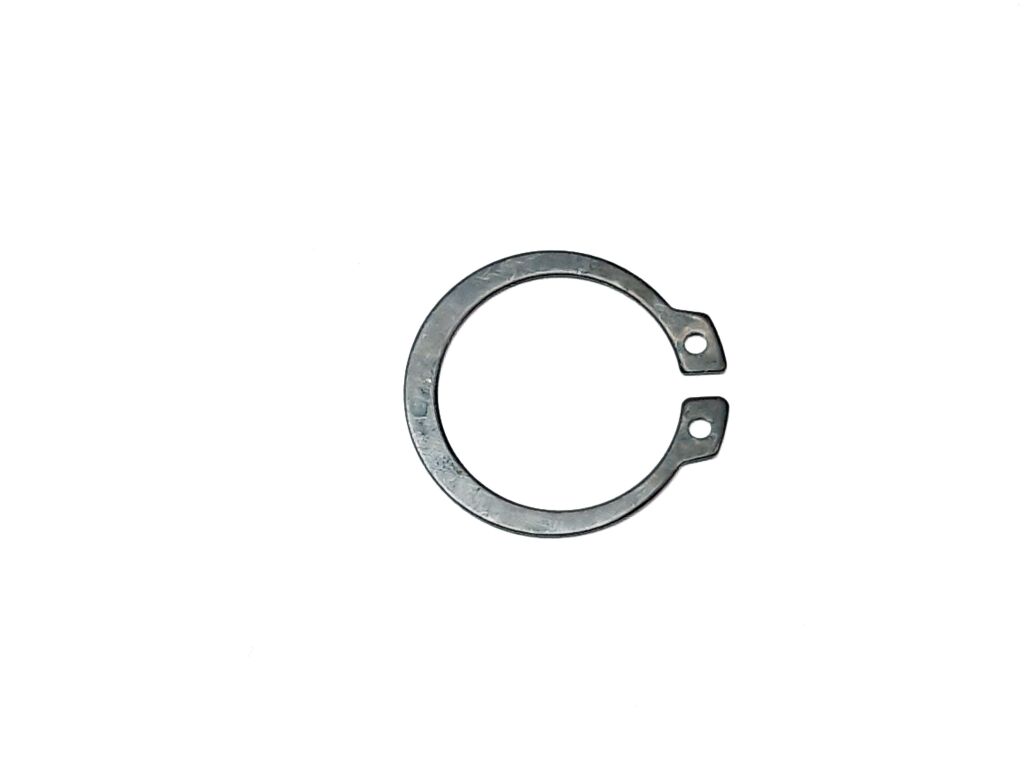

12 Circlip 25 (Item nr. 12) 10064 Circlip 25  1 € 2,40 € 3
IN STOCK
11 Washer 25.5B (Item nr. 11) 21219 Washer 25.5B  3 € 2,40 € 3
IN STOCK
10 GEAR - FOR AMERICA (Item nr. 10) 29546 GEAR - FOR AMERICA  1 € 16,53 € 20
IN STOCK
9 NEEDLE BEARING 25 (Item nr. 9) 21218 NEEDLE BEARING 25  2 € 4,55 € 5
IN STOCK

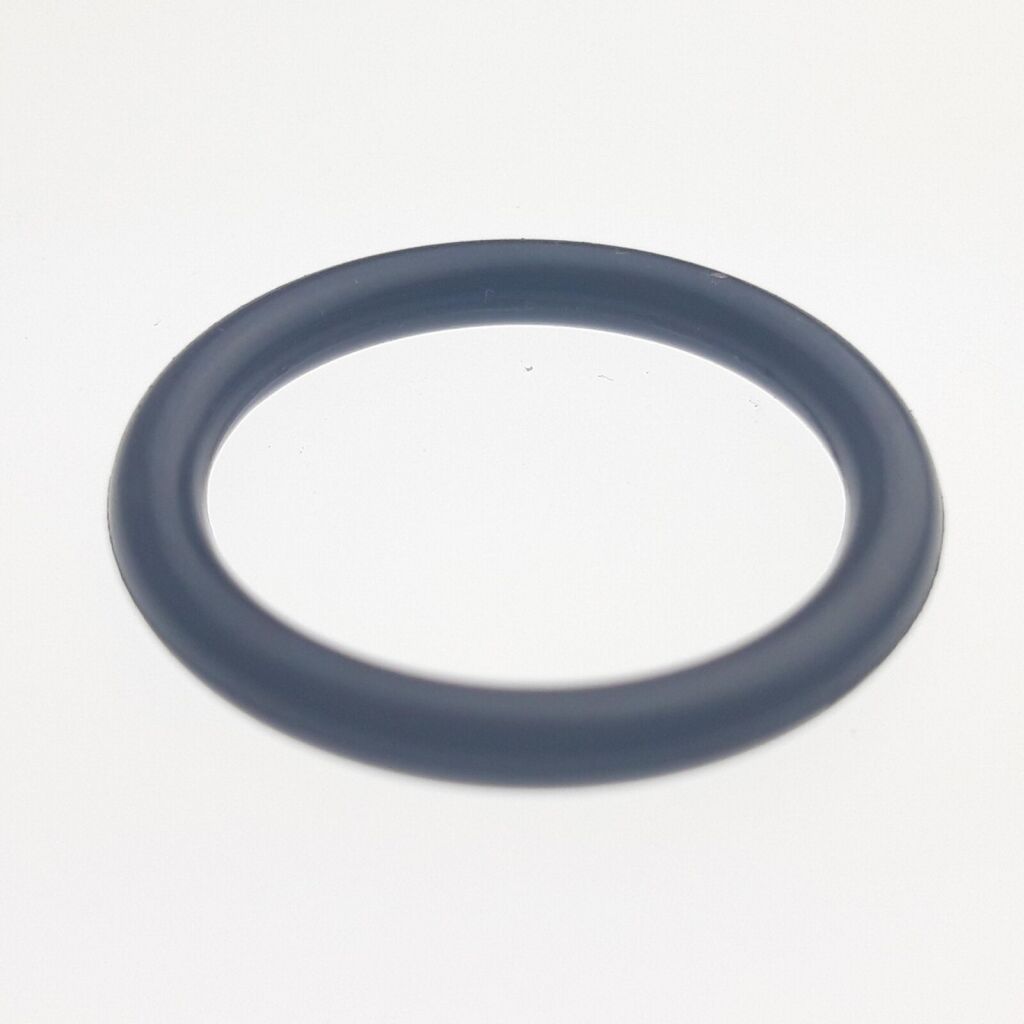

25 O-Ring 18×2.65 (Item nr. 25) 10122 O-Ring 18×2.65  1 € 2,40 € 3
RE STOCKING
26 Bearing 6205C3 (Item nr. 26) 10061 Bearing 6205C3  1 € 7,77 € 9
ON REQUEST
30 GEAR (Item nr. 30) 21462 GEAR  1 € 142,48 € 172
RE STOCKING
56 29530 Spring Clip  1 € 8,51 € 10
ON REQUEST

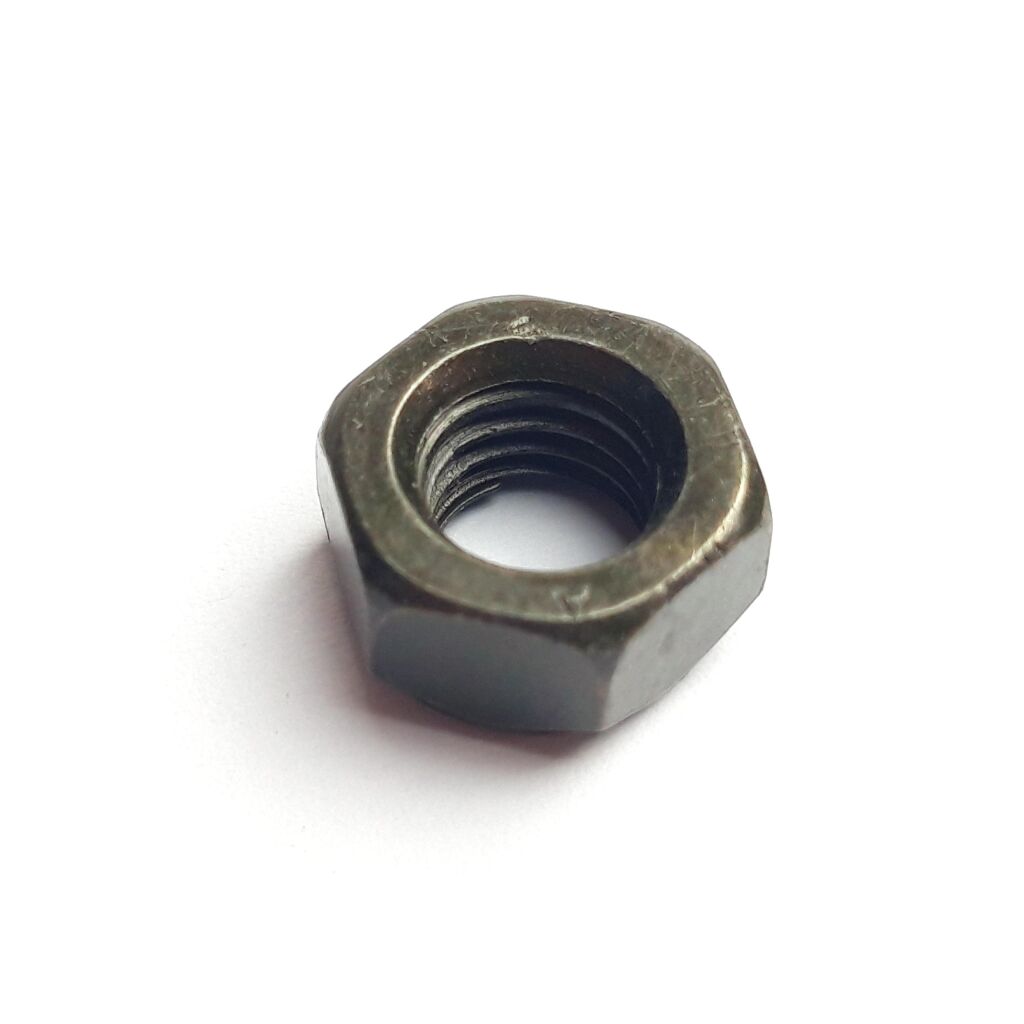

55 THRUST NUT M8 (Item nr. 55) 10067 THRUST NUT M8  1 € 2,40 € 3
IN STOCK
54 WASHER 8 (Item nr. 54) 10068 WASHER 8  1 € 7,19 € 9
IN STOCK

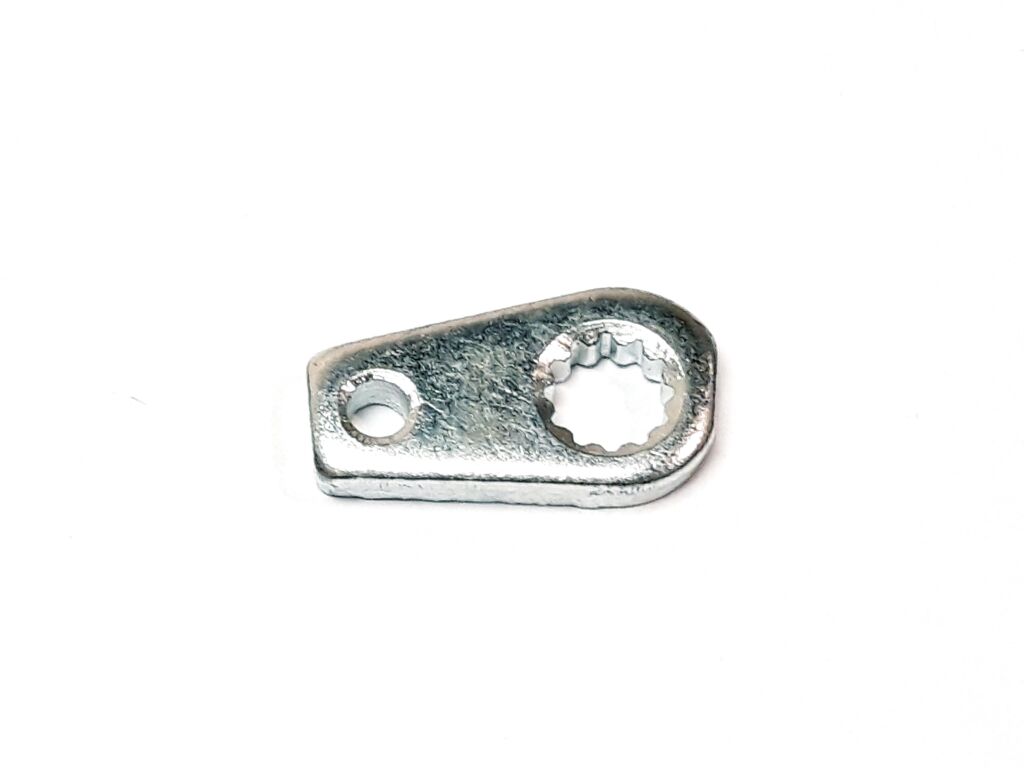

53 BELLCRANK (Item nr. 53) 21336 BELLCRANK  1 € 3,88 € 5
RE STOCKING
52 10069 CIRCLIP 19  1 € 2,56 € 3
ON REQUEST

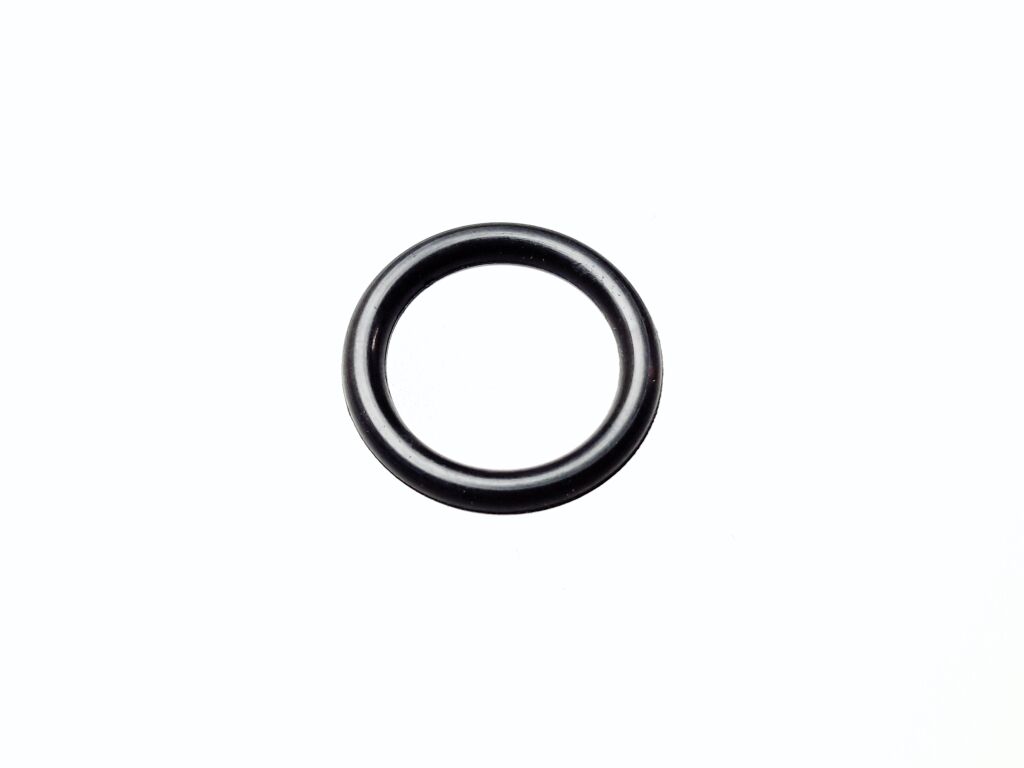

50 O-RING 14X2.65 (Item nr. 50) 10123 O-RING 14X2.65  1 € 2,40 € 3
IN STOCK
49 10007 SCREW ST 4X10  4 € 8,76 € 11
ON REQUEST

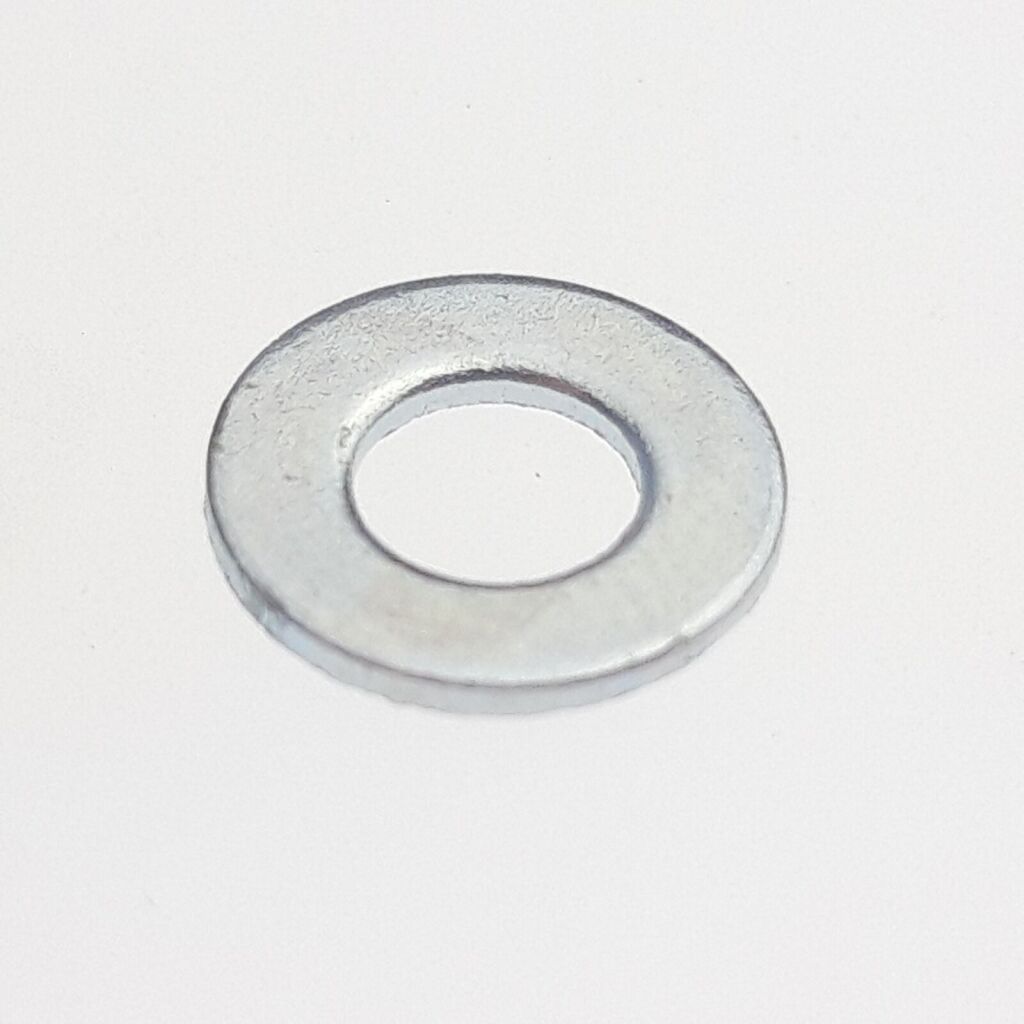

48 WASHER Φ4 (Item nr. 48) 10071 WASHER Φ4  4 € 2,15 € 3
IN STOCK

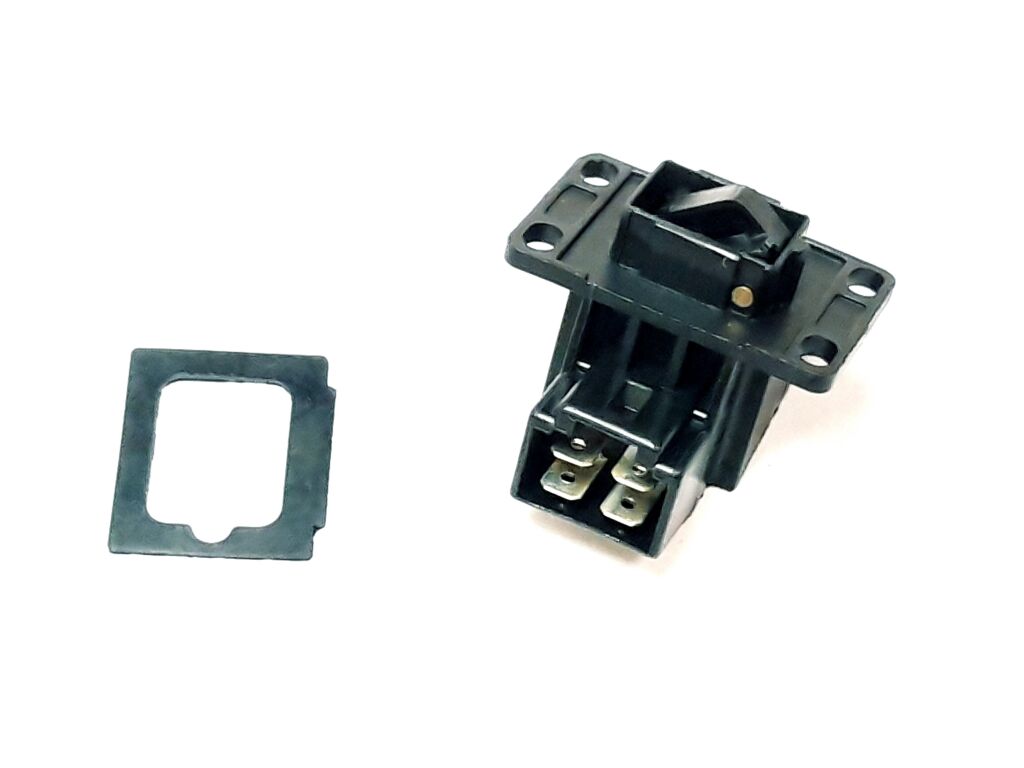

47 GEAR INDICATOR SWITCH (UP) (Item nr. 47) 21344 GEAR INDICATOR SWITCH (UP)  1 € 52,23 € 63
IN STOCK

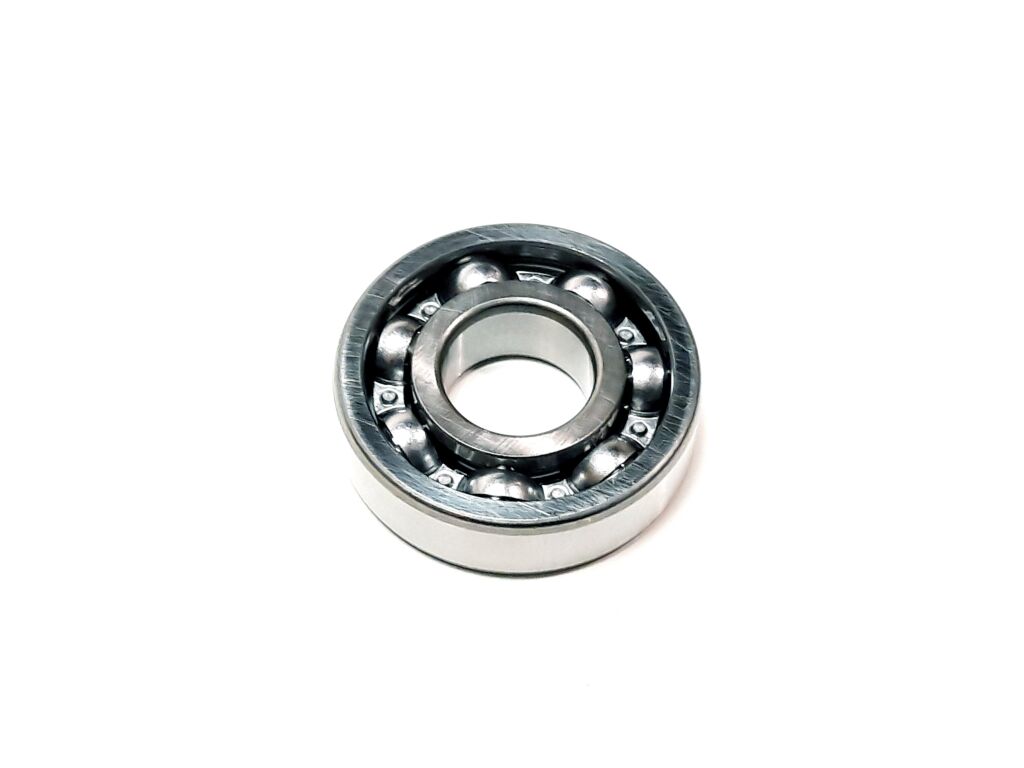

45 BEARING 6305ST (Item nr. 45) 10074 BEARING 6305ST  1 € 12,31 € 15
IN STOCK
40 BEARING 6204 (Item nr. 40) 10062 BEARING 6204  1 € 7,36 € 9
IN STOCK

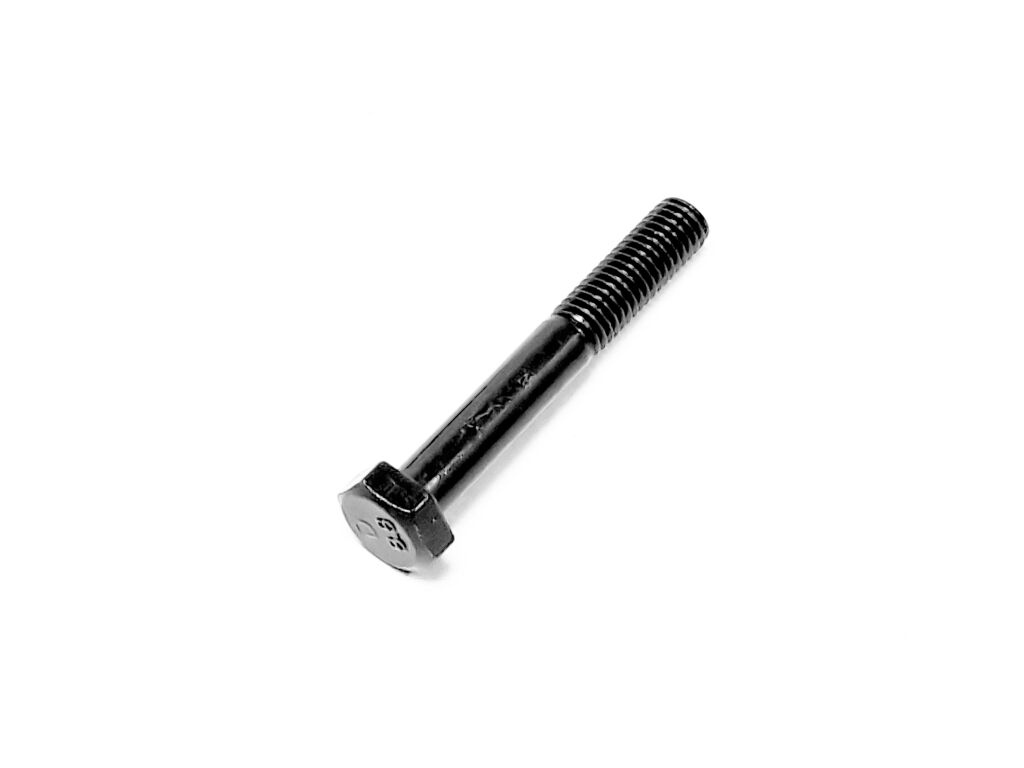

36 Hexagon Flange Bolt M8×1.25×28 (Item nr. 36) 10060 Hexagon Flange Bolt M8×1.25×28  1 € 8,02 € 10
IN STOCK
6 Ball Bearing 6203 (Item nr. 6) 10199 Ball Bearing 6203  1 € 4,63 € 6
IN STOCK
Product Code LINHAI_1_136_ATV200-B
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select MODEL: 200 T3b
Select TYPE: LINHAI 200
