TRANSMISSION CASE

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  Access_E-7_MAX-5-400-EFI
Select MODEL:

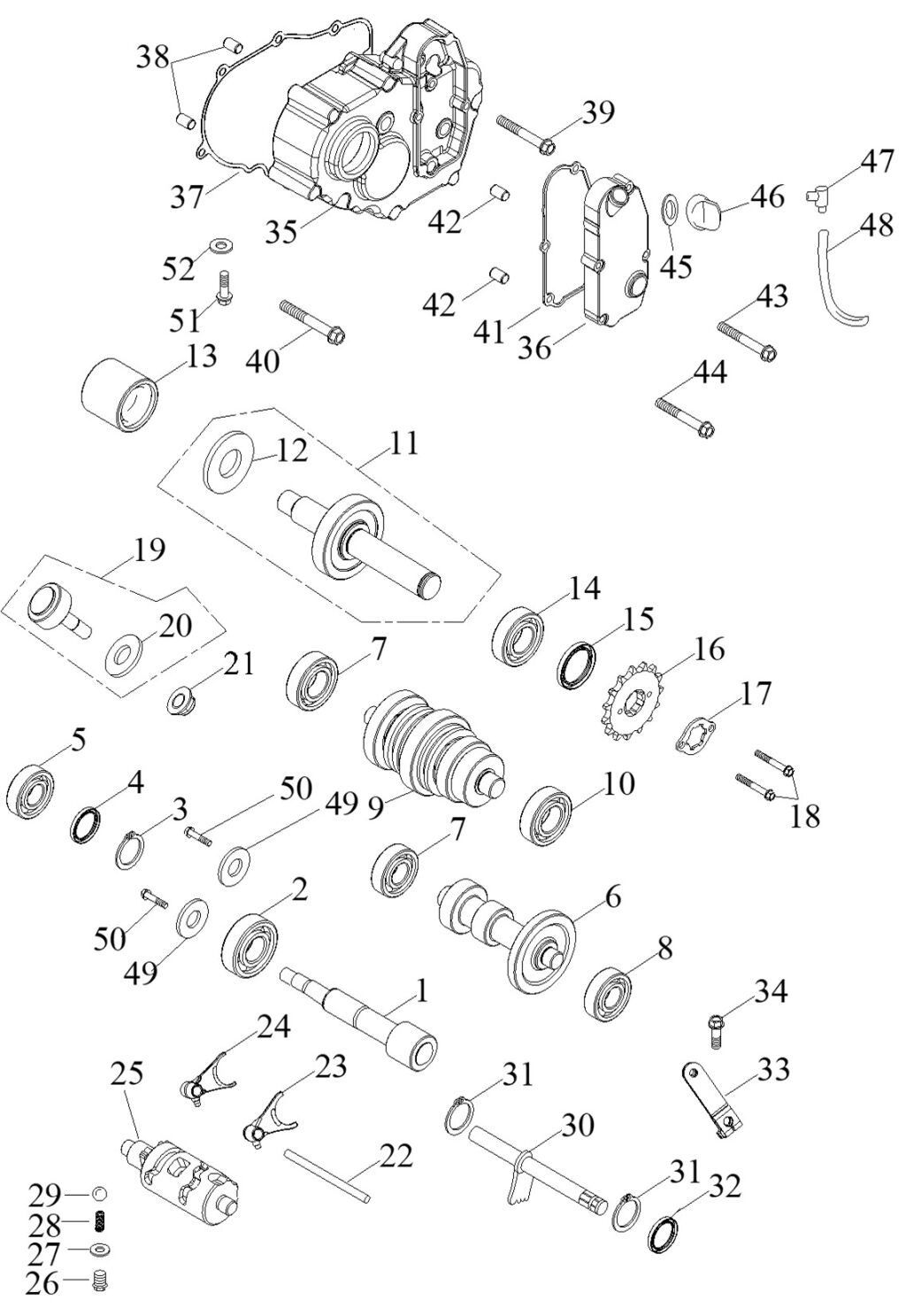

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
53 Oil Window (Item nr. 53) 96100-GW162510 Oil Window  1 € 4,13 € 5
ON THE WAY

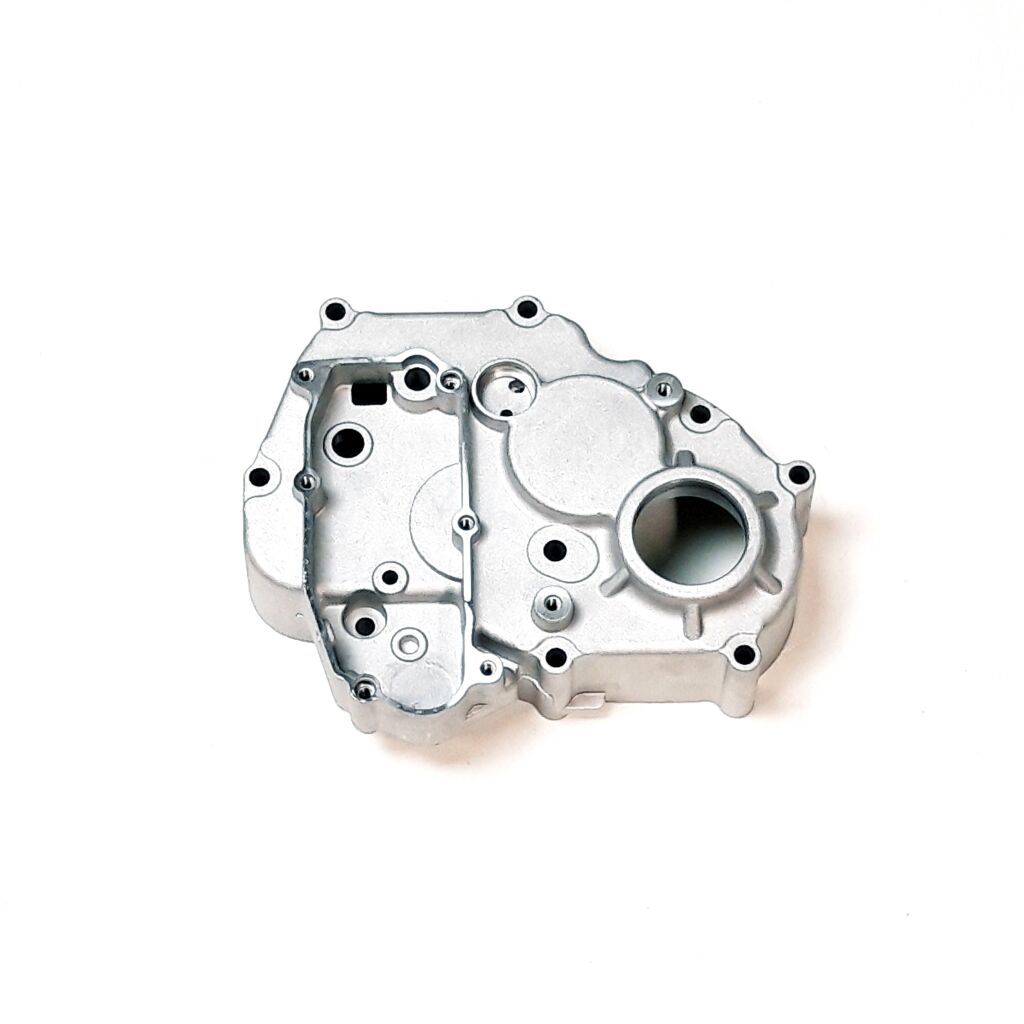

36 Cover, Transmission Gear Case (Item nr. 36) 11505-E10-000 Cover, Transmission Gear Case  1 € 18,18 € 22
IN STOCK
35 Transmission Gear Case (Item nr. 35) 11500-E10-000 Transmission Gear Case  1 € 69,42 € 84
IN STOCK
33 Bar, Gear Change (Item nr. 33) 41072-E10-000 Bar, Gear Change  1 € 4,13 € 5
IN STOCK
32 Seal, Oil (Item nr. 32) 96100-14287 Seal, Oil  1 € 2,48 € 3
IN STOCK
31 Cir Clip (Item nr. 31) 93406-STW14A Cir Clip  2 € 2,48 € 3
IN STOCK
30 Gear Shift Fork Guide Shaft (Item nr. 30) 41040-E10-100 Gear Shift Fork Guide Shaft  1 € 20,66 € 25
IN STOCK
29 Shift Ball (Item nr. 29) 41053-E01-100 Shift Ball  1 € 2,48 € 3
IN STOCK
28 Spring,Reverse Gear (Item nr. 28) 41052-E01-100 Spring,Reverse Gear  1 € 2,48 € 3
IN STOCK
27 Flat Washer Aluminium (Item nr. 27) 41054-E01-100 Flat Washer Aluminium  1 € 2,48 € 3
ON REQUEST
37 Gasket, Transmission (Item nr. 37) 11410-E10-000 Gasket, Transmission  1 € 14,88 € 18
IN STOCK
38 Pin, Dowel (Item nr. 38) 94001-100140 Pin, Dowel  2 € 2,48 € 3
IN STOCK
41 Gasket ,Transmission Gear Case (Item nr. 41) 11430-E10-000 Gasket ,Transmission Gear Case  1 € 4,13 € 5
IN STOCK
52 Washer, Plain (AL) (Item nr. 52) 93105-12020-20-2 Washer, Plain (AL)  1 € 2,48 € 3
IN STOCK
51 R/B 91833-E10-201 Drain Bolt (Item nr. 51) 91833-E10-202 R/B 91833-E10-201 Drain Bolt  1 € 4,13 € 5
ON REQUEST
50 Hex Waser Face Bolt (Item nr. 50) 91700-06012-10G Hex Waser Face Bolt  2 € 2,48 € 3
ON THE WAY
48 Hose,Breather (Item nr. 48) 11211-A03-000 Hose,Breather  1 € 3,31 € 4
ON REQUEST
47 Breather (Item nr. 47) 11210-E01-000 Breather  1 € 2,48 € 3
ON REQUEST
46 Plug, Oil (Item nr. 46) 11212-E01-000 Plug, Oil  1 € 2,48 € 3
IN STOCK
45 O-Ring (Item nr. 45) 96200-138024 O-Ring  1 € 2,48 € 3
IN STOCK
43 Hex. Bolt, Flange (Item nr. 43) 91700-06020-08G-1 Hex. Bolt, Flange  4 € 2,48 € 3
IN STOCK
42 Pin, Dowel (Item nr. 42) 94001-080140 Pin, Dowel  2 € 2,48 € 3
IN STOCK
26 R/B 41051-E01-200 Bolt (Item nr. 26) 41051-E01-100 R/B 41051-E01-200 Bolt  1 € 2,48 € 3
ON REQUEST
25 Gear Shift Drum (Item nr. 25) 41030-E10-000 Gear Shift Drum  1 € 32,23 € 39
IN STOCK
11 Final Shaft (Item nr. 11) 23650-E10-000 Final Shaft  1 € 57,02 € 69
IN STOCK
10 Bearing,Ball (Item nr. 10) 95100-T6304 Bearing,Ball  1 € 5,79 € 7
IN STOCK
09 Gear Change Crank (Item nr. 09) 23640-E10-001 Gear Change Crank  1 € 200,83 € 243
IN STOCK
08 Ball Bearing, Crankshaft (Item nr. 08) 95100-T6204C3 Ball Bearing, Crankshaft  1 € 8,26 € 10
ON REQUEST
07 Ball Bearing, Crankshaft (Item nr. 07) 95100-T6203 Ball Bearing, Crankshaft  2 € 7,69 € 9
ON REQUEST
06 Main Axle (Item nr. 06) 23620-E10-000 Main Axle  1 € 72,73 € 88
IN STOCK
05 Bearing,Ball (Item nr. 05) 95100-T6301LLU Bearing,Ball  1 € 4,96 € 6
IN STOCK
04 Seal, Oil (Item nr. 04) 96100-223407 Seal, Oil  1 € 3,31 € 4
IN STOCK
03 Cir Clip (Item nr. 03) 93406-STW22A Cir Clip  1 € 2,48 € 3
IN STOCK
12 Washer , Plate(SK5) (Item nr. 12) P93107-20027-05 Washer , Plate(SK5)  1 € 2,48 € 3
IN STOCK
13 Bearing, Needle (Item nr. 13) 95200-HK2020 Bearing, Needle  1 € 9,92 € 12
IN STOCK
14 Bearing,Ball (Item nr. 14) 95100-T6205 Bearing,Ball  1 € 4,96 € 6
IN STOCK
24 Shift ,Fork (Item nr. 24) 41000-E10-010 Shift ,Fork  1 € 23,14 € 28
IN STOCK
23 Shift ,Fork (Item nr. 23) 41000-E10-000 Shift ,Fork  1 € 23,14 € 28
IN STOCK
22 Gear Shift Fork Guide Shaft (Item nr. 22) 41020-E10-000 Gear Shift Fork Guide Shaft  1 € 4,96 € 6
IN STOCK
20 Washer , Plate(SK5) (Item nr. 20) 93107-10218-10 Washer , Plate(SK5)  1 € 2,48 € 3
IN STOCK
19 Shaft (Item nr. 19) 23621-E10-000 Shaft  1 € 33,88 € 41
ON THE WAY
17 Safety Clip (Item nr. 17) 23900-E10-000 Safety Clip  1 € 2,48 € 3
ON REQUEST
16 Sprocket, Drive 520-14T (Item nr. 16) 23810-E10-010 Sprocket, Drive 520-14T  1 € 23,97 € 29
ON REQUEST
15 Seal, Oil (Item nr. 15) 96100-254707 Seal, Oil  1 € 2,48 € 3
IN STOCK
01 Drive Gear, Primary (Item nr. 01) 23610-E13-001 Drive Gear, Primary  1 € 40,50 € 49
IN STOCK
Product Code Access_E-7_MAX-5-400-EFI
PARTS CATEGORY: ENGINE PARTS
Select BRAND: ACCESS
Select TYPE: ACCESS MAX
Select MODEL: MAX 5 400 EFI
