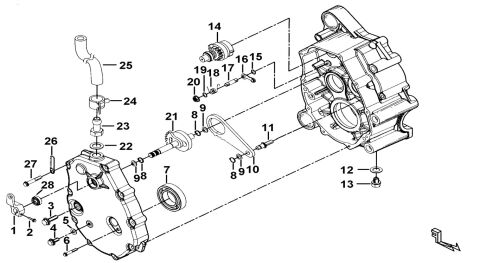

TRANSMISSION 2

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_111_EST-JJ
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 ARM, GEAR POSITION (Item nr. 01) 924764 ARM, GEAR POSITION  1 € 19,50 € 24
IN STOCK
16 STOPPER, GEAR SHAFT CAM (Item nr. 16) 924231 STOPPER, GEAR SHAFT CAM  1 € 4,13 € 5
ON REQUEST
17 SET SCREW ,GEAR CAM STOP DOG (Item nr. 17) 924233 SET SCREW ,GEAR CAM STOP DOG  1 € 2,40 € 3
IN STOCK
18 SPRING (Item nr. 18) 924232 SPRING  1 € 2,40 € 3
IN STOCK
19 WASHER, SPRING ABATEMENT (Item nr. 19) W99617 WASHER, SPRING ABATEMENT  1 € 2,40 € 3
IN STOCK
20 NUT, FLANGE 6mm (Item nr. 20) N10601 NUT, FLANGE 6mm  1 € 2,40 € 3
IN STOCK
21 SECONDARY DIAL POLE (Item nr. 21) 910559 SECONDARY DIAL POLE  1 € 17,36 € 21
IN STOCK
22 WASHER (Item nr. 22) W99639 WASHER  1 € 1,98 € 2
IN STOCK IN 6 days
23 HOSE CONNECTOR (Item nr. 23) 910216 HOSE CONNECTOR  1 € 13,72 € 17
IN STOCK
24 CLIP (Item nr. 24) R40501 CLIP  1 € 2,15 € 3
IN STOCK
25 BREATH HOSE (Item nr. 25) 910538 BREATH HOSE  1 € 17,93 € 22
IN STOCK
26 CLAMP (Item nr. 26) 514410 CLAMP  3 € 2,40 € 3
IN STOCK
27 BOLT, FLANGE M6*1*45L (Item nr. 27) S24632 BOLT, FLANGE M6*1*45L  9 € 2,40 € 3
ON REQUEST
15 GASKET (Item nr. 15) W99616 GASKET  1 € 2,40 € 3
IN STOCK
14 SHIFT CAMSHAFT COMP (Item nr. 14) 925690 SHIFT CAMSHAFT COMP  1 € 54,63 € 66
IN STOCK
02 BOLT, FLANGE M6X1.0X20L (Item nr. 02) S21604 BOLT, FLANGE M6X1.0X20L  1 € 2,15 € 3
IN STOCK
03 BOLT, FLANGE M8X45 (Item nr. 03) S20822 BOLT, FLANGE M8X45  1 € 3,64 € 4
IN STOCK
04 BOLT, FLANGE (Item nr. 04) S21605 BOLT, FLANGE  1 € 2,40 € 3
IN STOCK
05 WASHER ?6.5X?13.2X1.3t (Item nr. 05) W99621 WASHER ?6.5X?13.2X1.3t  1 € 2,40 € 3
IN STOCK
06 BOLT, FLANGE M6x16 (Item nr. 06) S24603 BOLT, FLANGE M6x16  1 € 2,40 € 3
IN STOCK
07 BEARING ?20X?52X15 (Item nr. 07) 924184 BEARING ?20X?52X15  1 € 15,62 € 19
IN STOCK
08 "C" RING (Item nr. 08) R00703 "C" RING  3 € 2,40 € 3
IN STOCK
09 WASHER (Item nr. 09) W99218 WASHER  3 € 2,40 € 3
IN STOCK
10 GEAR STOPPER (Item nr. 10) 910410 GEAR STOPPER  1 € 16,03 € 19
IN STOCK
11 PIN, GEAR STOPPER (Item nr. 11) 925737 PIN, GEAR STOPPER  1 € 18,35 € 22
IN STOCK
13 DRAIN BOLT (Item nr. 13) 911541 DRAIN BOLT  1 € 11,90 € 14
IN STOCK
28 OIL SEAL ?12X?22X9 (Item nr. 28) 924240 OIL SEAL ?12X?22X9  1 € 2,40 € 3
IN STOCK
Product Code TGB_1_111_EST-JJ
PARTS CATEGORY: ENGINE PARTS
Select BRAND: TGB
Select TYPE: BLADE 1000LTX
Select MODEL: BLADE 1000LTX MAX E5
