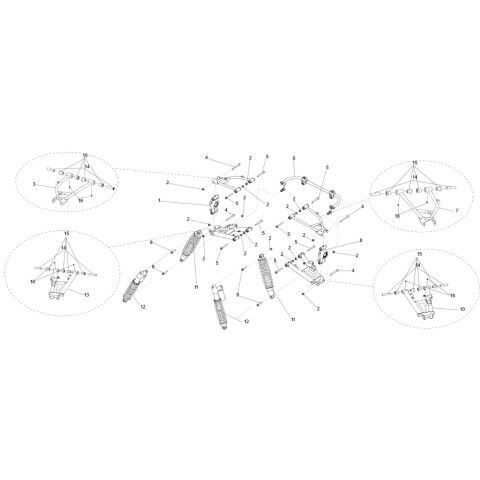

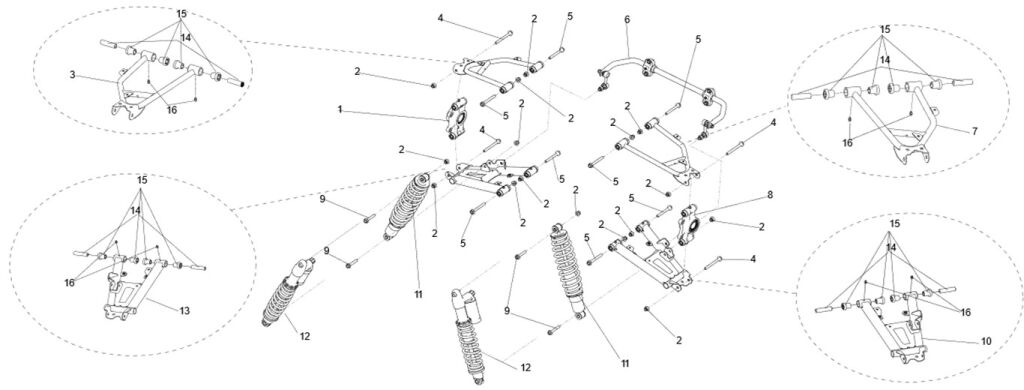

SUSPENSION SYSYEM(REAR)

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_235_SGW570-A11-ABS
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability

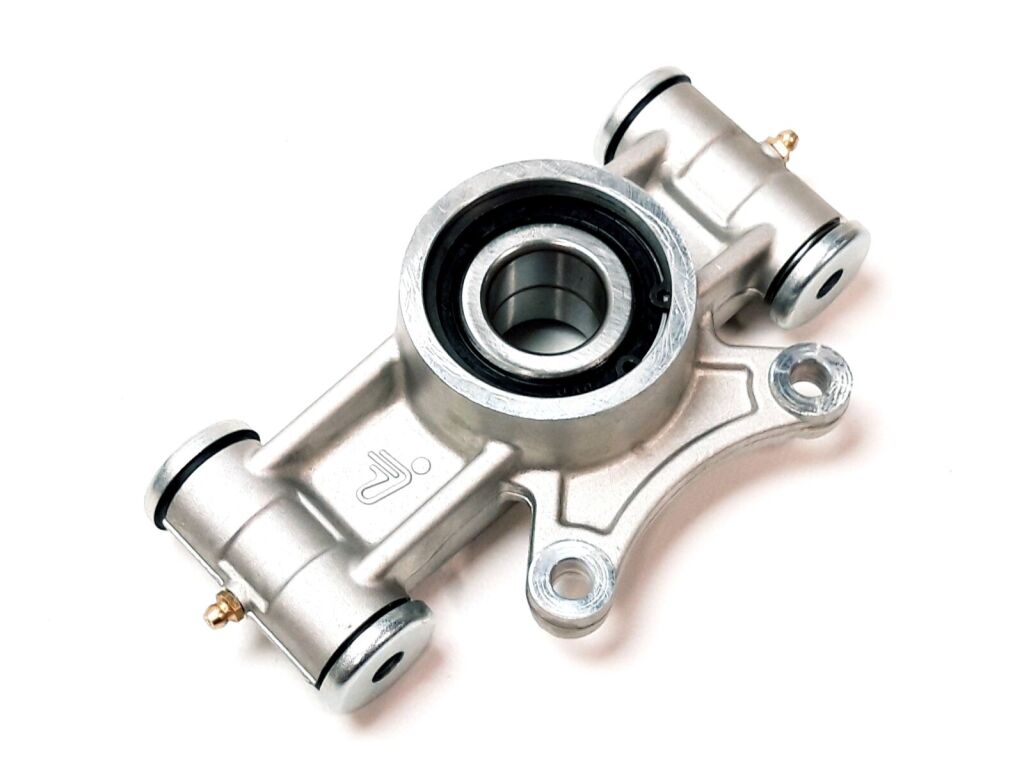

1 REAR LEFT WHEEL AXLE SUPPORT ASSEMBLY (Item nr. 1) A01D20100002 REAR LEFT WHEEL AXLE SUPPORT ASSEMBLY  1 € 132,31 € 160
IN STOCK

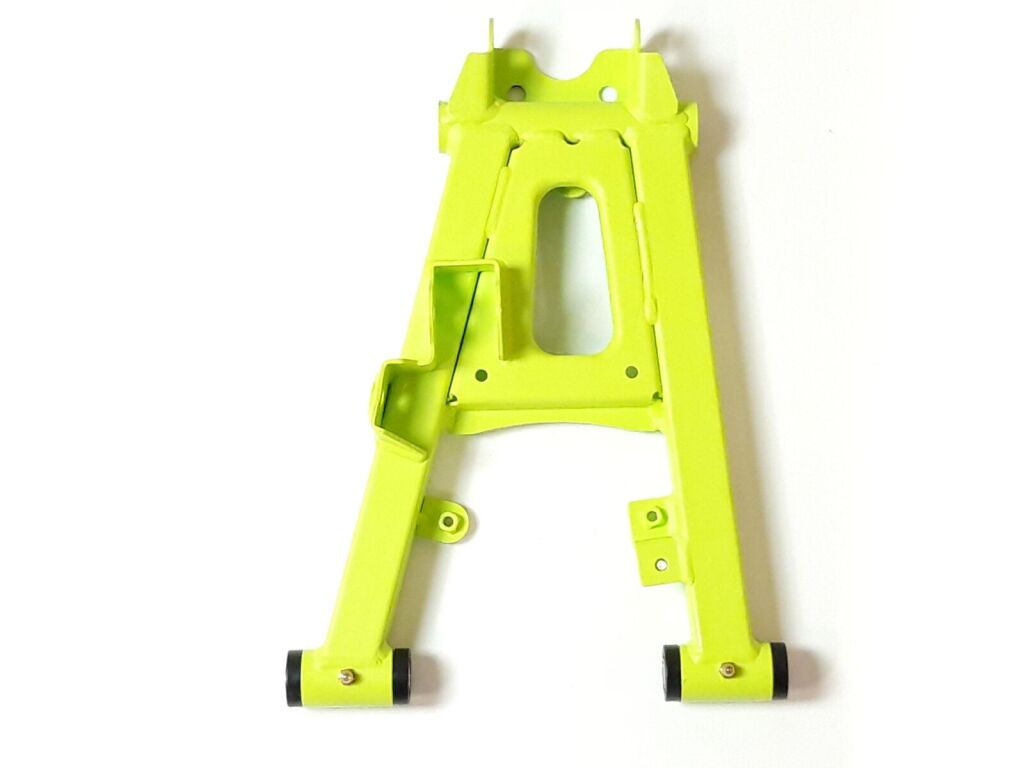

10 PEAK GREEN LOWER WELD ARM RR (Item nr. 10) A01D24001001 PEAK GREEN LOWER WELD ARM RR  1 € 105,12 € 127
ON REQUEST

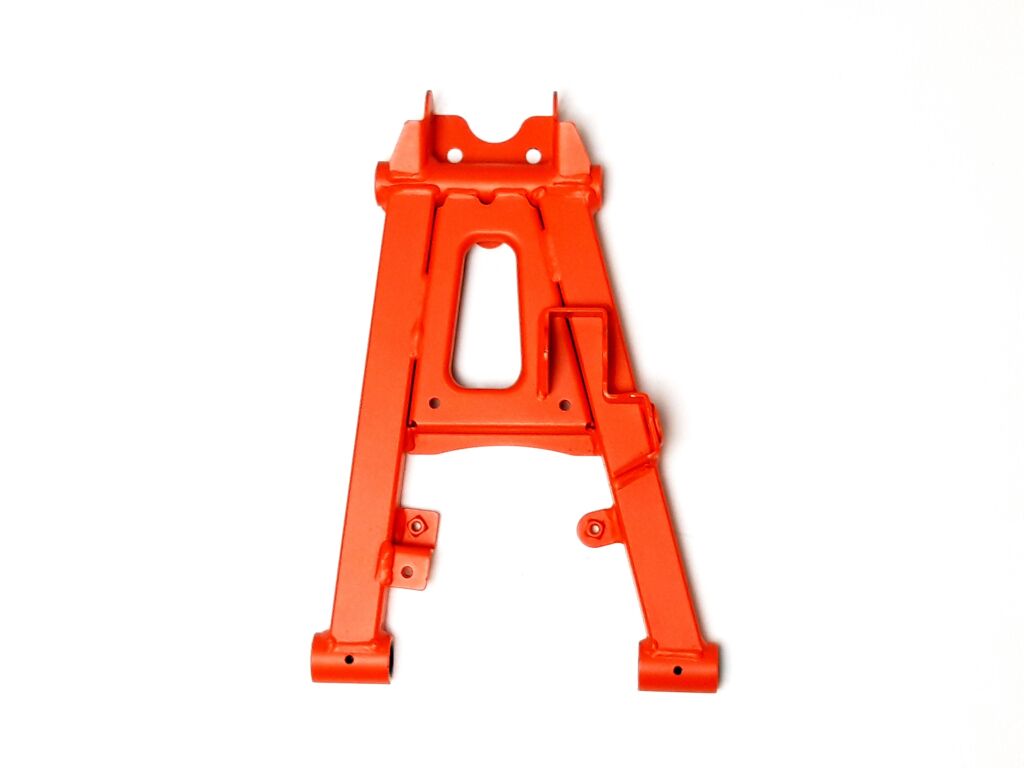

10 RED LOWER WELD ARM RR (Item nr. 10) A01D24102001 RED LOWER WELD ARM RR  1 € 221,82 € 268
IN STOCK

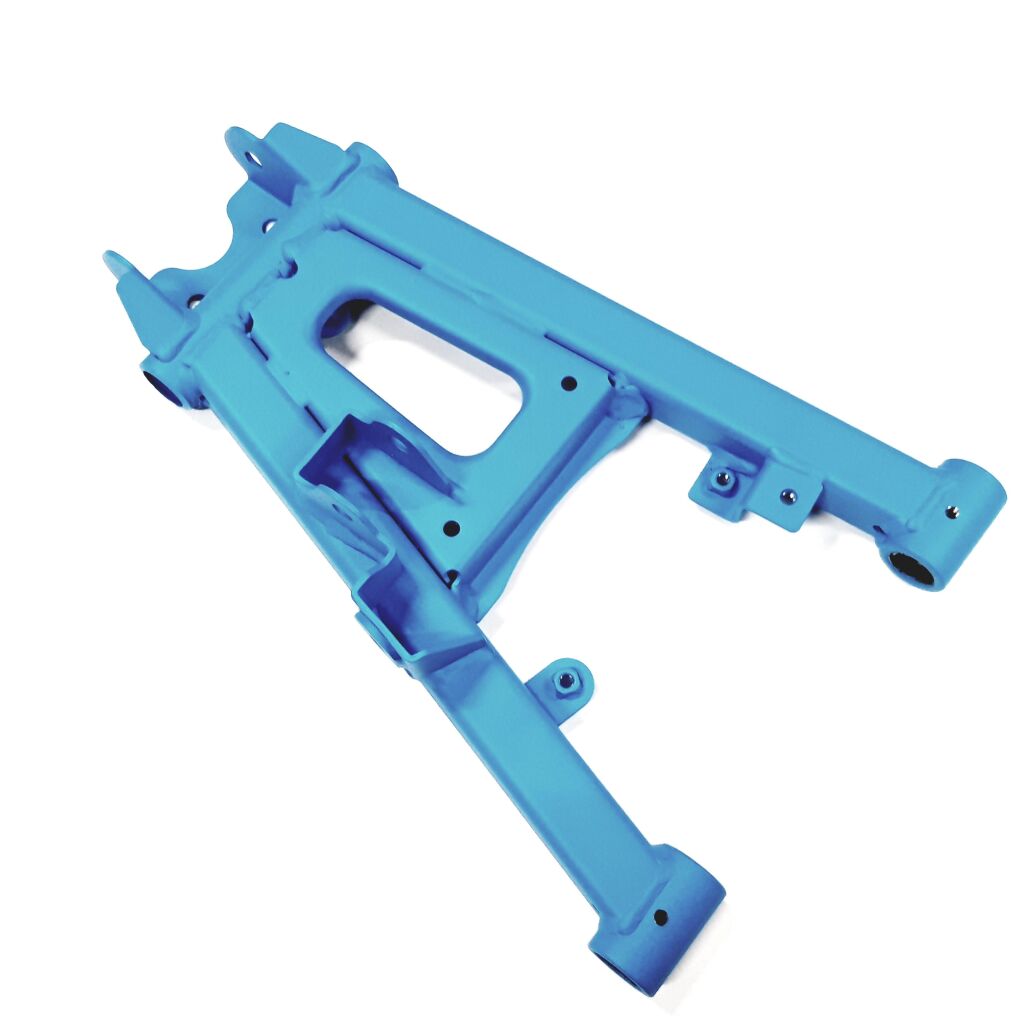

10 BLUE LOWER WELD ARM RR (Item nr. 10) A01D24104001 BLUE LOWER WELD ARM RR  1 € 221,82 € 268
IN STOCK
10 A01D24106001 BLACK LOWER WELD ARM RR  1 € 42,31 € 51
ON REQUEST
11 A01-D250100-0B0-00 BLACK REAR SHOCK ABSORBER  2 € 60,25 € 73
ON REQUEST
12 BLACK REAR GAS SHOCK ABSORBER (Item nr. 12) A01-D250200-0B0-00 BLACK REAR GAS SHOCK ABSORBER  2 € 170,83 € 207
IN STOCK
13 A01D22001001 PEAK GREEN LOWER WELD ARM RL  1 € 105,12 € 127
IN STOCK
13 RED LOWER WELD ARM RL (Item nr. 13) A01D22102001 RED LOWER WELD ARM RL  1 € 105,12 € 127
IN STOCK

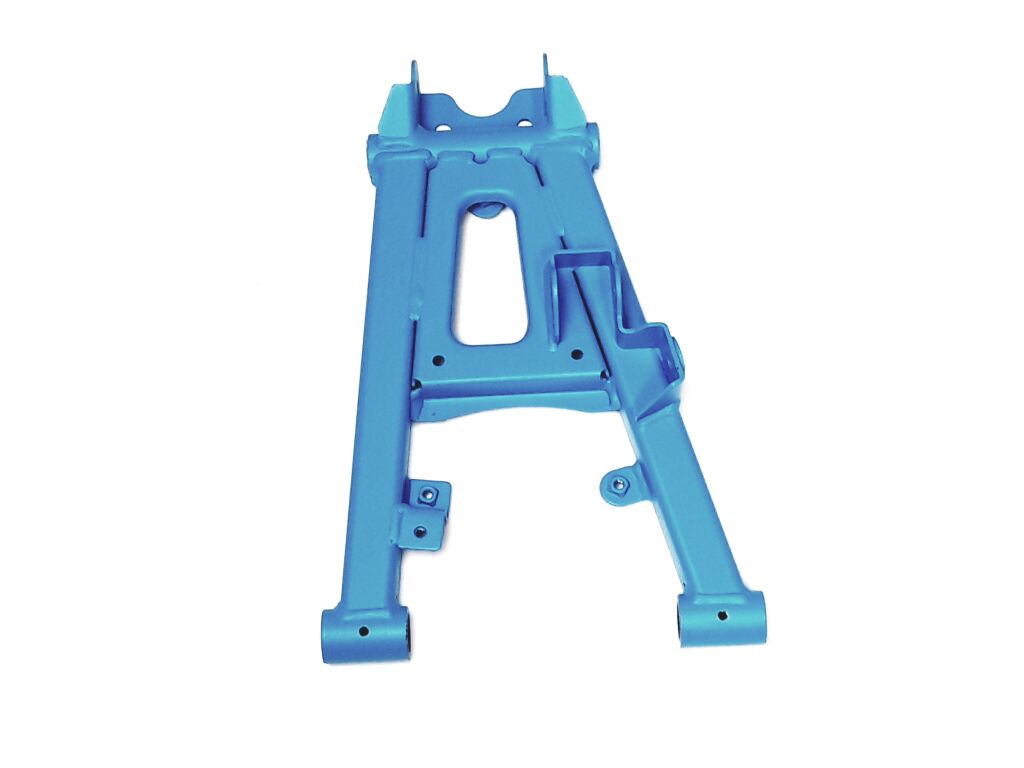

13 BLUE LOWER WELD ARM RL (Item nr. 13) A01D22104001 BLUE LOWER WELD ARM RL  1 € 105,12 € 127
IN STOCK

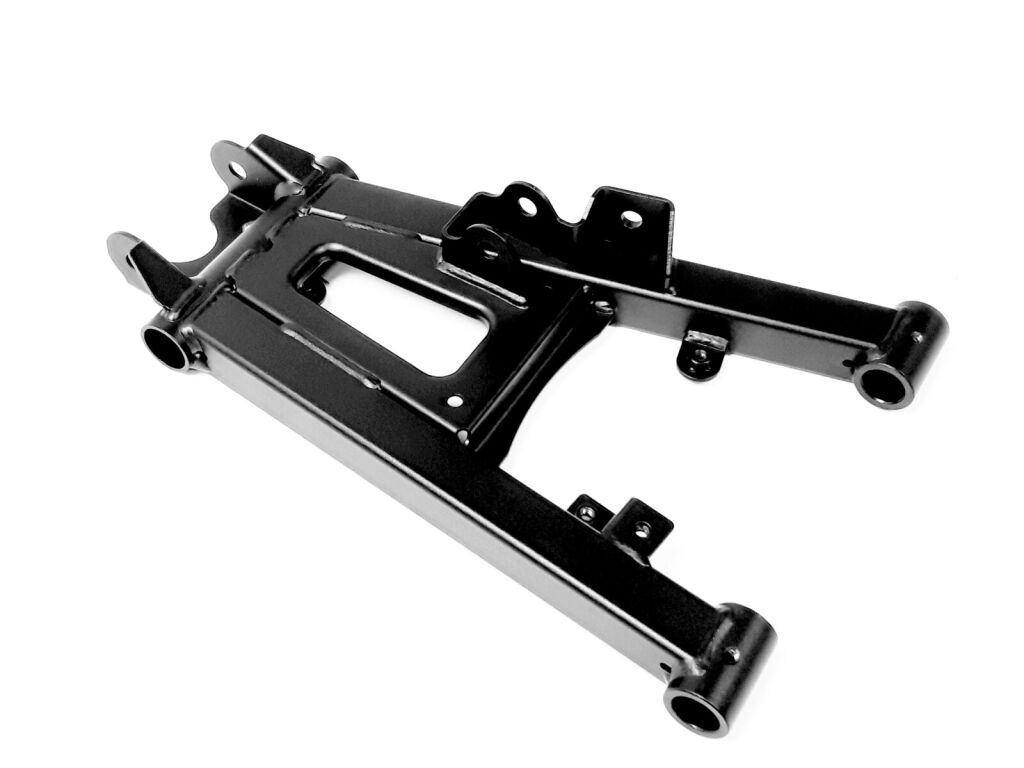

13 MATTE BLACK LOWER WELD ARM RL (Item nr. 13) A01D22106001 MATTE BLACK LOWER WELD ARM RL  1 € 54,30 € 66
IN STOCK
14 FRONT ARM TUBE (Item nr. 14) U01D11002001 FRONT ARM TUBE  8 € 2,15 € 3
ON REQUEST
15 FRONT ARM TUBE (Item nr. 15) U01D11001001 FRONT ARM TUBE  16 € 5,95 € 7
IN STOCK
9 Hexagon flange bolt M10×1.25×55 (Item nr. 9) GBT005789032 Hexagon flange bolt M10×1.25×55  4 € 2,48 € 3
IN STOCK
8 REAR RIGHT AXLE SUPPORT ASSEMBLY (Item nr. 8) A01D20200002 REAR RIGHT AXLE SUPPORT ASSEMBLY  1 € 132,31 € 160
IN STOCK
2 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 2) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  16 € 2,18 € 3
IN STOCK

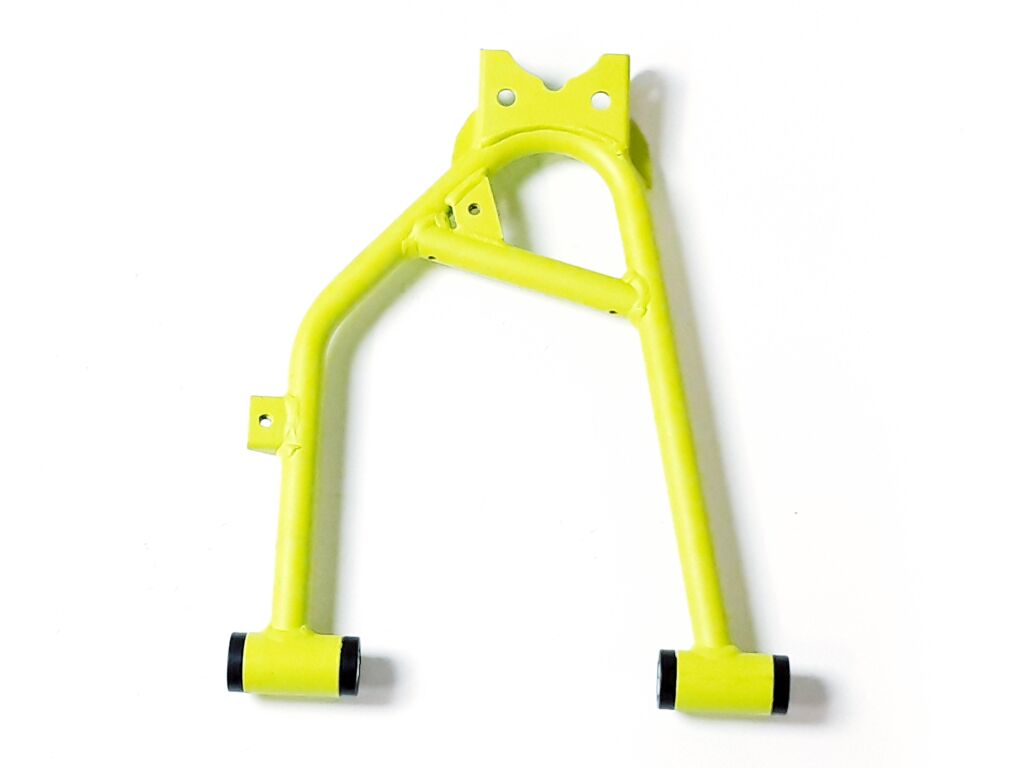

3 A01D21001001 PEAK GREEN UPPER WELD ARM RL  1 € 68,10 € 82
IN STOCK

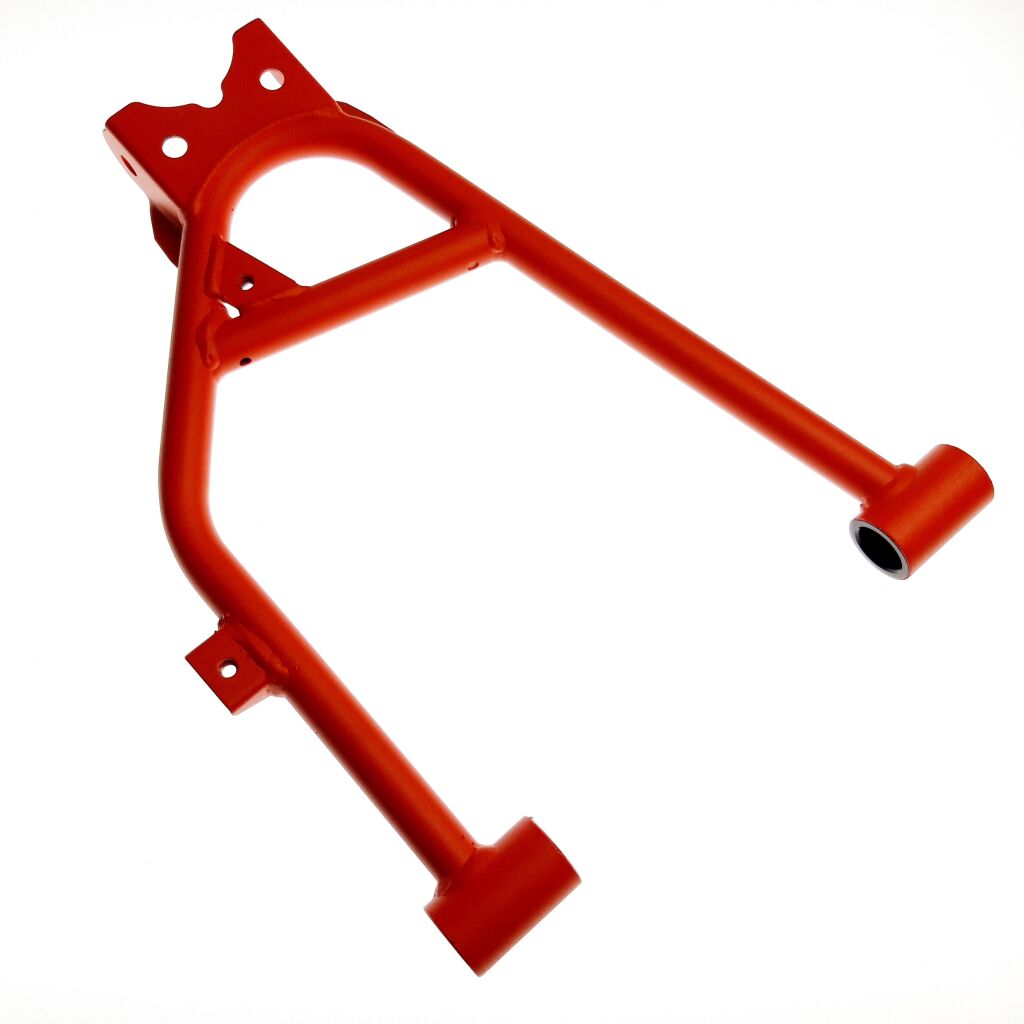

3 RED UPPER WELD ARM FL (Item nr. 3) A01D21102001 RED UPPER WELD ARM FL  1 € 253,22 € 306
IN STOCK

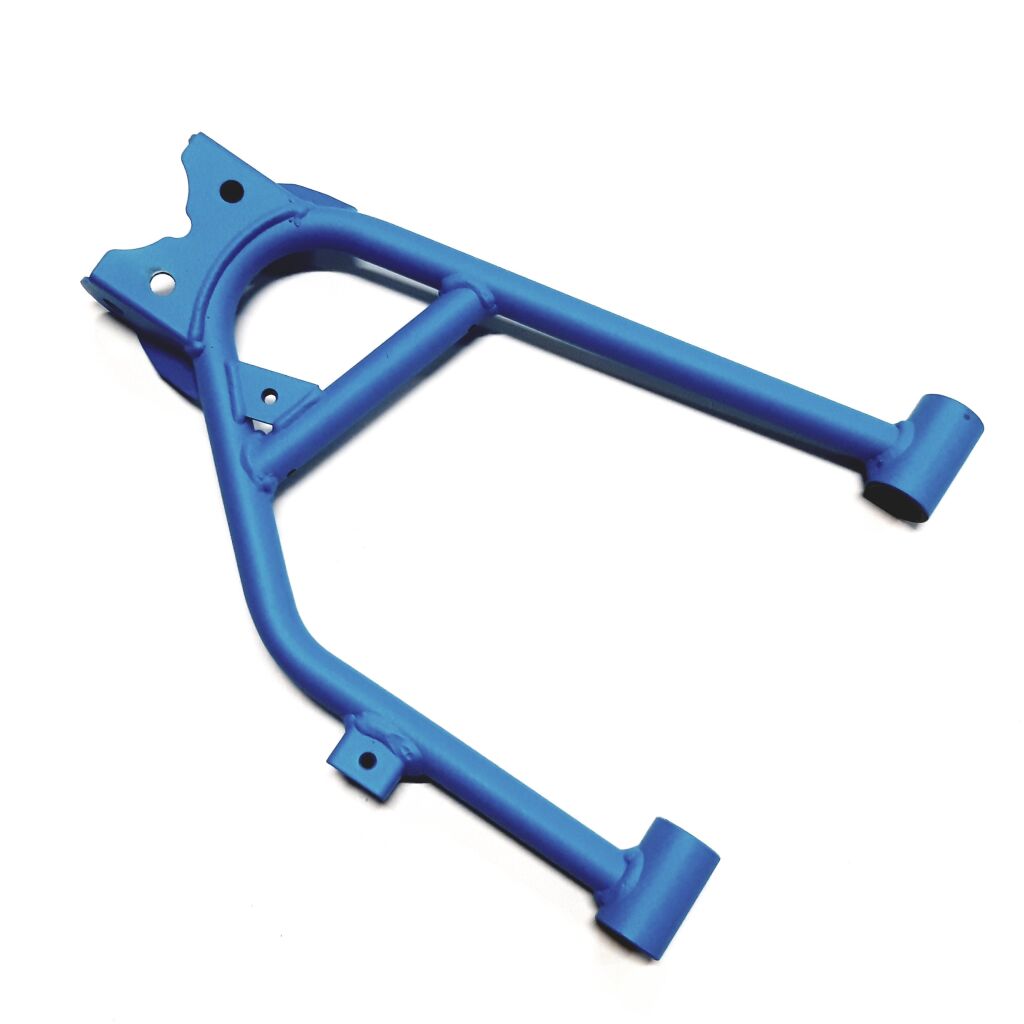

3 BLUE UPPER WELD ARM FL (Item nr. 3) A01D21104001 BLUE UPPER WELD ARM FL  1 € 290,91 € 352
IN STOCK
3 A01D21106001 MATTE BLACK UPPER WELD ARM FL  1 € 33,55 € 41
ON REQUEST
4 HEXAGON FLANGE BOLT M10×1.25×100 (Item nr. 4) GBT005789038 HEXAGON FLANGE BOLT M10×1.25×100  4 € 3,14 € 4
IN STOCK
5 Hexagon flange bolt M10×1.25×85 (Item nr. 5) GBT005789035 Hexagon flange bolt M10×1.25×85  8 € 2,64 € 3
IN STOCK
6 REAR STABILIZER BAR (Item nr. 6) A01D26030001 REAR STABILIZER BAR  1 € 95,70 € 116
IN STOCK
7 PEAK GREEN UPPER WELD ARM RR (Item nr. 7) A01D23001001 PEAK GREEN UPPER WELD ARM RR  1 € 68,10 € 82
ON REQUEST

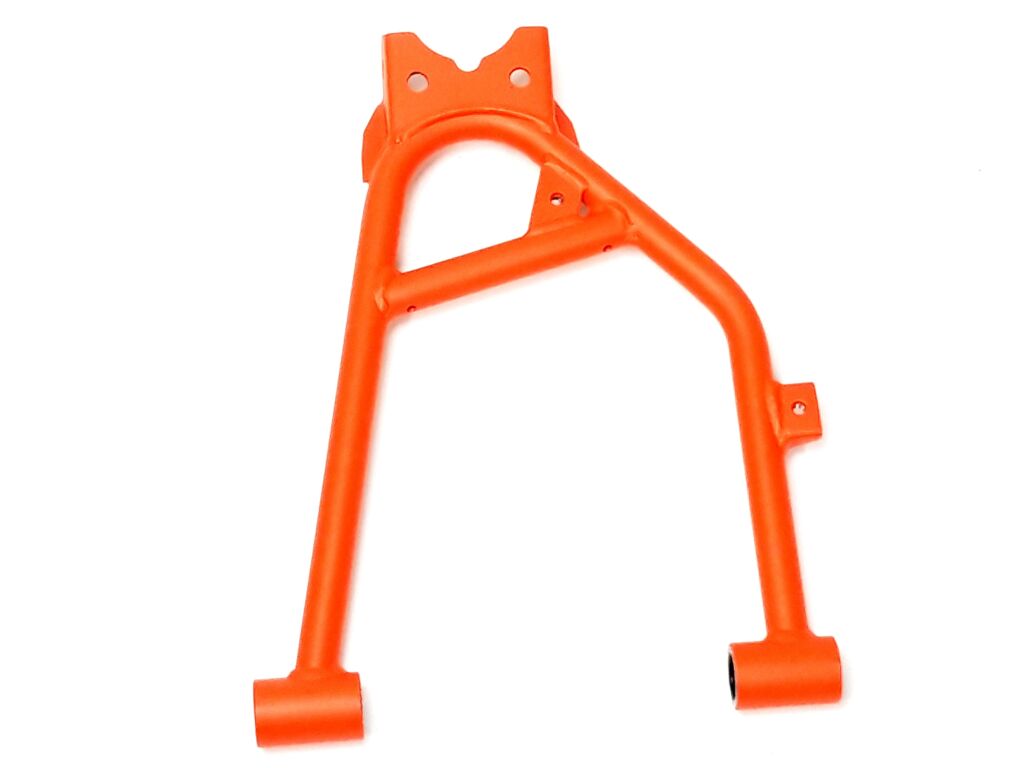

7 RED UPPER WELD ARM RR (Item nr. 7) A01D23102001 RED UPPER WELD ARM RR  1 € 189,83 € 230
IN STOCK

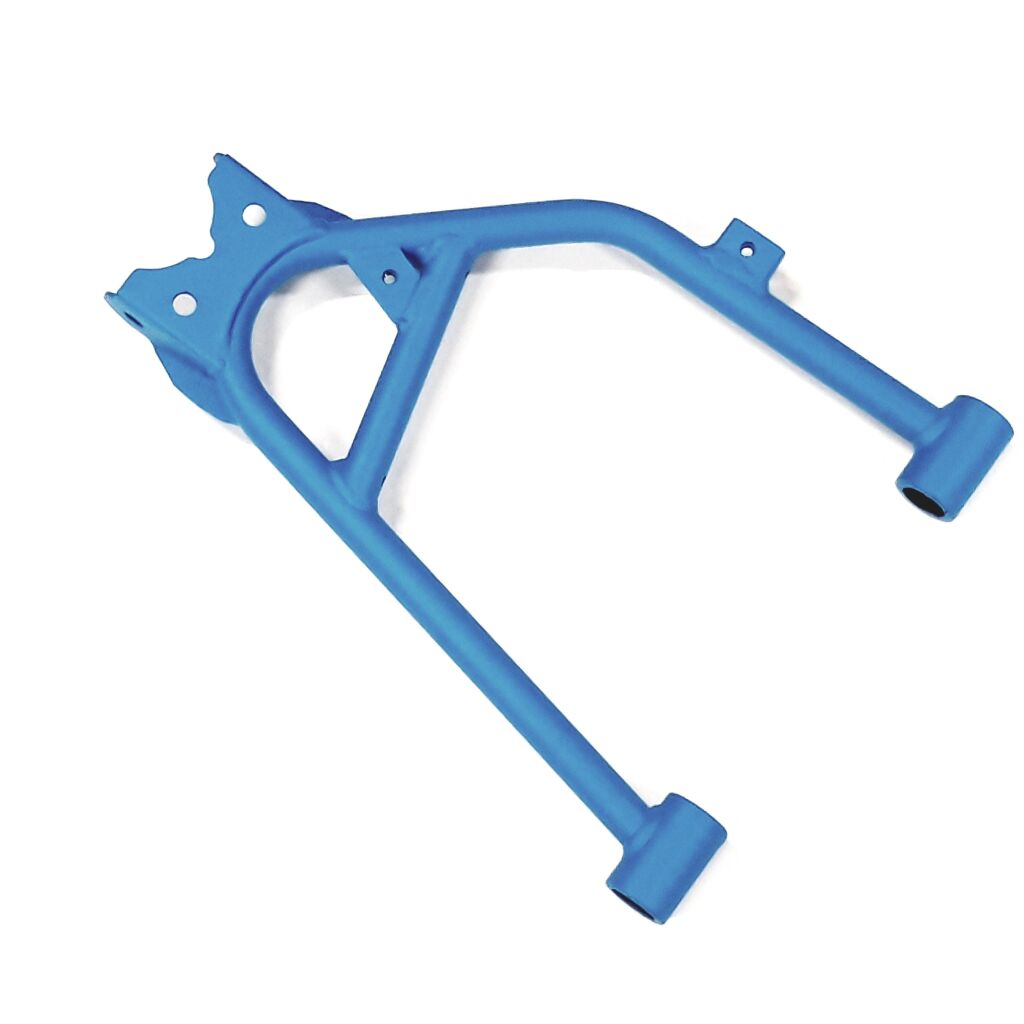

7 BLUE UPPER WELD ARM RR (Item nr. 7) A01D23104001 BLUE UPPER WELD ARM RR  1 € 189,83 € 230
IN STOCK
7 A01D23106001 MATTE BLACK UPPER WELD ARM RR  1 € 37,93 € 46
ON REQUEST
16 Straight pressure oil cup (Item nr. 16) GBT001152001 Straight pressure oil cup  8 € 5,04 € 6
IN STOCK
Product Code SEGWAY_2_235_SGW570-A11-ABS
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: AT6
Select MODEL: Snarler AT6 L ABS T3b
