STEERING KNUCKLE

TGB
  • Manufacturer  TGB
  • Product Code  TGB_2_212_VSF

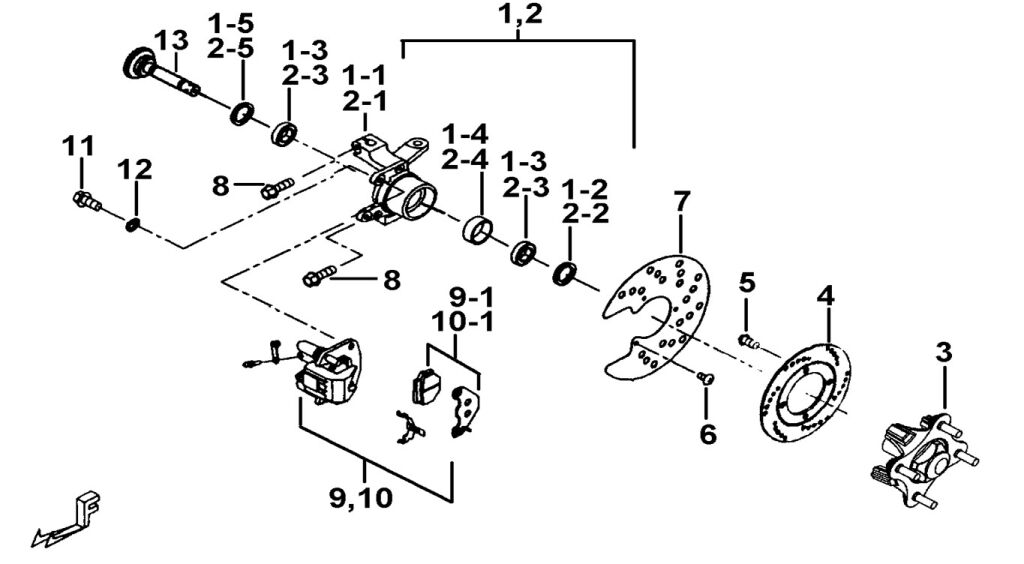

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 516344A KNUCKLE, STEERING, LH  1 € 189,26 € 229
ON REQUEST
05 SCREW, SOCKET (Item nr. 05) S72005 SCREW, SOCKET  8 € 3,06 € 4
IN STOCK
06 SCREW, AN HEAD (Item nr. 06) GA555SC02 SCREW, AN HEAD

OPTION

6 € 2,40 € 3
IN STOCK

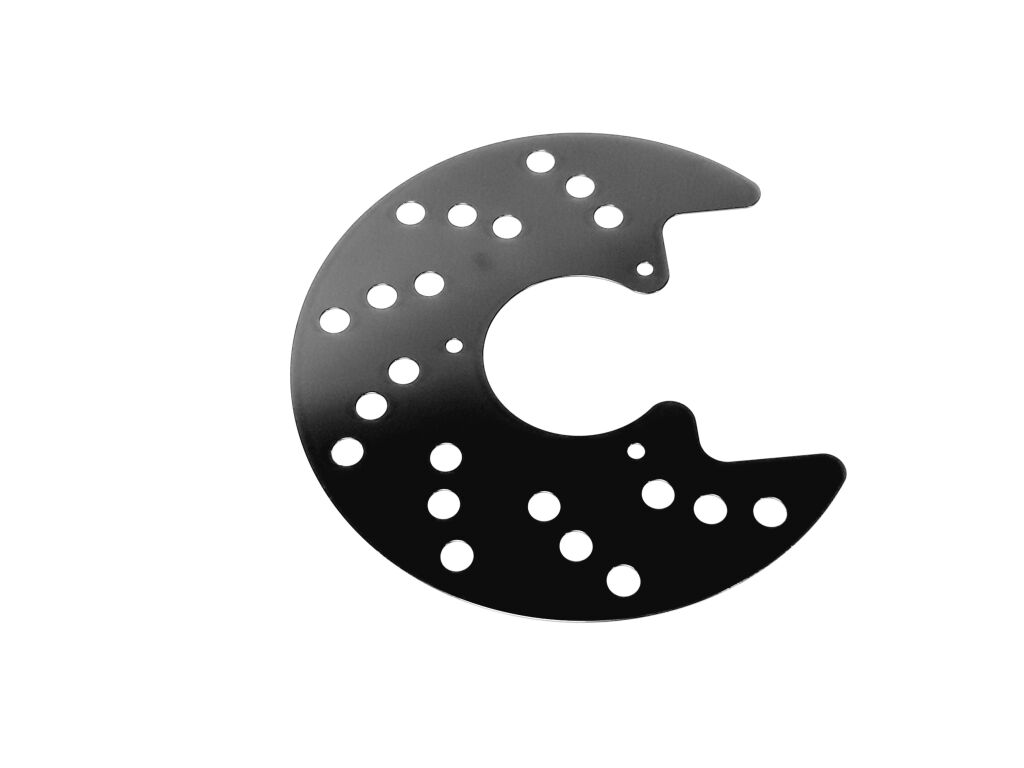

07 PROTECTIVE COVER (Item nr. 07) 512944 PROTECTIVE COVER

OPTION

2 € 7,77 € 9
IN STOCK
08 S20050 BOLT  4 € 4,96 € 6
ON REQUEST
09 513505 CALIPER ASSY., FRONT, LH  1 € 103,22 € 125
ON REQUEST
09.1 BRAKE PAD TGB front Target 425, 525, Blade 250, 300 (Item nr. 09-1) 514038 BRAKE PAD TGB front Target 425, 525, Blade 250, 300  1 € 36,20 € 44
ON REQUEST
10 CALIPER ASSY., FRONT, RH (Item nr. 10) 513506 CALIPER ASSY., FRONT, RH  1 € 74,05 € 90
ON REQUEST
11 BOLT (Item nr. 11) S21809 BOLT  4 € 2,40 € 3
IN STOCK
12 SPRING WASHER (Item nr. 12) GA556WS04 SPRING WASHER  4 € 2,40 € 3
IN STOCK
04 R/B 512935Y DISC, BRAKE 180mm (Item nr. 04) 512919Y R/B 512935Y DISC, BRAKE 180mm  2 € 38,68 € 47
ON REQUEST
03 512959 R/B 512959Y HUB, FRONT WHEEL  2 € 71,82 € 87
ON REQUEST

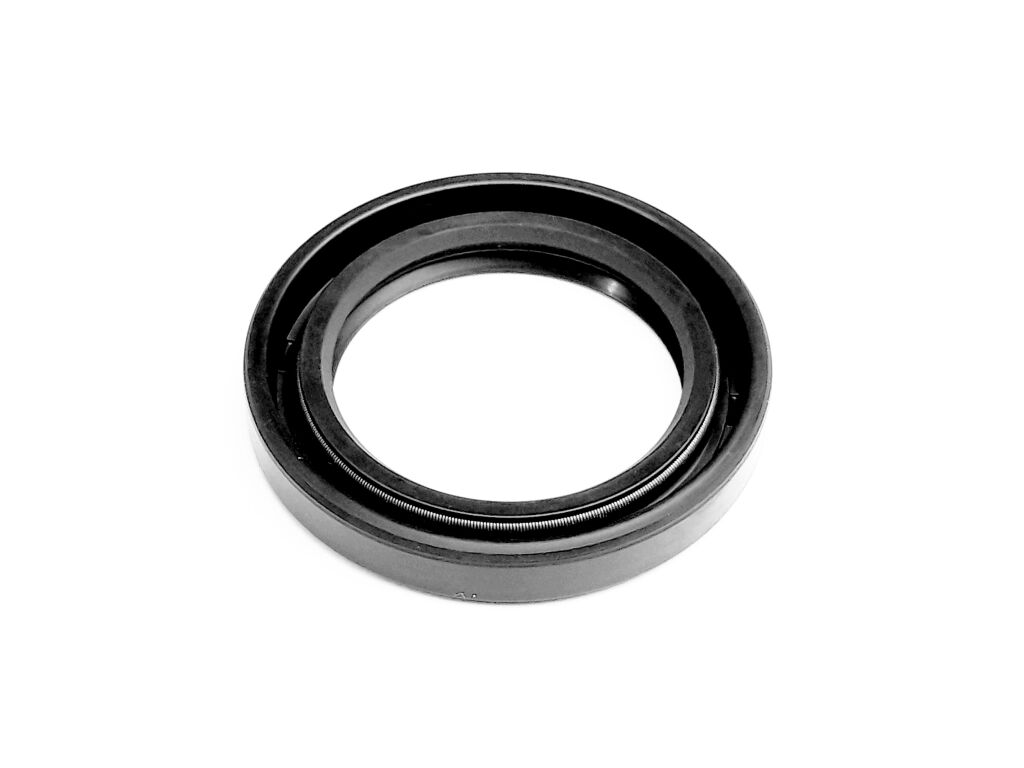

02.5 Oil Seal Inner (Item nr. 02-5) 513367 Oil Seal Inner  1 € 4,63 € 6
IN STOCK
01.1 516344 KNUCKLE, STEERING, LH  1 € 162,98 € 197
ON REQUEST
01.2 OIL SEAL, OUTER (Item nr. 01-2) 513325 OIL SEAL, OUTER  1 € 3,22 € 4
IN STOCK IN 6 days
01.3 BEARING (unavailable) (Item nr. 01-3) 513350 BEARING (unavailable)  2 € 26,69 € 32
IN STOCK
01.4 SPACER (Item nr. 01-4) 513324 SPACER  1 € 2,40 € 3
IN STOCK
02 516345A KNUCKLE, STEERING, RH  1 € 176,94 € 214
ON REQUEST
02.1 KNUCKLE, STEERING, RH (Item nr. 02-1) 516345 KNUCKLE, STEERING, RH  1 € 149,67 € 181
IN STOCK
13 512924 FRONT AXLE  2 € 39,92 € 48
ON REQUEST
Product Code TGB_2_212_VSF
PARTS CATEGORY: FRAME PARTS
