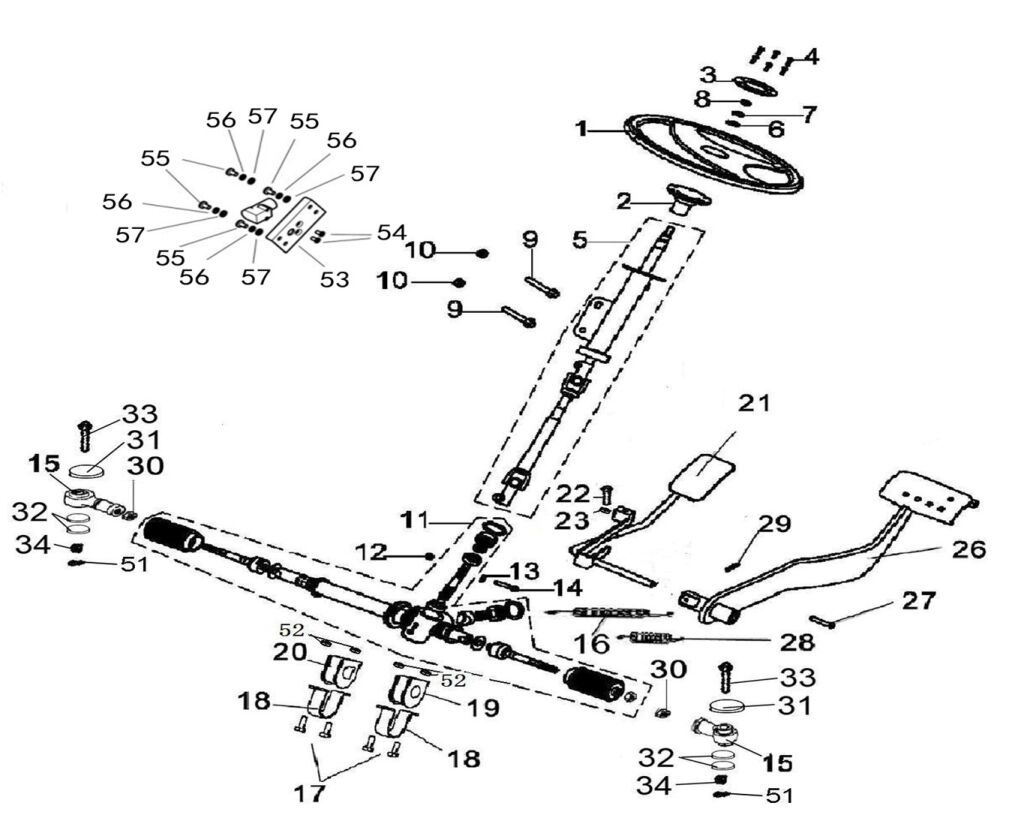

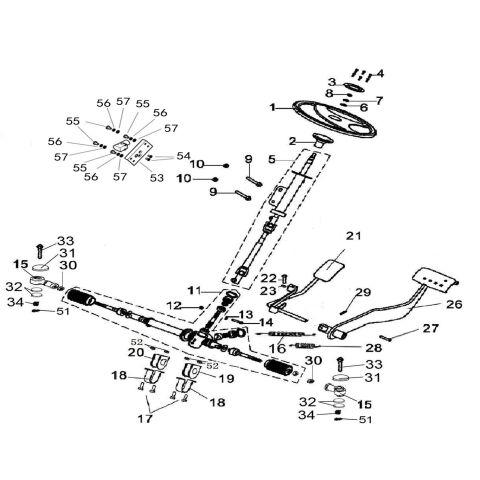

STEERING ASSY

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_2_205_LH50DU-E4
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
57 10804 Washer 6.4×11×1.6  4 € 7,19 € 9
ON REQUEST
44 Spring Washer 8 (Item nr. 44) 10106 Spring Washer 8  1 € 2,40 € 3
IN STOCK
43 10703 A-SHAFT CIRCLIP 18  1 € 7,19 € 9
ON REQUEST
42 Ball Bearing 6203 (Item nr. 42) 10199 Ball Bearing 6203  1 € 4,63 € 6
IN STOCK
39 A-SHAFT CIRCLIP 20 (Item nr. 39) 24407 A-SHAFT CIRCLIP 20  1 € 2,40 € 3
RE STOCKING
46 27199 CROSS SHAFT assy(include 46.1,46.2,46.3,46.4)  1 € 40,08 € 48
ON REQUEST
56 10308 WASHER 6  4 € 7,19 € 9
ON REQUEST
55 73417 Cross Recessed Pan Head Screw M6×10  4 € 7,19 € 9
ON REQUEST
54 70041 Cross Recessed Countersunk Head Screw M5×10  2 € 7,19 € 9
ON REQUEST
53 73208 Bracket For Steering Lock  1 € 7,19 € 9
ON REQUEST
52 Prevailing Torque Hexagon Nut With Flange M10×1.25 (Item nr. 52) 10795 Prevailing Torque Hexagon Nut With Flange M10×1.25  4 € 9,59 € 12
IN STOCK
51 COTTER PIN 2.5X25 (Item nr. 51) 27215 COTTER PIN 2.5X25  2 € 7,19 € 9
IN STOCK
50 10704 HEXAGON NUTS  1 € 12,81 € 16
ON REQUEST
48 BOLTS M8X20 (Item nr. 48) 10035 BOLTS M8X20  1 € 2,40 € 3
ON REQUEST
47 27200 SPLINED SLEEVE assy（include 47.1,47.2,47.3)  1 € 41,74 € 51
ON REQUEST
38 27197 STEERING SHAFT assy(include 38.1,38.2,38.3,38.4,38.5,38.6,38.7,38.8)  1 € 218,68 € 265
ON REQUEST
37 WASHER 12 (Item nr. 37) 10032 WASHER 12  1 € 9,59 € 12
IN STOCK
16 SPRING B,BRAKE PADEL (Item nr. 16) 26933 SPRING B,BRAKE PADEL  1 € 2,89 € 3
IN STOCK
15 TIE ROD END B (Item nr. 15) 26928 TIE ROD END B  2 € 19,83 € 24
IN STOCK
14 26255 Hexagon Head Bolt M8×1.25×40  1 € 8,02 € 10
ON REQUEST
12 Hex Nut M8×1.25 (Item nr. 12) 10099 Hex Nut M8×1.25  1 € 2,40 € 3
ON REQUEST
11 STEERING ASSY (Item nr. 11) 26927 STEERING ASSY  1 € 279,83 € 339
RE STOCKING
9 26241 BOLT M12X1.25X30  2 € 9,01 € 11
ON REQUEST
8 26257 Hexagon Thin Nut M12×1.25  1 € 13,64 € 16
ON REQUEST
7 Spring Lock Washer 12 (Item nr. 7) 10054 Spring Lock Washer 12  1 € 2,40 € 3
IN STOCK
5 COLUMN,STEERING (Item nr. 5) 26926 COLUMN,STEERING  1 € 189,17 € 229
IN STOCK
4 73072 Cross Recessed Pan Head Screw m5×10  6 € 7,19 € 9
ON REQUEST
3 26934 Steering Cover  1 € 5,37 € 6
ON REQUEST
2 26932 Steering Wheel Holder  1 € 25,87 € 31
ON REQUEST
17 10784 Hexagon Flange Bolt M10×1.25×30 8.8  4 € 2,40 € 3
ON REQUEST
18 Bracket For Steering Gear (Item nr. 18) 26935 Bracket For Steering Gear  2 € 4,05 € 5
IN STOCK
19 Rubber Bush A For Steering Gear (Item nr. 19) 26936 Rubber Bush A For Steering Gear  1 € 7,60 € 9
IN STOCK
35 10700 NUT  1 € 9,01 € 11
ON REQUEST
34 NUT M10 (Item nr. 34) 10020 NUT M10  2 € 2,40 € 3
IN STOCK
33 BOLT M10X1.25X55 (Item nr. 33) 10708 BOLT M10X1.25X55  2 € 2,40 € 3
IN STOCK
32 WASHER 10 (Item nr. 32) 10019 WASHER 10  4 € 2,40 € 3
IN STOCK
31 10814 WASHER 10  2 € 8,02 € 10
ON REQUEST
30 10524 NUT M12X1.25  2 € 13,64 € 16
ON REQUEST
29 70050 PIN 4X30  1 € 7,19 € 9
ON THE WAY
28 SPRING A,BRAKE PADEL (Item nr. 28) 26941 SPRING A,BRAKE PADEL  1 € 3,22 € 4
IN STOCK
27 26940 PIN  1 € 8,93 € 11
ON REQUEST
26 PEDAL,BRAKE (Item nr. 26) 26931 PEDAL,BRAKE  1 € 32,15 € 39
IN STOCK
23 10103 NUT M6  3 € 8,76 € 11
ON REQUEST
22 Bolt M6X30 (Item nr. 22) 10182 Bolt M6X30  3 € 2,40 € 3
IN STOCK
21 PADEL,THROTTLE (Item nr. 21) 55025 PADEL,THROTTLE  1 € 102,23 € 124
ON REQUEST
20 Rubber Bush B For Steering Gear (Item nr. 20) 26937 Rubber Bush B For Steering Gear  1 € 7,36 € 9
IN STOCK
1 26925 Steering Wheel  1 € 77,19 € 93
ON REQUEST
Product Code LINHAI_2_205_LH50DU-E4
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select MODEL: LH50DU E4
Select TYPE: LINHAI Electric UTV
