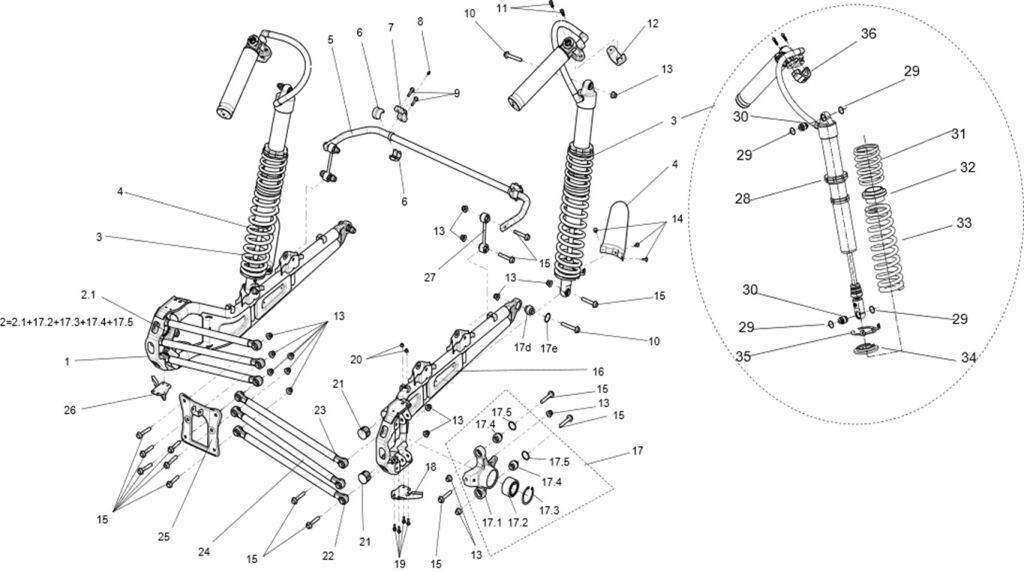

REAR SUSPENSION ASSEMBLY (NARROW VEHICLE VERSION)

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_236_UTV1000F-S3-23
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
36 S01D20510001 REAR SHOCK-ABSORBING AIRBAG MOUNTING SEAT  1 € 16,12 € 19
ON REQUEST

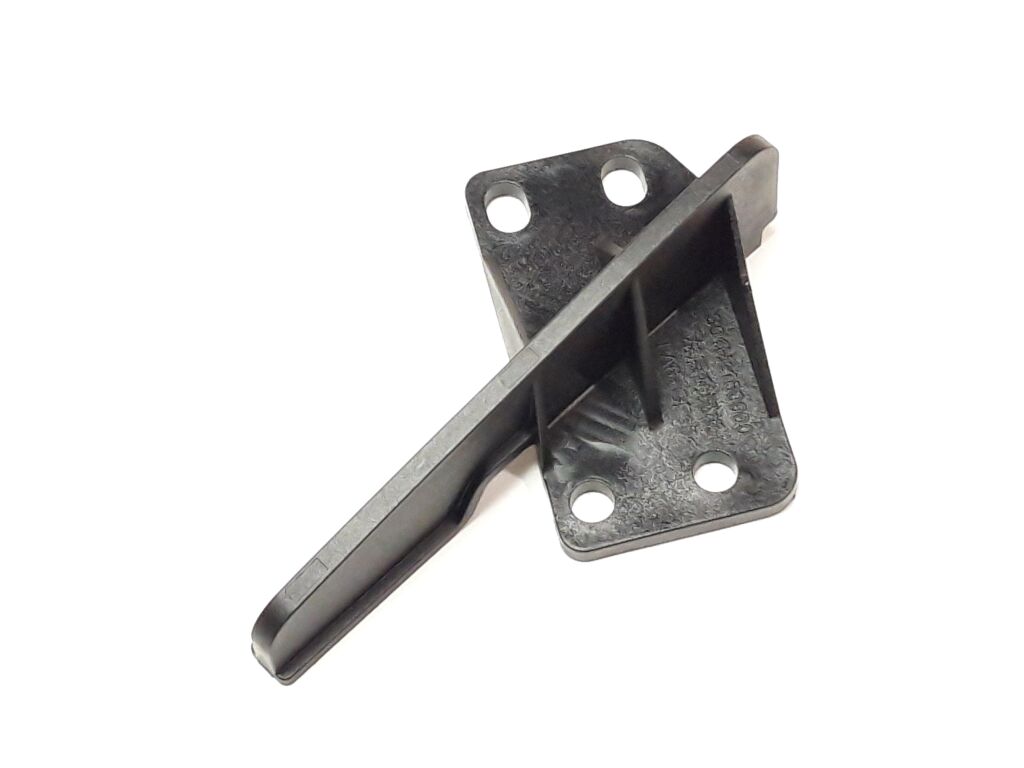

26 RL TRAILING ARM SCRAPER SEAT (Item nr. 26) S01H11600001 RL TRAILING ARM SCRAPER SEAT  1 € 5,54 € 7
IN STOCK

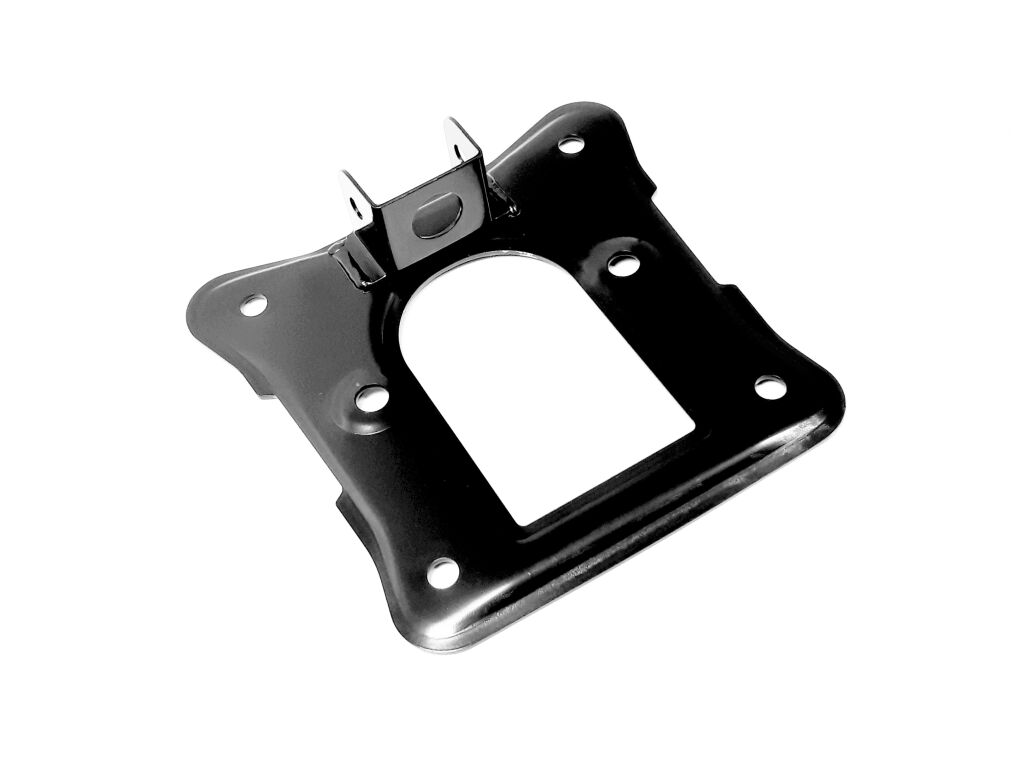

25 REAR TRAILING ARM MOUNTING PLATE（BLACK） (Item nr. 25) S01C00100002 REAR TRAILING ARM MOUNTING PLATE（BLACK）  1 € 24,55 € 30
IN STOCK
24 REAR SUSPENSION TOE ARM ASSEMBLY(NARROW VEHICLE) (Item nr. 24) S01D20600001 REAR SUSPENSION TOE ARM ASSEMBLY(NARROW VEHICLE)  2 € 66,78 € 81
IN STOCK
23 S01D20700001 REAR UPPER TIE ROD ASSEMBLY  2 € 60,25 € 73
ON REQUEST
22 REAR BOTTOM TIE ROD ASSEMBLY (Item nr. 22) S01D20800001 REAR BOTTOM TIE ROD ASSEMBLY  2 € 61,49 € 74
IN STOCK
21 S05H11700001 FRAME PLUG  4 € 2,48 € 3
ON REQUEST
20 NUT M6 (Item nr. 20) GBT061831002 NUT M6  8 € 2,18 € 3
IN STOCK
19 HEXAGON FLANGE BOLT M6×20 (Item nr. 19) GBT005789008 HEXAGON FLANGE BOLT M6×20  8 € 2,18 € 3
IN STOCK

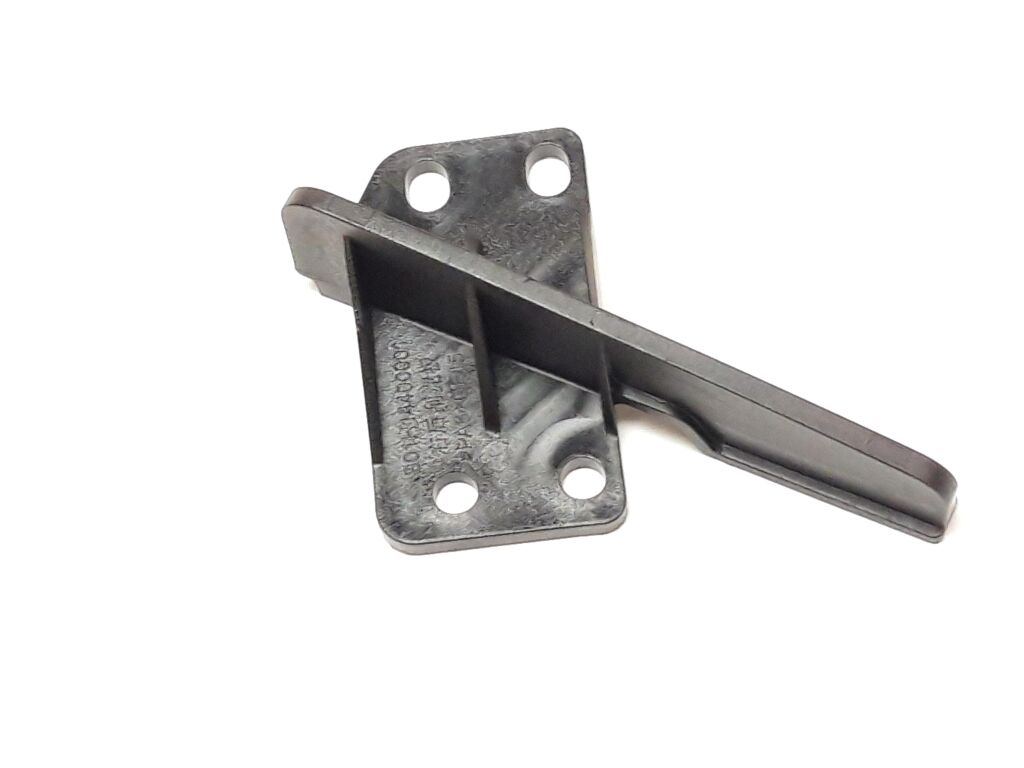

18 RR TRAILING ARM SCRAPER SEAT (Item nr. 18) S01H14400001 RR TRAILING ARM SCRAPER SEAT  1 € 5,54 € 7
IN STOCK
17,5 GB0008951001 WIRE RETAINING RING FOR HOLE 35  6 € 2,48 € 3
ON REQUEST

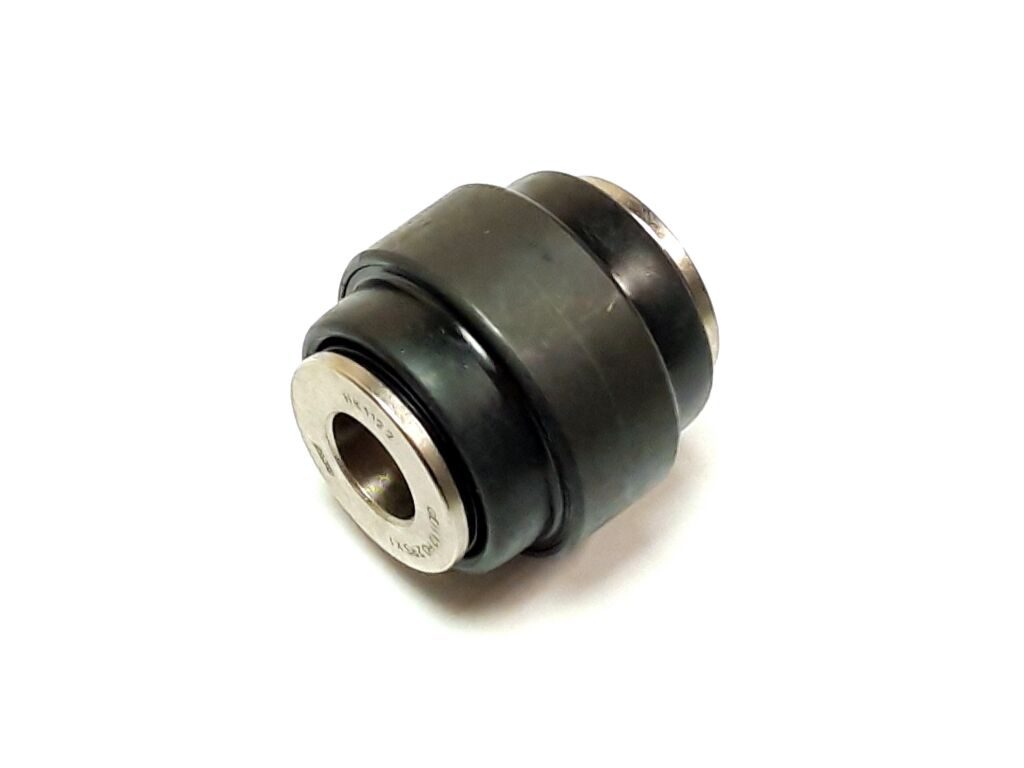

17,4 JOINT BEARING (Item nr. 17,4) S01D20101001 JOINT BEARING  6 € 17,36 € 21
IN STOCK

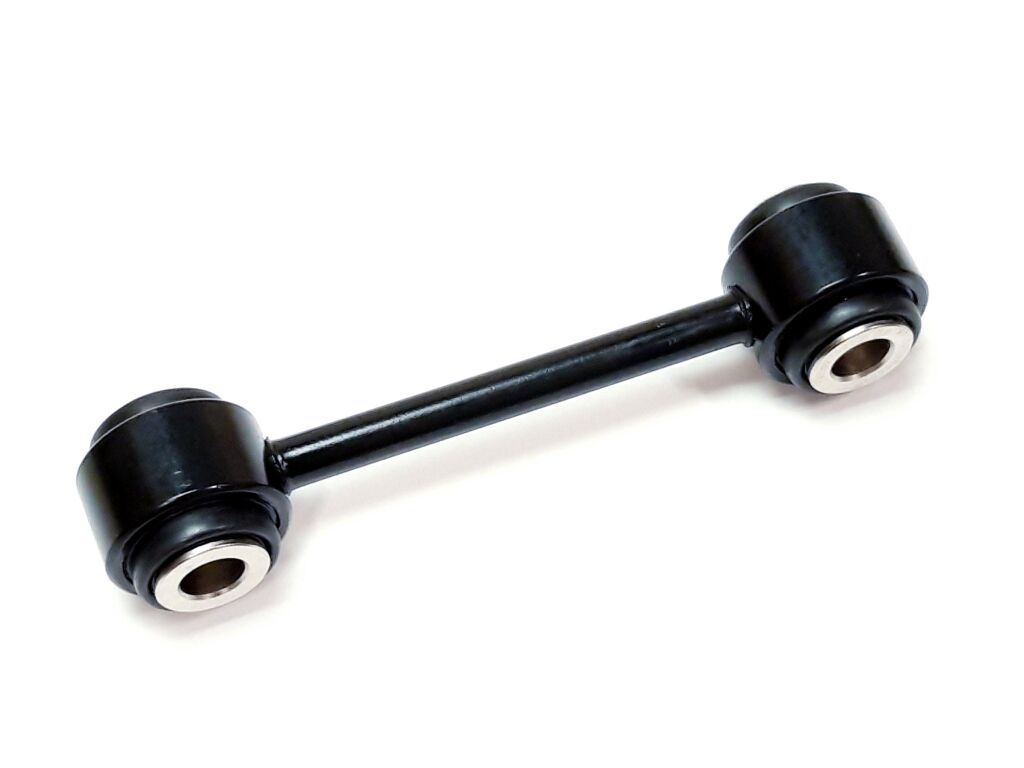

27 REAR STABILIZER BAR LINKAGE ASSEMBLY (Item nr. 27) S01D209B0001 REAR STABILIZER BAR LINKAGE ASSEMBLY  2 € 43,39 € 53
IN STOCK
28 S01-D205100-000-01 REAR DAMPER ASSEMBLY  1 € 543,72 € 658
ON REQUEST
35 S01-D205223-PB0-01 FENDER BRACKET  1
ON REQUEST
Detail
34 S01-D107224-PB0-01 LOWER SPRING CUSHION  1 € 10,50 € 13
ON REQUEST
33 S01-D205222-PB0-01 FRONT DAMPER SPRING 2 BLACK NARROW  1 € 19,83 € 24
ON REQUEST
33 S01-D205222-PG0-01 FRONT DAMPER SPRING 2 GREEN NARROW  1
ON REQUEST
Detail
33 S01-D205222-PR0-01 FRONT DAMPER SPRING 2 RED NARROW  1
ON REQUEST
Detail
32 S01-D107223-PB0-01 SPRING SPACER  1 € 3,88 € 5
ON REQUEST
31 S01-D205221-PB0-01 REAR DAMPER SPRING 1 BLACK NARROW  1 € 6,78 € 8
ON REQUEST
31 S01-D205221-PG0-01 REAR DAMPER SPRING 1 GREEN NARROW  1
ON REQUEST
Detail
31 S01-D205221-PR0-01 REAR DAMPER SPRING 1 RED NARROW  1
ON REQUEST
Detail
30 S01-D107210-000-01 SPHERICAL BEARING ASSEMBLY  2 € 10,50 € 13
ON REQUEST
29 S01-D107211-000-01 JOINT BEARING COMBINATION RETAINING RING  4 € 1,74 € 2
ON REQUEST
17,3 CIRCLIP 72 (Item nr. 17,3) GBT000893006 CIRCLIP 72  2 € 2,48 € 3
IN STOCK
17,2 BEARING DAC407237-2RS (Item nr. 17,2) JBT010238004 BEARING DAC407237-2RS  2 € 35,12 € 43
IN STOCK
7 Rear balance bar mounting seat (Item nr. 7) U01D26002001 Rear balance bar mounting seat  2 € 10,50 € 13
IN STOCK
6 U01 REAR BALANCE BAR BUFFER BLOCK (Item nr. 6) U01D26001001 U01 REAR BALANCE BAR BUFFER BLOCK  4 € 2,48 € 3
IN STOCK
5 S01D209A0001 REAR STABILIZER BAR COMPONENTS  1 € 100,83 € 122
ON REQUEST
4 S01H11700001 REAR SHOCK ABSORBER BAFFLE  2 € 5,54 € 7
ON REQUEST
3 S01-D205000-0B0-01 REAR SHOCK ABSORBER(BLACK,NARROW)  2 € 1 117,85 € 1 353
ON REQUEST

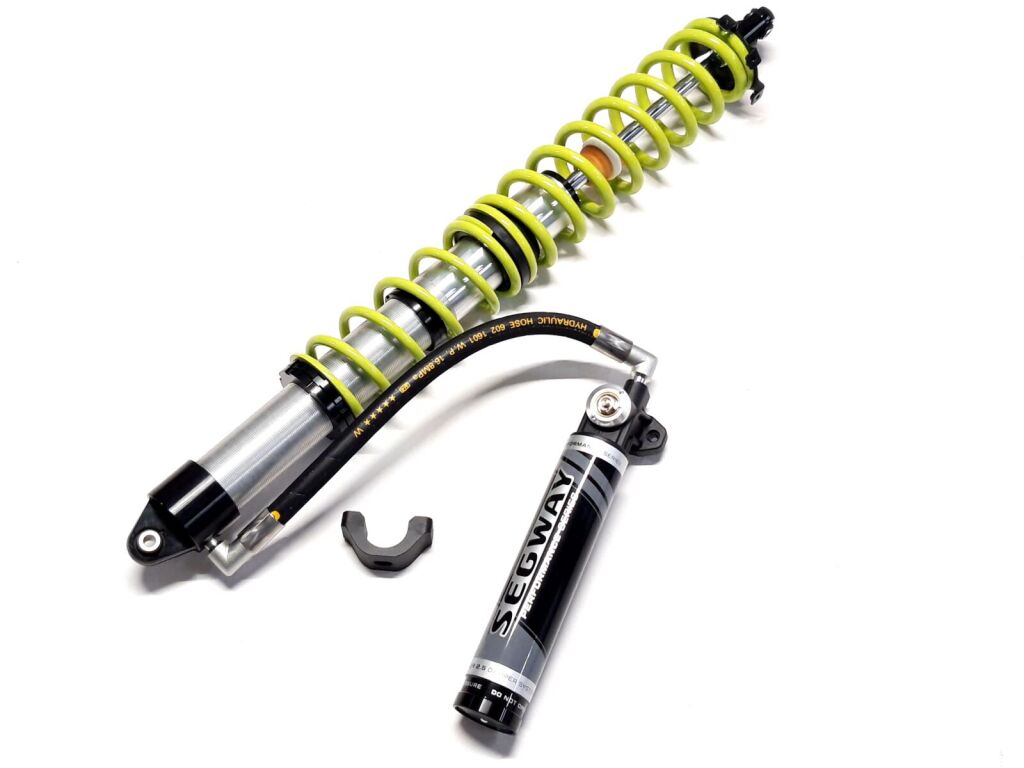

3 REAR SHOCK ABSORBER(GREEN,NARROW) (Item nr. 3) S01-D205000-0G0-01 REAR SHOCK ABSORBER(GREEN,NARROW)  2 € 1 117,85 € 1 353
IN STOCK
3 S01-D205000-0R0-01 REAR SHOCK ABSORBER(RED,NARROW)  2 € 1 117,85 € 1 353
ON REQUEST
2,1 S05D20201001 LEFT REAR AXLE SUPPORT  1 € 89,34 € 108
ON REQUEST
2 S05D20200001 LEFT REAR AXLE SUPPORT ASSEMBLY  1 € 149,17 € 180
ON REQUEST
1 S01D201A0005 RL SUPPORT ARM ASSY (BLACK,NARROW)  1 € 247,93 € 300
ON REQUEST
1 S01D201A0003 RL TRAILING ARM（GREEN，NARROW VEHICLE）  1 € 335,54 € 406
ON REQUEST
8 Straight pressure oil cup (Item nr. 8) GBT001152001 Straight pressure oil cup  2 € 5,04 € 6
IN STOCK
9 HEXAGON FLANGE BOLT M8×30 (Item nr. 9) GBT005789017 HEXAGON FLANGE BOLT M8×30  4 € 2,15 € 3
IN STOCK

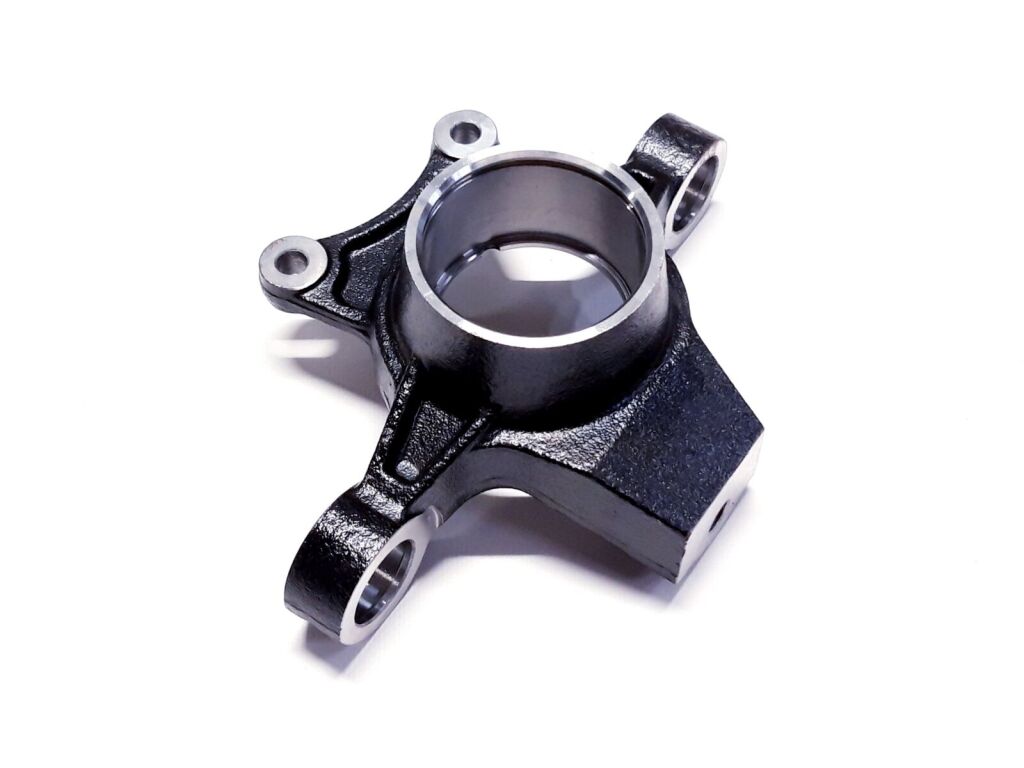

17,1 RIGHT REAR AXLE SUPPORT (Item nr. 17,1) S05D20401001 RIGHT REAR AXLE SUPPORT  1 € 89,34 € 108
IN STOCK
17 S05D20400001 RIGHT REAR AXLE SUPPORT ASSEMBLY  1 € 149,17 € 180
ON REQUEST
16 S01D203A0005 RR TRAILING ARM(BLACK,NARROW VERSION)  1 € 247,93 € 300
ON REQUEST
16 S01D203A0003 RR TRAILING ARM（GREEN，NARROW VEHICLE）  1 € 335,54 € 406
IN STOCK
16 S01D203A0002 RR TRAILING ARM（RED，NARROW VEHICLE）  1 € 265,54 € 321
ON REQUEST
15 GBT005789048 HEX FLANGE BOLT M12×1.25×65  22 € 2,48 € 3
ON REQUEST
14 Inner hexagon screws M6×1.6 (Item nr. 14) T03000007002 Inner hexagon screws M6×1.6  6 € 2,18 € 3
IN STOCK
13 NUT M12×1.25 (Item nr. 13) GBT061832002 NUT M12×1.25  26 € 2,18 € 3
IN STOCK
11 SCREWS M8×25 (Item nr. 11) GBT000701016 SCREWS M8×25  4 € 2,48 € 3
IN STOCK
10 HEX FLANGE BOLT M12×1.25×75 (Item nr. 10) GBT005789102 HEX FLANGE BOLT M12×1.25×75  4 € 2,48 € 3
IN STOCK
1 S01D201A0002 RL TRAILING ARM（RED，NARROW VEHICLE）  1 € 265,54 € 321
ON THE WAY
Product Code SEGWAY_2_236_UTV1000F-S3-23
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Villain SxS
Select MODEL: Villain SX10 (2023-xxxx)
