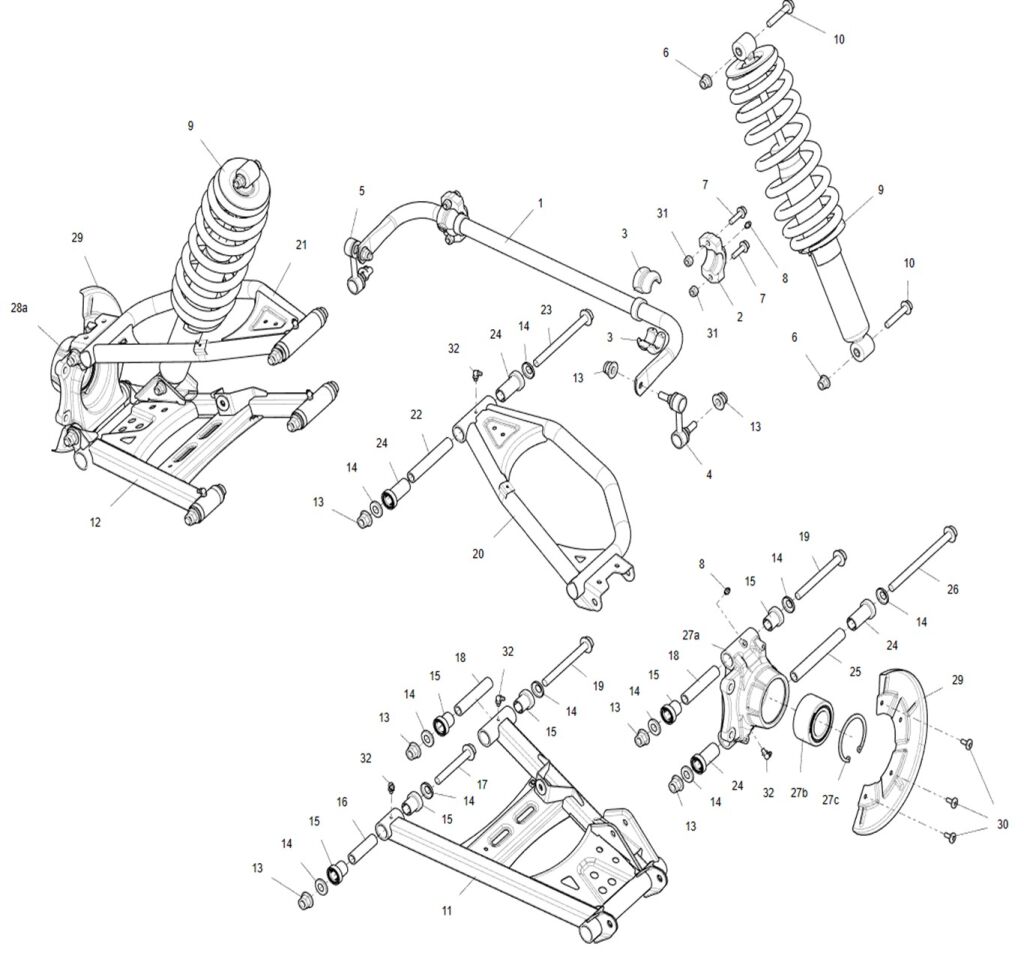

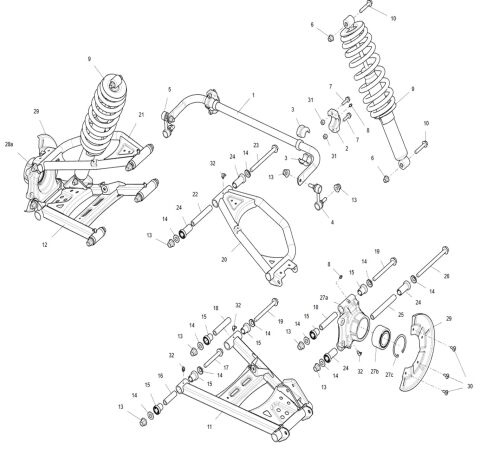

Rear Suspension Assembly

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_230_UT10_CREW_U5
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
32 90° Connector pressure filling cup (Item nr. 32) T07000001007 90° Connector pressure filling cup  8 € 2,18 € 3
IN STOCK
24 U09_ROCEKER ARM BUFFER SLEEVEⅢ (Item nr. 24) U09D20007001 U09_ROCEKER ARM BUFFER SLEEVEⅢ  8 € 2,48 € 3
IN STOCK
23 BOLT M12×1.25×145 (Item nr. 23) GBT005789106 BOLT M12×1.25×145  2 € 2,48 € 3
IN STOCK
22 U09_REAR ROCER ARM LINERⅢ (Item nr. 22) U09D20005001 U09_REAR ROCER ARM LINERⅢ  2 € 3,31 € 4
ON REQUEST

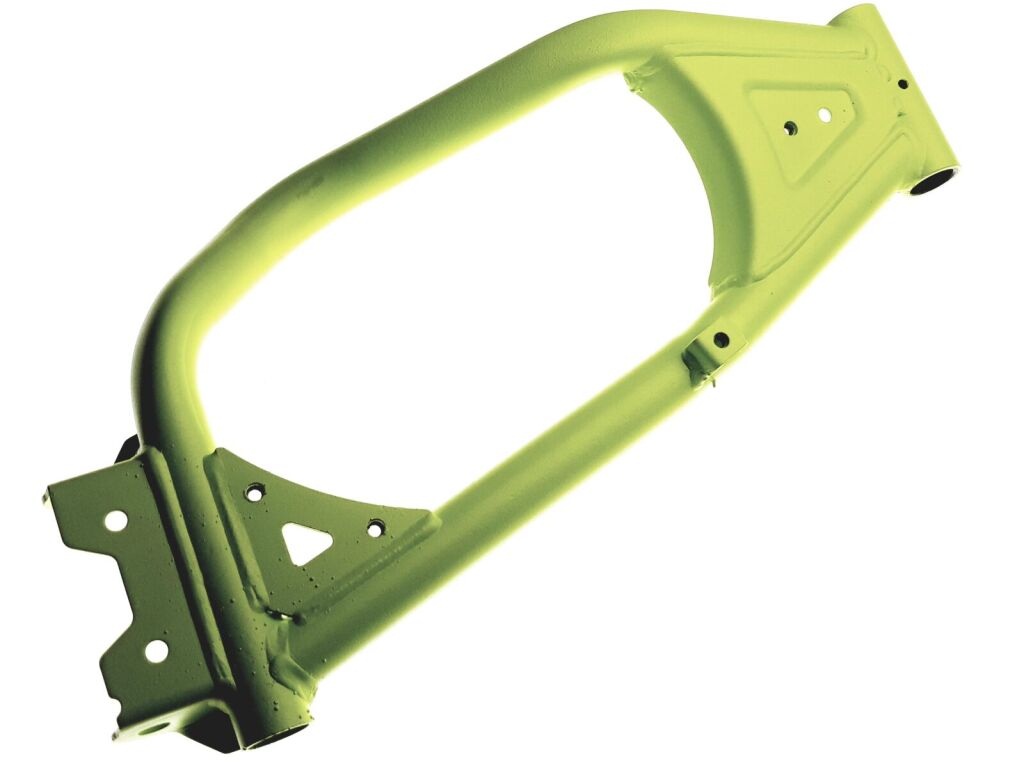

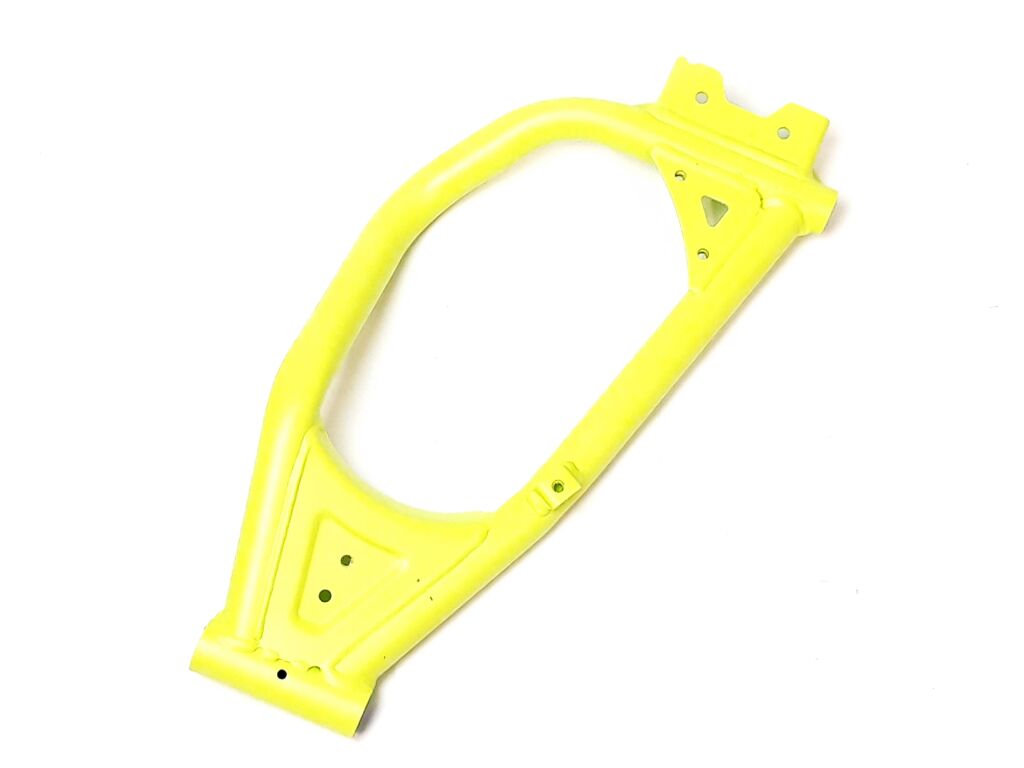

21 Rear right upper rocker arm(Black) (Item nr. 21) U03-D221005-FB0-00 Rear right upper rocker arm(Black)  1 € 65,04 € 79
IN STOCK
21 Rear right upper rocker arm(Green) (Item nr. 21) U03-D221004-FG0-00 Rear right upper rocker arm(Green)  1 € 65,04 € 79
IN STOCK

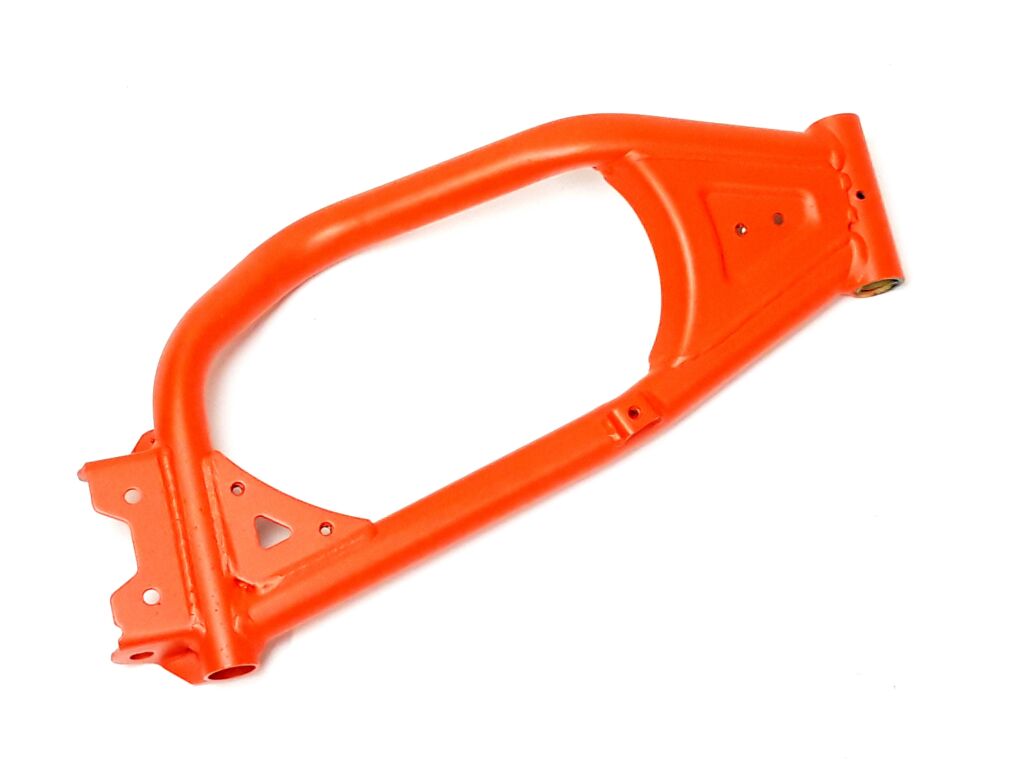

21 Rear right upper rocker arm(Red) (Item nr. 21) U03-D221003-FR0-00 Rear right upper rocker arm(Red)  1 € 65,04 € 79
IN STOCK

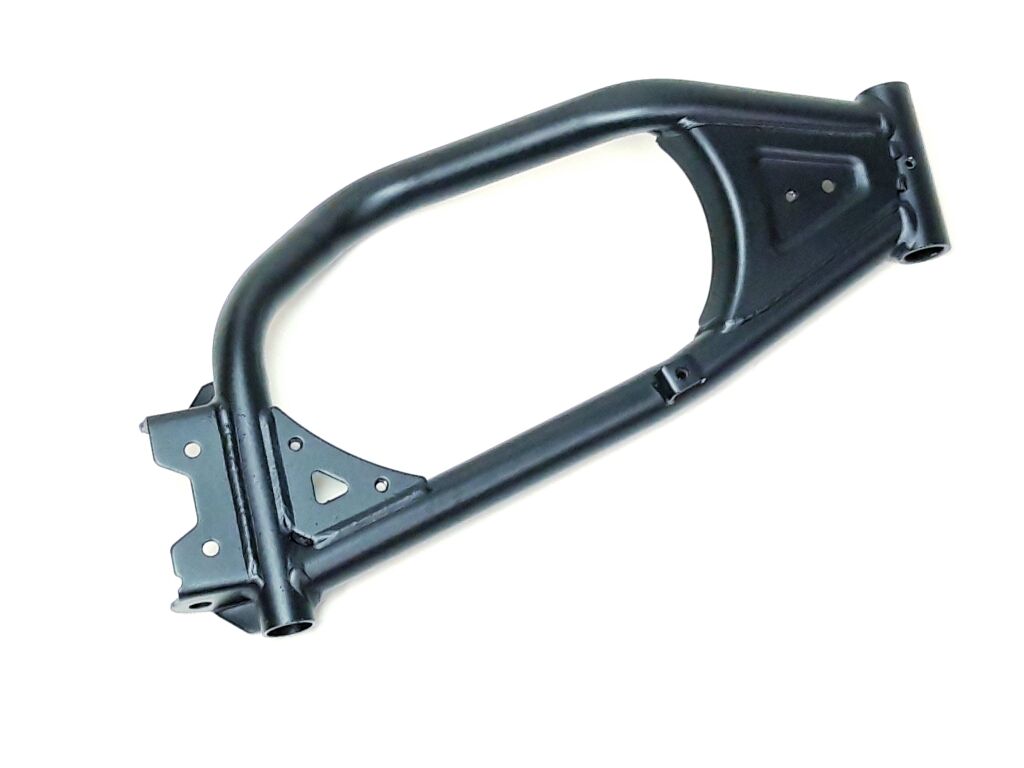

20 Rear left upper rocker arm(Black) (Item nr. 20) U03-D211005-FB0-00 Rear left upper rocker arm(Black)  1 € 65,04 € 79
IN STOCK
20 Rear left upper rocker arm(Green) (Item nr. 20) U03-D211004-FG0-00 Rear left upper rocker arm(Green)  1 € 65,04 € 79
IN STOCK

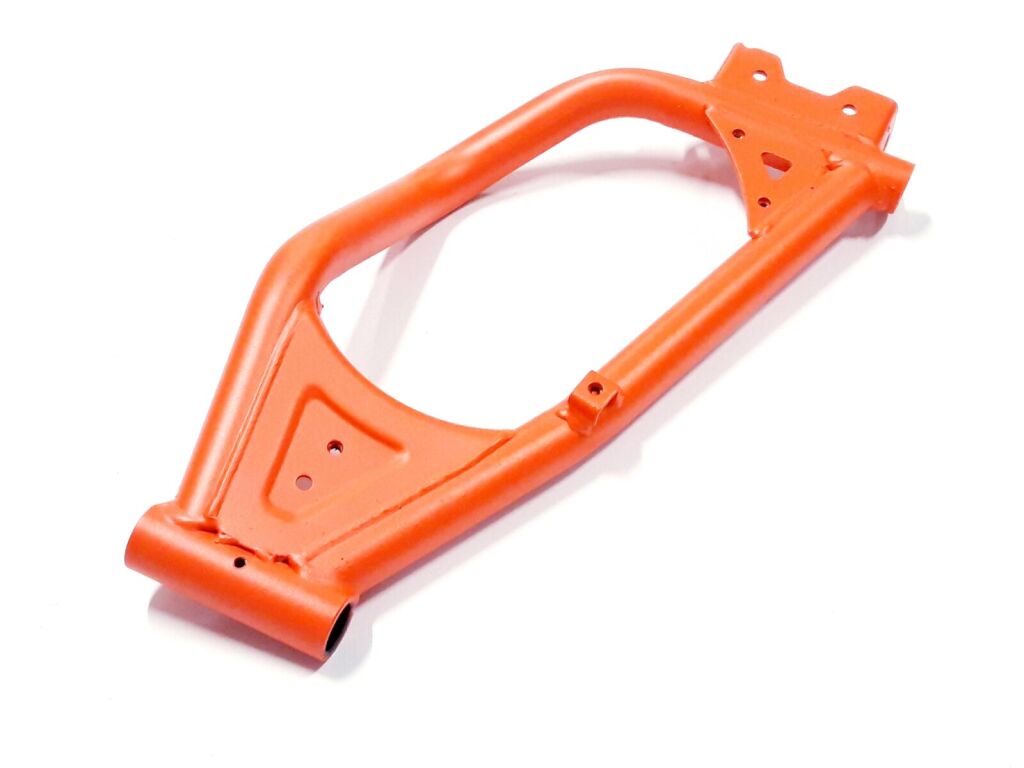

20 Rear left upper rocker arm(Red) (Item nr. 20) U03-D211003-FR0-00 Rear left upper rocker arm(Red)  1 € 65,04 € 79
IN STOCK
25 U09_REAR ROCER ARM LINERⅡ (Item nr. 25) U09D20004001 U09_REAR ROCER ARM LINERⅡ  2 € 4,13 € 5
IN STOCK
26 BOLT M12×1.25×170 (Item nr. 26) GBT005789107 BOLT M12×1.25×170  2 € 2,64 € 3
IN STOCK
31 NUT M8 (Item nr. 31) GBT008892004 NUT M8  4 € 2,48 € 3
IN STOCK
30 Inner hexagon screws M6×1.6 (Item nr. 30) T03000007002 Inner hexagon screws M6×1.6  6 € 2,18 € 3
IN STOCK
29 U09_REAR BRAKE DISC FLAP_BLACK PAINT (Item nr. 29) U09D20001002 U09_REAR BRAKE DISC FLAP_BLACK PAINT  2 € 18,35 € 22
IN STOCK

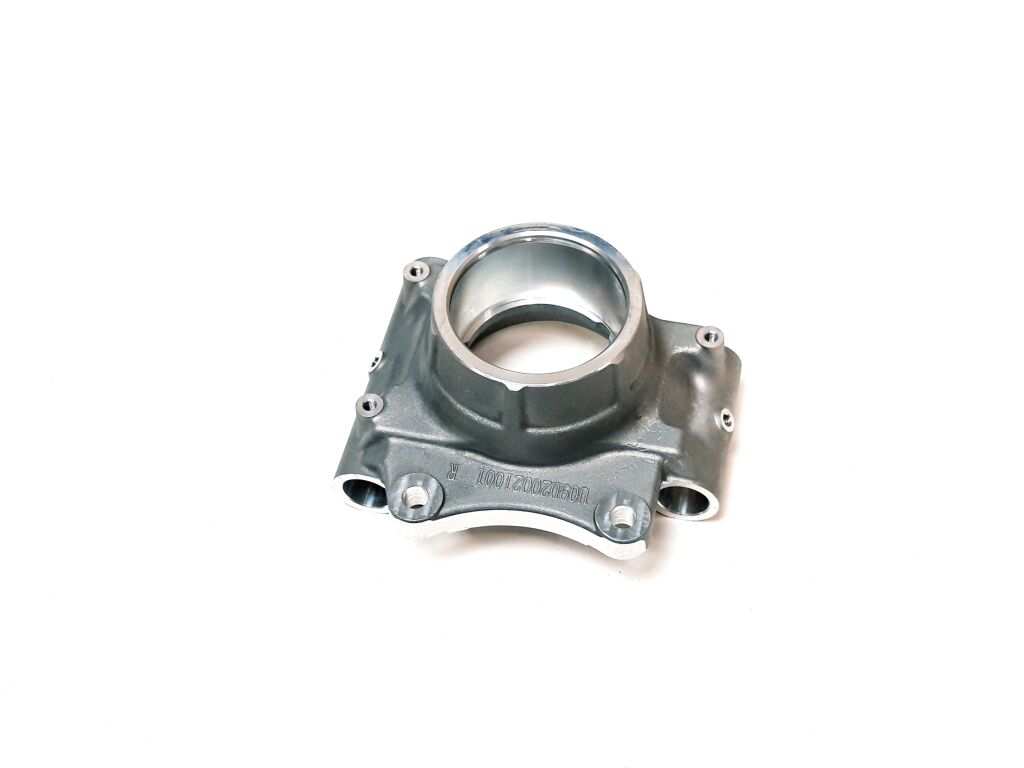

28a U09_RR HUB BODY (Item nr. 28a) U09D20021001 U09_RR HUB BODY  1 € 66,53 € 81
IN STOCK
28 U03-D200200-000-00 Rear right wheel axle support  1
ON REQUEST
Detail
27c CIRCLIP 72 (Item nr. 27c) GBT000893006 CIRCLIP 72  2 € 2,48 € 3
IN STOCK
27b BEARING DAC407237-2RS (Item nr. 27b) JBT010238004 BEARING DAC407237-2RS  2 € 35,12 € 43
IN STOCK

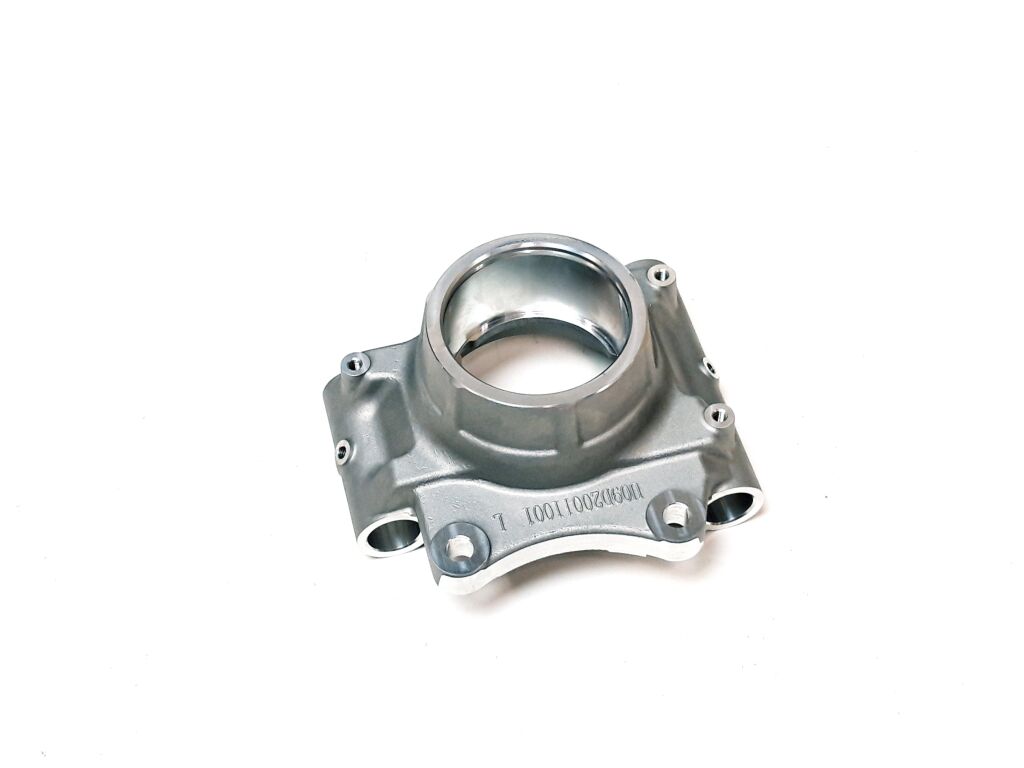

27a U09_RL HUB BODY (Item nr. 27a) U09D20011001 U09_RL HUB BODY  1 € 66,53 € 81
IN STOCK
27 U03-D200100-000-00 Rear left wheel axle support  1
ON REQUEST
Detail
19 BOLT M12×1.25×120 (Item nr. 19) GBT005789105 BOLT M12×1.25×120  4 € 2,48 € 3
IN STOCK

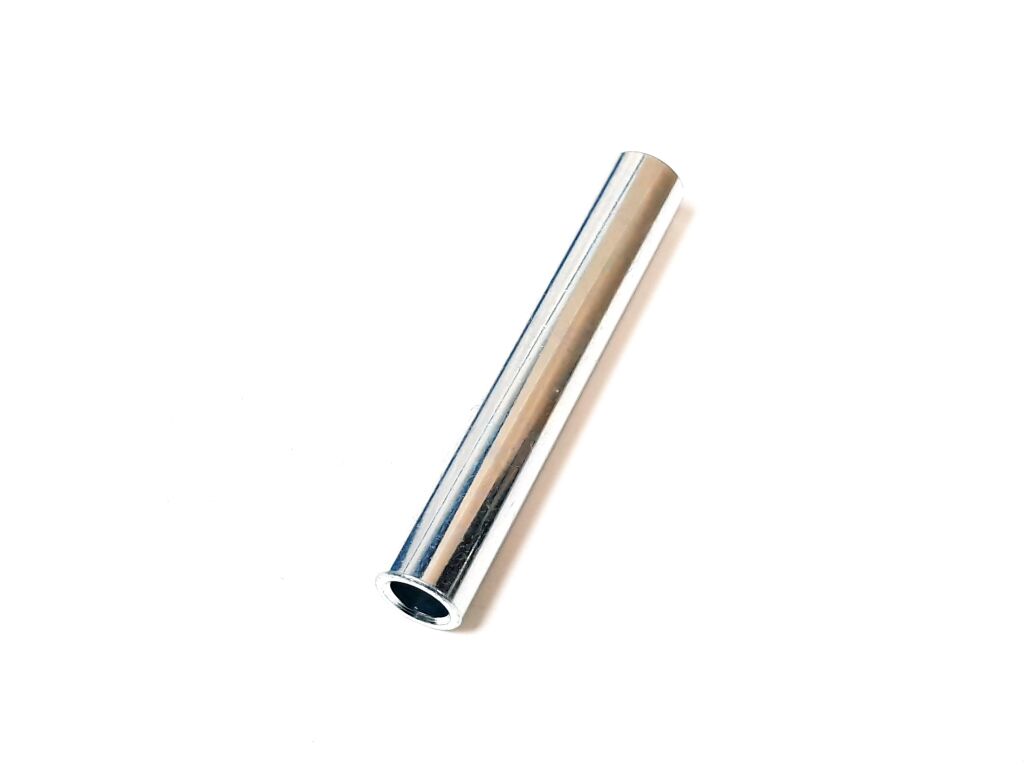

18 U09 REAR ROCKER ARM LINER 1 (Item nr. 18) U09D20003001 U09 REAR ROCKER ARM LINER 1  4 € 2,56 € 3
IN STOCK
17 BOLT M12×1.25×90 (Item nr. 17) GBT005789103 BOLT M12×1.25×90  2 € 2,18 € 3
ON REQUEST

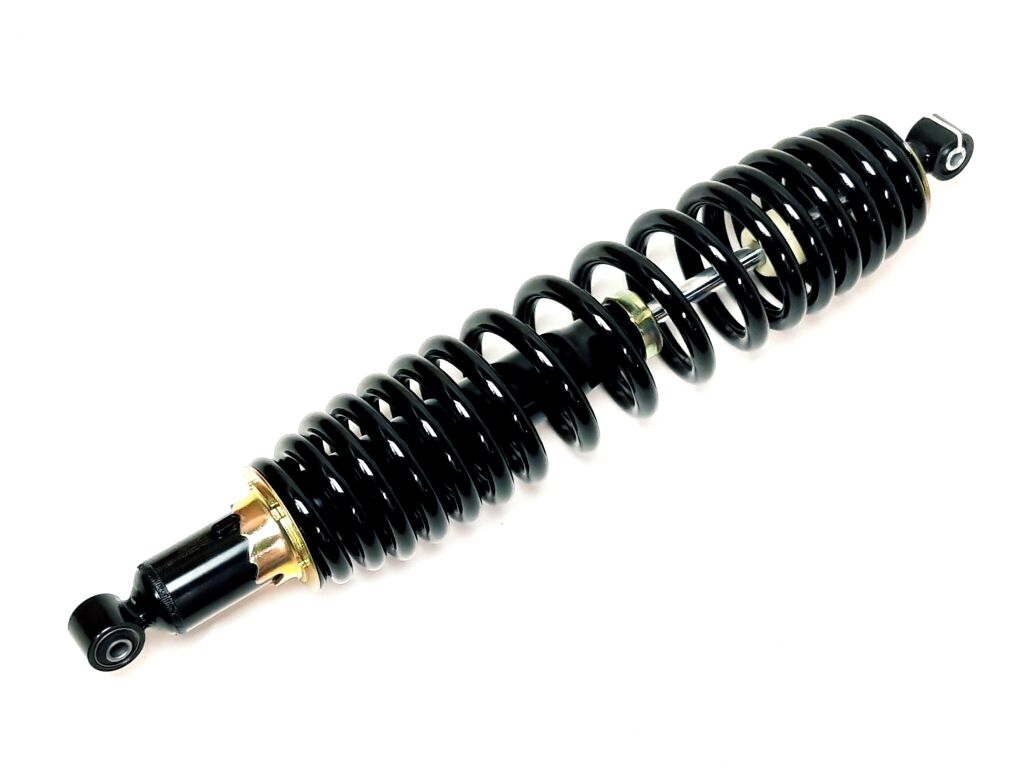

9,1 Rear shock absorber assembly (Item nr. 9,1) U03-D250010-0B0-00 Rear shock absorber assembly  2 € 166,78 € 202
IN STOCK
9 Rear shock absorber assembly (Item nr. 9) U03-D250000-0B0-00 Rear shock absorber assembly  2 € 124,88 € 151
IN STOCK
8 Straight pressure oil cup (Item nr. 8) GBT001152001 Straight pressure oil cup  4 € 5,04 € 6
IN STOCK
7 HEXAGON FLANGE BOLT M8×30 (Item nr. 7) GBT005789017 HEXAGON FLANGE BOLT M8×30  2 € 2,15 € 3
IN STOCK
6 2-non-metallic insert hexagon flange bolt M10×1.25 (Item nr. 6) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  4 € 2,18 € 3
IN STOCK

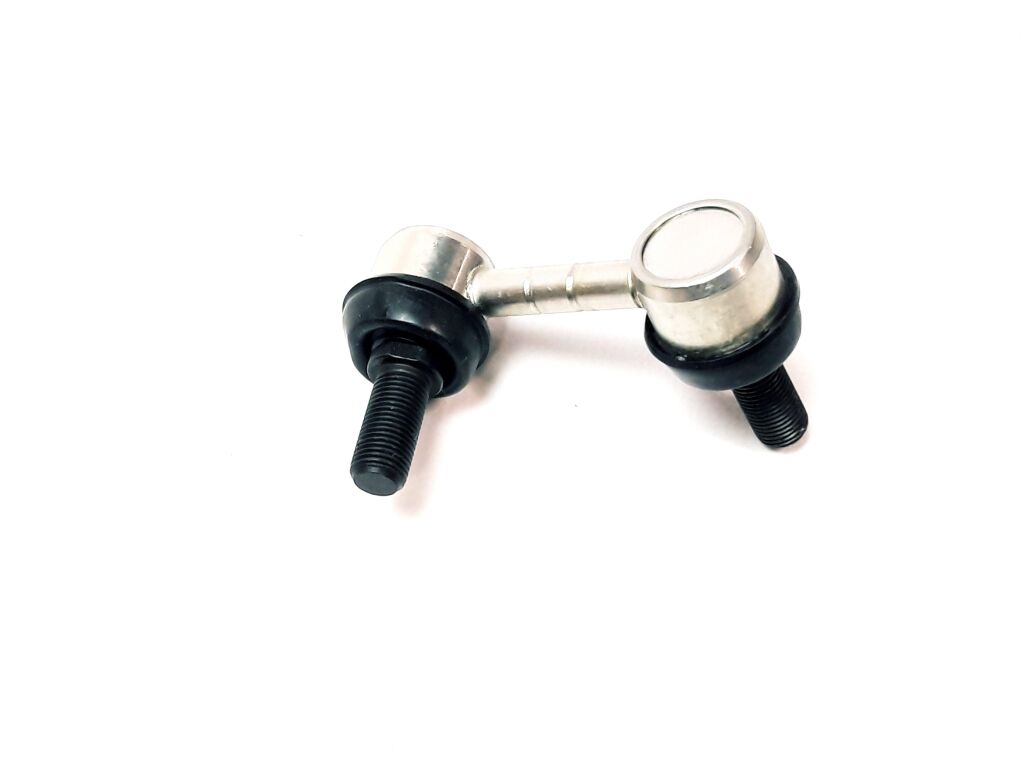

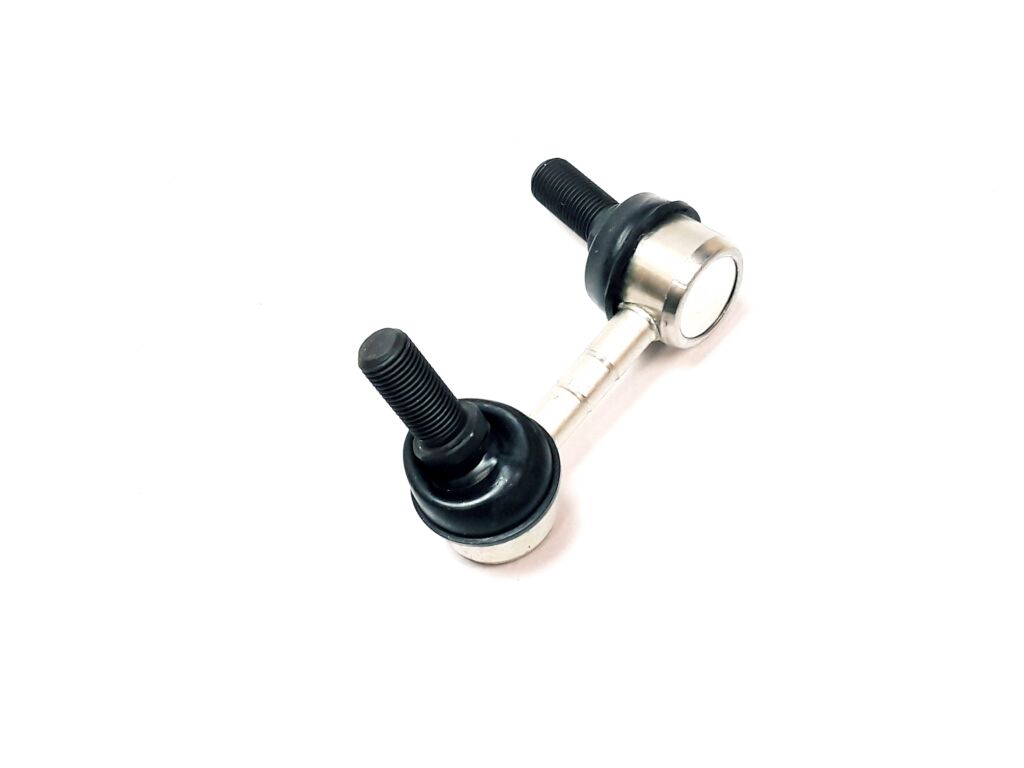

5 LEFT STABILIZER BALL JOINT (Item nr. 5) S01D10810001 LEFT STABILIZER BALL JOINT  1 € 29,59 € 36
IN STOCK
4 RIGHT STABILIZER BALL JOINT (Item nr. 4) S01D10820001 RIGHT STABILIZER BALL JOINT  1 € 29,67 € 36
IN STOCK
3 FRONT BALANCE BAR BUFFER CHUNKS (Item nr. 3) U01D16001001 FRONT BALANCE BAR BUFFER CHUNKS  2 € 3,06 € 4
IN STOCK
2 Rear balance bar mounting seat (Item nr. 2) U01D26002001 Rear balance bar mounting seat  2 € 10,50 € 13
IN STOCK
10 Hexagon flange bolt M10×1.25×55 (Item nr. 10) GBT005789032 Hexagon flange bolt M10×1.25×55  4 € 2,48 € 3
IN STOCK

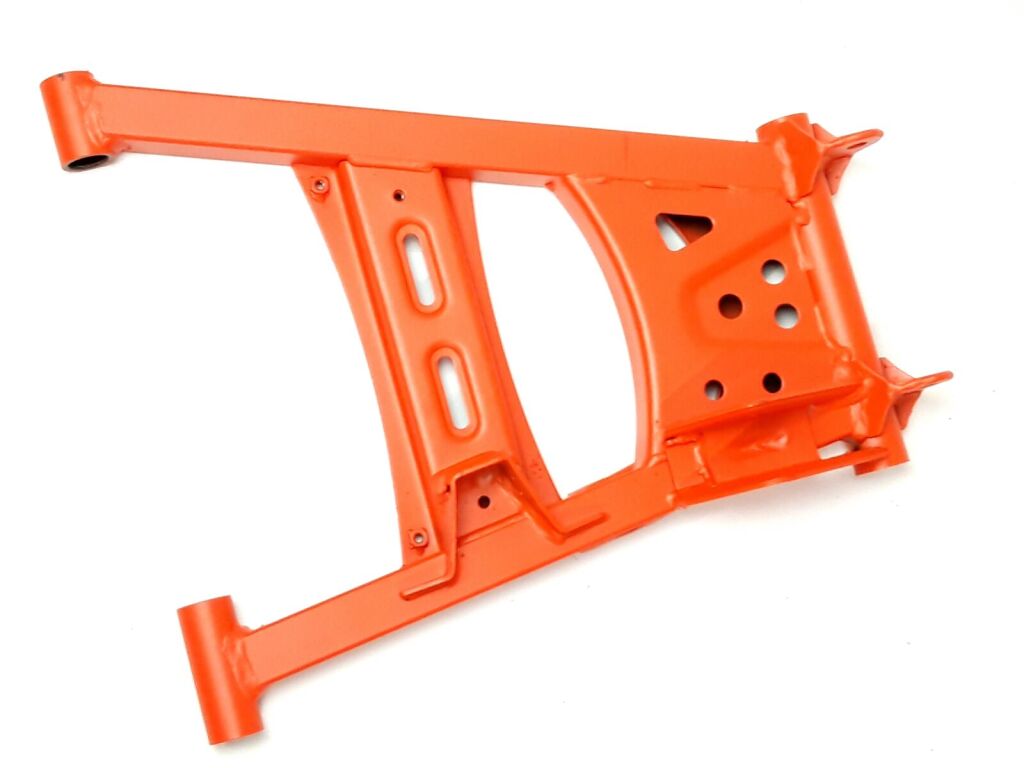

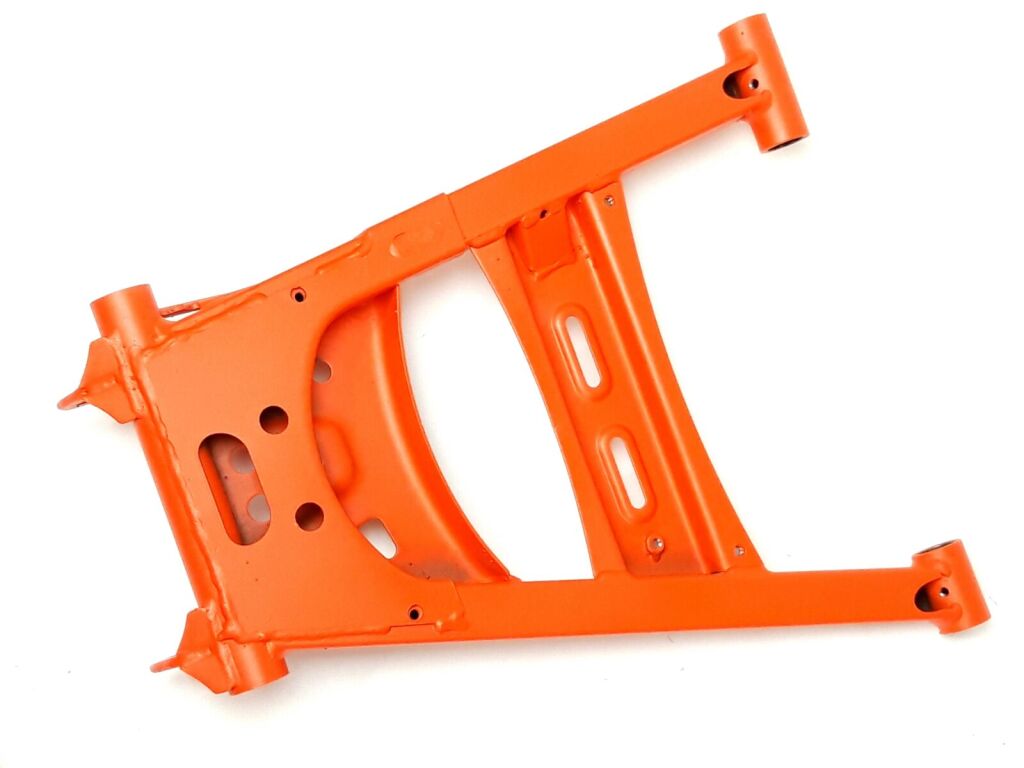

11 Rear left lower rocker arm(Red) (Item nr. 11) U03-D231003-FR0-00 Rear left lower rocker arm(Red)  1 € 96,03 € 116
IN STOCK
16 U09 FRONT ROCKER ARM LINER (Item nr. 16) U09D10001001 U09 FRONT ROCKER ARM LINER  2 € 2,48 € 3
IN STOCK
15 U09 REAR ROCKER ARM LINER Ⅱ (Item nr. 15) U09D20006001 U09 REAR ROCKER ARM LINER Ⅱ  12 € 2,48 € 3
IN STOCK
14 U09 ROCKER ARM DUST COVER 304 (Item nr. 14) U09D20008001 U09 ROCKER ARM DUST COVER 304  20 € 2,48 € 3
IN STOCK
13 NUT M12×1.25 (Item nr. 13) GBT061832010 NUT M12×1.25  14 € 2,18 € 3
IN STOCK

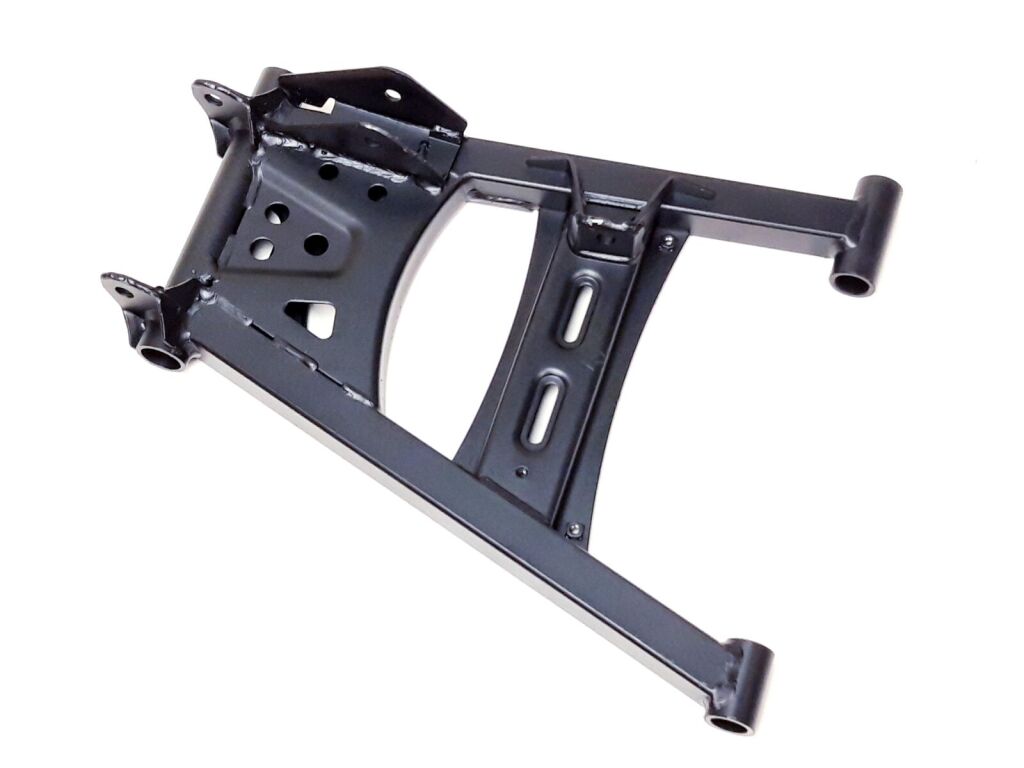

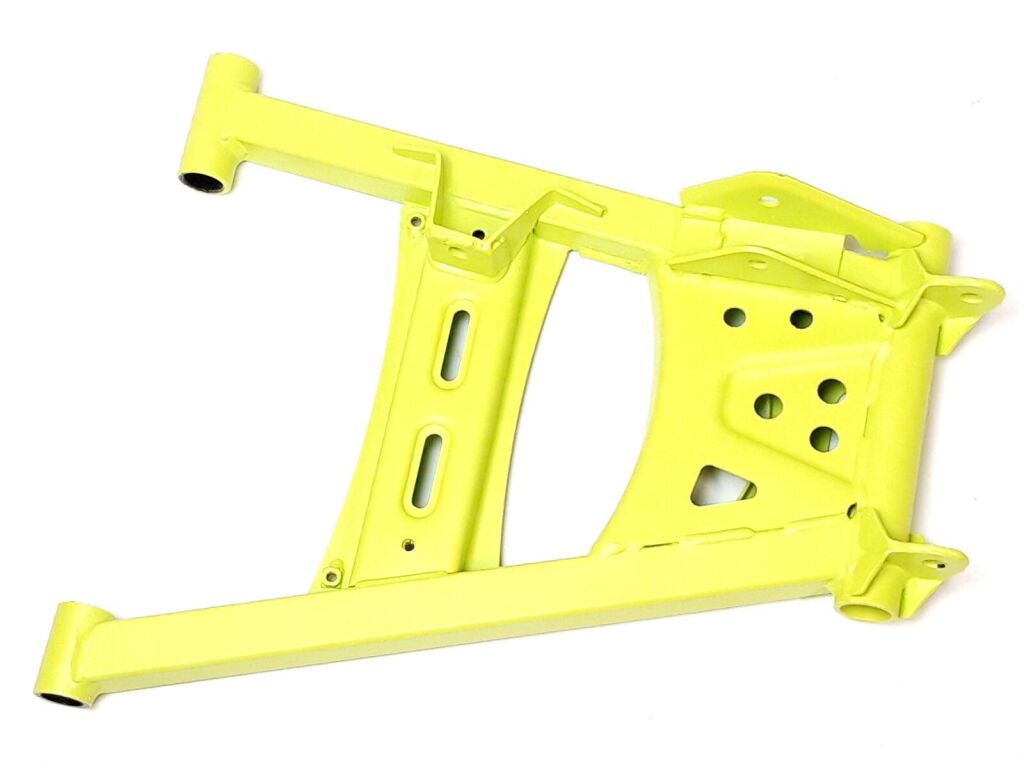

12 Rear right lower rocker arm(Black) (Item nr. 12) U03-D241005-FB0-00 Rear right lower rocker arm(Black)  1 € 96,03 € 116
IN STOCK
12 Rear right lower rocker arm(Green) (Item nr. 12) U03-D241004-FG0-00 Rear right lower rocker arm(Green)  1 € 96,03 € 116
IN STOCK
12 Rear right lower rocker arm(Red) (Item nr. 12) U03-D241003-FR0-00 Rear right lower rocker arm(Red)  1 € 96,03 € 116
IN STOCK

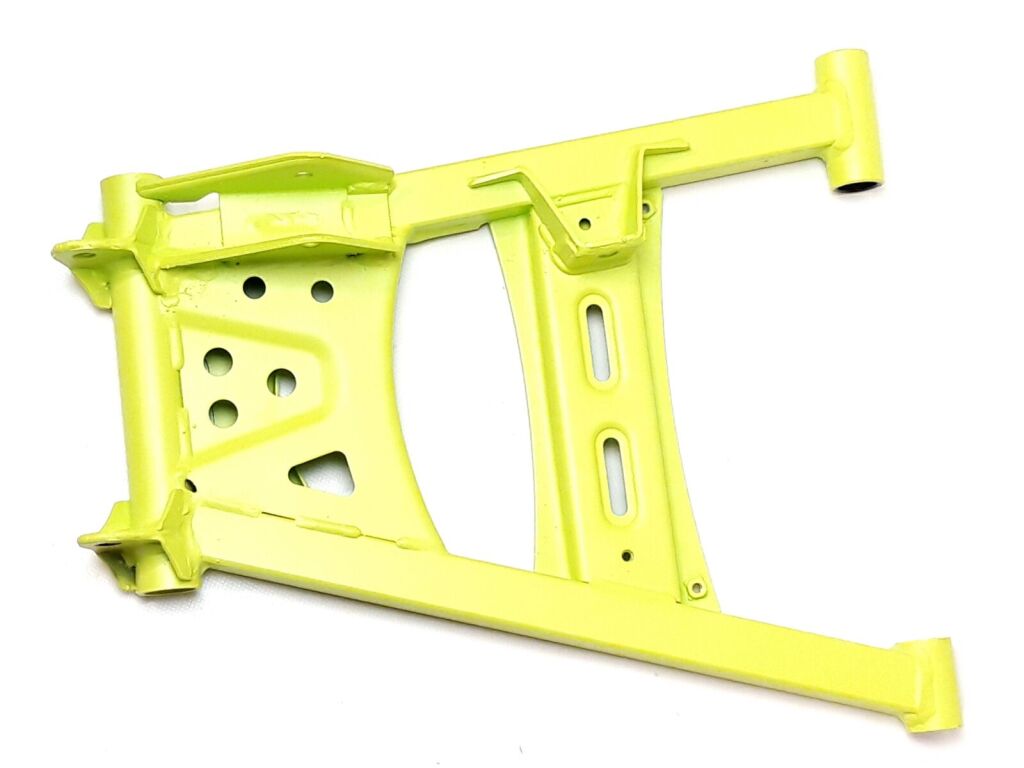

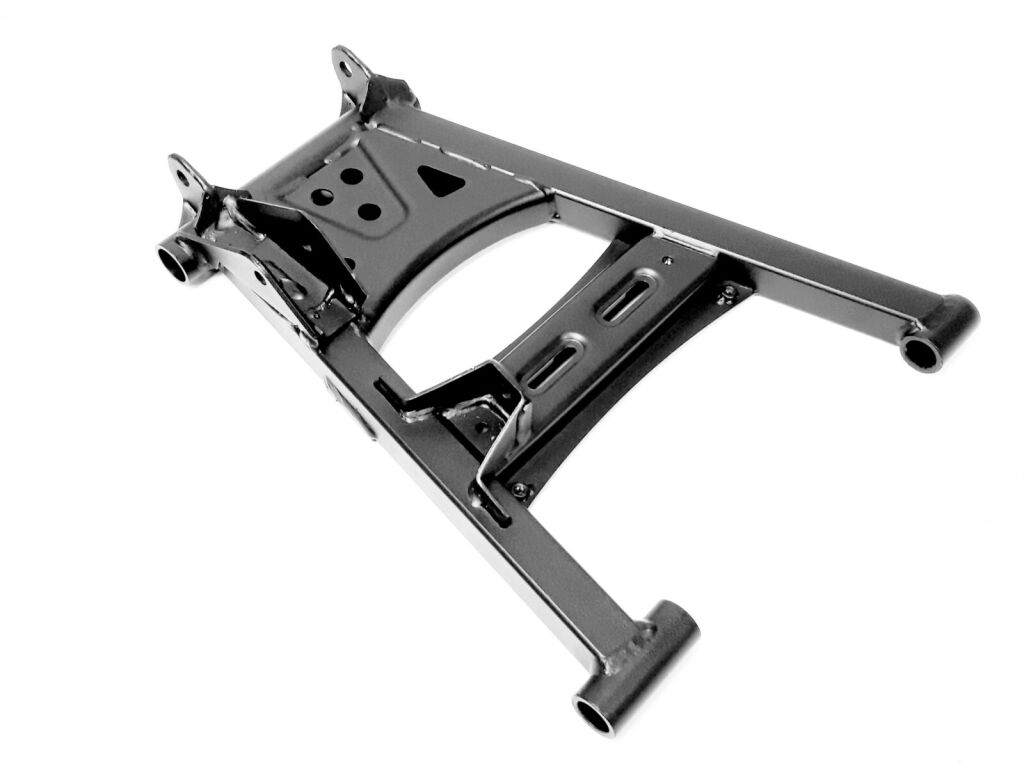

11 Rear left lower rocker arm(Black) (Item nr. 11) U03-D231005-FB0-00 Rear left lower rocker arm(Black)  1 € 96,03 € 116
IN STOCK
11 Rear left lower rocker arm(Green) (Item nr. 11) U03-D231004-FG0-00 Rear left lower rocker arm(Green)  1 € 96,03 € 116
IN STOCK

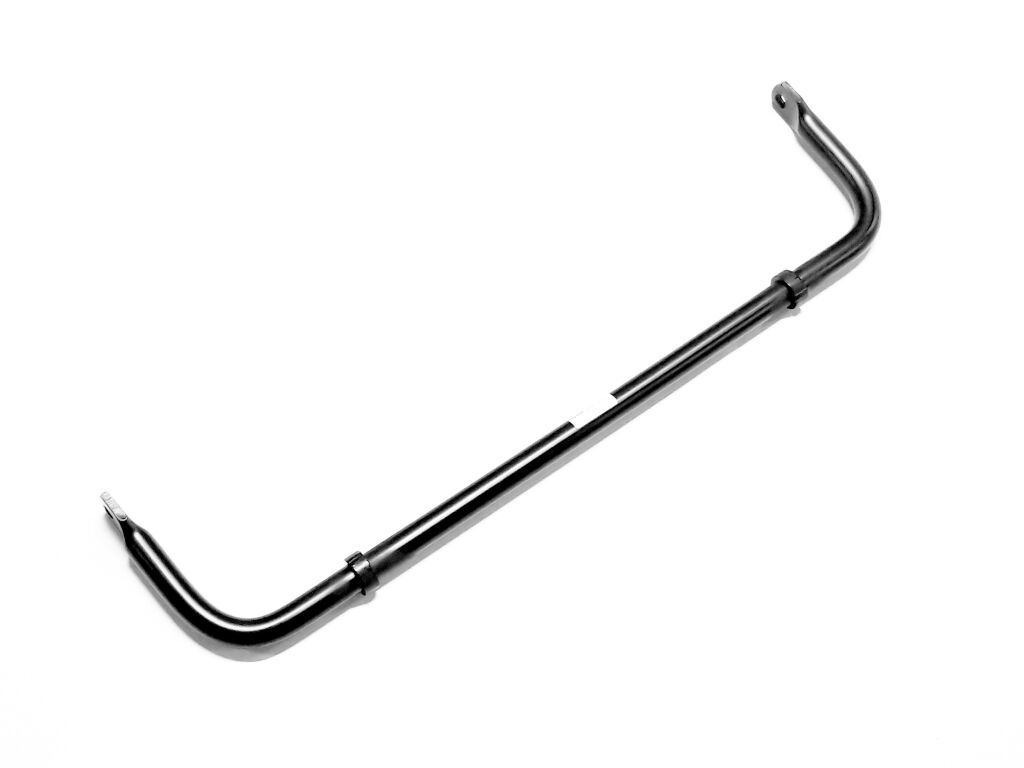

1 REAR BALANCE BAR ASSY (SOLID PIECE) (Item nr. 1) U09-D261001-FB0-00 REAR BALANCE BAR ASSY (SOLID PIECE)  1 € 39,26 € 48
IN STOCK
Product Code SEGWAY_2_230_UT10_CREW_U5
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT10 Crew U5
