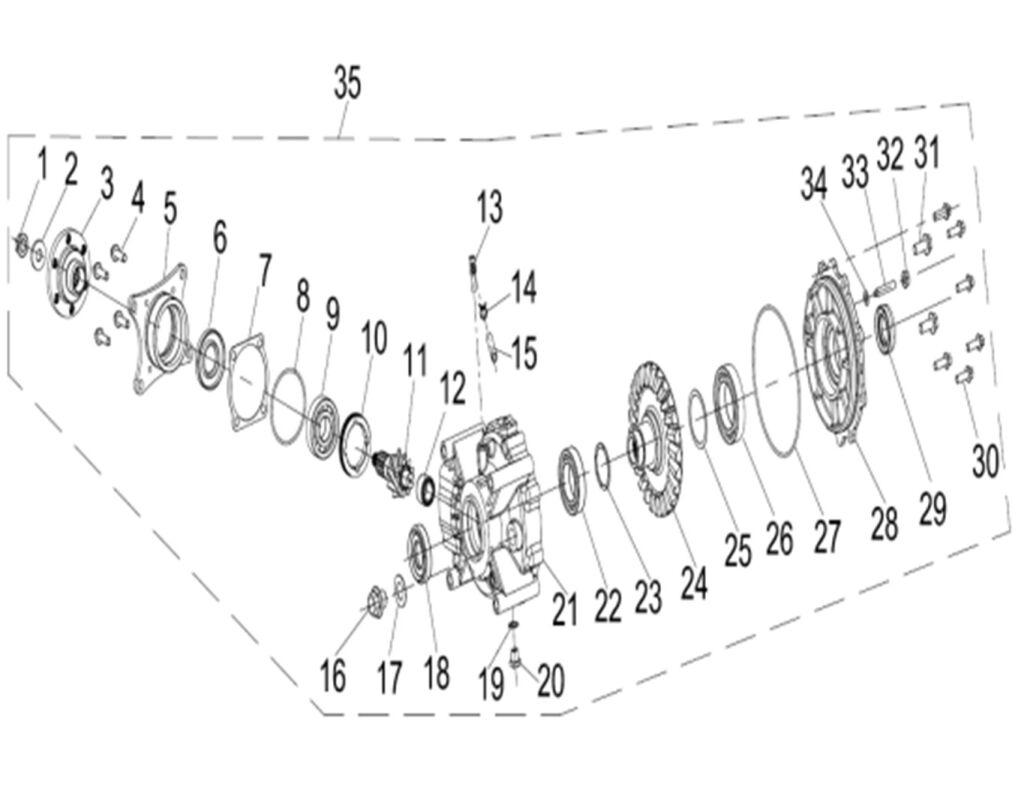

REAR GEAR-BOX

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_2_223_M550L_E2
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability

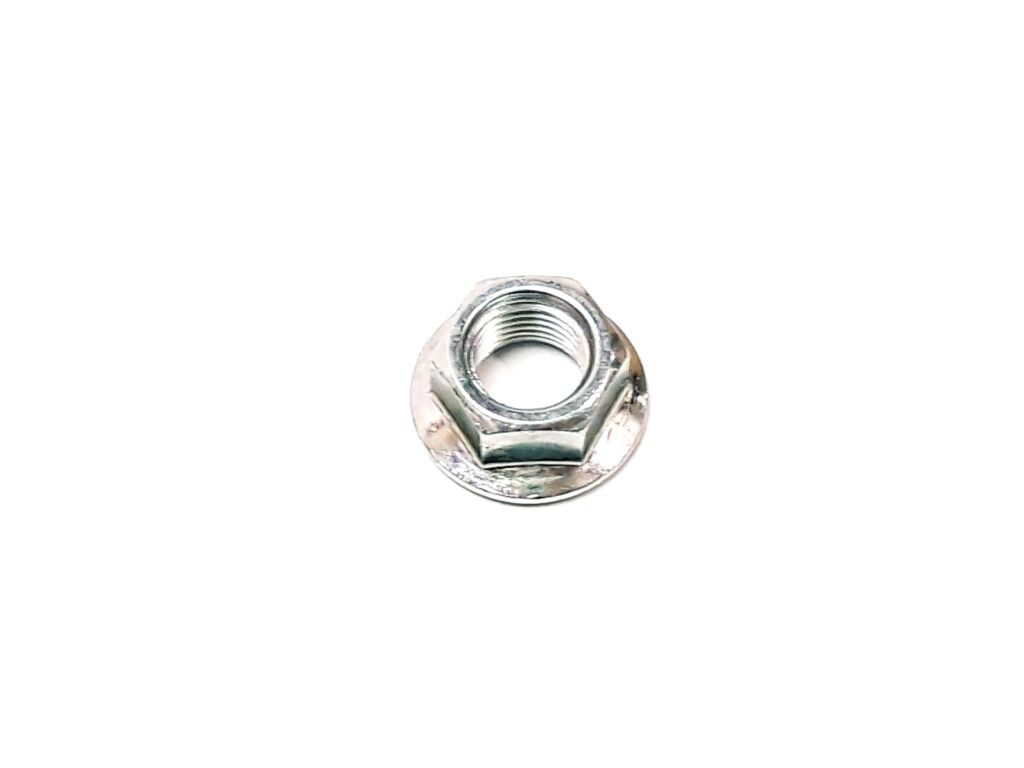

1 NUT M12×1.25 (Item nr. 1) 35473 NUT M12×1.25  1 € 2,40 € 3
ON REQUEST
20 83010 HEXAGON HEAD BOLT  1 € 12,81 € 16
IN STOCK
21 REAR GEAR CASE (Item nr. 21) 26312 REAR GEAR CASE  1 € 139,17 € 168
IN STOCK

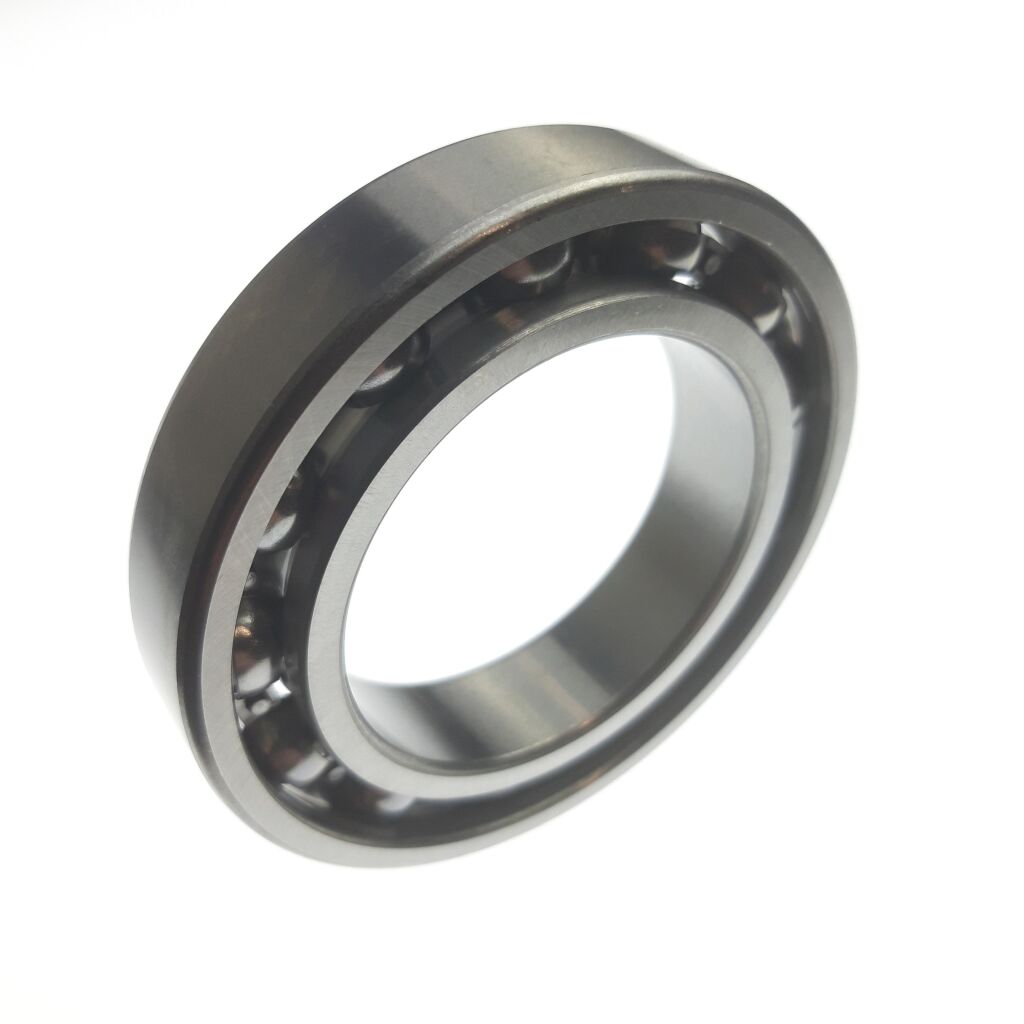

22 BEARING 6008 (Item nr. 22) 10958 BEARING 6008  1 € 19,75 € 24
IN STOCK

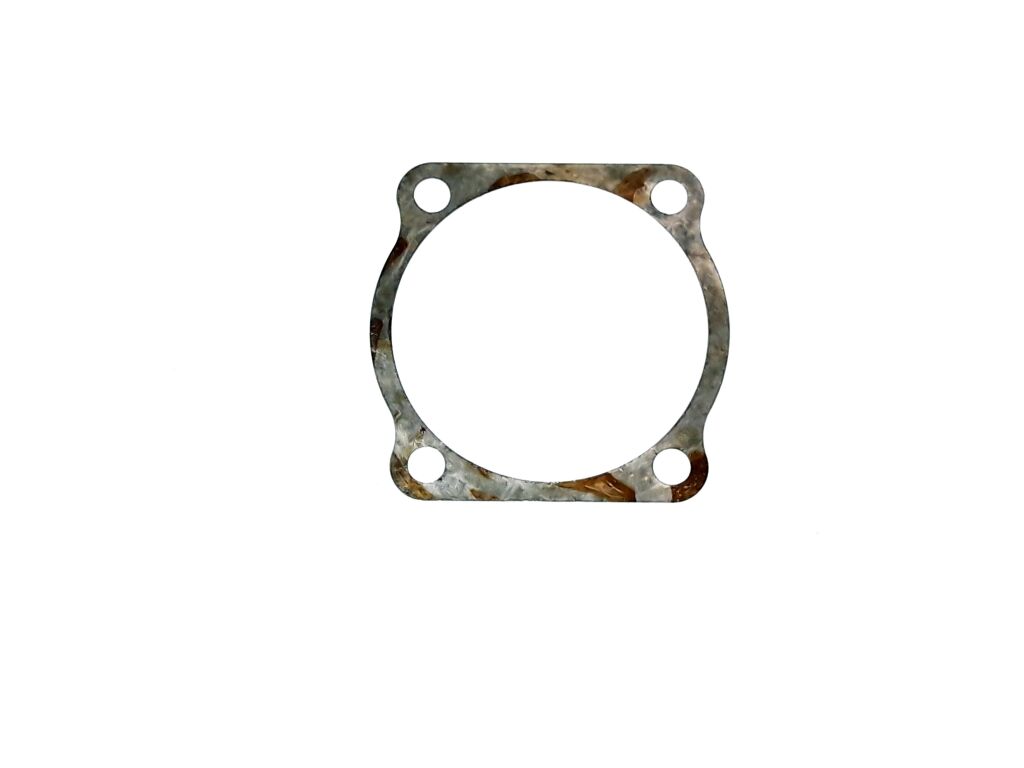

23 ADJUST SHIM48x40.3 (Item nr. 23) 26305 ADJUST SHIM48x40.3  1 € 2,56 € 3
IN STOCK
24 DRIVE BEVEL GEAR ASSEMBLY (Item nr. 24) 26307 DRIVE BEVEL GEAR ASSEMBLY  1 € 350 € 424
IN STOCK
25 ADJUST SHIM60.5x50.3 (Item nr. 25) 26306 ADJUST SHIM60.5x50.3  1 € 2,56 € 3
IN STOCK
26 BEARING 6010 (Item nr. 26) 10569 BEARING 6010  1 € 16,12 € 19
IN STOCK
27 O-RING 151×3 (Item nr. 27) 35493 O-RING 151×3  1 € 2,98 € 4
IN STOCK
28 26301 REAR GEAR BEARING HOUSING  1 € 63,80 € 77
ON REQUEST
29 R/B 36562 OIL SEAL 30x50x13.5 (Item nr. 29) 26302 R/B 36562 OIL SEAL 30x50x13.5  1 € 8,68 € 11
ON THE WAY
30 Hexagon Flange Bolt M8X25 (Item nr. 30) 10059 Hexagon Flange Bolt M8X25  6 € 2,40 € 3
IN STOCK
31 35463 BOLT M10×1.25×25  2 € 2,40 € 3
ON REQUEST
32 35487 NUT M8  1 € 3,55 € 4
ON REQUEST
33 10955 HE× SCREW M8×45  1 € 10,41 € 13
ON REQUEST
34 43615 WASHER 8  1 € 2,23 € 3
ON REQUEST
19 WASHER (Item nr. 19) 83462 WASHER  1 € 3,14 € 4
IN STOCK

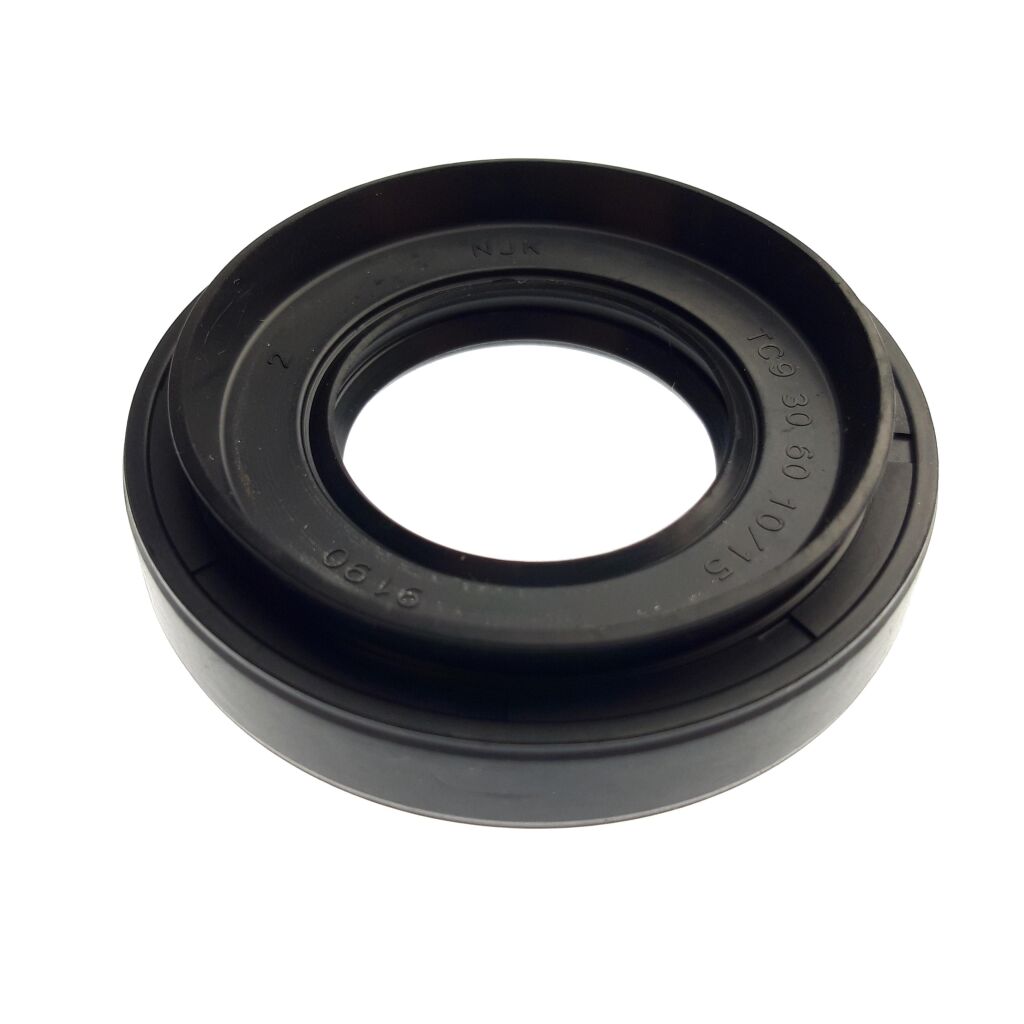

18 OIL SEAL30x60x15 (Item nr. 18) 26303 OIL SEAL30x60x15  1 € 9,59 € 12
IN STOCK
17 WASHER 18 (Item nr. 17) 83180 WASHER 18  1 € 8,76 € 11
IN STOCK
2 26309 WASHER 12.5×30×4  1 € 2,56 € 3
ON REQUEST
3 COUPLER, REAR AXLE (Item nr. 3) 35474 COUPLER, REAR AXLE  1 € 65,12 € 79
RE STOCKING
4 10078 BOLT M8X30  4 € 8,02 € 10
ON REQUEST

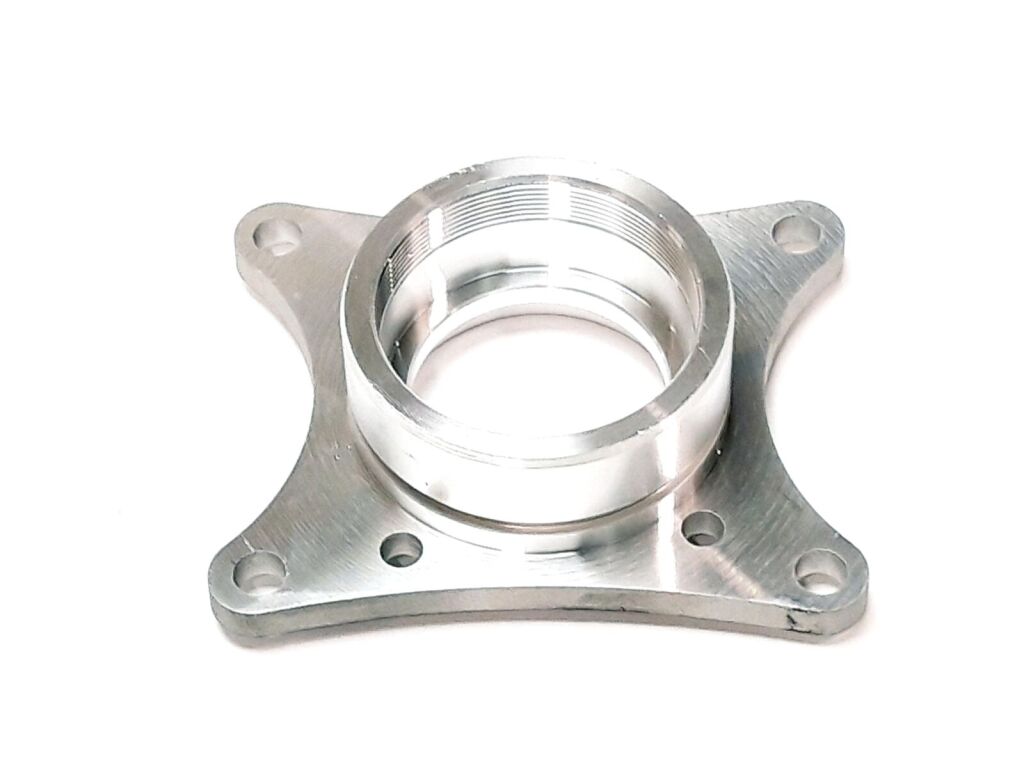

5 BEVEL GEAR BEARING HOUSING (Item nr. 5) 26304 BEVEL GEAR BEARING HOUSING  1 € 29,83 € 36
IN STOCK

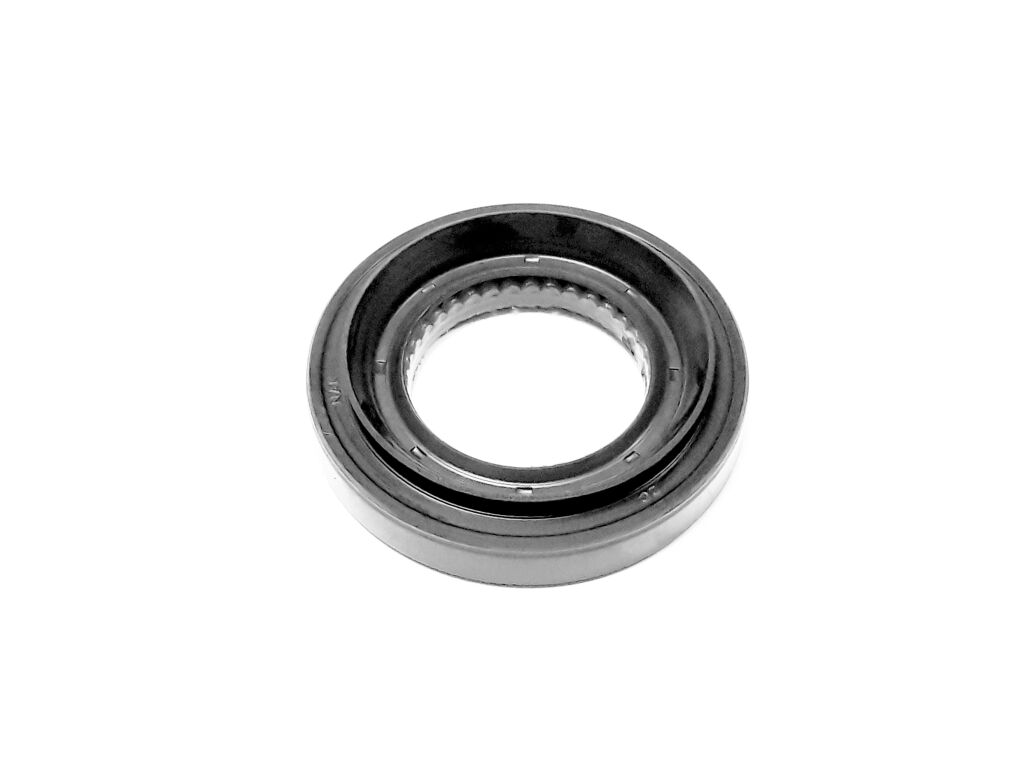

6 OIL SEAL Φ35×Φ61×9.5（14） (Item nr. 6) 35471 OIL SEAL Φ35×Φ61×9.5（14）  1 € 5,12 € 6
IN STOCK
7 ADJUST SHIM (Item nr. 7) 26308 ADJUST SHIM  1 € 2,56 € 3
IN STOCK

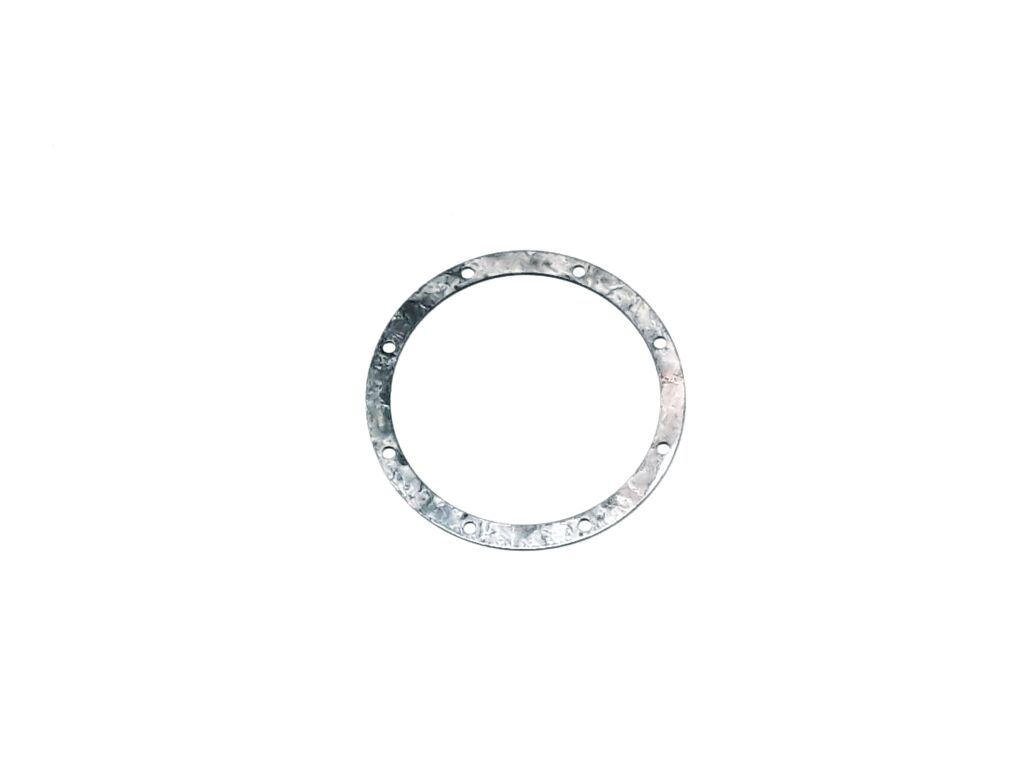

8 O-RING69x3 (Item nr. 8) 26311 O-RING69x3  1 € 13,64 € 16
IN STOCK

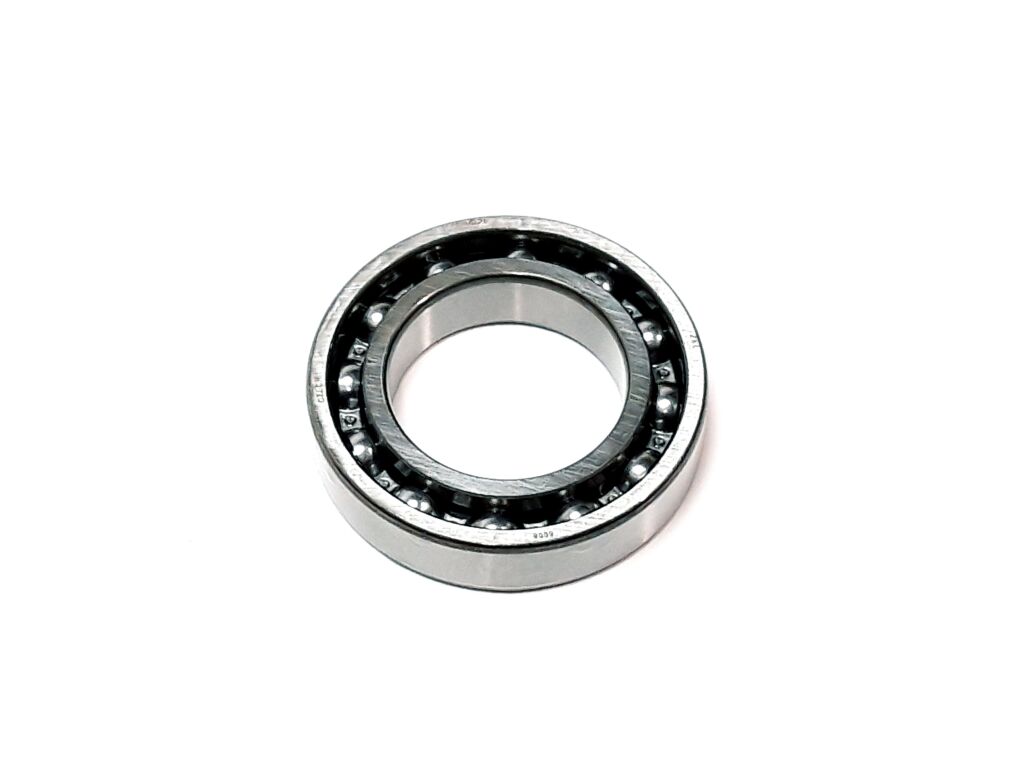

9 BEARING 16017/C2 KOYO：6305-1BB (Item nr. 9) 35468 BEARING 16017/C2 KOYO：6305-1BB  1 € 22,23 € 27
IN STOCK
10 BEARING RETAINERM64x1.5x10 (Item nr. 10) 26310 BEARING RETAINERM64x1.5x10  1 € 23,72 € 29
IN STOCK
11 ACTIVE BEVEL GEAR ASSEMBLY (Item nr. 11) 26313 ACTIVE BEVEL GEAR ASSEMBLY  1 € 350 € 424
IN STOCK IN 16 days
12 INNER & OUTER RACE NA 5903 17×30×18 (Item nr. 12) 35465 INNER & OUTER RACE NA 5903 17×30×18  1 € 12,56 € 15
ON REQUEST
13 Hose Fitting (Item nr. 13) 21112 Hose Fitting  1 € 11,74 € 14
IN STOCK
14 25107 Clip  1 € 12,89 € 16
ON REQUEST
15 21111 Vent Tube  1 € 12,89 € 16
ON REQUEST
16 BOLT M18x1.25 (Item nr. 16) 83179 BOLT M18x1.25  1 € 3,06 € 4
IN STOCK

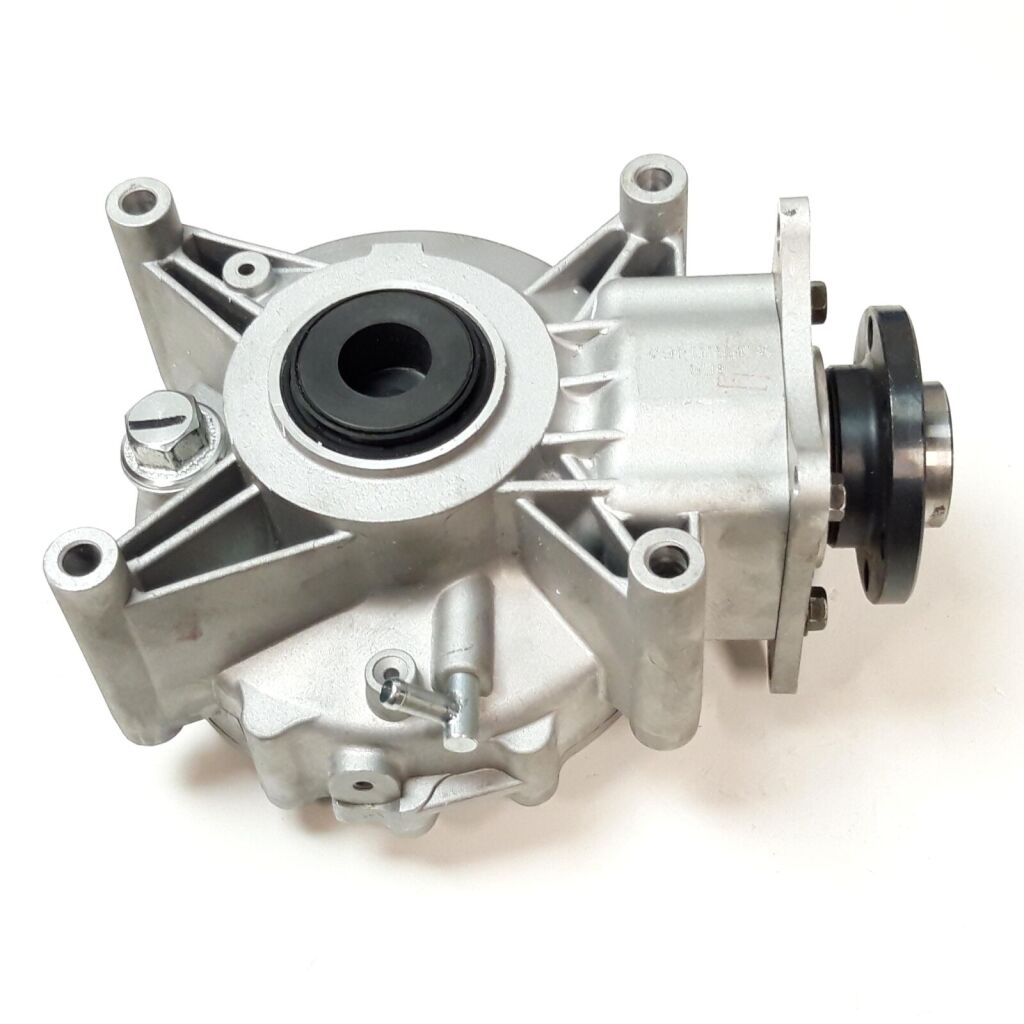

35 REAR GEAR-BOX ASSY (Item nr. 35) 26300 REAR GEAR-BOX ASSY  1 € 814,96 € 986
IN STOCK
Product Code LINHAI_2_223_M550L_E2
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select MODEL: M550L E2
Select TYPE: LINHAI M550
