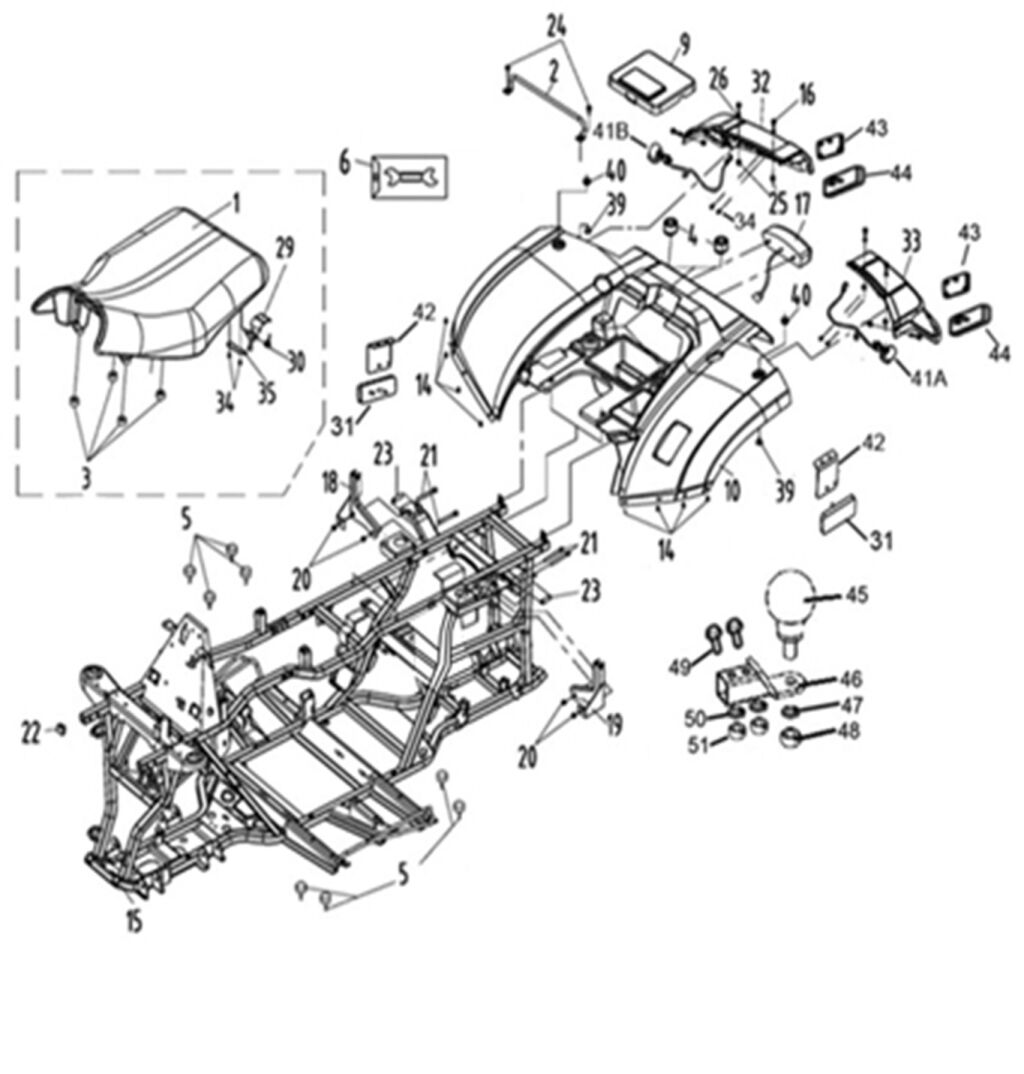

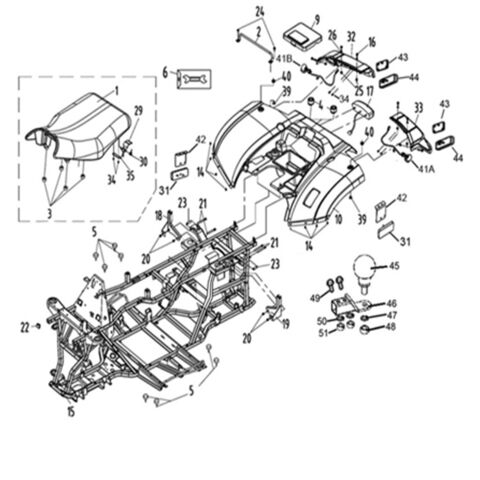

REAR FENDERS

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_4_404_LH40DA E4
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
24 11031 BOLT M6X12  2 € 2,40 € 3
ON REQUEST
41B RIGHT REAR INDICATION LIGHT (Item nr. 41B) 27368 RIGHT REAR INDICATION LIGHT  1 € 22,73 € 27
IN STOCK
41A LEFT REAR INDICATION LIGHT (Item nr. 41A) 27367 LEFT REAR INDICATION LIGHT  1 € 30,25 € 37
IN STOCK
40 Bushing (Item nr. 40) 70543 Bushing  2 € 3,55 € 4
RE STOCKING
39 70449 MUDGUARD  2 € 2,98 € 4
RE STOCKING
35 BAFFLE.SEAT (Item nr. 35) 70803 BAFFLE.SEAT  1 € 11,74 € 14
IN STOCK
34 SCREW ST4.2X13 (Item nr. 34) 11222 SCREW ST4.2X13  8 € 8,02 € 10
ON REQUEST
33 R/B 25370 TAILLIGHT COVER，L (Item nr. 33) 27382 R/B 25370 TAILLIGHT COVER，L  1 € 37,27 € 45
ON REQUEST
32 R/B 25368 TAILLIGHT COVER，R (Item nr. 32) 27383 R/B 25368 TAILLIGHT COVER，R  1 € 31,98 € 39
ON REQUEST
31 SIDE REFLECTOR (AMBER)(FOR EUROPE) (Item nr. 31) 35760 SIDE REFLECTOR (AMBER)(FOR EUROPE)  2 € 8,10 € 10
IN STOCK
42 SIDE REFLECTOR PLATE (Item nr. 42) 35759 SIDE REFLECTOR PLATE  2 € 6,61 € 8
IN STOCK
43 REAR REFLECTER PLATE (Item nr. 43) 35758 REAR REFLECTER PLATE  2 € 5,54 € 7
ON REQUEST
6 25044 TOOL ATV200-D T3b  1 € 8,10 € 10
ON REQUEST
51 Hex Nut M16 (Item nr. 51) 10874 Hex Nut M16  2 € 2,40 € 3
IN STOCK
50 WASHER 16 (Item nr. 50) 11060 WASHER 16  2 € 2,40 € 3
IN STOCK
49 BOLT M16X95 (Item nr. 49) 10947 BOLT M16X95  2 € 5,70 € 7
IN STOCK
48 NUT W7/8"-14 (Item nr. 48) 11218 NUT W7/8"-14  1 € 12,81 € 16
IN STOCK
47 11217 WASHER 22  1 € 8,02 € 10
ON REQUEST
46 TOWING BALL INSTALL WELDED COMPONENTS (OPTION) (Item nr. 46) 25295 TOWING BALL INSTALL WELDED COMPONENTS (OPTION)  1 € 92,89 € 112
ON REQUEST
45 TOWING BALL (OPTION) (Item nr. 45) 25294 TOWING BALL (OPTION)  1 € 33,97 € 41
ON REQUEST
44 REAR REFLECTOR (Item nr. 44) 70779 REAR REFLECTOR  2 € 6,78 € 8
ON REQUEST
30 SPRING (Item nr. 30) 70802 SPRING  1 € 2,40 € 3
IN STOCK
29 HOOK BRACKET，SEAT LOCK (Item nr. 29) 70788 HOOK BRACKET，SEAT LOCK  1 € 6,69 € 8
ON REQUEST
27 PLASTIC PLANT (Item nr. 27) 35497 PLASTIC PLANT  1 € 48,84 € 59
ON REQUEST
14 SCREW M6X16 (Item nr. 14) 10420 SCREW M6X16  8 € 2,40 € 3
IN STOCK
10 27381a REAR FENDER (please choose a color)  1 € 119,59 € 145
ON REQUEST
9 TOOL BOX CAP（NEW MODEL,MUST BE MATCHED WITH 2014 NEW MOULD REAR FENDER) (Item nr. 9) 25045a TOOL BOX CAP（NEW MODEL,MUST BE MATCHED WITH 2014 NEW MOULD REAR FENDER)  1 € 7,36 € 9
IN STOCK
8 11194 BOLT M6X18  8 € 8,76 € 11
ON REQUEST
7 WASHER 6 (Item nr. 7) 20331 WASHER 6  8 € 2,40 € 3
ON REQUEST
5 RUBBER，SEAT (Item nr. 5) 70445 RUBBER，SEAT  8 € 9,34 € 11
IN STOCK
3 CUSHION (Item nr. 3) 25042 CUSHION  6 € 2,40 € 3
IN STOCK
2 LATCH ASSEMBLY (Item nr. 2) 35836 LATCH ASSEMBLY  1 € 10,66 € 13
IN STOCK
15 35763E FRAME COMP.(FOR EUROPE 4 +EPS)  1 € 613,14 € 742
ON REQUEST
16 11099 SCREW M6X20  6 € 8,76 € 11
ON REQUEST
26 Washer 6 (Item nr. 26) 11090 Washer 6  16 € 9,59 € 12
IN STOCK
25 11221 NUT  2 € 8,02 € 10
ON REQUEST
23 36445 SLEEVE  4 € 18,02 € 22
ON REQUEST
22 RUBBER COVER (Item nr. 22) 70287 RUBBER COVER  4 € 3,22 € 4
ON REQUEST
21 NUT M 8 (Item nr. 21) 10776 NUT M 8  4 € 9,59 € 12
IN STOCK
20 11220 BOLT M8X70  2 € 9,59 € 12
ON REQUEST
19 TRESTLE LEFT (Item nr. 19) 25055 TRESTLE LEFT  1 € 11,74 € 14
IN STOCK
18 TRESTLE RIGHT (Item nr. 18) 25054 TRESTLE RIGHT  1 € 14,88 € 18
IN STOCK
17 TAILLIGHT (Item nr. 17) 25053 TAILLIGHT  1 € 78,26 € 95
ON REQUEST
1 SEAT (Item nr. 1) 35835 SEAT  1 € 105,79 € 128
IN STOCK IN 2 days
Product Code LINHAI_4_404_LH40DA E4
Select BRAND: LINHAI
PARTS CATEGORY: BODY PARTS
Select MODEL: LH40DA E4
Select TYPE: LINHAI Electric ATV
