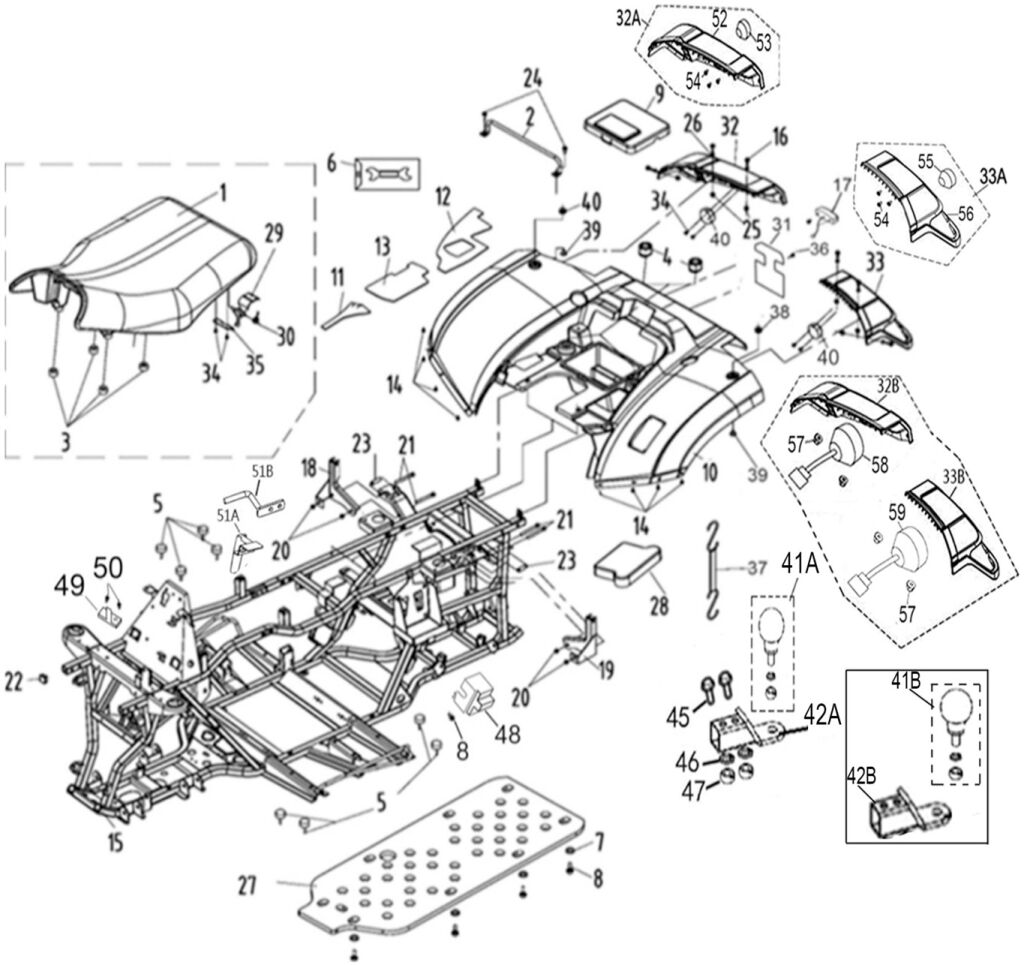

REAR FENDERS AND FRAM (HOMOLOGATED T3 REAR LIGHTS)

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_4_404_570_PROMAX-T3
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
59 R/B 25388 LEFT REAR COMBINATION LAMP (EFI T3 HOMOLOGATED) (Item nr. 59) 25377 R/B 25388 LEFT REAR COMBINATION LAMP (EFI T3 HOMOLOGATED)  1 € 60,33 € 73
ON REQUEST
38 70449 MUDGUARD  2 € 2,98 € 4
RE STOCKING
37 TIE，BATTERY（30Ah） (Item nr. 37) 36850 TIE，BATTERY（30Ah）  2 € 3,06 € 4
ON REQUEST
37 TIE，BATTERY (Item nr. 37) 22018 TIE，BATTERY  1 € 2,40 € 3
IN STOCK
36 BOLT M6X16 (Item nr. 36) 26370 BOLT M6X16  2 € 8,02 € 10
IN STOCK
35 BAFFLE.SEAT (Item nr. 35) 70803 BAFFLE.SEAT  1 € 11,74 € 14
IN STOCK
34 SCREW ST4.8X25 (Item nr. 34) 10534 SCREW ST4.8X25  8 € 2,15 € 3
ON REQUEST
33B TAILLIGHT COVER, L (Item nr. 33B) 25371 TAILLIGHT COVER, L  1 € 29,75 € 36
IN STOCK IN 9 days
33A TAILLIGHT COVER ASSY, L (Item nr. 33A) 25370 TAILLIGHT COVER ASSY, L  1 € 52,42 € 63
IN STOCK
33 R/B 25370 TAILLIGHT COVER，L (Item nr. 33) 27382 R/B 25370 TAILLIGHT COVER，L  1 € 37,27 € 45
ON REQUEST
32B TAILLIGHT COVER, R (Item nr. 32B) 25369 TAILLIGHT COVER, R  1 € 29,75 € 36
IN STOCK IN 3 days
32A TAILLIGHT COVER ASSY, R (Item nr. 32A) 25368 TAILLIGHT COVER ASSY, R  1 € 52,42 € 63
IN STOCK
32 R/B 25368 TAILLIGHT COVER，R (Item nr. 32) 27383 R/B 25368 TAILLIGHT COVER，R  1 € 31,98 € 39
ON REQUEST
31 BRACKET, LENS,LICENSE LIGHT (Item nr. 31) 27606 BRACKET, LENS,LICENSE LIGHT  1 € 41,57 € 50
IN STOCK
30 SPRING (Item nr. 30) 70802 SPRING  1 € 2,40 € 3
IN STOCK
29 HOOK BRACKET，SEAT LOCK (Item nr. 29) 70788 HOOK BRACKET，SEAT LOCK  1 € 6,69 € 8
ON REQUEST
28 35839 BATTERY COVER  1 € 4,30 € 5
RE STOCKING
28 BATTERY COVER (Item nr. 28) 35078 BATTERY COVER  1 € 2,40 € 3
IN STOCK
39 Bushing (Item nr. 39) 70543 Bushing  2 € 3,55 € 4
RE STOCKING
40 REAR TURNLIGHT COVER (Item nr. 40) 35840 REAR TURNLIGHT COVER  2 € 7,36 € 9
ON REQUEST
41A TOWING BALL (OPTION) (Item nr. 41A) 25294 TOWING BALL (OPTION)  1 € 33,97 € 41
ON REQUEST
58 R/B 25387 RIGHT REAR COMBINATION LAMP (EFI T3 HOMOLOGATED) (Item nr. 58) 25376 R/B 25387 RIGHT REAR COMBINATION LAMP (EFI T3 HOMOLOGATED)  1 € 60,33 € 73
ON REQUEST
57 11221 NUT  2 € 8,02 € 10
ON REQUEST
56 TAILLIGHT COVER/L (Item nr. 56) 25375 TAILLIGHT COVER/L  1 € 29,67 € 36
IN STOCK
55 25374 TAILLIGHT COVER BUSHING, L  1 € 1,65 € 2
ON REQUEST
54 SCREW ST4.2X13 (Item nr. 54) 11222 SCREW ST4.2X13  6 € 8,02 € 10
ON REQUEST
53 25373 TAILLIGHT COVER BUSHING, R  1 € 1,65 € 2
ON REQUEST
52 TAILLIGHT COVER/R (Item nr. 52) 25372 TAILLIGHT COVER/R  1 € 29,67 € 36
ON REQUEST
51B MUFFLER ELBOW BAFFLE (NEW) (Item nr. 51B) 38208a MUFFLER ELBOW BAFFLE (NEW)

←

1 € 6,03 € 7
IN STOCK
50 10753 SCREW M4X16  2 € 8,76 € 11
ON REQUEST
49 72305 ELECTRONIC DUMP SWITCH CONNECTION PLATE  1 € 7,19 € 9
ON REQUEST
48 STARTER RELAY SHIELD (Item nr. 48) 35907 STARTER RELAY SHIELD  1 € 4,55 € 5
IN STOCK
47 Hex Nut M16 (Item nr. 47) 10874 Hex Nut M16  2 € 2,40 € 3
IN STOCK
46 WASHER 16 (Item nr. 46) 11060 WASHER 16  2 € 2,40 € 3
IN STOCK
45 BOLT M16X95 (Item nr. 45) 10947 BOLT M16X95  2 € 5,70 € 7
IN STOCK
42B THE TRACTION BALL WELDING COMPONENTS (Item nr. 42B) 35951 THE TRACTION BALL WELDING COMPONENTS  2 € 24,88 € 30
IN STOCK
42A TOWING BALL INSTALL WELDED COMPONENTS (OPTION) (Item nr. 42A) 25295 TOWING BALL INSTALL WELDED COMPONENTS (OPTION)  1 € 92,89 € 112
ON REQUEST
41B PULL THE BALL (Item nr. 41B) 35950 PULL THE BALL  1 € 26,86 € 32
ON THE WAY
27 PLASTIC PLANT (Item nr. 27) 35497 PLASTIC PLANT  1 € 48,84 € 59
ON REQUEST
26 10002 WASHER 5  16 € 2,15 € 3
ON REQUEST
10 357566F REAR FENDER (white)  1 € 102,40 € 124
IN STOCK
10 357561F REAR FENDER (BLACK)  1 € 102,40 € 124
IN STOCK
10 357564P REAR FENDER (SAND)  1 € 102,40 € 124
IN STOCK
10 357569B REAR FENDER (GREY)  1 € 102,40 € 124
IN STOCK
10 REAR FENDER (ORANGE) (Item nr. 10) 357564F REAR FENDER (ORANGE)  1 € 102,40 € 124
IN STOCK
10 REAR FENDER (RED) (Item nr. 10) 357562G REAR FENDER (RED)  1 € 102,40 € 124
IN STOCK IN 3 days
10 REAR FENDER (BLUE) (Item nr. 10) 357563J REAR FENDER (BLUE)  1 € 102,40 € 124
IN STOCK
10 357565B REAR FENDER (GREEN)  1 € 102,40 € 124
ON REQUEST
10 357567F REAR FENDER (CONCEAL CAMOUFLAGE)  1 € 370,08 € 448
ON REQUEST
9 TOOL BOX CAP（NEW MODEL,MUST BE MATCHED WITH 2014 NEW MOULD REAR FENDER) (Item nr. 9) 25045a TOOL BOX CAP（NEW MODEL,MUST BE MATCHED WITH 2014 NEW MOULD REAR FENDER)  1 € 7,36 € 9
IN STOCK
8 10628 BOLT  10
ON REQUEST
7 WASHER 6 (Item nr. 7) 20331 WASHER 6  8 € 2,40 € 3
ON REQUEST
6 25044 TOOL ATV200-D T3b  1 € 8,10 € 10
ON REQUEST
5 RUBBER PAD (Item nr. 5) 20316 RUBBER PAD  8 € 2,40 € 3
IN STOCK
4 RUBBER，SEAT (Item nr. 4) 70445 RUBBER，SEAT  2 € 9,34 € 11
IN STOCK
3 CUSHION (Item nr. 3) 25042 CUSHION  6 € 2,40 € 3
IN STOCK
2 LATCH ASSEMBLY (Item nr. 2) 35836 LATCH ASSEMBLY  1 € 10,66 € 13
IN STOCK
10 357567C REAR FENDER (VISTA CAMOUFLAGE)  1 € 370,08 € 448
ON REQUEST
10 357567E REAR FENDER (REALITY CAMOUFLAGE)  1 € 370,08 € 448
ON REQUEST
11 INSULATION COVER (Item nr. 11) 27567 INSULATION COVER  1 € 12,81 € 16
ON THE WAY
25 NUT M10X1.25 (Item nr. 25) 10004 NUT M10X1.25  2 € 2,40 € 3
ON REQUEST
24 Hexagon Flange Bolt M6×16 8.8 (Item nr. 24) 10140 Hexagon Flange Bolt M6×16 8.8  2 € 2,40 € 3
IN STOCK
23 35838 SPACER  4 € 18,02 € 22
ON REQUEST
22 RUBBER COVER (Item nr. 22) 70287 RUBBER COVER  4 € 3,22 € 4
ON REQUEST
21 NUT M 8 (Item nr. 21) 10776 NUT M 8  4 € 9,59 € 12
IN STOCK
19 TRESTLE LEFT (Item nr. 19) 25055 TRESTLE LEFT  1 € 11,74 € 14
IN STOCK
18 TRESTLE RIGHT (Item nr. 18) 25054 TRESTLE RIGHT  1 € 14,88 € 18
IN STOCK
17 LENS,LICENSE LIGHT (Item nr. 17) 83459 LENS,LICENSE LIGHT  1 € 6,94 € 8
IN STOCK IN 9 days
16 11099 SCREW M6X20  6 € 8,76 € 11
ON REQUEST
15 35939 FRAME ASSY. (EURO 4, FOR ATV WITH EPS)  1 € 625,62 € 757
IN STOCK
15 35916 FRAME ASSY. (EURO 4, FOR ATV WITHOUT EPS)  1 € 623,14 € 754
IN STOCK
15 35940 FRAME ASSY. (MATCH REAR GEAR-BOX 47163, WITH EPS)  1
ON REQUEST
15 35914 FRAME ASSY. (MATCH REAR GEAR-BOX 47163, WITHOUT EPS)  1 € 623,14 € 754
ON REQUEST
13 REAR MUD ADIABATIC PELLICLE 2 (Item nr. 13) 35002 REAR MUD ADIABATIC PELLICLE 2  1 € 2,40 € 3
IN STOCK
12 REAR MUD ADIABATIC PELLICLE 1 (Item nr. 12) 35001 REAR MUD ADIABATIC PELLICLE 1  1 € 7,60 € 9
IN STOCK IN 3 days
1 SEAT (Item nr. 1) 35835 SEAT  1 € 105,79 € 128
IN STOCK IN 3 days
Product Code LINHAI_4_404_570_PROMAX-T3
Select BRAND: LINHAI
PARTS CATEGORY: BODY PARTS
Select TYPE: LINHAI 570
Select MODEL: 570 PROMAX T3
