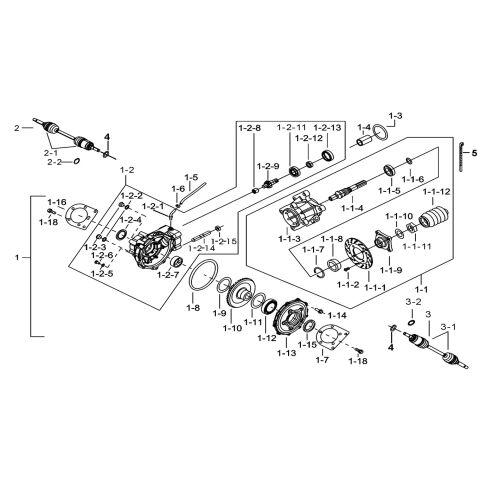

REAR DIFFERENTIAL ASSY.

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_114_VTH-DE
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01.5 926171 PIPE, BREATHER  1 € 7,36 € 9
ON REQUEST
1.2 CASE, REAR FINAL GEAR (Item nr. 1-2) 926139A CASE, REAR FINAL GEAR  1 € 365,29 € 442
IN STOCK
1.1.9 SEAT, LOCK (Item nr. 1-1-9) 924965 SEAT, LOCK  1 € 98,93 € 120
IN STOCK
1.1.8 OIL-SEAL (Item nr. 1-1-8) 924969 OIL-SEAL  1 € 11,90 € 14
IN STOCK
1.1.7 C CLIP (Item nr. 1-1-7) R01802 C CLIP  1 € 9,50 € 11
IN STOCK
1.1.6 O-RING (Item nr. 1-1-6) 924968 O-RING  1 € 2,40 € 3
IN STOCK
1.1.5 BEARING (Item nr. 1-1-5) 925001 BEARING  1 € 47,02 € 57
IN STOCK IN 6 days
1.1.4 SHAFT, REAR FINAL DRIVE (Item nr. 1-1-4) 924964 SHAFT, REAR FINAL DRIVE  1 € 88,26 € 107
IN STOCK
1.1.3 HOUSING, RR FINAL DRIVE (Item nr. 1-1-3) 925792 HOUSING, RR FINAL DRIVE  1 € 113,39 € 137
IN STOCK
1.1.2 SCREW, SOCKET (Item nr. 1-1-2) S72005 SCREW, SOCKET  4 € 3,06 € 4
IN STOCK
1.1.12 DUST GUARD COVER (Item nr. 1-1-12) 925617 DUST GUARD COVER  1 € 19,75 € 24
ON REQUEST
1.1.11 NUT, HEX HEAD (Item nr. 1-1-11) N33701 NUT, HEX HEAD  1 € 15,54 € 19
ON REQUEST
1.1.10 WASHER 10,5x 22x2t (Item nr. 1-1-10) W99710 WASHER 10,5x 22x2t  1 € 2,31 € 3
ON REQUEST
1.2.1 EXHAUST PIPE, BREATHE (Item nr. 1-2-1) 924261 EXHAUST PIPE, BREATHE  1 € 6,69 € 8
ON REQUEST
1.2.11 BEARING 28x68x18 (Item nr. 1-2-11) 925355 BEARING 28x68x18  1 € 41,07 € 50
IN STOCK
1.2.9 GEAR (UMBRELLA) (Item nr. 1-2-9) 925450 GEAR (UMBRELLA)  1 € 126,03 € 153
IN STOCK
1.2.8 BEARING ?20x?28x23 (Item nr. 1-2-8) 924269 BEARING ?20x?28x23  1 € 31,57 € 38
IN STOCK
1.2.7 BEARING ?40X?50X20 (Item nr. 1-2-7) 924270 BEARING ?40X?50X20  1 € 41,24 € 50
IN STOCK
1.2.6 BOLT, FLANGE (Item nr. 1-2-6) S21605 BOLT, FLANGE  1 € 2,40 € 3
IN STOCK
1.2.5 WASHER ?6.5X?13.2X1.3t (Item nr. 1-2-5) W99621 WASHER ?6.5X?13.2X1.3t  1 € 2,40 € 3
IN STOCK
1.2.4 OIL SEAL ?38X?54X6 (Item nr. 1-2-4) 924274 OIL SEAL ?38X?54X6  1 € 3,72 € 5
IN STOCK
1.2.3 SCREW (Item nr. 1-2-3) 924339 SCREW  2 € 5,79 € 7
IN STOCK
1.2.2 WASHER, TDC ?16.2X?22.5X2t (Item nr. 1-2-2) W99620 WASHER, TDC ?16.2X?22.5X2t  2 € 2,40 € 3
IN STOCK
1.2.15 N10001 NUT  4 € 2,15 € 3
ON REQUEST
1.2.14 S95003 STUD  4 € 2,15 € 3
ON REQUEST
1.2.13 RING SNAP (Item nr. 1-2-13) 924254 RING SNAP  1 € 48,60 € 59
ON REQUEST
1.2.12 RING SNAP (Item nr. 1-2-12) 924255 RING SNAP  1 € 8,35 € 10
IN STOCK
1.1.1 DISC, BRAKE 180mm (Item nr. 1-1-1) 513426Y DISC, BRAKE 180mm  1 € 60,41 € 73
IN STOCK
05 CLAMP L200 (Item nr. 05) 518739 CLAMP L200  2 € 3,06 € 4
IN STOCK
01.3 O-RING ?3.175.4 (Item nr. 01-3) 924273 O-RING ?3.175.4  1 € 2,40 € 3
IN STOCK
01.18 BOLT (Item nr. 01-18) S21010 BOLT  4 € 2,40 € 3
IN STOCK
01.16 JOINT PLATE(L) (Item nr. 01-16) 924963 JOINT PLATE(L)  1 € 34,05 € 41
IN STOCK
01.15 OIL SEAL ?42x?62x9 (Item nr. 01-15) 924275 OIL SEAL ?42x?62x9  1 € 4,30 € 5
IN STOCK
01.14 SCREW (Item nr. 01-14) S21813 SCREW  9 € 2,40 € 3
IN STOCK
01.13 CASE, REAR FINAL DRIVEN RH (Item nr. 01-13) 925642 CASE, REAR FINAL DRIVEN RH  1 € 73,80 € 89
IN STOCK
01.12 BEARING ?45x?75x16 (Item nr. 01-12) 924268 BEARING ?45x?75x16  1 € 43,72 € 53
IN STOCK
01.11B SHIM ?45.5X?54X0.05t (Item nr. 01-11B) W99530 SHIM ?45.5X?54X0.05t  1 € 2,98 € 4
IN STOCK
01.11A SHIM ?45.5X?54X0.1t (Item nr. 01-11A) W99529 SHIM ?45.5X?54X0.1t  2 € 3,31 € 4
IN STOCK
01.11 SHIM ?45.5X?54X0.5t (Item nr. 01-11) W99531 SHIM ?45.5X?54X0.5t  1 € 3,39 € 4
IN STOCK
01.10 GEAR, FINAL DRIVEN BEVEL 28 mm (Item nr. 01-10) 925452 GEAR, FINAL DRIVEN BEVEL 28 mm  1 € 214,71 € 260
IN STOCK
01.1 HOUSING SET, RR FINAL DRIVE (Item nr. 01-1) 925792A HOUSING SET, RR FINAL DRIVE  1 € 144,38 € 175
IN STOCK
01.4 JOINT, REAR FINAL DRIVE (Item nr. 01-4) 924252 JOINT, REAR FINAL DRIVE  1 € 18,84 € 23
ON REQUEST
01.6 CLAMP (Item nr. 01-6) R40002 CLAMP  1 € 2,40 € 3
IN STOCK
04 O RING 3X30.2 (Item nr. 04) 925449 O RING 3X30.2  2 € 2,40 € 3
IN STOCK
03.2 R/B 911607 C CLIP (Item nr. 03-2) 925250 R/B 911607 C CLIP  1 € 2,40 € 3
ON REQUEST
03.1 R/B 927279Y BOOT SET, TRANSMISSION SHAFT (Item nr. 03-1) 927279 R/B 927279Y BOOT SET, TRANSMISSION SHAFT  1 € 58,10 € 70
IN STOCK
03 SHAFT, SEC DRIVEN OUTPUT REAR (RH) (Item nr. 03) 926176Y SHAFT, SEC DRIVEN OUTPUT REAR (RH)  1 € 342,48 € 414
IN STOCK
02 SHAFT, SEC DRIVEN OUTPUT REAR (LH) (Item nr. 02) 926175Y SHAFT, SEC DRIVEN OUTPUT REAR (LH)  1 € 330,17 € 400
ON REQUEST
01.9B SHIM ?40X?50X0.05T (Item nr. 01-9B) W99426 SHIM ?40X?50X0.05T  1 € 3,31 € 4
IN STOCK
01.9A SHIM ?40X?50X0.1T (Item nr. 01-9A) W99425 SHIM ?40X?50X0.1T  2 € 3,14 € 4
IN STOCK
01.9 SHIM ?40X?50X0.5T (Item nr. 01-9) W99427 SHIM ?40X?50X0.5T  1 € 3,47 € 4
IN STOCK
01.8 "O" RING ?2.3X?158.3 (Item nr. 01-8) 924271 "O" RING ?2.3X?158.3  1 € 2,40 € 3
IN STOCK
01.7 JOINT PLATE(R) (Item nr. 01-7) 924966 JOINT PLATE(R)  1 € 41,40 € 50
IN STOCK
01 REAR DIFFERENTIAL ASSY. (Item nr. 01) 926140C REAR DIFFERENTIAL ASSY.  1 € 677,77 € 820
ON REQUEST
Product Code TGB_1_114_VTH-DE
PARTS CATEGORY: ENGINE PARTS
Select BRAND: TGB
Select TYPE: TARGET 600
Select MODEL: TARGET 600 E4, TARGET 600 T3b
