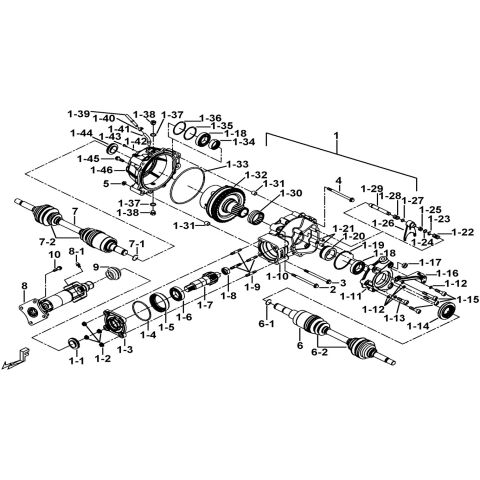

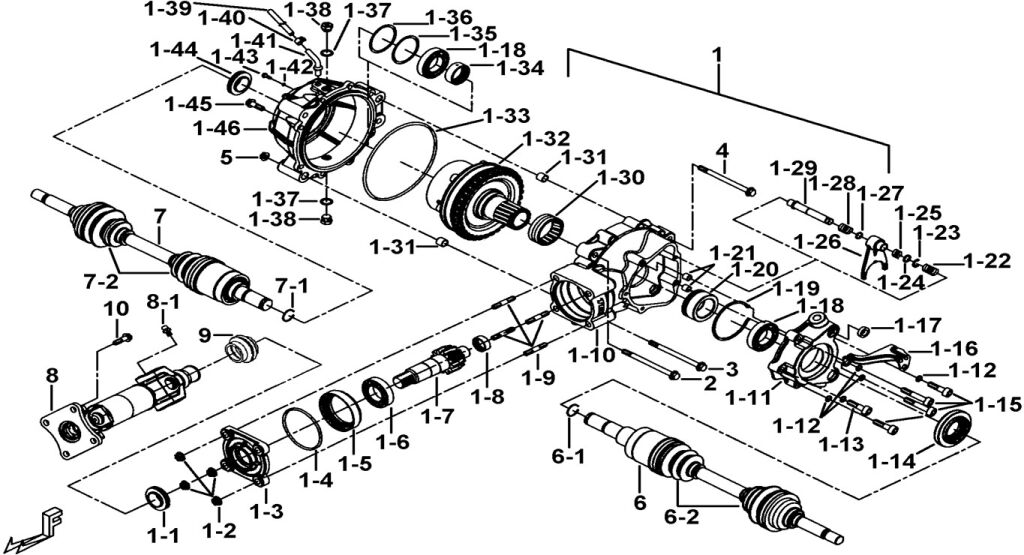

REAR DIFFERENTIAL ASSY.(FOR LOCK)

TGB
  • Manufacturer  TGB
  • Product Code  TGB_2_116_ETT
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
10 BOLT, MUF BODY SUPPORT RH (Item nr. 10) S21007 BOLT, MUF BODY SUPPORT RH  4 € 2,40 € 3
IN STOCK IN 2 days
01.45 SCREW (Item nr. 01-45) S21813 SCREW  8 € 2,40 € 3
IN STOCK
01.44 R/B 925010A OIL SEAL (Item nr. 01-44) 925010 R/B 925010A OIL SEAL  1 € 16,20 € 20
ON REQUEST
01.43 BOLT, FLANGE (Item nr. 01-43) S21605 BOLT, FLANGE  1 € 2,40 € 3
IN STOCK
01.42 WASHER ?6.5X?13.2X1.3t (Item nr. 01-42) W99621 WASHER ?6.5X?13.2X1.3t  1 € 2,40 € 3
IN STOCK
01.41 EXHAUST PIPE, BREATHE (Item nr. 01-41) 924261 EXHAUST PIPE, BREATHE  1 € 6,69 € 8
ON REQUEST
01.40 CLAMP (Item nr. 01-40) R40002 CLAMP  1 € 2,40 € 3
IN STOCK
01.38 SCREW (Item nr. 01-38) 924339 SCREW  2 € 5,79 € 7
IN STOCK
01.36 SHIM 0.3t (Item nr. 01-36) W99833 SHIM 0.3t  1 € 5,37 € 6
IN STOCK
01.9 S95003 STUD  4 € 2,15 € 3
ON REQUEST
02 BOLT, FLANGE M10X1.25 (Item nr. 02) S20019 BOLT, FLANGE M10X1.25  1 € 3,22 € 4
IN STOCK
08.1 GREASE NIPPLE (Item nr. 08-1) 925494 GREASE NIPPLE  1 € 2,40 € 3
IN STOCK
08 UNIVERSAL JOINT ASSY (Item nr. 08) 927155 UNIVERSAL JOINT ASSY  1 € 306,69 € 371
ON THE WAY
07.2 R/B 911645Y BOOT SET, TRANSMISSION SHAFT (Item nr. 07-2) 910604 R/B 911645Y BOOT SET, TRANSMISSION SHAFT  1 € 77,93 € 94
ON REQUEST
07.1 R/B 911607 C CLIP (Item nr. 07-1) 925250 R/B 911607 C CLIP  1 € 2,40 € 3
ON REQUEST
05 NUT, SELF LOCK (Item nr. 05) GA551NT01 NUT, SELF LOCK  4 € 2,40 € 3
IN STOCK
04 BOLT, FLANGE (Item nr. 04) S20057 BOLT, FLANGE  2 € 6,12 € 7
IN STOCK
01.35 SHIM 0.2t (Item nr. 01-35) W99832 SHIM 0.2t  1 € 5,21 € 6
IN STOCK
01.34 BEARING (Item nr. 01-34) 910500 BEARING  1 € 21,90 € 27
ON REQUEST
01.33 ORING (Item nr. 01-33) 910208 ORING  1 € 4,79 € 6
IN STOCK
01.17 OIL SEAL?12X?20X5 (Item nr. 01-17) 924381 OIL SEAL?12X?20X5  1 € 2,40 € 3
ON REQUEST
01.16 STEEL ROPE BRACKET (Item nr. 01-16) 910204 STEEL ROPE BRACKET  1 € 9,83 € 12
IN STOCK
01.15 SCREW, SOCKET HEAD M8X1.25X40L (Item nr. 01-15) S70809 SCREW, SOCKET HEAD M8X1.25X40L  4 € 2,40 € 3
IN STOCK
01.14 OIL SEAL (Item nr. 01-14) 910408 OIL SEAL  1 € 16,53 € 20
ON THE WAY
01.13 S70810 SCREW, SOCKET HEAD M8X1.25X36L  1 € 2,15 € 3
ON REQUEST
01.12 SPRING WASHER (Item nr. 01-12) GA556WS04 SPRING WASHER  5 € 2,40 € 3
IN STOCK
01.11 HOUSING, FRONT DRIVE (Item nr. 01-11) 910521 HOUSING, FRONT DRIVE  1 € 49,26 € 60
IN STOCK
01.1 OIL SEAL (Item nr. 01-1) 910586 OIL SEAL  1 € 16,78 € 20
ON THE WAY
01.18 R/B 911591 BEARING(6209) (Item nr. 01-18) 910502 R/B 911591 BEARING(6209)  2 € 43,80 € 53
ON REQUEST
01.2 N10001 NUT  4 € 2,15 € 3
ON REQUEST
01.32 R/B 910581-S SLIP LIMITED GEAR ASSY (Item nr. 01-32) 910581 R/B 910581-S SLIP LIMITED GEAR ASSY  1 € 806,36 € 976
ON REQUEST
01.31 PIN, DOWEL (Item nr. 01-31) P40301 PIN, DOWEL  2 € 2,40 € 3
IN STOCK
01.28 INSIDE SPRING (Item nr. 01-28) 924970 INSIDE SPRING  1 € 2,56 € 3
IN STOCK
01.27 924971 WASHER 1t  1 € 2,15 € 3
ON REQUEST
01.25 925353 SPRING  1 € 2,81 € 3
ON REQUEST
01.24 WASHER (Item nr. 01-24) W99218 WASHER  1 € 2,40 € 3
IN STOCK
01.23 E RING (Item nr. 01-23) R10702 E RING  1 € 2,15 € 3
IN STOCK
01.21 P40102 PIN, DOWEL  2 € 4,71 € 6
ON REQUEST
01 REAR DIFFERENTIAL ASSY. (Item nr. 01) 910402 REAR DIFFERENTIAL ASSY.  1 € 1 427,02 € 1 727
IN STOCK
Product Code TGB_2_116_ETT
PARTS CATEGORY: FRAME PARTS
Select MODEL: BLADE 1000LT T3b
Select BRAND: TGB
Select TYPE: BLADE 1000
