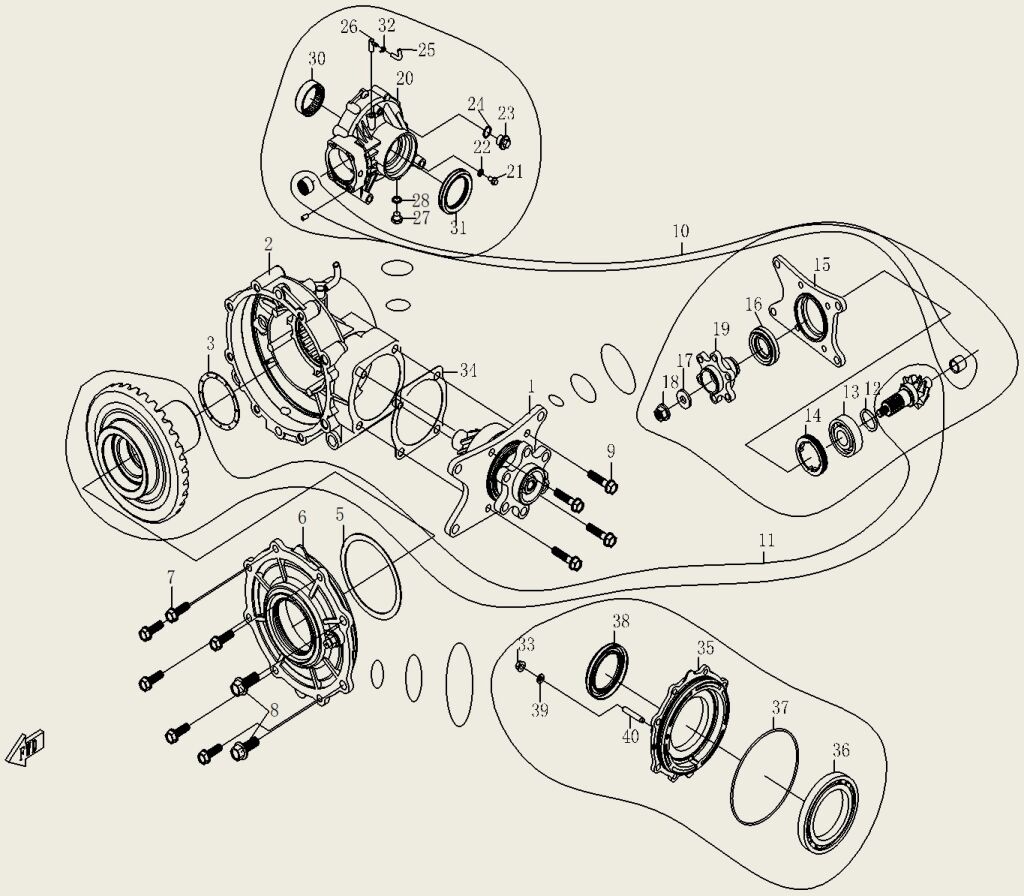

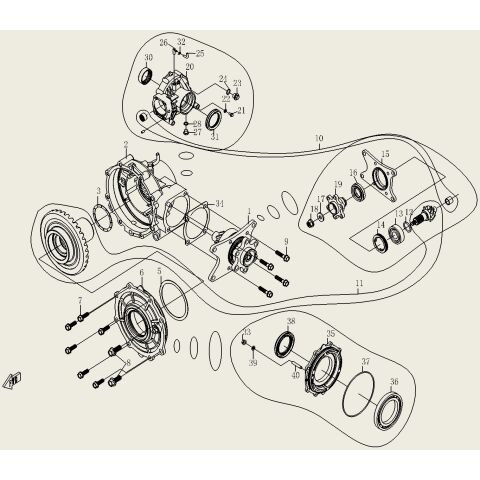

Rear Diferential

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_1_123_ATV500-D-E2
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
6 35461 RING GEAR BEARING HOUSING  1
ON REQUEST

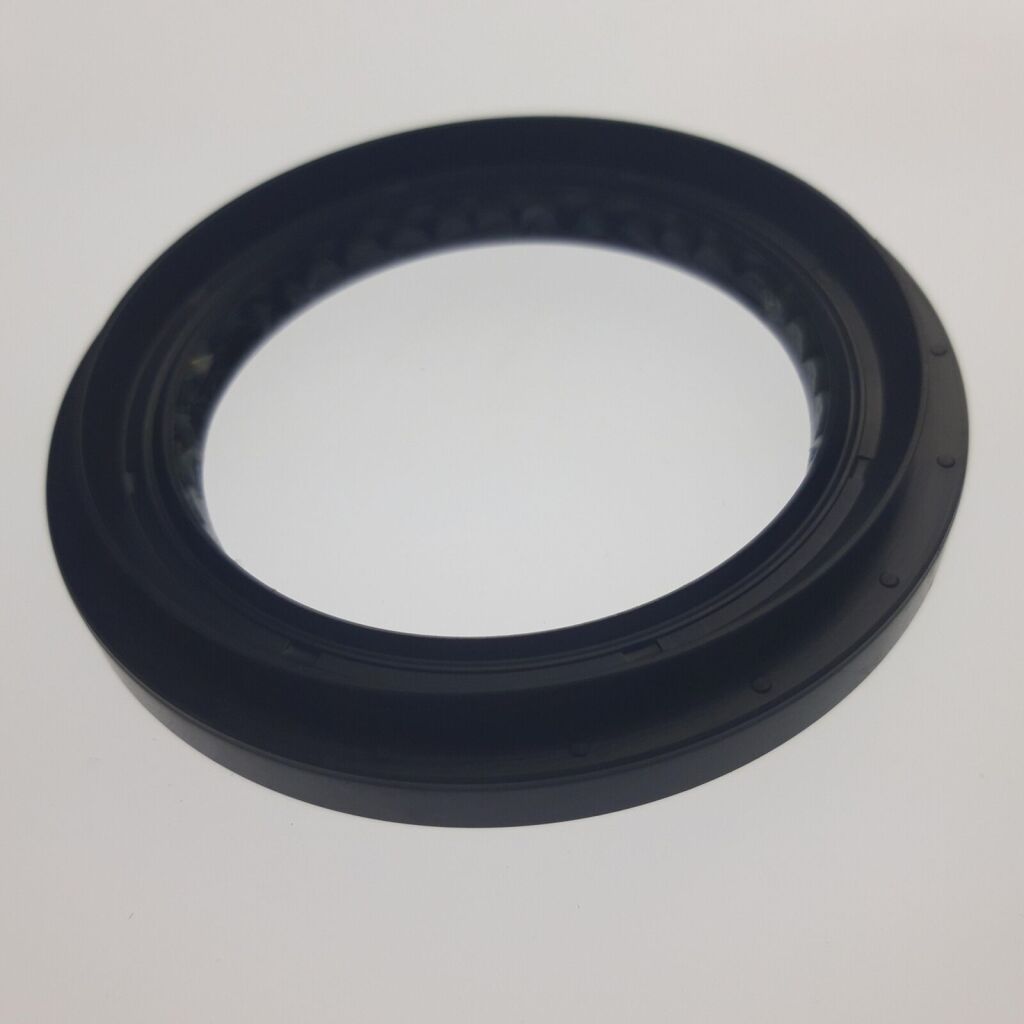

31 35485 R/B 35494 OIL SEAL SD4 65×90×9 NS  1 € 9,09 € 11
ON REQUEST

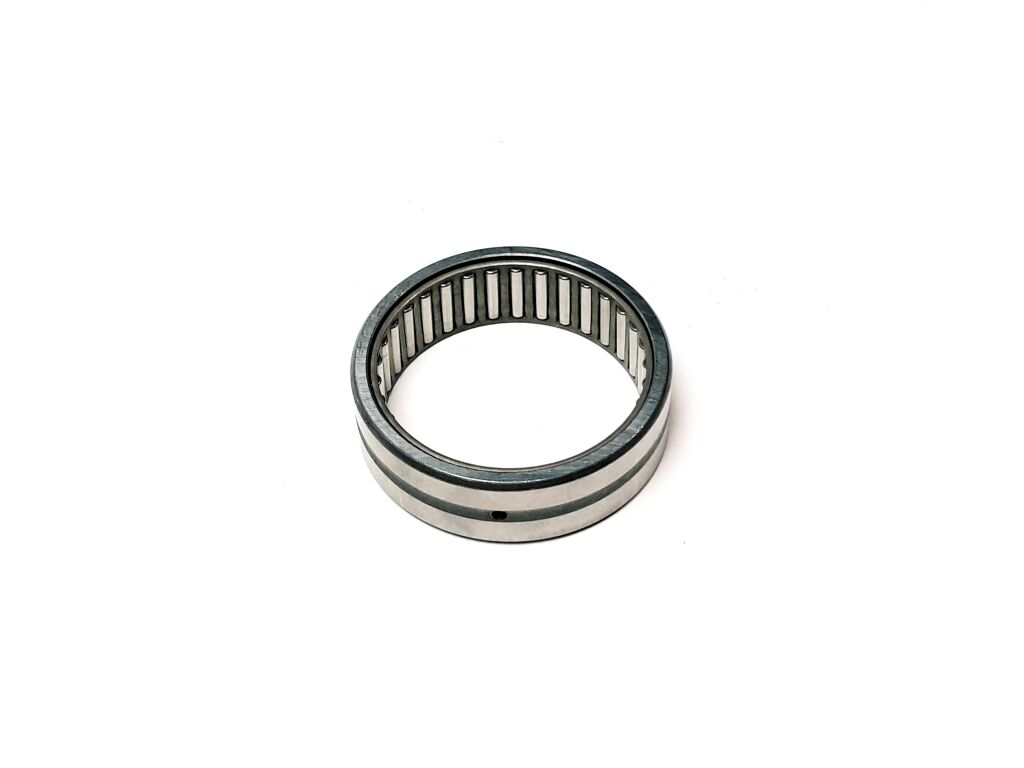

30 NEEDLE BEARING 55BTM6720A (Item nr. 30) 35484 NEEDLE BEARING 55BTM6720A  1 € 25,95 € 31
IN STOCK
28 WASHER 14 (Item nr. 28) 35483 WASHER 14  1 € 3,55 € 4
IN STOCK
27 BOLT M14×1.25×12 (Item nr. 27) 35482 BOLT M14×1.25×12  1 € 6,36 € 8
IN STOCK
26 35481 PIPE JOINT  1 € 2,81 € 3
ON REQUEST
25 35480 BREATHER PIPE  1 € 2,56 € 3
ON REQUEST
24 35479 O-RING 19×2.5  1 € 13,64 € 16
ON REQUEST

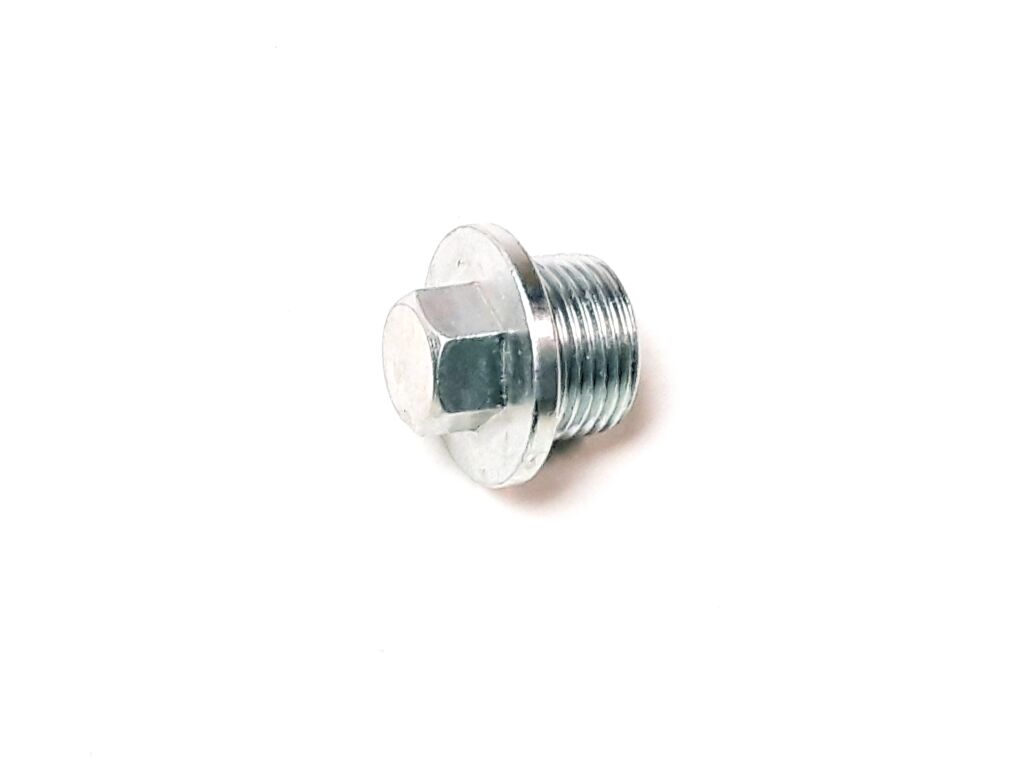

23 BOLT M20×1.5×12 (Item nr. 23) 35478 BOLT M20×1.5×12  1 € 3,31 € 4
IN STOCK
22 35477 WASHER 8.2×15×1.5  1 € 3,55 € 4
ON REQUEST
32 35486 WIRE CLAMP A7 QC/T621-1999  1 € 13,64 € 16
ON REQUEST
33 35487 NUT M8  1 € 3,55 € 4
ON REQUEST
34.1 35488 ADJUST SHIM(0.40)  1 € 2,40 € 3
ON REQUEST
2 35452 REAR GEAR CASE  1
ON REQUEST
40 35496 HE× SCREW M8×45  1 € 2,23 € 3
ON REQUEST
39 35495 GASKET 8.2×15×1.5  1 € 3,55 € 4
ON REQUEST
38 OIL SEAL SD4 65×90×9 NS (unavailable) (Item nr. 38) 35494 OIL SEAL SD4 65×90×9 NS (unavailable)  1 € 9,09 € 11
ON REQUEST
37 O-RING 151×3 (Item nr. 37) 35493 O-RING 151×3  1 € 2,98 € 4
IN STOCK
36 BEARING 16017/C2 (Item nr. 36) 35492 BEARING 16017/C2  1 € 111,90 € 135
IN STOCK
35 35491 REAR GEAR BEARING HOUSING  1 € 63,14 € 76
ON REQUEST
34.3 35490 ADJUST SHIM(0.60)  1 € 2,40 € 3
ON REQUEST
34.2 35489 ADJUST SHIM(0.50)  1 € 2,40 € 3
ON REQUEST
21 35476 BOLT M8×12.5  1 € 3,55 € 4
ON REQUEST
20 35475 REAR GEAR CASE  1 € 167,60 € 203
ON REQUEST
7 35462 BOLT M8×25  6 € 3,55 € 4
ON REQUEST
5.3 35460 ADJUST SHIM(2) 0.4  1 € 3,22 € 4
ON REQUEST
5.2 35459 ADJUST SHIM(2) 0.3  1 € 3,22 € 4
ON REQUEST
5.1 35458 ADJUST SHIM(2) 0.2  1 € 3,22 € 4
ON REQUEST
3.5 35457 ADJUST SHIM(1) 1.8  1 € 3,22 € 4
ON REQUEST
3.4 35456 ADJUST SHIM(1) 1.6  1 € 3,22 € 4
ON REQUEST
3.3 35455 ADJUST SHIM(1) 1.4  1 € 3,22 € 4
ON REQUEST
3.2 35454 ADJUST SHIM(1) 1.2  1 € 3,22 € 4
ON REQUEST
3.1 35453 ADJUST SHIM(1) 1.0  1 € 3,22 € 4
ON REQUEST
8 35463 BOLT M10×1.25×25  2 € 2,40 € 3
ON REQUEST
9 35464 BOLT M8×35  4 € 2,40 € 3
ON REQUEST
10 INNER & OUTER RACE NA 5903 17×30×18 (Item nr. 10) 35465 INNER & OUTER RACE NA 5903 17×30×18  1 € 12,56 € 15
ON REQUEST
19 COUPLER, REAR AXLE (Item nr. 19) 35474 COUPLER, REAR AXLE  1 € 65,12 € 79
RE STOCKING
18 NUT M12×1.25 (Item nr. 18) 35473 NUT M12×1.25  1 € 2,40 € 3
ON REQUEST
17 35472 WASHER 12.5×30×4  1 € 2,40 € 3
ON REQUEST
16 OIL SEAL Φ35×Φ61×9.5（14） (Item nr. 16) 35471 OIL SEAL Φ35×Φ61×9.5（14）  1 € 5,12 € 6
IN STOCK
15 BEVEL GEAR BEARING HOUSING (Item nr. 15) 35470 BEVEL GEAR BEARING HOUSING  1 € 63,97 € 77
IN STOCK
14 35469 BEARING RETAINER (unavailable)  1 € 23,39 € 28
ON REQUEST
13 BEARING 16017/C2 KOYO：6305-1BB (Item nr. 13) 35468 BEARING 16017/C2 KOYO：6305-1BB  1 € 22,23 € 27
IN STOCK
12 35467 ADJUST SHIM  2 € 2,40 € 3
ON REQUEST
11 35466 BEVEL GEAR COMP. REAR AXLE  1 € 348,60 € 422
ON REQUEST
1 35451 DRIVE BEVEL GEAR ASSEMBLY, RA  1 € 118,35 € 143
ON REQUEST
Product Code LINHAI_1_123_ATV500-D-E2
PARTS CATEGORY: ENGINE PARTS
Select BRAND: LINHAI
Select MODEL: 500 E2
Select TYPE: LINHAI 500
