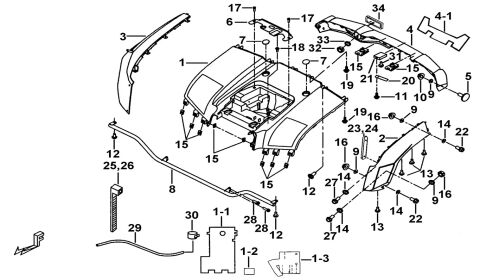

REAR BODY COVER

TGB
  • Manufacturer  TGB
  • Product Code  TGB_5_445_ETT-JJ
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
17 BOLT, FLANGE (Item nr. 17) S20814 BOLT, FLANGE  2 € 2,40 € 3
IN STOCK
18 BOLT M6X16L (Item nr. 18) S25602 BOLT M6X16L  1 € 2,40 € 3
IN STOCK
19 BOLT, FLANGE (Item nr. 19) S07601 BOLT, FLANGE  4 € 2,40 € 3
IN STOCK
20 CLAMP (Item nr. 20) 514410 CLAMP  3 € 2,40 € 3
IN STOCK
21 CONNECTOR (Item nr. 21) 514411 CONNECTOR  2 € 2,40 € 3
IN STOCK
22 BOLT, HEX HEAD M6X16 (Item nr. 22) S72605 BOLT, HEX HEAD M6X16  4 € 2,40 € 3
IN STOCK IN 6 days
23 PLATE (LH.) (Item nr. 23) 512466 PLATE (LH.)  1 € 9,17 € 11
IN STOCK
24 PLATE (RH.) (Item nr. 24) 512467 PLATE (RH.)  1 € 9,34 € 11
ON REQUEST
25 CLAMP L200 (Item nr. 25) 518739 CLAMP L200  1 € 3,06 € 4
IN STOCK
27 BOLT, HEX SOCKET (Item nr. 27) S72601 BOLT, HEX SOCKET  4 € 2,40 € 3
IN STOCK
28 BOLT,HEX HEAD (Item nr. 28) S20611 BOLT,HEX HEAD  4 € 2,40 € 3
IN STOCK
29 514467 DRAIN HOSE  1 € 24,79 € 30
ON REQUEST
30 CLAMP (Item nr. 30) R40002 CLAMP  1 € 2,40 € 3
IN STOCK
31 SCREW, PAN HEAD (Item nr. 31) S50402 SCREW, PAN HEAD  2 € 2,40 € 3
IN STOCK
32 NUT,SELFLOCK (Item nr. 32) N20502 NUT,SELFLOCK  2 € 3,97 € 5
IN STOCK
33 WASHER (Item nr. 33) GA552WS05 WASHER  2 € 2,40 € 3
IN STOCK
16 NUT, SPRING M6 (Item nr. 16) N10603 NUT, SPRING M6  6 € 2,40 € 3
IN STOCK
15 NUT, SPRING M6X1.0 (Item nr. 15) N32601 NUT, SPRING M6X1.0  12 € 2,40 € 3
IN STOCK
01.1 HEAT INSULATION (Item nr. 01-1) 518011R HEAT INSULATION  1 € 67,52 € 82
ON REQUEST
01.2 HEAT INSULATION (Item nr. 01-2) 512094R HEAT INSULATION  1 € 2,40 € 3
ON THE WAY

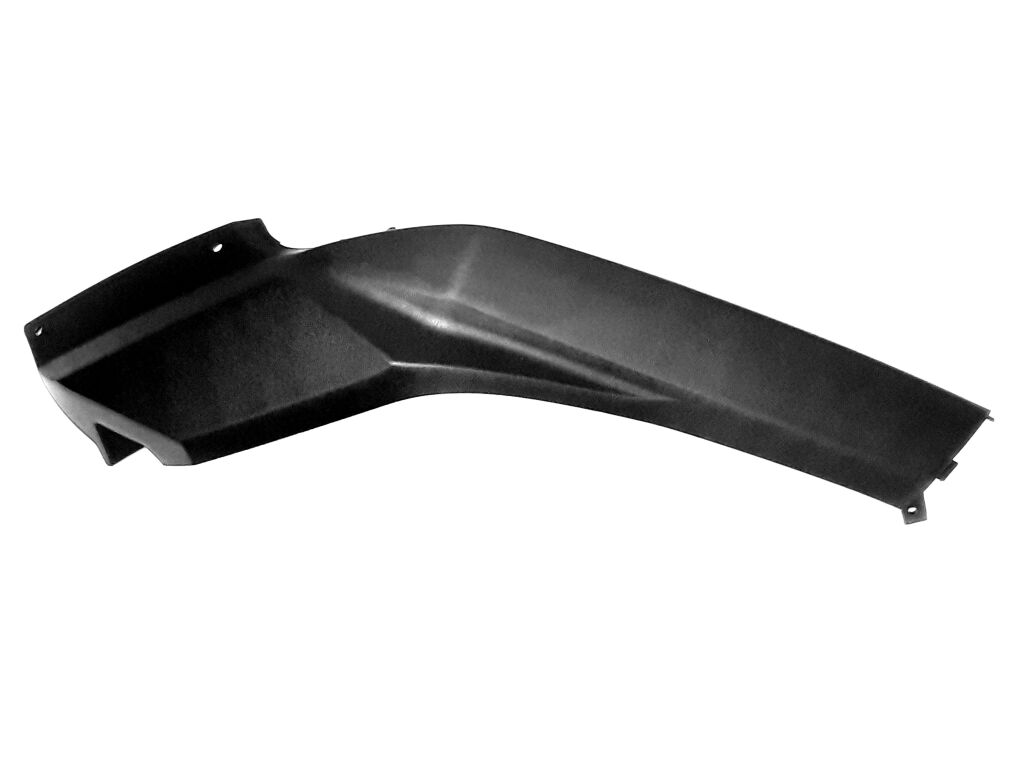

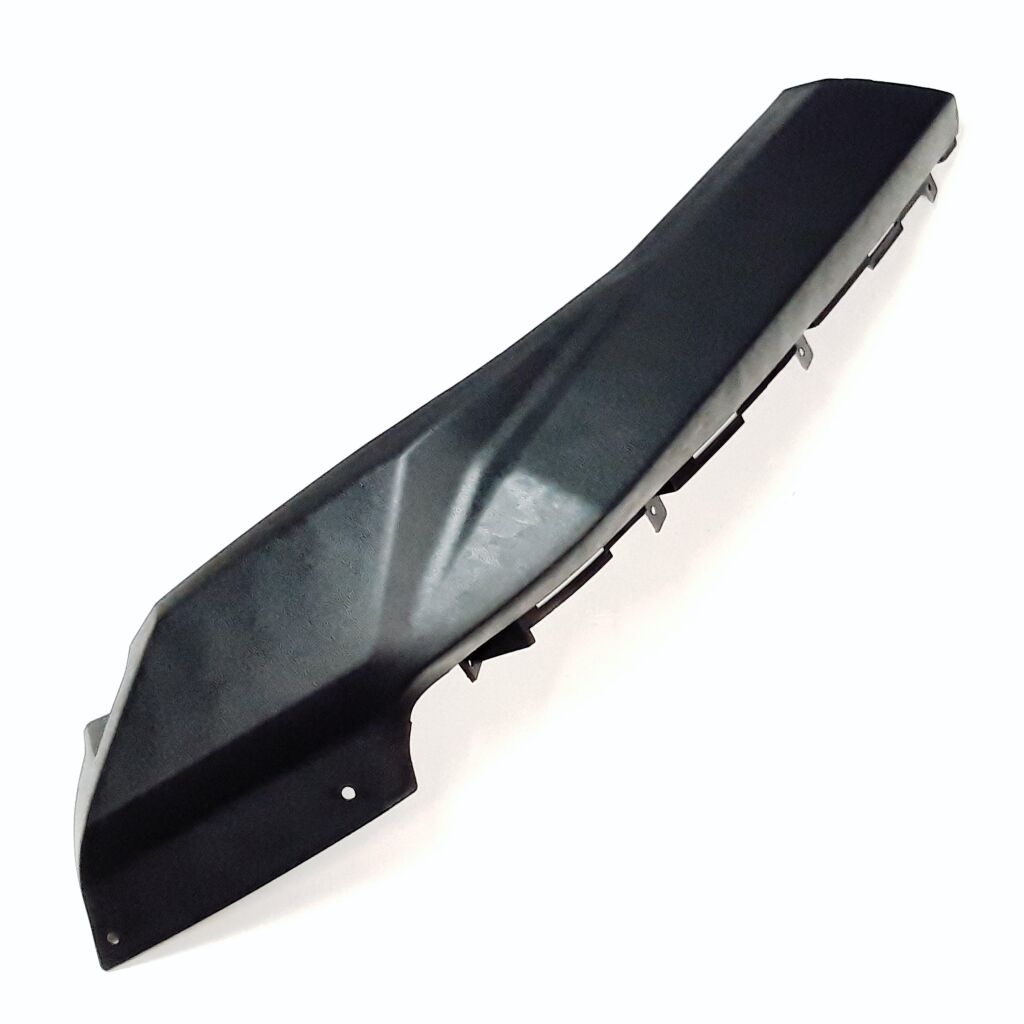

02 REAR FENDER SIDE RAIL, LH. (Item nr. 02) 514493 REAR FENDER SIDE RAIL, LH.  1 € 22,56 € 27
ON THE WAY
03 REAR FENDER SIDE RAIL, RH. (Item nr. 03) 514494 REAR FENDER SIDE RAIL, RH.  1 € 22,56 € 27
IN STOCK IN 6 days
04 514553E REAR BUMPER  1 € 111,90 € 135
ON THE WAY
05 REFLECTOR ASSY., SIDE (REAR) (Item nr. 05) 518007 REFLECTOR ASSY., SIDE (REAR)  2 € 7,52 € 9
IN STOCK
06 BATTERY FIXED(PLATE) (Item nr. 06) 518020 BATTERY FIXED(PLATE)  1 € 26,45 € 32
IN STOCK
08 BRKT, REAR BODY COVER (Item nr. 08) 514405 BRKT, REAR BODY COVER  1 € 26,36 € 32
IN STOCK
09 WASHER (Item nr. 09) W99605 WASHER  8 € 2,40 € 3
IN STOCK
10 N20602 NUT, LOCK  2 € 1,98 € 2
ON REQUEST
11 BOLT, FLANGE M6X16 (Item nr. 11) GA555SC05 BOLT, FLANGE M6X16  3 € 2,40 € 3
IN STOCK
12 SCREW, OVAL HEAD, TAPPING M5X14 (Item nr. 12) S57501 SCREW, OVAL HEAD, TAPPING M5X14  4 € 2,40 € 3
IN STOCK
13 SCREW TAPPING M4X12 (Item nr. 13) S50401 SCREW TAPPING M4X12  8 € 2,40 € 3
IN STOCK
14 WASHER (Item nr. 14) GA555WS02 WASHER  8 € 2,40 € 3
IN STOCK
34 REFLECTOR ASSY.,REAR (Item nr. 34) 458015 REFLECTOR ASSY.,REAR  2 € 6,45 € 8
IN STOCK
Product Code TGB_5_445_ETT-JJ
PARTS CATEGORY: BODY PARTS
Select BRAND: TGB
Select TYPE: BLADE 1000LTX
Select MODEL: BLADE 1000LTX MAX T3b
