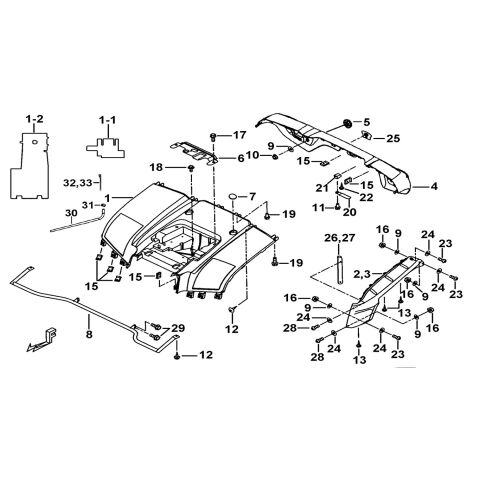

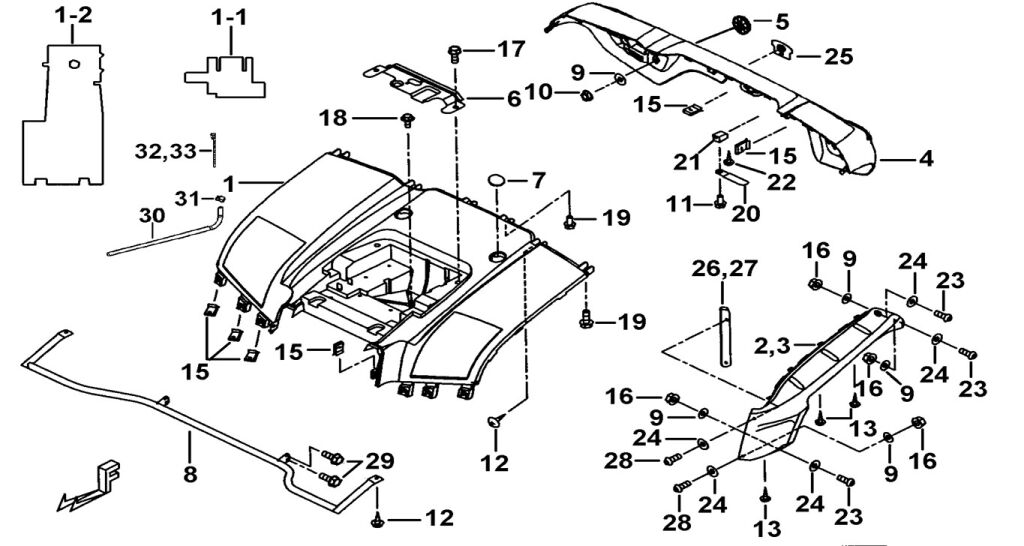

REAR BODY COVER

TGB
  • Manufacturer  TGB
  • Product Code  TGB_4_223_FTH-HDLE
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability

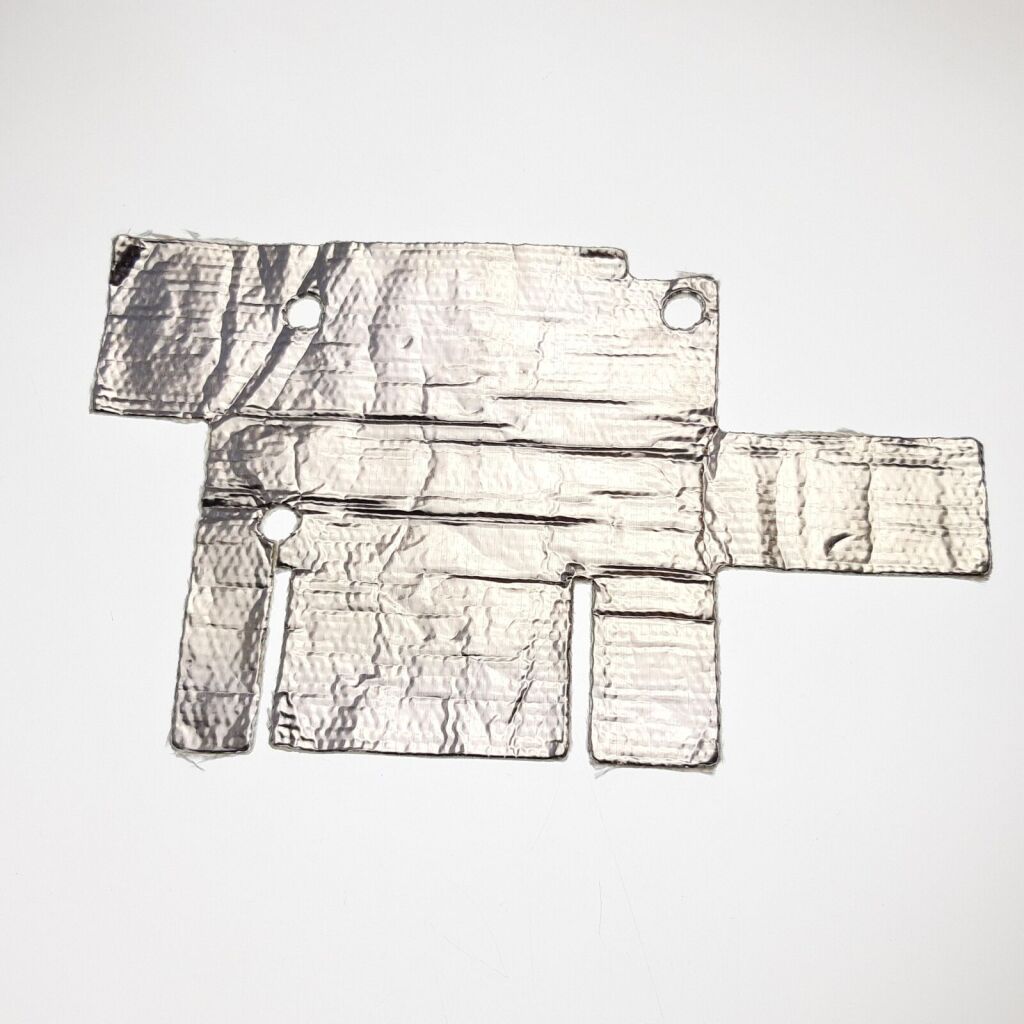

01.1 HEAT INSULATION (Item nr. 01-1) 518014 HEAT INSULATION  1 € 15,87 € 19
ON REQUEST
19 BOLT, FLANGE (Item nr. 19) S07601 BOLT, FLANGE  4 € 2,40 € 3
IN STOCK
20 CLAMP (Item nr. 20) 514410 CLAMP  2 € 2,40 € 3
IN STOCK
21 CONNECTOR (Item nr. 21) 514411 CONNECTOR  2 € 2,40 € 3
IN STOCK
22 SCREW, PAN HEAD (Item nr. 22) S50402 SCREW, PAN HEAD  2 € 2,40 € 3
IN STOCK
23 BOLT, HEX HEAD M6X16 (Item nr. 23) S72605 BOLT, HEX HEAD M6X16  6 € 2,40 € 3
IN STOCK IN 3 days
24 WASHER (Item nr. 24) GA555WS02 WASHER  10 € 2,40 € 3
IN STOCK

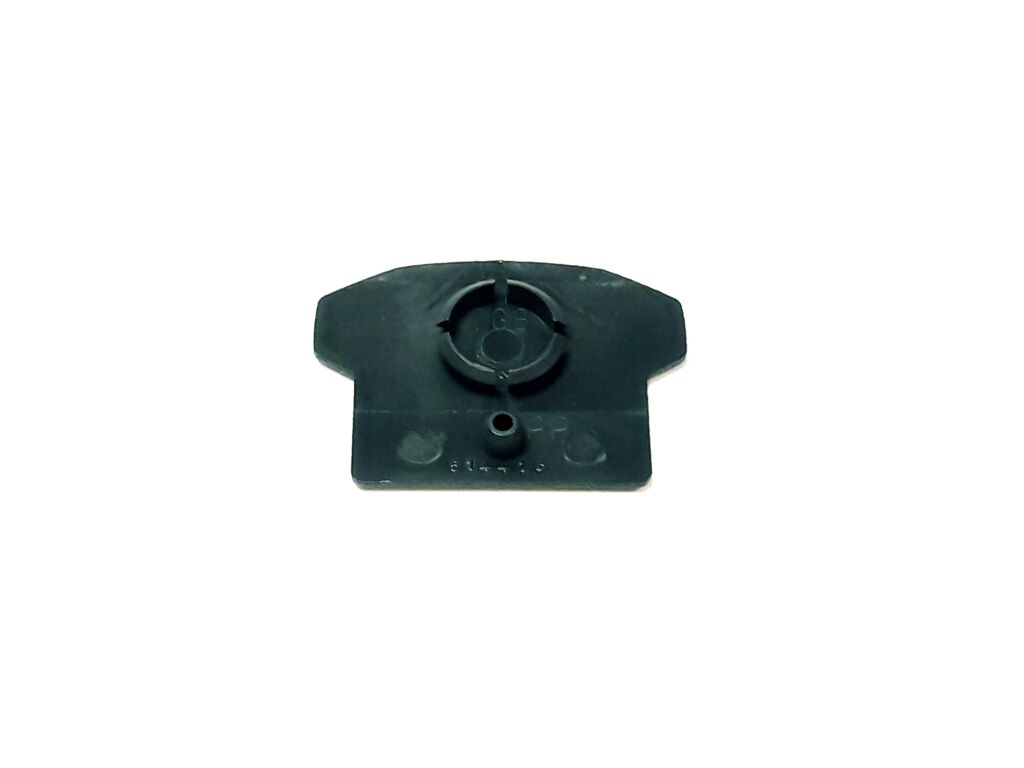

25 COVER (Item nr. 25) 514418 COVER  1 € 2,64 € 3
IN STOCK
26 PLATE (LH.) (Item nr. 26) 512466 PLATE (LH.)  1 € 9,17 € 11
IN STOCK
27 PLATE (RH.) (Item nr. 27) 512467 PLATE (RH.)  1 € 9,34 € 11
ON REQUEST

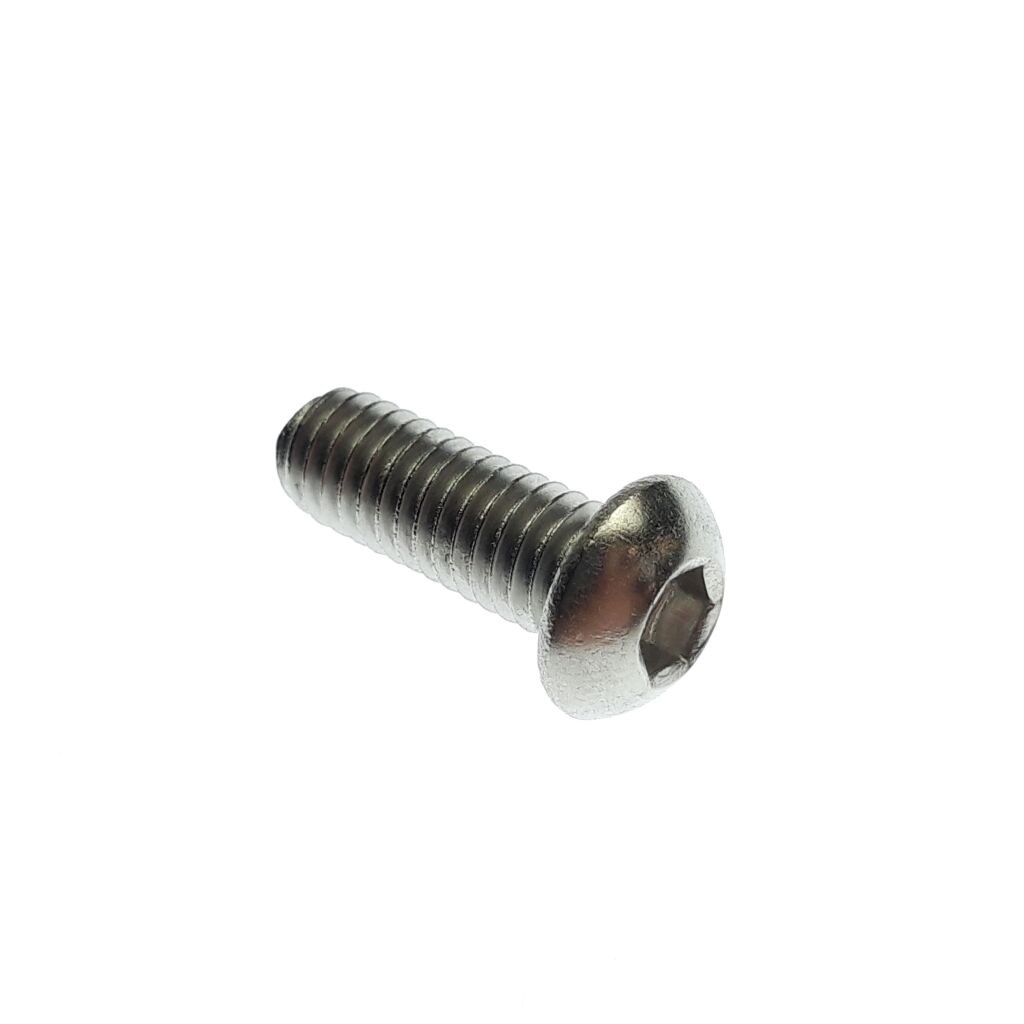

28 BOLT, HEX SOCKET (Item nr. 28) S72601 BOLT, HEX SOCKET  4 € 2,40 € 3
IN STOCK
29 BOLT,HEX HEAD (Item nr. 29) S20611 BOLT,HEX HEAD  4 € 2,40 € 3
IN STOCK
30 514467 DRAIN HOSE  1 € 24,79 € 30
ON REQUEST
31 CLAMP (Item nr. 31) R40002 CLAMP  1 € 2,40 € 3
IN STOCK
32 GA510SR02 CLAMP L200  1 € 2,64 € 3
ON REQUEST
18 BOLT M6X16L (Item nr. 18) S25602 BOLT M6X16L  1 € 2,40 € 3
IN STOCK
17 BOLT, FLANGE (Item nr. 17) S20814 BOLT, FLANGE  2 € 2,40 € 3
IN STOCK
16 NUT, SPRING M6 (Item nr. 16) N10603 NUT, SPRING M6  8 € 2,40 € 3
IN STOCK
02 REAR FENDER SIDE RAIL, LH. (Item nr. 02) 514446 REAR FENDER SIDE RAIL, LH.  1 € 20,83 € 25
ON THE WAY
03 REAR FENDER SIDE RAIL, RH. (Item nr. 03) 514447 REAR FENDER SIDE RAIL, RH.  1 € 20,83 € 25
IN STOCK

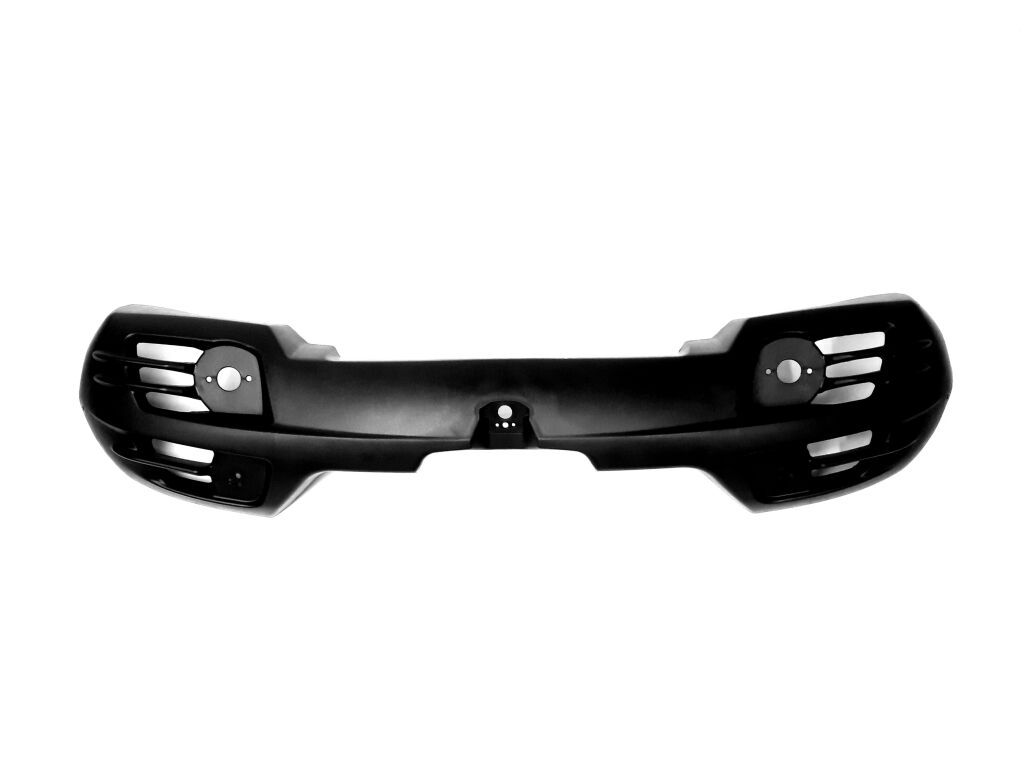

04 REAR BUMPER (Item nr. 04) 514481C REAR BUMPER  1 € 51,07 € 62
IN STOCK

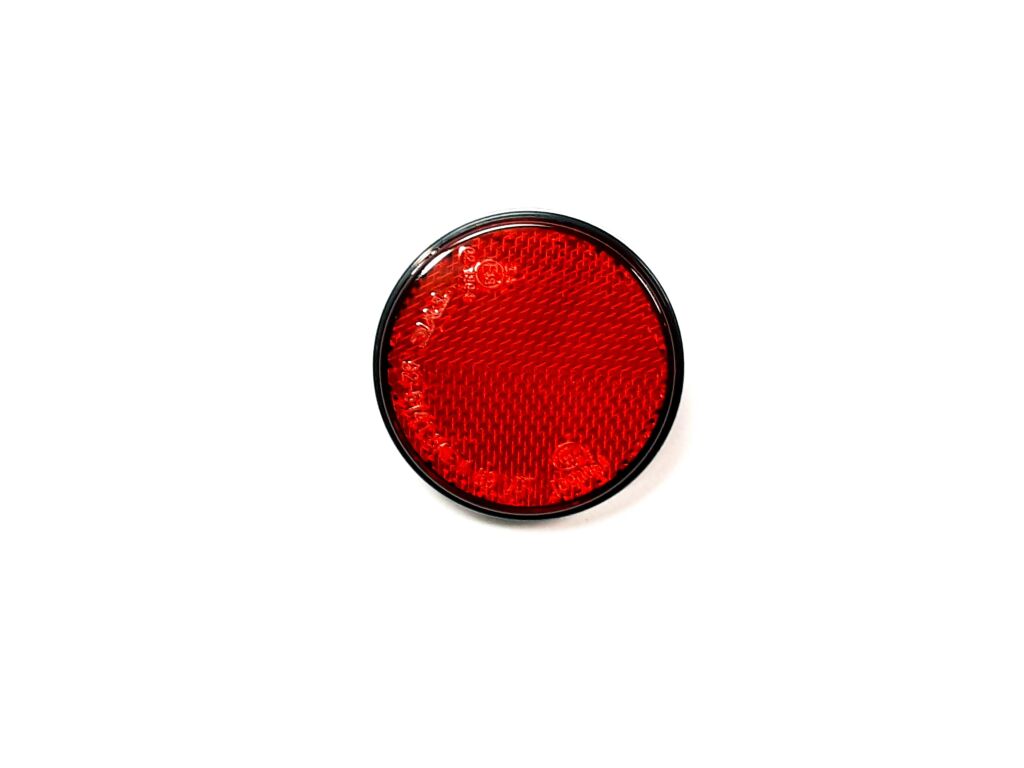

05 REFLECTOR ASSY, SIDE (REAR) (Item nr. 05) 514409 REFLECTOR ASSY, SIDE (REAR)  2 € 11,24 € 14
ON REQUEST
06 BATTERY FIXED (Item nr. 06) 514413 BATTERY FIXED  1 € 12,64 € 15
IN STOCK
08 BRKT, REAR BODY COVER (Item nr. 08) 514405 BRKT, REAR BODY COVER  1 € 26,36 € 32
IN STOCK
09 WASHER (Item nr. 09) W99605 WASHER  10 € 2,40 € 3
IN STOCK

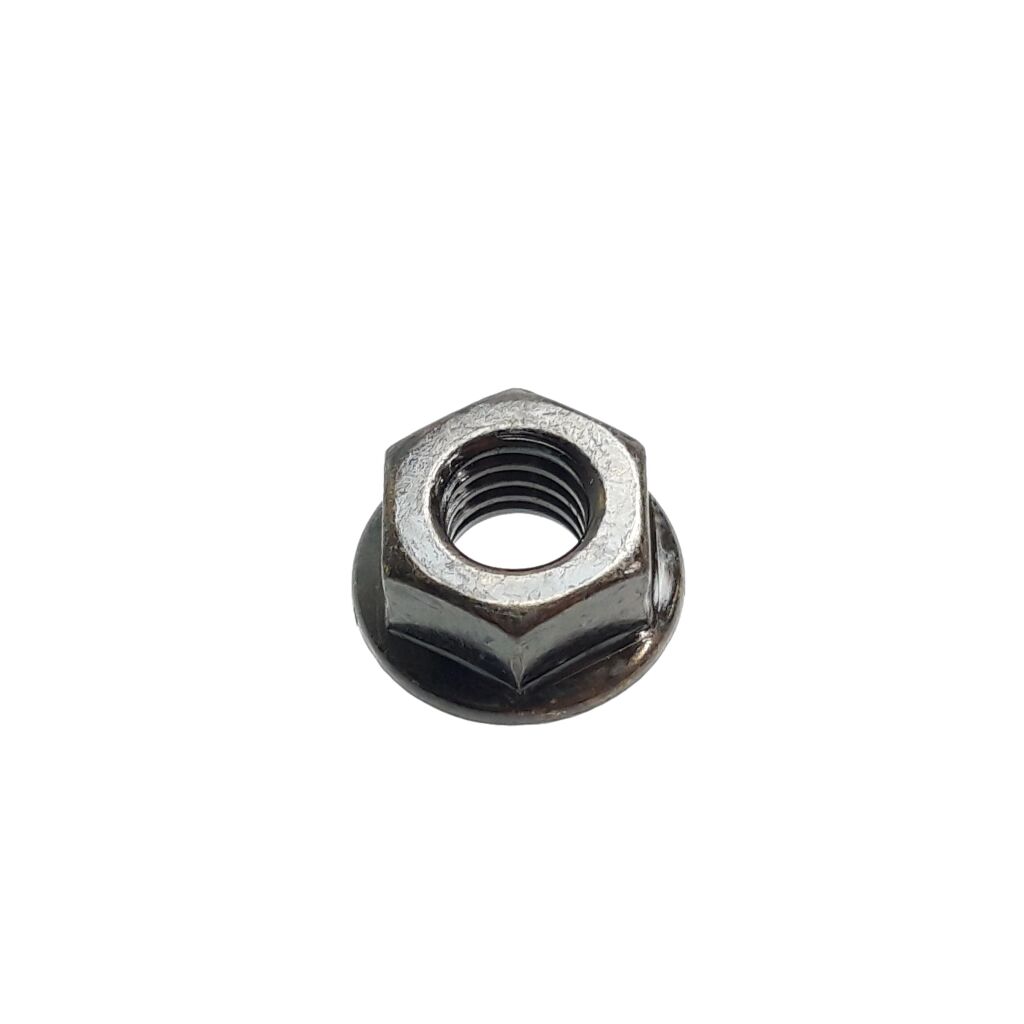

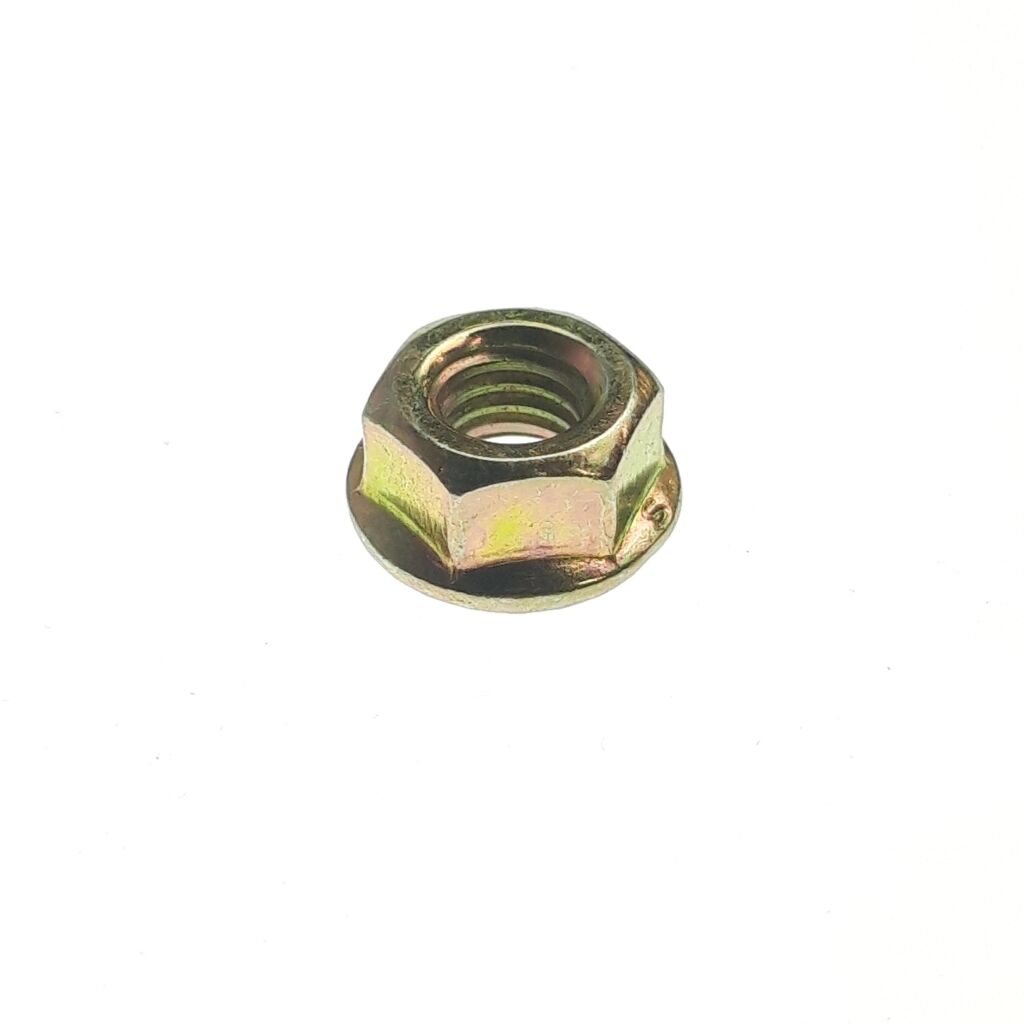

10 NUT FLANGE M6 (Item nr. 10) GA554NT04 NUT FLANGE M6  2 € 2,40 € 3
IN STOCK
11 BOLT, FLANGE M6X16 (Item nr. 11) GA555SC05 BOLT, FLANGE M6X16  2 € 2,40 € 3
IN STOCK
12 SCREW, OVAL HEAD, TAPPING M5X14 (Item nr. 12) S57501 SCREW, OVAL HEAD, TAPPING M5X14  4 € 2,40 € 3
IN STOCK
13 SCREW, TAPPING M4X16 (Item nr. 13) GA552SC11 SCREW, TAPPING M4X16  8 € 2,40 € 3
ON THE WAY
15 NUT, SPRING M6X1.0 (Item nr. 15) N32601 NUT, SPRING M6X1.0  12 € 2,40 € 3
IN STOCK
33 CLAMP 13X150 (Item nr. 33) GA510SR01 CLAMP 13X150  2 € 2,40 € 3
IN STOCK
Product Code TGB_4_223_FTH-HDLE
PARTS CATEGORY: BODY PARTS
Select BRAND: TGB
Select TYPE: BLADE 600
Select MODEL: BLADE 600LT T3b
