REAR AXLE WITH DIFF.

SEGWAY
  • Manufacturer  SEGWAY
  • Product Code  SEGWAY_2_215_UT6
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
45 REAR AXLE ASSEMBLY(with differential,no ABS) (Item nr. 45) Q01R00000004 REAR AXLE ASSEMBLY(with differential,no ABS)  1 € 944,71 € 1 143
IN STOCK
30 AXLE SHAFT BEVEL GEAR Ⅰ PLUG ASSY (Item nr. 30) Q01R30100000 AXLE SHAFT BEVEL GEAR Ⅰ PLUG ASSY  1 € 86,12 € 104
IN STOCK
29 Q01R32300001 Planetary gear shaft Ⅳ  1 € 5,29 € 6
ON REQUEST
28 GBT00119A001 Cylindrical pin 5×28  1 € 2,07 € 3
ON REQUEST
27 Planetary gear (Item nr. 27) Q01R30900003 Planetary gear  1 € 13,22 € 16
IN STOCK
26 Planetary gear liner (unavailable) (Item nr. 26) Q01R31700003 Planetary gear liner (unavailable)  2 € 2,48 € 3
ON REQUEST
25 AXLE SHAFT BEVEL GEAR Ⅱ PLUG ASSY (Item nr. 25) Q01R30500000 AXLE SHAFT BEVEL GEAR Ⅱ PLUG ASSY  1 € 88,68 € 107
ON REQUEST
24 Q01R31600003 AXLE BEVEL GASKET(1.2)  2 € 2,48 € 3
ON REQUEST
24 AXLE BEVEL GASKET(1.0) (Item nr. 24) Q01R31600002 AXLE BEVEL GASKET(1.0)  2 € 2,48 € 3
IN STOCK
24 Q01R31600001 AXLE BEVEL GASKET(0.8)  2 € 2,48 € 3
ON REQUEST
23 HEXAGON FLANGE BOLT M10×1.0×20 (Item nr. 23) GBT005789055 HEXAGON FLANGE BOLT M10×1.0×20  8 € 2,48 € 3
IN STOCK
22 NEEDLE ROLLER BEARING AXK 130X170X5 (Item nr. 22) Q01R40700001 NEEDLE ROLLER BEARING AXK 130X170X5  1 € 37,19 € 45
IN STOCK
31 Q01R30700001 Differential housing  1 € 103,47 € 125
ON REQUEST
32 BEARING 6019 (Item nr. 32) GBT000276032 BEARING 6019  1 € 89,92 € 109
IN STOCK
33 Combination sets (Item nr. 33) Q01R32200001 Combination sets  1 € 26,28 € 32
ON REQUEST
44 Solenoid valve assembly (Item nr. 44) Q01R50200001 Solenoid valve assembly  1 € 66,45 € 80
IN STOCK
43 Rear axle end cover (Item nr. 43) Q01R40200003 Rear axle end cover  1 € 50,99 € 62
IN STOCK
42 BREATHING JOINT (Item nr. 42) Q01F41300001 BREATHING JOINT  1 € 14,38 € 17
IN STOCK
41 Cylindrical pin 4×8 (Item nr. 41) GBT00119A002 Cylindrical pin 4×8  1 € 2,07 € 3
IN STOCK

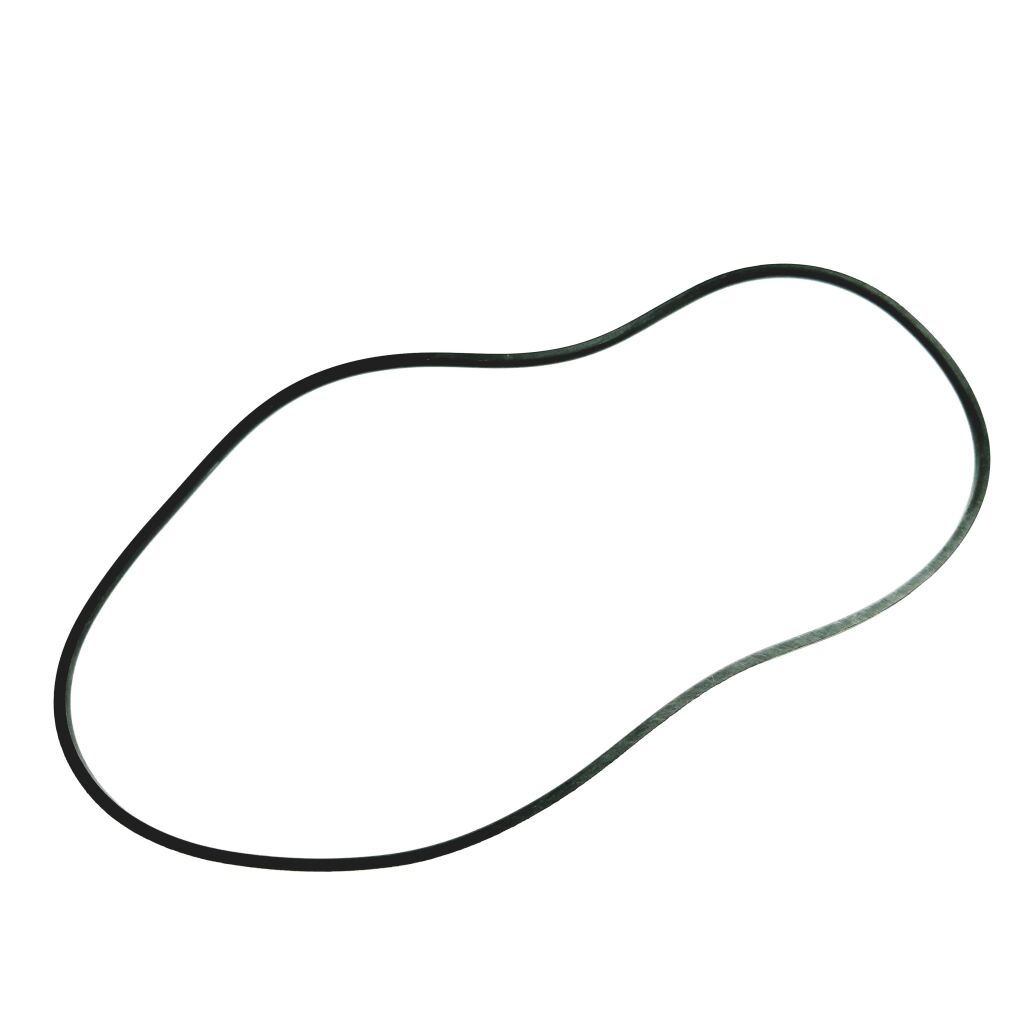

40 RECTANGULAR GASKET 180×185×3 (Item nr. 40) Q01R40500001 RECTANGULAR GASKET 180×185×3  1 € 9,09 € 11
IN STOCK
39 Bearing seat (Item nr. 39) Q01R31800001 Bearing seat  1 € 23,64 € 29
IN STOCK
38 Inner hexagon screws M6×1.6 (Item nr. 38) T03000007002 Inner hexagon screws M6×1.6  3 € 2,18 € 3
IN STOCK
37 BEARING 16008 (Item nr. 37) GBT000276015 BEARING 16008  1 € 12,15 € 15
IN STOCK

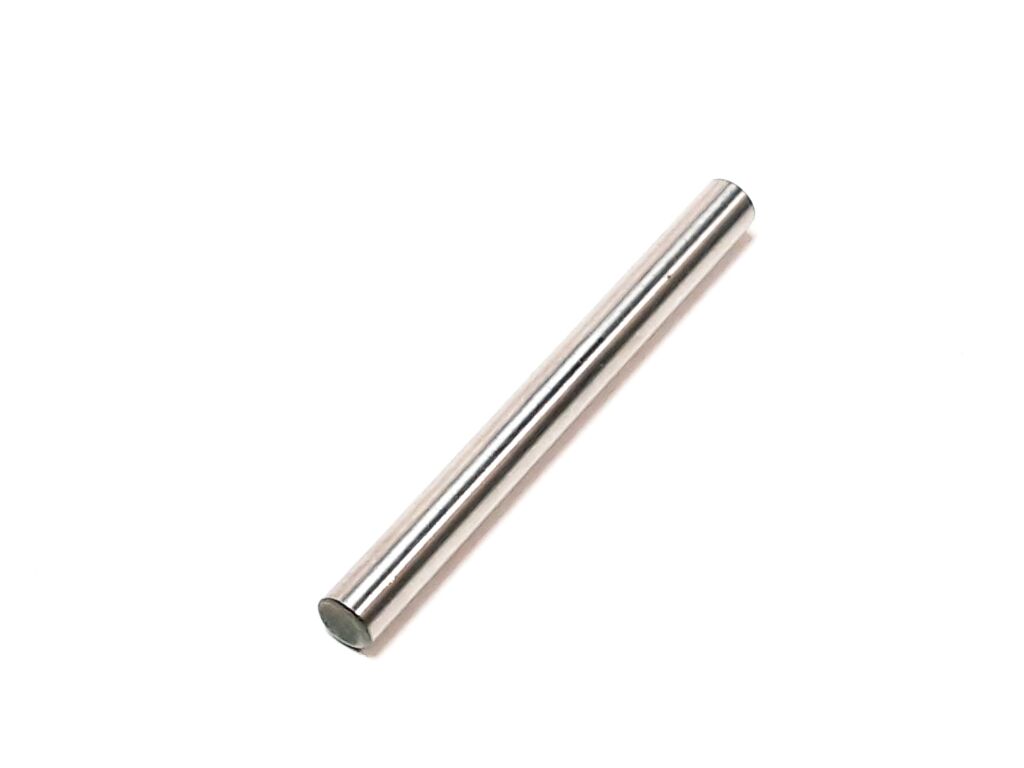

36 Cylindrical pin 6x60 (Item nr. 36) Q01R32100001 Cylindrical pin 6x60  1 € 2,07 € 3
IN STOCK
35 Q01R31901001 R/B Q01R31900001 Fork assembly  1 € 33,22 € 40
ON REQUEST

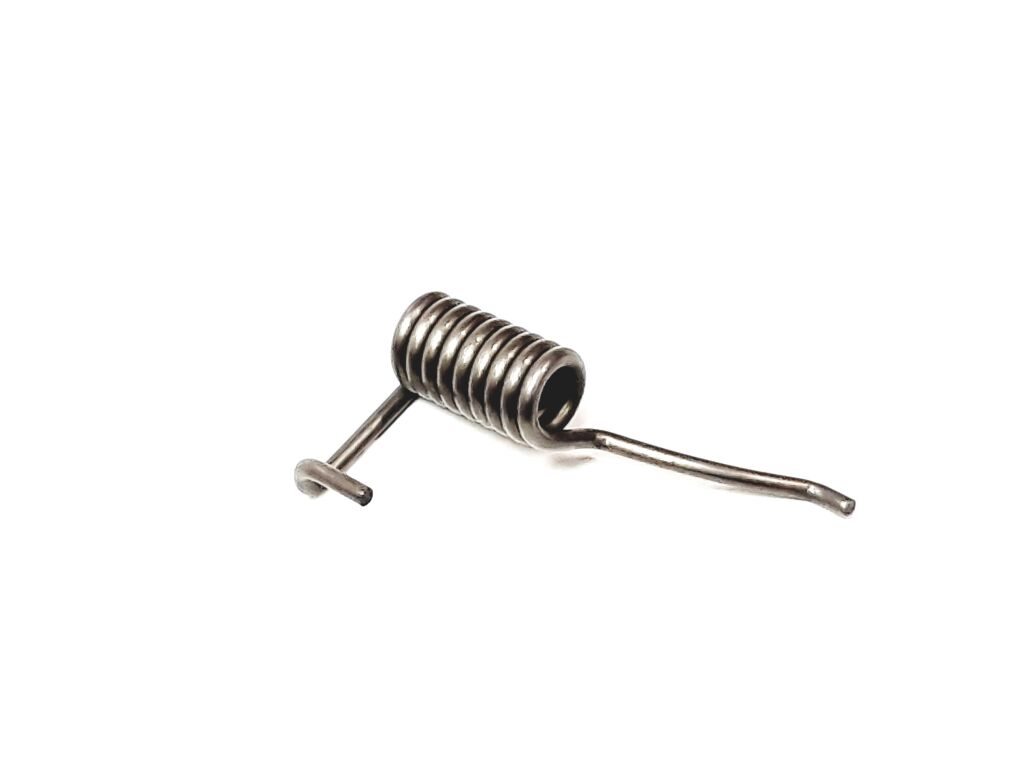

34 Torsion spring (Item nr. 34) Q01R32000001 Torsion spring  1 € 2,07 € 3
IN STOCK
21 LIMIT LINER (Item nr. 21) Q01R40800001 LIMIT LINER  1 € 7,69 € 9
IN STOCK
20 BEARING 16012 (Item nr. 20) GBT000276013 BEARING 16012  1 € 38,93 € 47
IN STOCK
19 ENGINE DRAIN PLUG M14 (Item nr. 19) F01G00200001 ENGINE DRAIN PLUG M14  1 € 5,70 € 7
ON THE WAY
8 CLEARANCE ADJUSTING PAD (Item nr. 8) Q01R10300005 CLEARANCE ADJUSTING PAD  1 € 2,48 € 3
IN STOCK
8 CLEARANCE ADJUSTING PAD (Item nr. 8) Q01R10300004 CLEARANCE ADJUSTING PAD  1 € 2,48 € 3
IN STOCK
8 CLEARANCE ADJUSTING PAD (Item nr. 8) Q01R10300003 CLEARANCE ADJUSTING PAD  1 € 2,48 € 3
IN STOCK
8 CLEARANCE ADJUSTING PAD (Item nr. 8) Q01R10300002 CLEARANCE ADJUSTING PAD  1 € 2,48 € 3
IN STOCK
8 CLEARANCE ADJUSTING PAD (Item nr. 8) Q01R10300001 CLEARANCE ADJUSTING PAD  1 € 2,48 € 3
IN STOCK
7 TAPERED ROLLER BEARING 33006 (Item nr. 7) GBT000297002 TAPERED ROLLER BEARING 33006  1 € 50 € 61
IN STOCK
6 Oil seal 44×60×7 (Item nr. 6) F01F20503001 Oil seal 44×60×7  1 € 10,91 € 13
IN STOCK
5 HEXAGON FLANGE BOLT M8×25 (Item nr. 5) Q01F40201001 HEXAGON FLANGE BOLT M8×25  12 € 2,48 € 3
IN STOCK
4 FLANGE,TRANSMISSION SHAFT (Item nr. 4) Q01R40300001 FLANGE,TRANSMISSION SHAFT  1 € 76,28 € 92
IN STOCK
3 O-RING SEAL 25×2.65 (Item nr. 3) Q01R41100001 O-RING SEAL 25×2.65  1 € 4,13 € 5
IN STOCK

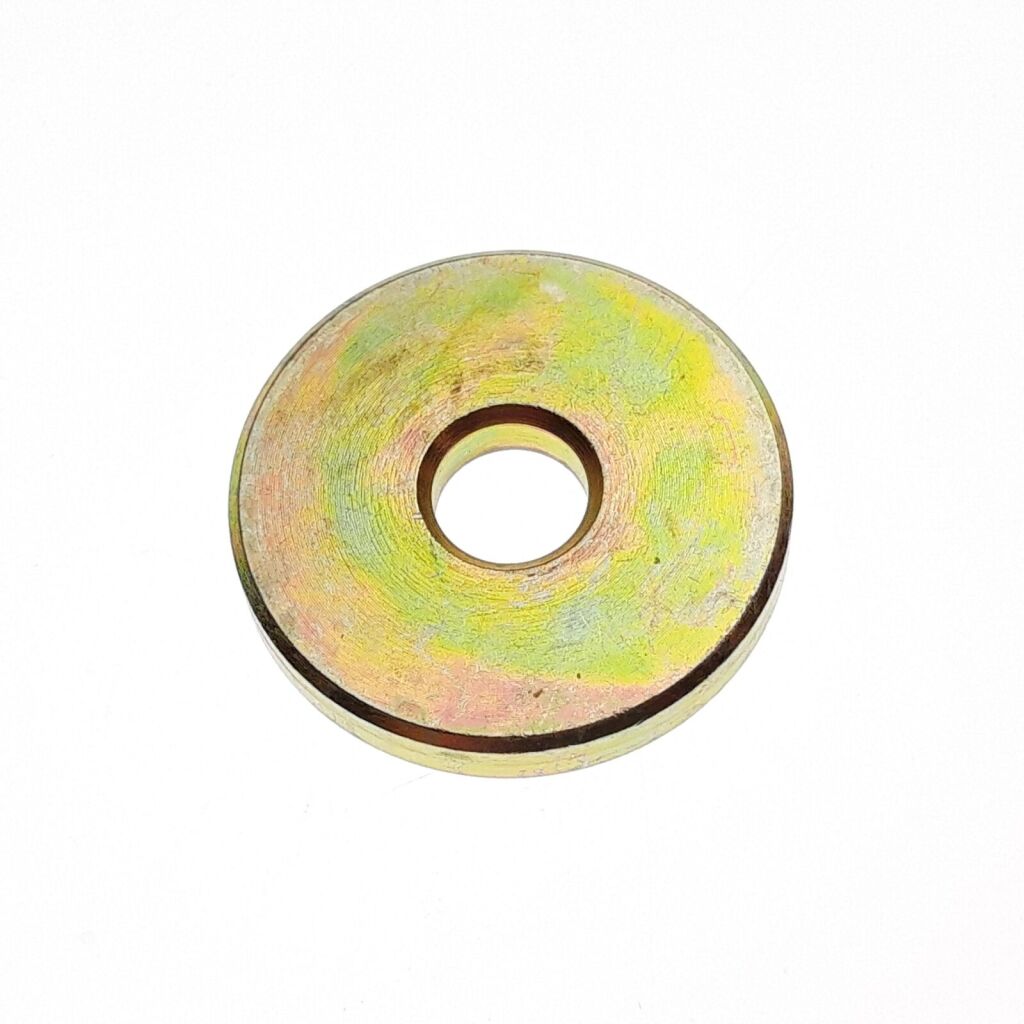

2 FLAT WASHER10.5×39×6 (Item nr. 2) Q01R40900001 FLAT WASHER10.5×39×6  1 € 3,47 € 4
IN STOCK
9 SPACER,SECTOR GEAR (Item nr. 9) Q01R10400001 SPACER,SECTOR GEAR  1 € 3,47 € 4
IN STOCK
10 DRIVE GEAR SHAFT SEAT (Item nr. 10) Q01R40400001 DRIVE GEAR SHAFT SEAT  1 € 21,74 € 26
IN STOCK
11 O-RING SEAL 61.5*2.65 (Item nr. 11) Q01R41200001 O-RING SEAL 61.5*2.65  1 € 2,48 € 3
ON REQUEST
18 PLUG M14 (Item nr. 18) F02C10008001 PLUG M14  1 € 2,73 € 3
ON THE WAY
17 O-Ring 13.8×2.5 (Item nr. 17) F01G00005001 O-Ring 13.8×2.5  2 € 2,48 € 3
IN STOCK
16 REAR AXLE SHELL (Item nr. 16) Q01R40100003 REAR AXLE SHELL  1 € 100 € 121
IN STOCK
15 OIL SEAL 37×55×7 (Item nr. 15) Q01F40600001 OIL SEAL 37×55×7  2 € 14,88 € 18
IN STOCK
14 DRIVE GEAR ADJUSTING PAD (Item nr. 14) Q01R10200005 DRIVE GEAR ADJUSTING PAD  2 € 2,48 € 3
IN STOCK
14 DRIVE GEAR ADJUSTING PAD (Item nr. 14) Q01R10200004 DRIVE GEAR ADJUSTING PAD  2 € 2,48 € 3
IN STOCK
14 DRIVE GEAR ADJUSTING PAD (Item nr. 14) Q01R10200003 DRIVE GEAR ADJUSTING PAD  2 € 2,48 € 3
IN STOCK
14 DRIVE GEAR ADJUSTING PAD (Item nr. 14) Q01R10200002 DRIVE GEAR ADJUSTING PAD  2 € 2,48 € 3
IN STOCK
14 DRIVE GEAR ADJUSTING PAD (Item nr. 14) Q01R10200001 DRIVE GEAR ADJUSTING PAD  2 € 2,48 € 3
IN STOCK
13 R/B Q02R20100000 DRIVE&DRIVEN BEVEL GEAR ASSY (Item nr. 13) Q01R10100000 R/B Q02R20100000 DRIVE&DRIVEN BEVEL GEAR ASSY  1 € 381,16 € 461
ON REQUEST
12 TAPERED ROLLER BEARING 32006 (Item nr. 12) GBT000297001 TAPERED ROLLER BEARING 32006  1 € 28,68 € 35
ON REQUEST
1 HEXAGON FLANGE BOLT M10×1.25×30 (Item nr. 1) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  1 € 2,48 € 3
IN STOCK
Product Code SEGWAY_2_215_UT6
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: Fugleman UTV
Select MODEL: Fugleman UT6
