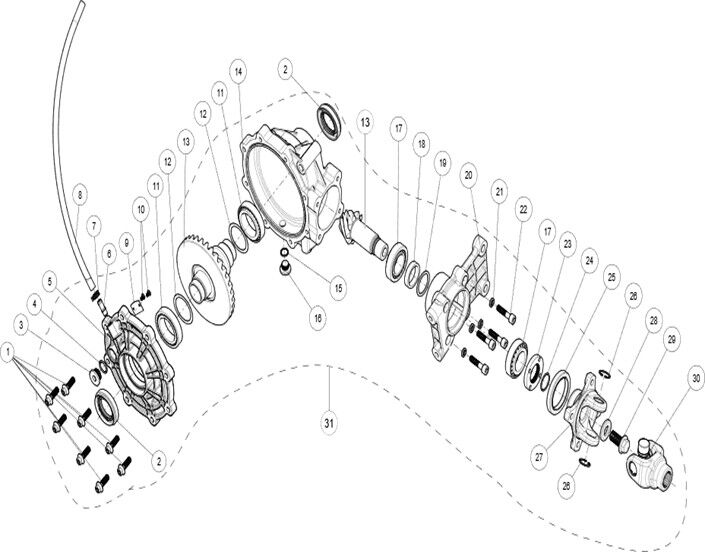

REAR AXLE DIFFERENTIAL THREE ,NO DIFF

  • Product Code  SEGWAY_1_116_AT5_T3b
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 HEXAGON FLANGE BOLT M8×25 (Item nr. 1) Q01F40201001 HEXAGON FLANGE BOLT M8×25  8 € 2,48 € 3
IN STOCK
18 Q02-R101019-000-00 SPACER SLEEVE  1 € 2,40 € 3
ON REQUEST
19 REAR AXLE DRIVE GEAR GASKET (Item nr. 19) Q02-R101020-000-00 REAR AXLE DRIVE GEAR GASKET  1 € 2,40 € 3
IN STOCK

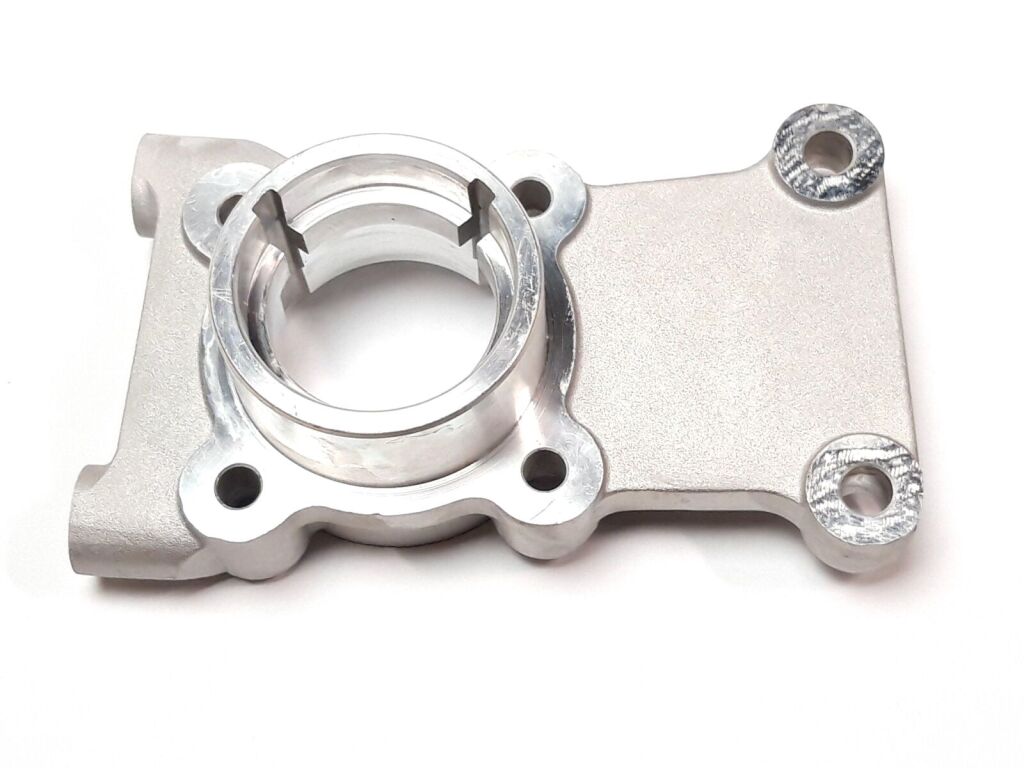

20 DISC BRAKE FIXING BRACKET (Item nr. 20) Q02-R101028-000-00 DISC BRAKE FIXING BRACKET  1 € 24,46 € 30
IN STOCK
21 Q02-R401013-000-00 WASHER Φ8  4 € 2,40 € 3
ON REQUEST
22 GBT000701043 SCREW M8×35  4 € 2,40 € 3
ON REQUEST
23 Q02-R101021-000-00 THREADED SLEEVE M30 × 1.5  1 € 7,27 € 9
ON REQUEST
24 O-RING SEAL Φ 1.9 ×Φ 23.5 (Item nr. 24) Q02-R101026-000-00 O-RING SEAL Φ 1.9 ×Φ 23.5  1 € 2,40 € 3
IN STOCK
25 OIL SEAL 48×65×9 (Item nr. 25) Q02F00004001 OIL SEAL 48×65×9  1 € 14,79 € 18
IN STOCK
26 CIRCLIP 22 (Item nr. 26) BG008930-22000-F01 CIRCLIP 22  2 € 2,40 € 3
IN STOCK

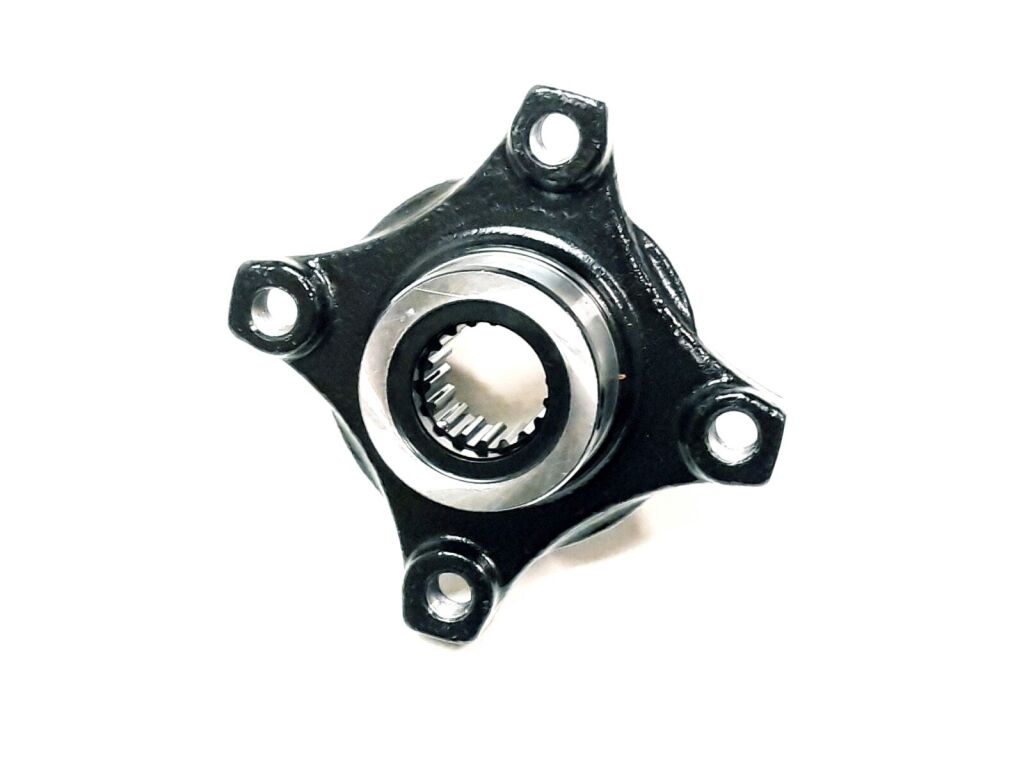

27 UNIVERSAL JOINT FORK(BRAKE DISC) (Item nr. 27) Q02-R101029-000-00 UNIVERSAL JOINT FORK(BRAKE DISC)  1 € 31,82 € 38
IN STOCK
28 WASHER Φ14.5×Φ35.2×4 (Item nr. 28) Q02-R101007-000-00 WASHER Φ14.5×Φ35.2×4  1 € 2,40 € 3
IN STOCK
29 BOLT M14 ×1.5 × 30 (Item nr. 29) Q02-R101025-000-00 BOLT M14 ×1.5 × 30  1 € 2,40 € 3
IN STOCK
30 UNIVERSAL JOINT FORK 2 (Item nr. 30) Q02-R101027-000-00 UNIVERSAL JOINT FORK 2  1 € 30,33 € 37
IN STOCK
17 TAPERED ROLLER BEARING 32006 (Item nr. 17) GBT000297001 TAPERED ROLLER BEARING 32006  2 € 28,68 € 35
ON THE WAY
16 PLUG M14×1.5×11 (Item nr. 16) Q02F00014001 PLUG M14×1.5×11  1 € 3,31 € 4
ON REQUEST
15 O-RING 13×1.5 (Item nr. 15) Q02F00006001 O-RING 13×1.5  1 € 2,48 € 3
ON REQUEST
2 OIL SEAL 35×56×8 (Item nr. 2) Q02-R401024-000-00 OIL SEAL 35×56×8  2 € 5,37 € 6
IN STOCK
3 PLUG M18×1.5 (Item nr. 3) Q02F00008001 PLUG M18×1.5  1 € 3,88 € 5
IN STOCK
4 O-RING 16.4×2.5 (Item nr. 4) Q02F00009001 O-RING 16.4×2.5  1 € 2,48 € 3
IN STOCK
5 Q02-R401022-000-00 REAR AXLE BOX COVER  1 € 35,29 € 43
ON REQUEST
6 AIR TAP (Item nr. 6) Q02F04103001 AIR TAP  1 € 4,88 € 6
ON REQUEST
7 CLAMP,SPRINGBAND 11 (Item nr. 7) QCT006211003 CLAMP,SPRINGBAND 11  1 € 2,15 € 3
IN STOCK
8 PIPE 600 (Item nr. 8) Q02F00005001 PIPE 600  1 € 6,69 € 8
IN STOCK
9 Q02-R401027-000-00 COVER PLATE  1 € 2,40 € 3
ON REQUEST
10 Q02-R401028-000-00 SCREW M4 × 6  2 € 2,40 € 3
ON REQUEST
11 BG002970-32908-001 ROLLER BEARING 32908  2 € 13,31 € 16
ON REQUEST
12 Q02-R401026-000-00 SHIM Φ 40 ×Φ 50 × (0.7, 0.6, 0.5)  1 € 2,40 € 3
ON REQUEST

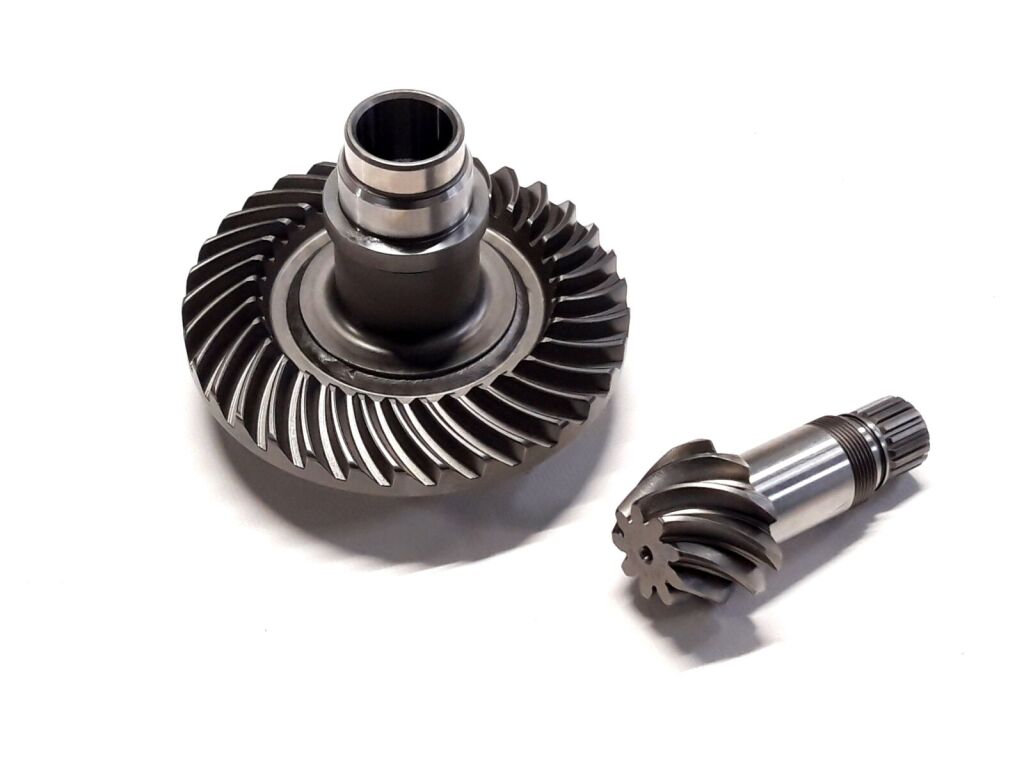

13 Q02-R102002-000-00 MASTER SLAVE BEVEL GEAR COMBINATION (450 NO DIFFERENCE)  1 € 130,50 € 158
ON REQUEST
14 Q02-R401023-000-00 REAR AXLE BOX  1 € 76,53 € 93
ON REQUEST
31 450 REAR AXLE DIFFERENTIAL(THREE) (Item nr. 31) Q02-R000001-000-00 450 REAR AXLE DIFFERENTIAL(THREE)  1 € 523,39 € 633
IN STOCK
Product Code SEGWAY_1_116_AT5_T3b
PARTS CATEGORY: ENGINE PARTS
Select BRAND: SEGWAY
Select TYPE: AT5
Select MODEL: AT5 S T3b, AT5 L T3b
