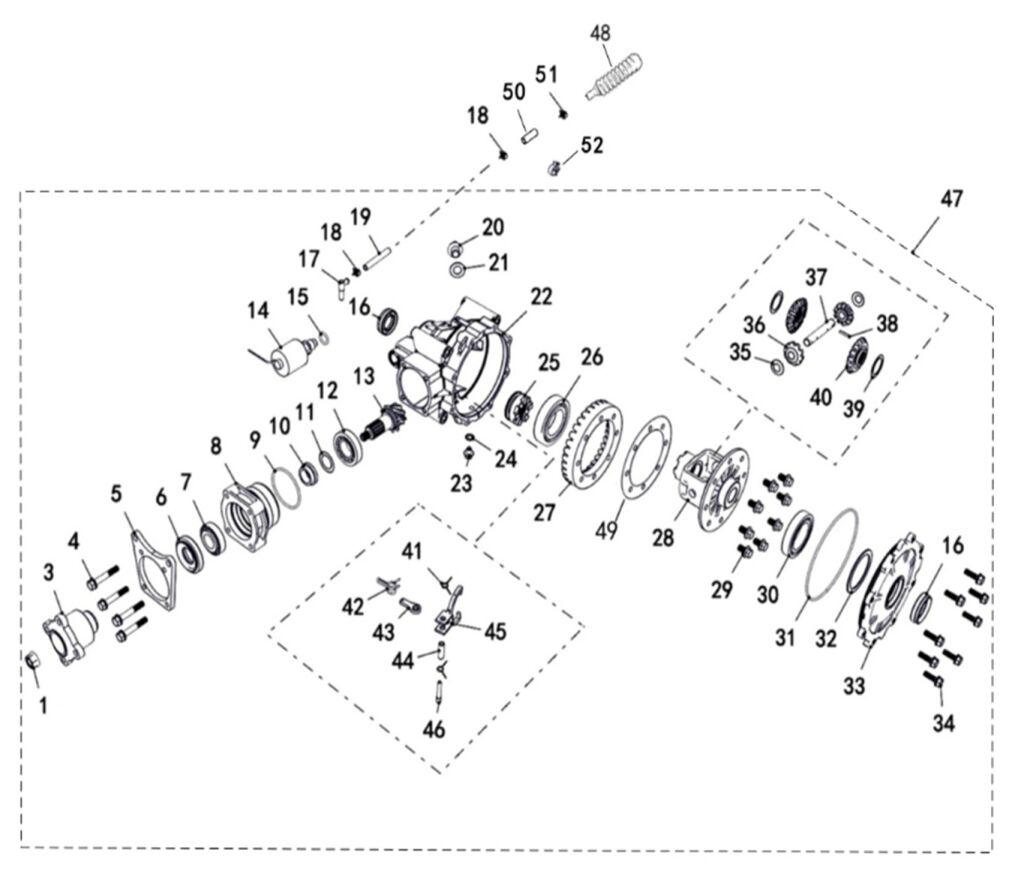

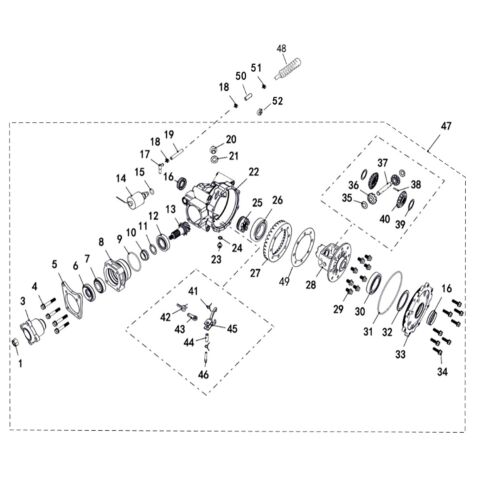

REAR AXLE ASSY

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_2_255_LH80-100DU
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
50 48191 Buckle  1 € 2,23 € 3
ON REQUEST
36 Diff Cross Pin (Item nr. 36) 73032 Diff Cross Pin  1 € 16,45 € 20
IN STOCK
35 Diff Pinion Mate Gear (Item nr. 35) 73035 Diff Pinion Mate Gear  2 € 28,76 € 35
IN STOCK
34 Pinion Mate Thrust-Washer (Item nr. 34) 73036 Pinion Mate Thrust-Washer  2 € 2,40 € 3
IN STOCK
33 Hexagon Flange Bolt M8X25 (Item nr. 33) 10059 Hexagon Flange Bolt M8X25  8 € 2,40 € 3
IN STOCK
32 REAR GEAR BEARING HOUSING (Item nr. 32) 27589 REAR GEAR BEARING HOUSING  1 € 42,81 € 52
IN STOCK
31 Diff Case Thrust-Washer (Item nr. 31) 21106 Diff Case Thrust-Washer  1 € 13,80 € 17
ON REQUEST
30 O-RING 151×3 (Item nr. 30) 35493 O-RING 151×3  1 € 2,98 € 4
IN STOCK
29 Bearing 110 (Item nr. 29) 10056 Bearing 110  1 € 18,84 € 23
IN STOCK
28 27588 Hexagon Flange Bolt M10X1.25X16  8 € 2,98 € 4
ON REQUEST
27 Diff Case (Item nr. 27) 27587 Diff Case  1 € 322,23 € 390
IN STOCK
37 Diff Roll Pin (Item nr. 37) 11024 Diff Roll Pin  1 € 2,40 € 3
IN STOCK
38 Diff Side Gear (Item nr. 38) 73031 Diff Side Gear  2 € 48,26 € 58
IN STOCK
39 Side Gear Thrust-Washer (Item nr. 39) 73034 Side Gear Thrust-Washer  2 € 2,40 € 3
IN STOCK
49 47865 CLIP φ12  1
ON REQUEST
48 55444 REAR AXLE ASSY  1
ON REQUEST
47 55451 BREATHING AIR  1 € 4,55 € 5
ON REQUEST
46 35918 Balloon Connector  1 € 1,16 € 1
ON REQUEST
45 27591 Shift Bar  1 € 3,06 € 4
ON REQUEST
44 27590 Shift Pin  1 € 3,06 € 4
ON REQUEST
43 Shift Yoke (Item nr. 43) 73041 Shift Yoke  1 € 19,09 € 23
IN STOCK
42 73038 Shift Lever Spring  2 € 3,97 € 5
ON REQUEST
41 27592 Shift Lever  1 € 6,69 € 8
ON REQUEST
40 73040 Shift Return Spring  2 € 9,34 € 11
ON REQUEST
26 Bevel Gear -Driven (Item nr. 26) 48117 Bevel Gear -Driven  1 € 309,92 € 375
IN STOCK
25 BEARING 3210 (Item nr. 25) 11023 BEARING 3210  1 € 26,61 € 32
IN STOCK
11 BEARING 30206 (Item nr. 11) 11013 BEARING 30206  1 € 20,41 € 25
IN STOCK
10 ADJUST WASHER, DRIVE BEVEL GEAR (Item nr. 10) 35277 ADJUST WASHER, DRIVE BEVEL GEAR  1 € 2,40 € 3
IN STOCK
9 55446 BEARING SLEEVE  1 € 6,94 € 8
ON REQUEST
8 12174 BEARING 33006JR  1 € 8,43 € 10
ON REQUEST
7 O-RING69x3 (Item nr. 7) 26311 O-RING69x3  1 € 13,64 € 16
IN STOCK
6 55452 BEVEL GEAR BEARING HOUSING  1 € 18,10 € 22
ON REQUEST
5 11022 BOLT M8×50  4 € 9,59 € 12
ON REQUEST
4 55448 OIL SEAL 50X62X8  1 € 1,32 € 2
ON REQUEST
3 55450 REAR AXLE SLEEVE  1 € 4,38 € 5
ON REQUEST
2 55447 NUT M27X2  1 € 1,98 € 2
ON REQUEST
12 55449 BEVEL GEAR -DRIVING  1 € 62,64 € 76
ON REQUEST
13 Diff Solenoid (Item nr. 13) 48112 Diff Solenoid  1 € 121,40 € 147
IN STOCK
14 O-Ring (Item nr. 14) 73013 O-Ring  1 € 2,56 € 3
IN STOCK
24 Clutch Gear (Item nr. 24) 73030 Clutch Gear  1 € 62,73 € 76
ON THE WAY
23 Aluminium Washer (Item nr. 23) 73021 Aluminium Washer  1 € 2,40 € 3
ON REQUEST
22 Drain Plug (Item nr. 22) 73020 Drain Plug  1 € 2,40 € 3
ON REQUEST
21 55445 GEAR CASE, REAR AXLE  1
ON REQUEST
20 WASHER 18 (Item nr. 20) 83180 WASHER 18  1 € 8,76 € 11
IN STOCK
19 BOLT M18x1.25 (Item nr. 19) 83179 BOLT M18x1.25  1 € 3,06 € 4
IN STOCK
18 48376 Vent Pipe  1 € 3,39 € 4
ON REQUEST
17 25107 Clip  2 € 12,89 € 16
ON REQUEST
16 47717 VENT NOZZLE  1
ON REQUEST
15 OIL SEAL 30X50X13.5 (Item nr. 15) 36562 OIL SEAL 30X50X13.5  2 € 4,13 € 5
IN STOCK
1 BOLT M8×30 (Item nr. 1) 11077 BOLT M8×30  4 € 8,76 € 11
IN STOCK
Product Code LINHAI_2_255_LH80-100DU
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI Electric UTV
Select MODEL: LH80DU E5+, LH100DU
