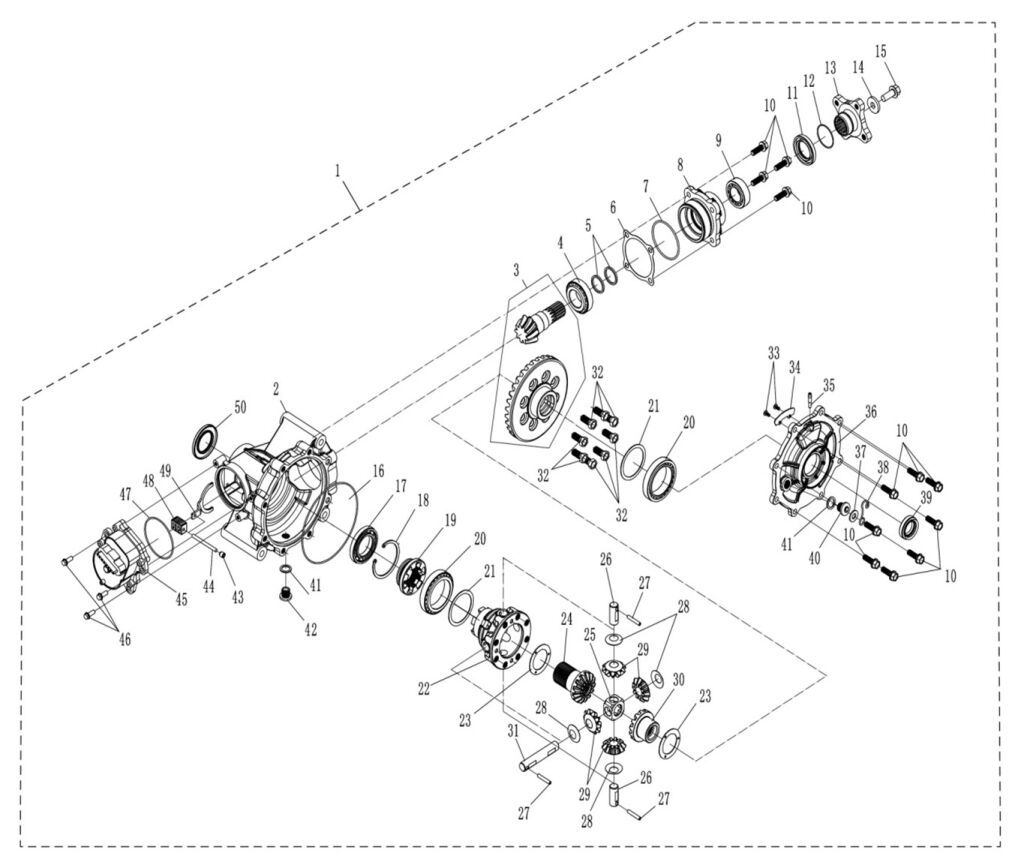

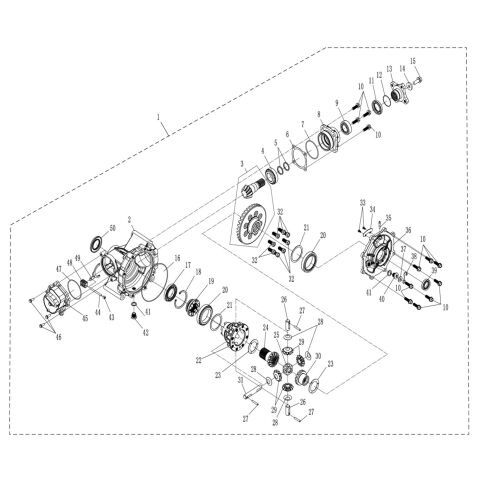

REAR AXLE ASSY

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHA_2_242_Landforce-650L-T3b
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
50 OIL SEAL 35X58X5 (Item nr. 50) 65121 OIL SEAL 35X58X5  1 € 6,03 € 7
IN STOCK
36 65108 COVER, REAR GEAR CASE  1 € 39,26 € 48
ON REQUEST
35 65111 JOINT, BREATHER PIPE  1 € 2,15 € 3
ON REQUEST
34 65104 OIL BAFFLE  1 € 2,15 € 3
ON REQUEST
33 12036 SCREW, M4X8  2 € 2,15 € 3
ON REQUEST
32 12034 BOLT M10X1.25X22  8 € 2,15 € 3
ON REQUEST
31 65117 PLANET GEAR AXLE  1 € 8,18 € 10
ON REQUEST
30 65118 SHAFT GEAR, RH  1 € 39,26 € 48
ON THE WAY
29 65324 CENTRAL GEAR, DIFFERENTIAL  4 € 12,89 € 16
ON THE WAY
28 65309 WEARING RING  4 € 2,15 € 3
ON THE WAY
27 12038 PIN 5X30  3 € 2,15 € 3
ON REQUEST
37 12041 WASHER 8  1 € 2,15 € 3
ON REQUEST
38 65105 CLIP, REAR PARKING CABLE  1 € 2,15 € 3
ON REQUEST
39 OIL SEAL 24X38X8 (Item nr. 39) 65294 OIL SEAL 24X38X8  1 € 2,73 € 3
IN STOCK
49 65120 SHIFT FORK  1 € 2,15 € 3
ON THE WAY
48 65119 RACK  1 € 13,22 € 16
ON REQUEST
47 O-RING 67.5X2 (Item nr. 47) 65321 O-RING 67.5X2  1 € 2,40 € 3
ON REQUEST
46 11443 BOLT M6X18  3 € 2,15 € 3
ON REQUEST

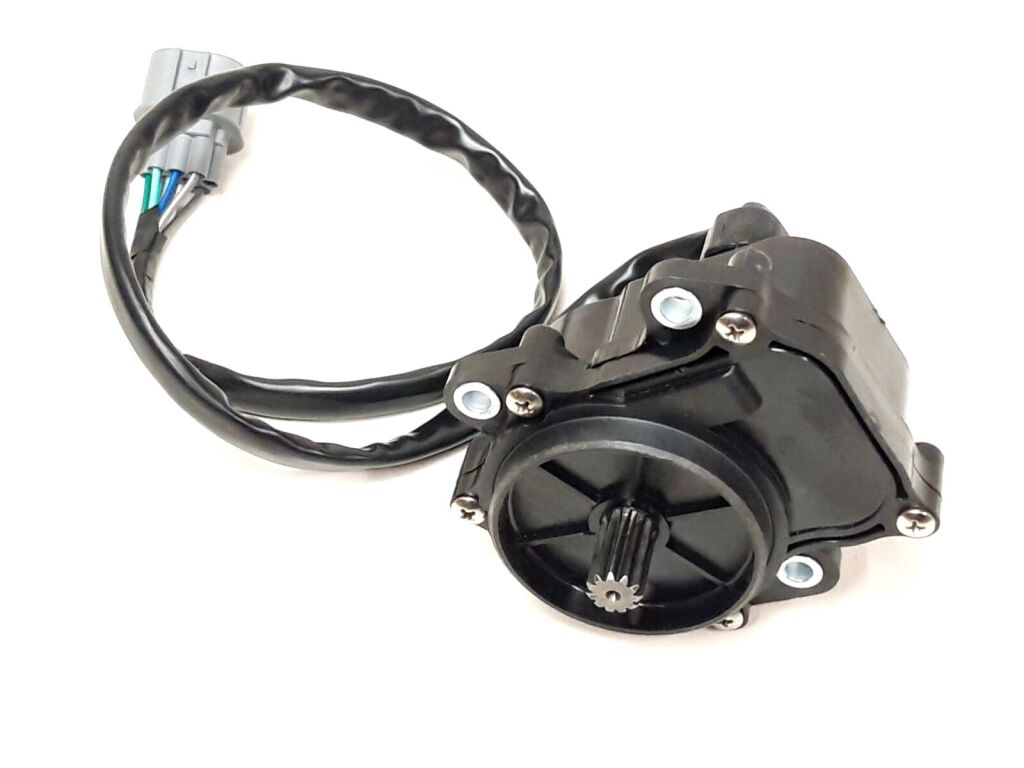

45 MOTOR ASSY, FRONT GEAR CASE (Item nr. 45) 65335 MOTOR ASSY, FRONT GEAR CASE  1 € 133,06 € 161
IN STOCK
44 65107 PIN SHAFT  1 € 2,15 € 3
ON REQUEST
43 12037 SCREW M8X10  1 € 2,15 € 3
ON REQUEST
42 65114 OIL DRAIN BOLT M14X1.25X12, MAGNETIC  1 € 4,13 € 5
ON REQUEST
41 GASKET 14 (Item nr. 41) 65110 GASKET 14  2 € 2,15 € 3
IN STOCK
40 BOLT M14X1.25X12 (Item nr. 40) 65318 BOLT M14X1.25X12  1 € 2,15 € 3
IN STOCK
26 65113 PLANET GEAR SHAFT, SHORT  2 € 5,37 € 6
ON REQUEST
25 65106 CROSS BUSHING  1 € 13,64 € 16
ON THE WAY
11 OIL SEAL 35X50X7 (Item nr. 11) 65112 OIL SEAL 35X50X7  1 € 8,26 € 10
IN STOCK
10 12031 BOLT M8X28  12 € 2,15 € 3
ON REQUEST
9 12045 BEARING 33005  1 € 11,98 € 14
ON REQUEST
8 65109 BEARING SEAT  1 € 31,57 € 38
ON REQUEST
7 65305 O-RING 55X2.5  1 € 2,73 € 3
ON REQUEST
6 ADJUSTING WASHER (Item nr. 6) 65304 ADJUSTING WASHER  1 € 2,15 € 3
IN STOCK
5 65303 ADJUSTING WASHER 32X25.4  2 € 2,15 € 3
ON REQUEST
4 12044 BEARING 32006  1 € 12,48 € 15
ON REQUEST
3 65122 BEVEL GEAR ASSY, REAR GEAR CASE  1 € 214,55 € 260
ON REQUEST
2 65098 CASE, REAR GEAR CASE  1 € 169,42 € 205
ON REQUEST
12 O-SEAL RING 25X2 (Item nr. 12) 65307 O-SEAL RING 25X2  1 € 2,15 € 3
IN STOCK
13 65310 COUPLER  1 € 32,40 € 39
ON REQUEST
14 65099 WASHER 13X27.5X4  1 € 2,15 € 3
ON REQUEST
24 65116 GEAR, LH SHAFT  1 € 58,02 € 70
ON THE WAY
23 65102 GASKET, SEMIAXIS GEAR 51.5X35.3  2 € 2,15 € 3
ON THE WAY
22 65103 DIFFERENTIAL HOUSING  1 € 85,29 € 103
IN STOCK IN 13 days
21 65101 ADJUSTING WASHER 61X50.5  2 € 2,15 € 3
ON THE WAY
20 12046 BEARING 32910  2 € 11,98 € 14
ON THE WAY
19 65115 RECTANGLUAR SLEEVE  1 € 15,79 € 19
IN STOCK IN 13 days
18 RING 62 (Item nr. 18) 10047 RING 62  1 € 2,56 € 3
IN STOCK IN 13 days
17 Bearing 16007 (Item nr. 17) 10960 Bearing 16007  1 € 15,87 € 19
IN STOCK
16 65100 O-SEAL RING 141X2.4  1 € 2,15 € 3
ON REQUEST
15 12033 BOLT M12X1.25X25  1 € 2,15 € 3
ON REQUEST

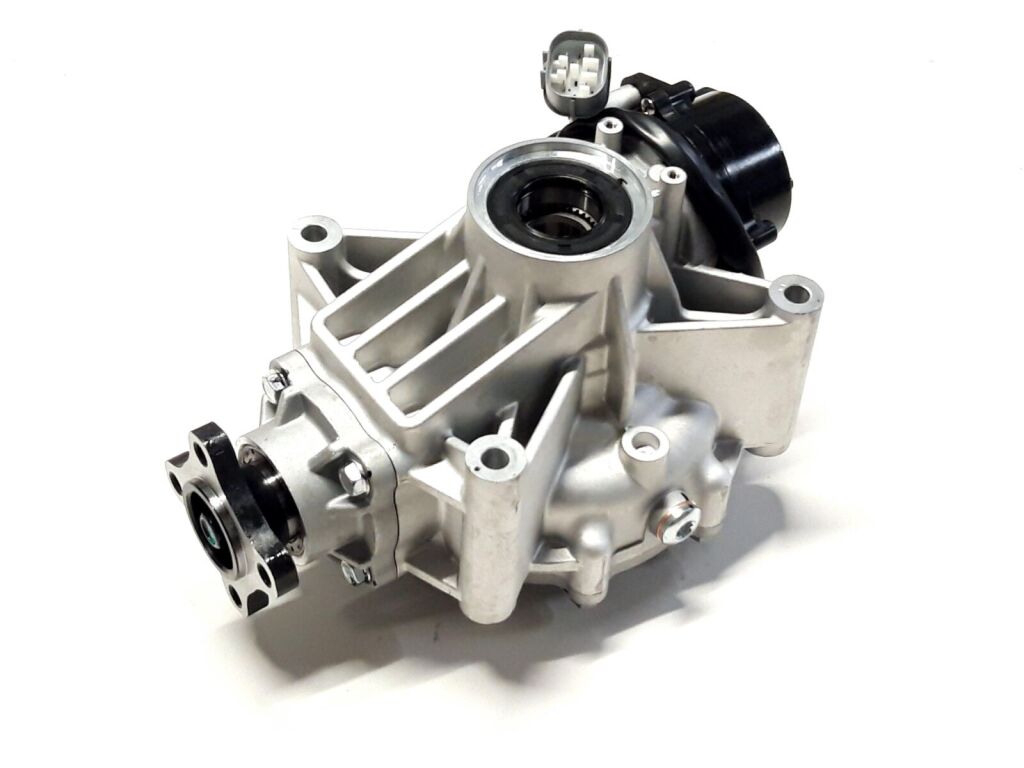

1 REAR AXLE (Item nr. 1) 65097 REAR AXLE  1 € 967,93 € 1 171
IN STOCK
Product Code LINHA_2_242_Landforce-650L-T3b
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 650
Select MODEL: Landforce 650L EPS EFI T3b, Landforce 650L ABS
