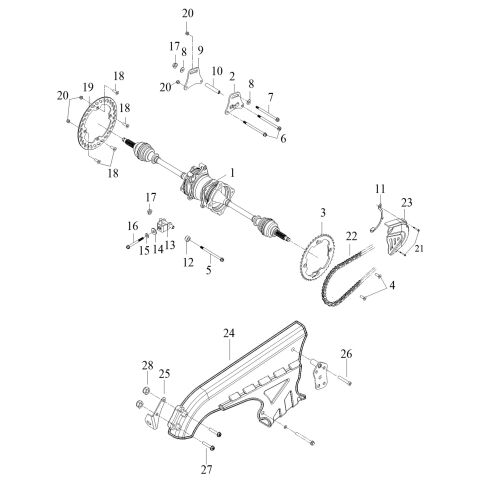

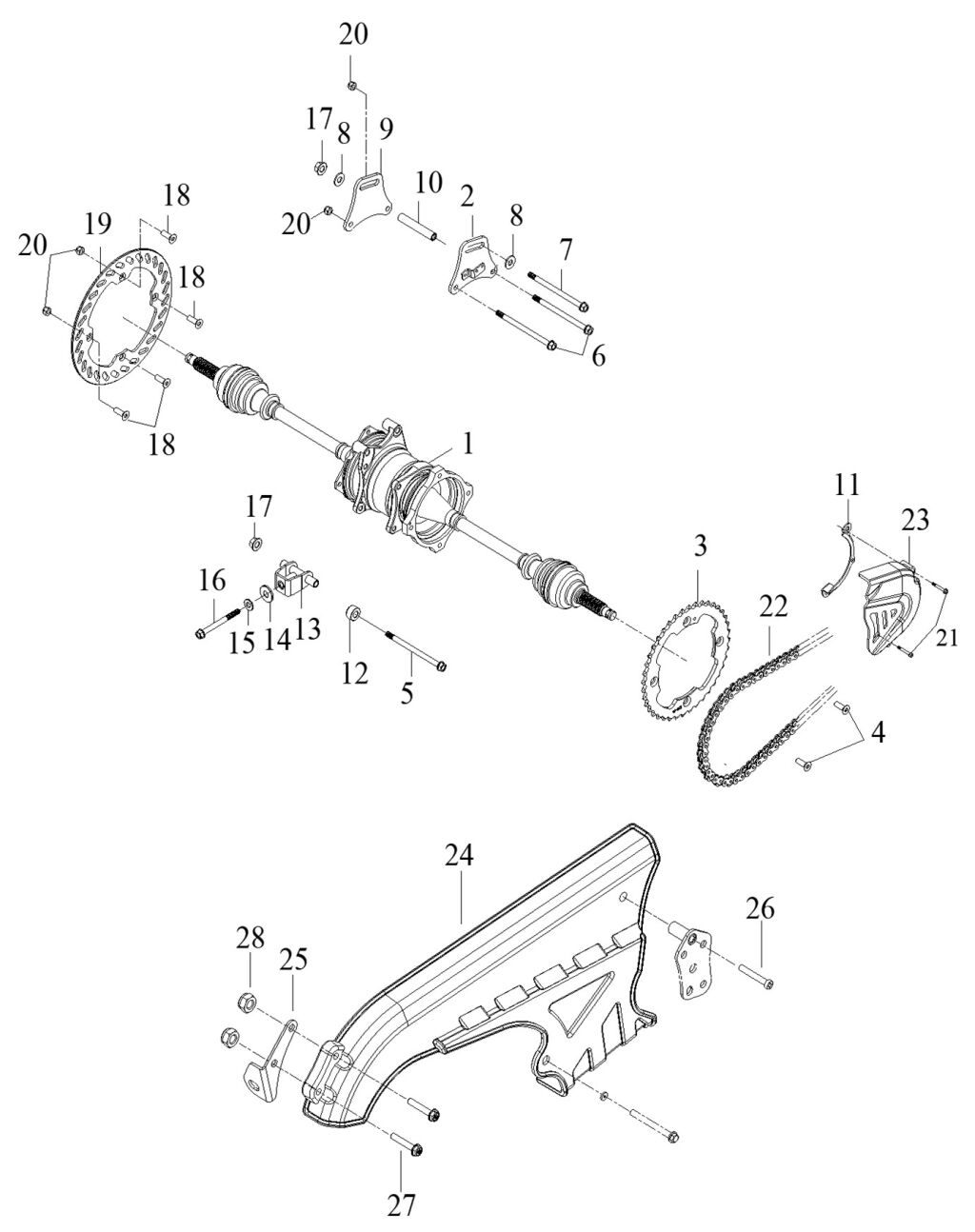

REAR AXLE ASS'Y

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  Access_F-13_MAX-4-300
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 23200-A08-000 R/B 23200-A08-010 Rear Shaft Ass'y  1 € 581,82 € 704
ON REQUEST
17 92130-10S-14G R/B 92130-10S-14W Nut, Insert Lock  4 € 2,48 € 3
ON REQUEST
18 Bolt (Item nr. 18) 91733-08025-06G Bolt  4 € 2,48 € 3
IN STOCK

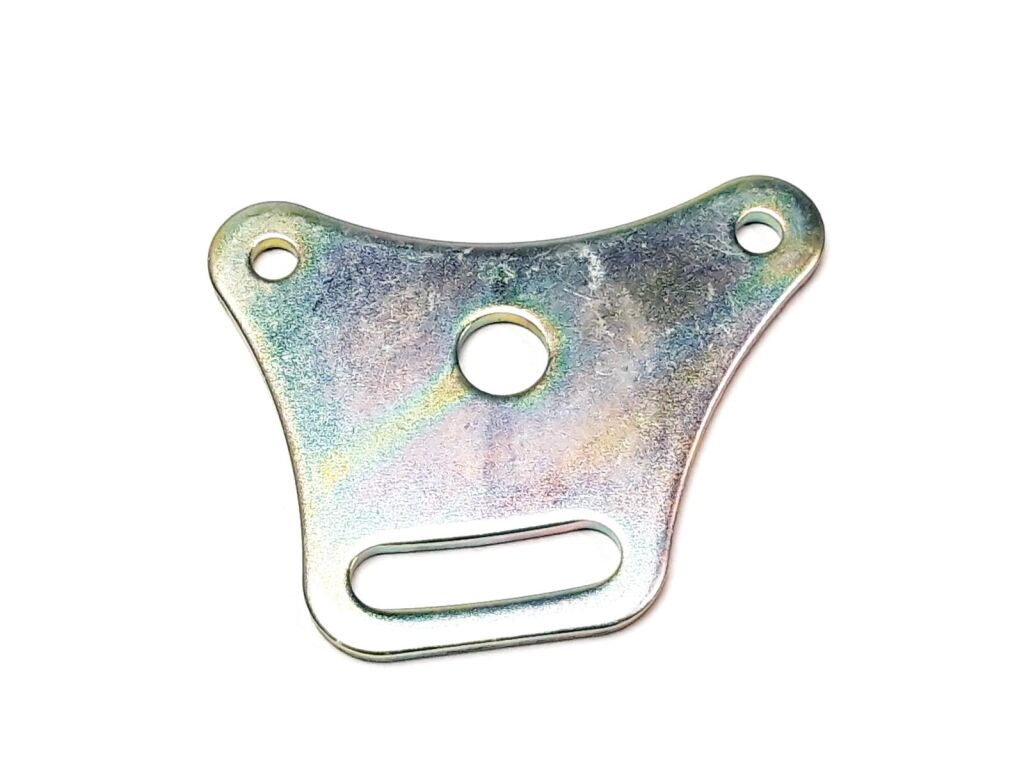

19 Disc Plate (Item nr. 19) 31350-A08-000 Disc Plate  1 € 85,95 € 104
IN STOCK
20 Nut, Insert Lock (Item nr. 20) 92130-08S-14G Nut, Insert Lock  4 € 2,48 € 3
IN STOCK
21 P91700-06038-10G Hex.Washer Face Bolt (unavailable)  2 € 2,48 € 3
ON REQUEST
22 23315-A08-000 R/B 520ORM Chain  1 € 79,34 € 96
ON REQUEST
23 Guard, Chain (Item nr. 23) 71222-A03-001 Guard, Chain  1 € 9,92 € 12
IN STOCK
24 Guard, Top, Chain (Item nr. 24) 71230-A09-000 Guard, Top, Chain  1 € 4,96 € 6
IN STOCK
25 Bracket, Chain Cover (Item nr. 25) 71223-A09-000 Bracket, Chain Cover  1 € 2,48 € 3
IN STOCK

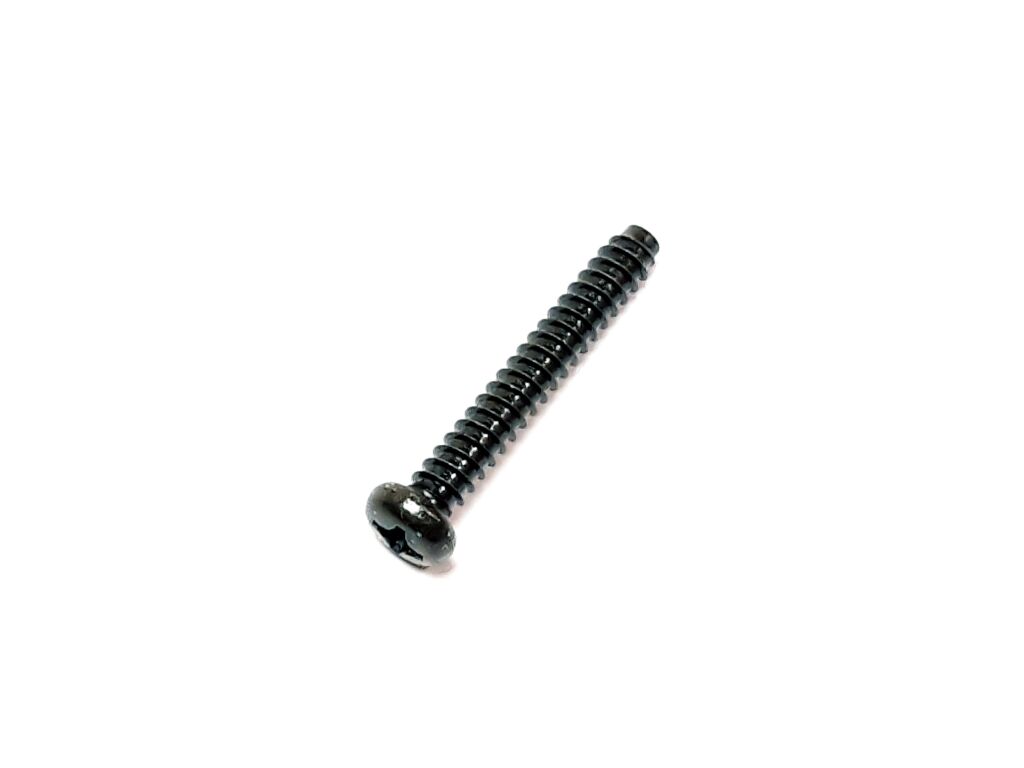

26 Screw, Tapping (Item nr. 26) P91825-06040 Screw, Tapping  1 € 2,48 € 3
IN STOCK
27 Hex Washer Face Bolt (Item nr. 27) 91700-06025-10G Hex Washer Face Bolt  2 € 2,48 € 3
IN STOCK
16 Hex Washer Face Bolt (Item nr. 16) 91700-10110-14G Hex Washer Face Bolt  1 € 2,48 € 3
IN STOCK
15 Spring Washer (Item nr. 15) 93103-10017-20 Spring Washer  1 € 2,48 € 3
IN STOCK
14 Washer, Chain Adjust (Item nr. 14) 23324-A08-000 Washer, Chain Adjust  1 € 2,48 € 3
IN STOCK
2 Bracket, Right (Item nr. 2) 23224-A08-000 Bracket, Right  1 € 4,13 € 5
IN STOCK
3 Sprocket (unavailable) (Item nr. 3) 23305-A08-000 Sprocket (unavailable)  1
ON REQUEST
5 Hex Washer Face Bolt (Item nr. 5) 91700-10120-14G Hex Washer Face Bolt  1 € 2,48 € 3
IN STOCK
6 Hex Washer Face Bolt (Item nr. 6) 91700-08127-12C Hex Washer Face Bolt  2 € 3,31 € 4
IN STOCK
7 Hex Washer Face Bolt (Item nr. 7) 91700-10130-14C Hex Washer Face Bolt  1 € 2,48 € 3
IN STOCK
8 93100-10022-35C Washer, Plate  2 € 2,48 € 3
ON REQUEST
9 Bracket, Left (Item nr. 9) 23223-A08-000 Bracket, Left  1 € 4,13 € 5
IN STOCK
10 Spacer (Item nr. 10) 93300-0813-79 Spacer  1 € 2,48 € 3
IN STOCK
11 Chain Guide Steel (Item nr. 11) 23322-A03-000 Chain Guide Steel  1 € 4,13 € 5
ON REQUEST
12 Spacer (Item nr. 12) 93300-1022-13 Spacer  1 € 2,48 € 3
IN STOCK
13 Adjuster, Chain (Item nr. 13) 23321-A08-000 Adjuster, Chain  1 € 5,79 € 7
IN STOCK
28 Nut, Insert Lock (Item nr. 28) 92130-06S-10G Nut, Insert Lock  2 € 2,48 € 3
IN STOCK
Product Code Access_F-13_MAX-4-300
Select BRAND: ACCESS
PARTS CATEGORY: FRAME PARTS
Select TYPE: ACCESS MAX
Select MODEL: MAX 4 300
