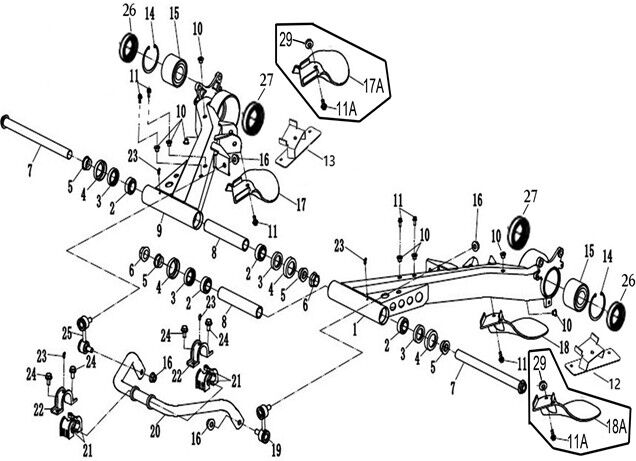

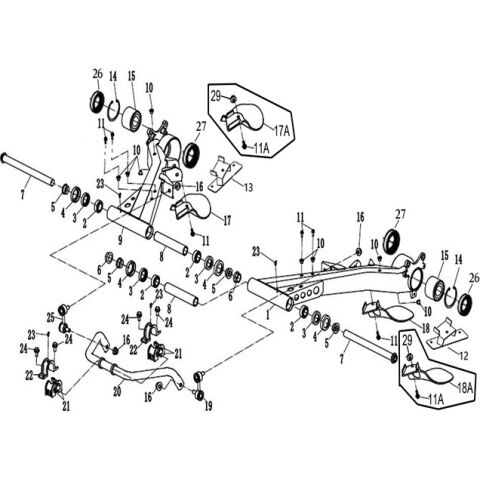

REAR ARM

  • Product Code  LINHAI_2_207_650L_PROMAX
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability

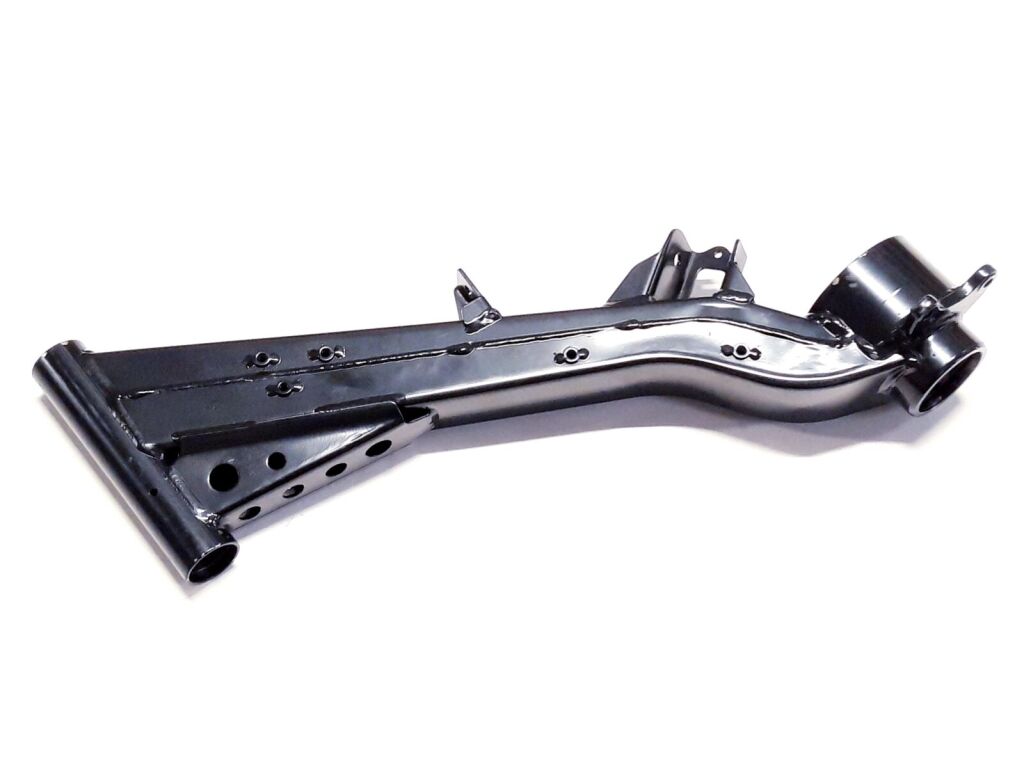

1 REAR SWING ARM, L (Item nr. 1) 38574 REAR SWING ARM, L  1 € 301,07 € 364
IN STOCK
17 A - ARM SHIELD,R (Item nr. 17) 20628 A - ARM SHIELD,R  1 € 2,40 € 3
ON THE WAY
17A RIGHT DRIVE AXLE BAFFLE (Item nr. 17A) 38729 RIGHT DRIVE AXLE BAFFLE  1 € 2,23 € 3
ON REQUEST
18 A - ARM SHIELD,L (Item nr. 18) 20519 A - ARM SHIELD,L  1 € 2,98 € 4
ON THE WAY
18A LEFT DRIVE AXLE BAFFLE (Item nr. 18A) 38730 LEFT DRIVE AXLE BAFFLE  1 € 2,23 € 3
ON THE WAY
19 JOINT，STABILIZER 2 (Item nr. 19) 27196 JOINT，STABILIZER 2  1 € 22,56 € 27
IN STOCK

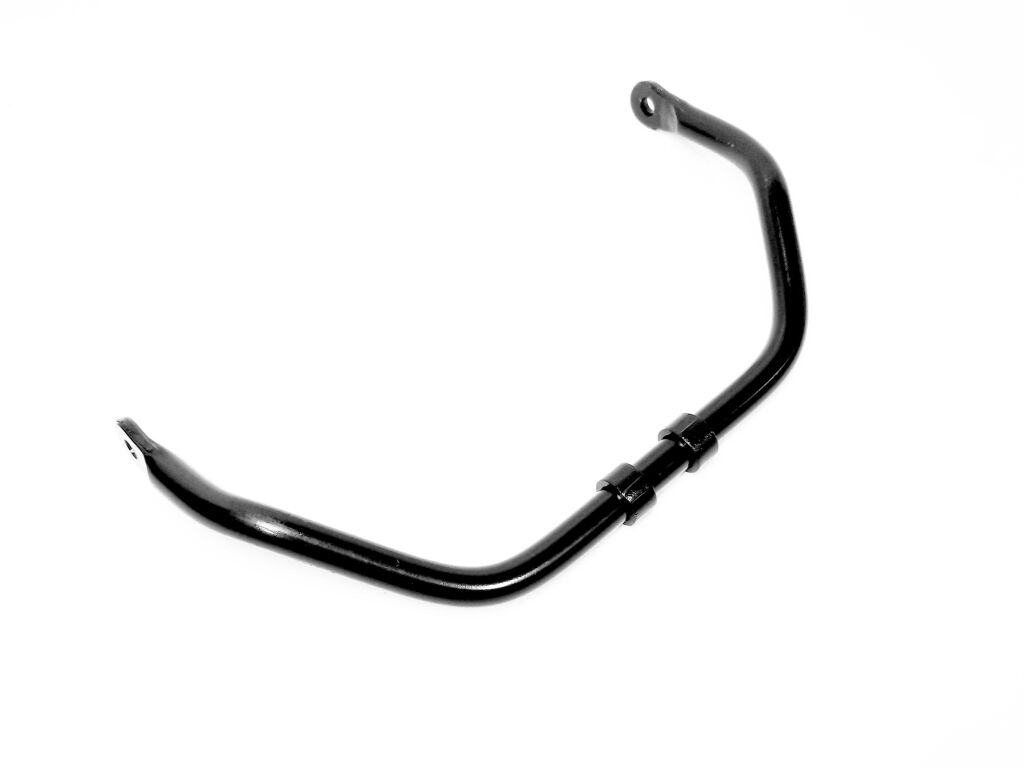

20 REAR SWAY BAR ASSY (Item nr. 20) 38586 REAR SWAY BAR ASSY  1 € 31,57 € 38
IN STOCK
21 BUSH,RR.STABILIZER (NEW MODEL) (Item nr. 21) 27091 BUSH,RR.STABILIZER (NEW MODEL)  4 € 6,69 € 8
IN STOCK
22 27090 HOLDER,STABILIZER BUSH (NEW MODEL)  2 € 4,55 € 5
RE STOCKING
23 GREASE FITTING (Item nr. 23) 10026 GREASE FITTING  2 € 2,56 € 3
IN STOCK
24 11461 Hexagon Flange Bolt M8×1.25×20 9.8  4 € 2,40 € 3
ON REQUEST
25 JOINT，STABILIZER 1 (Item nr. 25) 27195 JOINT，STABILIZER 1  1 € 19,75 € 24
IN STOCK
26 SEAL 58 41.2 11 (Item nr. 26) 70676 SEAL 58 41.2 11  2 € 3,47 € 4
ON THE WAY
27 SEAL 61.5 43 11 (Item nr. 27) 70675 SEAL 61.5 43 11  2 € 3,80 € 5
IN STOCK
28 10094 PIN  4 € 7,02 € 8
ON REQUEST
16 NUT M10X1.25 (Item nr. 16) 10015 NUT M10X1.25  4 € 2,40 € 3
IN STOCK
15 BEARING AU0712 (Item nr. 15) 70674 BEARING AU0712  2 € 79,01 € 96
ON THE WAY
14 CIRCLIP 58 (Item nr. 14) 70055 CIRCLIP 58  2 € 2,40 € 3
IN STOCK
2 BEARING, REAR SWINGARM (Item nr. 2) 38575 BEARING, REAR SWINGARM  4 € 27,27 € 33
ON THE WAY
3 OIL SEAL 24x38x8 (Item nr. 3) 38576 OIL SEAL 24x38x8  4 € 2,31 € 3
IN STOCK
4 DUST COVER (Item nr. 4) 38577 DUST COVER  4 € 2,31 € 3
ON THE WAY
5 BUSHING, SWING ARM (Item nr. 5) 38578 BUSHING, SWING ARM  4 € 2,31 € 3
IN STOCK
6 LOCK NUT, SWING ARM (Item nr. 6) 38579 LOCK NUT, SWING ARM  2 € 3,97 € 5
IN STOCK
7 REAR SWING ARM SHAFT (Item nr. 7) 38580 REAR SWING ARM SHAFT  2 € 16,78 € 20
IN STOCK
8 INNER LINER, REAR SWING ARM (Item nr. 8) 38581 INNER LINER, REAR SWING ARM  2 € 9,50 € 11
IN STOCK
9 38582 REAR SWING ARM, R  1 € 301,07 € 364
ON REQUEST
10 RIVET NUT (Item nr. 10) 38583 RIVET NUT  6 € 2,23 € 3
IN STOCK
10 11980 NUT M6 BLACK  2
ON REQUEST
11 Bolt M6X16 (Item nr. 11) 11495 Bolt M6X16  6 € 2,40 € 3
ON REQUEST
11A BOLT M5×16 (Item nr. 11A) 11720 BOLT M5×16  2
IN STOCK

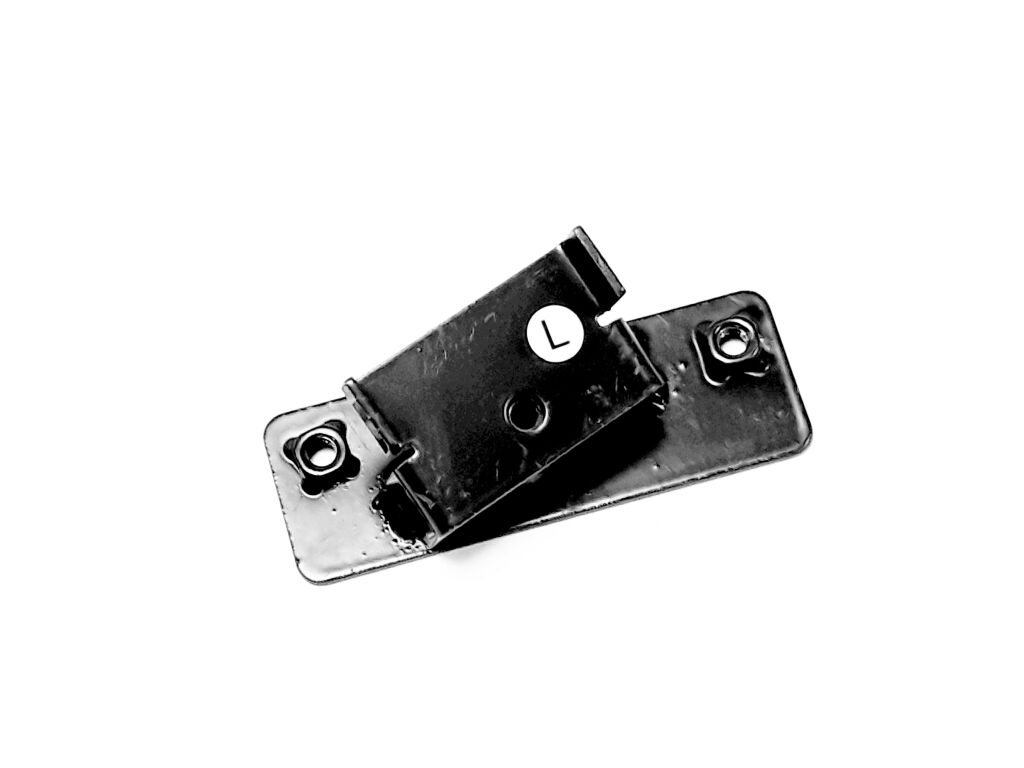

12 Rocker guard mounting plate (left) (Item nr. 12) 38584 Rocker guard mounting plate (left)  1 € 5,79 € 7
IN STOCK

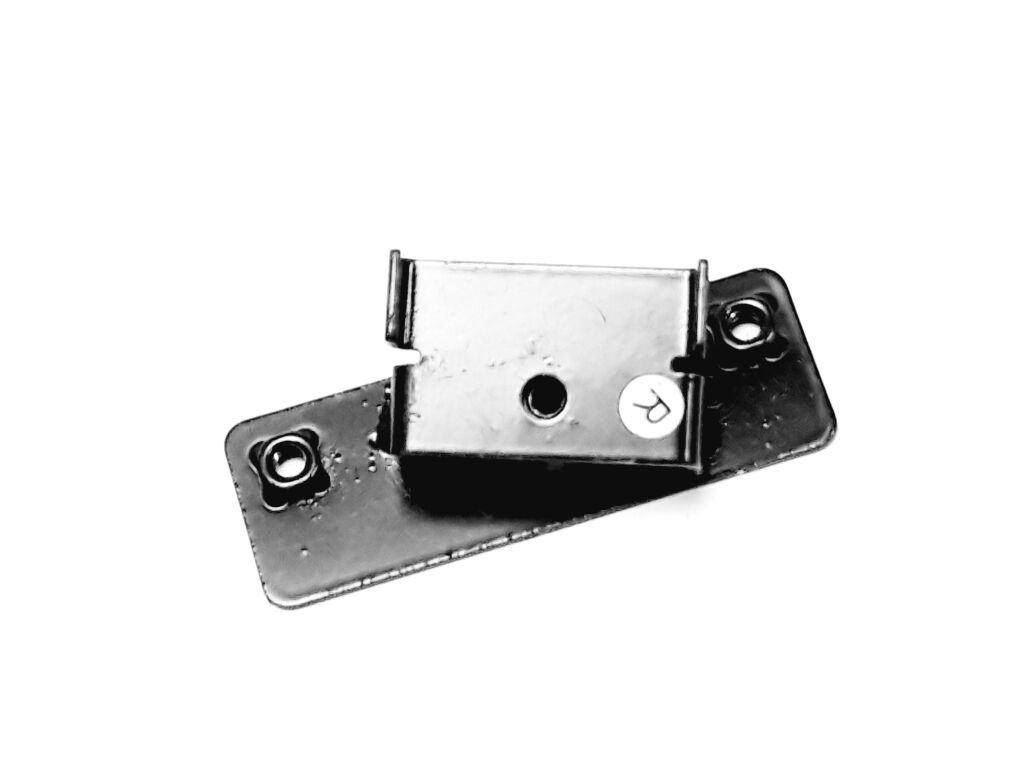

13 Rocker guard mounting plate (right) (Item nr. 13) 38585 Rocker guard mounting plate (right)  1 € 5,79 € 7
IN STOCK
29 11983 NUT M5  2
ON REQUEST
Product Code LINHAI_2_207_650L_PROMAX
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 650
Select MODEL: 650L PROMAX T3b EFI
