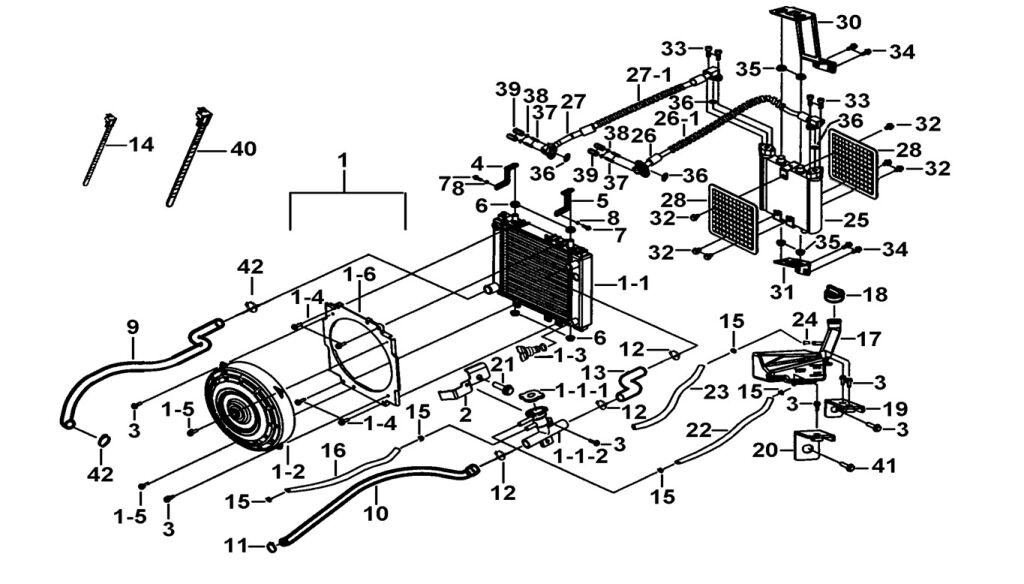

RADIATOR ASSY.、COOLING FAN

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_118_VTH-DE
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability

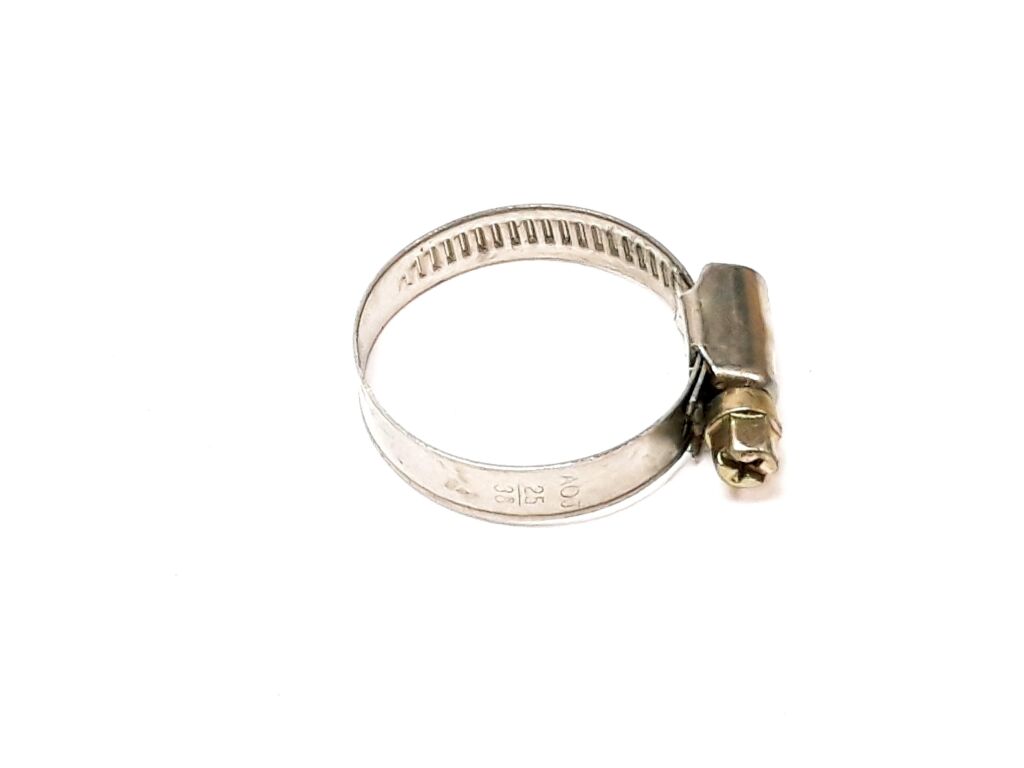

40 CLAMP L300 (Item nr. 40) 518740 CLAMP L300  2 € 1,98 € 2
IN STOCK
34 BOLT, FLANGE M6X16 (Item nr. 34) GA555SC05 BOLT, FLANGE M6X16  4 € 2,40 € 3
IN STOCK
33 SCREW, SOCKET HEAD M6X16 (Item nr. 33) S70609 SCREW, SOCKET HEAD M6X16  4 € 2,40 € 3
IN STOCK
32 BOLT, FLANGE (Item nr. 32) S21605 BOLT, FLANGE  6 € 2,40 € 3
IN STOCK
31 925437 BRACKET(LOWER)  1 € 8,51 € 10
ON REQUEST
30 BRACKET(UPPER) (Item nr. 30) 925436 BRACKET(UPPER)  1 € 21,24 € 26
IN STOCK
28 925414 PROTECTOR, OIL RADIATOR  2 € 29,92 € 36
ON REQUEST
27 PIPE , ENGINE OIL(L) 485 mm (Item nr. 27) 925415 PIPE , ENGINE OIL(L) 485 mm  1 € 72,23 € 87
ON REQUEST
26 PIPE , ENGINE OIL(R) 545 mm (Item nr. 26) 925416 PIPE , ENGINE OIL(R) 545 mm  1 € 76,78 € 93
ON REQUEST
24 925570 PLCU  1 € 6,03 € 7
ON REQUEST
23 925265 HOSE  1 € 14,88 € 18
ON REQUEST
35 Washer, Rubber (Item nr. 35) 402129 Washer, Rubber  4 € 2,40 € 3
ON REQUEST
37 STUD 6X18 (Item nr. 37) S95602 STUD 6X18  4 € 2,40 € 3
IN STOCK
27.1 927267 PROTECTION TUBE (L) 400 mm  1 € 6,78 € 8
ON REQUEST
26.1 927268 PROTECTION TUBE (R) 460 mm  1 € 7,36 € 9
ON REQUEST
25 925411Y OIL RADIATOR ASSY.  1 € 185,21 € 224
ON REQUEST
11 CLIP (Item nr. 11) R65603 CLIP  1 € 2,64 € 3
IN STOCK
01.1 RADIATOR COMP. (Item nr. 01-1) 926128Y RADIATOR COMP.  1 € 208,10 € 252
IN STOCK
42 CLIP (Item nr. 42) R66803 CLIP  2 € 5,21 € 6
IN STOCK
41 BOLT, FLANGE (Item nr. 41) S20004 BOLT, FLANGE  1 € 2,40 € 3
IN STOCK
39 NUT (Item nr. 39) N10605 NUT  4 € 2,89 € 3
IN STOCK
38 WASHER, SPRING M6 (Item nr. 38) GA504WS04 WASHER, SPRING M6  4 € 2,40 € 3
IN STOCK
22 HOSE (Item nr. 22) 925175 HOSE  1 € 14,13 € 17
IN STOCK
21 BOLT M10X20 (Item nr. 21) S21008 BOLT M10X20  1 € 2,40 € 3
IN STOCK
20 BRACKET (Item nr. 20) 925619 BRACKET  1 € 9,67 € 12
IN STOCK
05 BRACKET(R) (Item nr. 05) 925018 BRACKET(R)  1 € 6,94 € 8
ON REQUEST
04 BRACKET(L) (Item nr. 04) 925019 BRACKET(L)  1 € 6,94 € 8
IN STOCK
02 BRACKET (Item nr. 02) 925535 BRACKET  1 € 6,53 € 8
IN STOCK
01.6 COVER, COOLING FAN (Item nr. 01-6) D9900055 COVER, COOLING FAN  1 € 24,21 € 29
IN STOCK
01.5 BOLT, FLANGE (Item nr. 01-5) S20617 BOLT, FLANGE  2 € 2,15 € 3
IN STOCK
01.4 BOLT,HEX HEAD (Item nr. 01-4) S20611 BOLT,HEX HEAD  4 € 2,40 € 3
IN STOCK
01.3 TAP SCREW (Item nr. 01-3) 925435 TAP SCREW  1 € 13,22 € 16
IN STOCK
01.2 COOLING FAN ASSY. (Item nr. 01-2) 924940 COOLING FAN ASSY.  1 € 200 € 242
IN STOCK
01.1.2 AQUEDUCT (Item nr. 01-1-2) 925533 AQUEDUCT  1 € 19,09 € 23
ON REQUEST
07 BOLT, FLANGE (Item nr. 07) S20814 BOLT, FLANGE  2 € 2,40 € 3
IN STOCK
08 SPRING WASHER (Item nr. 08) GA556WS04 SPRING WASHER  2 € 2,40 € 3
IN STOCK
19 BRACKET(A) (Item nr. 19) 925128 BRACKET(A)  1 € 4,30 € 5
IN STOCK
18 RESERVOIR CAP  (Item nr. 18) 924642 RESERVOIR CAP   1 € 2,40 € 3
IN STOCK IN 6 days
17 RESERVOIR ASSY. (Item nr. 17) 925020 RESERVOIR ASSY.  1 € 22,56 € 27
ON THE WAY
16 HOSE  (Item nr. 16) 924674 HOSE   1 € 3,88 € 5
IN STOCK
15 CLIP  (Item nr. 15) R40201 CLIP   5 € 2,40 € 3
IN STOCK
14 CLAMP L200 (Item nr. 14) 518739 CLAMP L200  2 € 3,06 € 4
IN STOCK
13 HOSE (Item nr. 13) 925540 HOSE  1 € 16,36 € 20
IN STOCK
12 CLIP (Item nr. 12) R66701 CLIP  3 € 3,97 € 5
IN STOCK
10 HOSE (Item nr. 10) 925542 HOSE  1 € 29,17 € 35
IN STOCK
09 925620 HOSE, OUTLET  1 € 55,70 € 67
ON REQUEST
01.1.1 R/B 924798Y RADIATOR CAP  (Item nr. 01-1-1) 924798 R/B 924798Y RADIATOR CAP   1 € 23,06 € 28
ON REQUEST
Product Code TGB_1_118_VTH-DE
PARTS CATEGORY: ENGINE PARTS
Select BRAND: TGB
Select TYPE: TARGET 600
Select MODEL: TARGET 600 E4, TARGET 600 T3b
