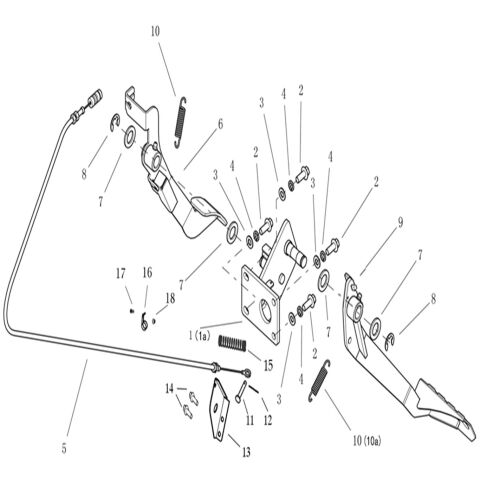

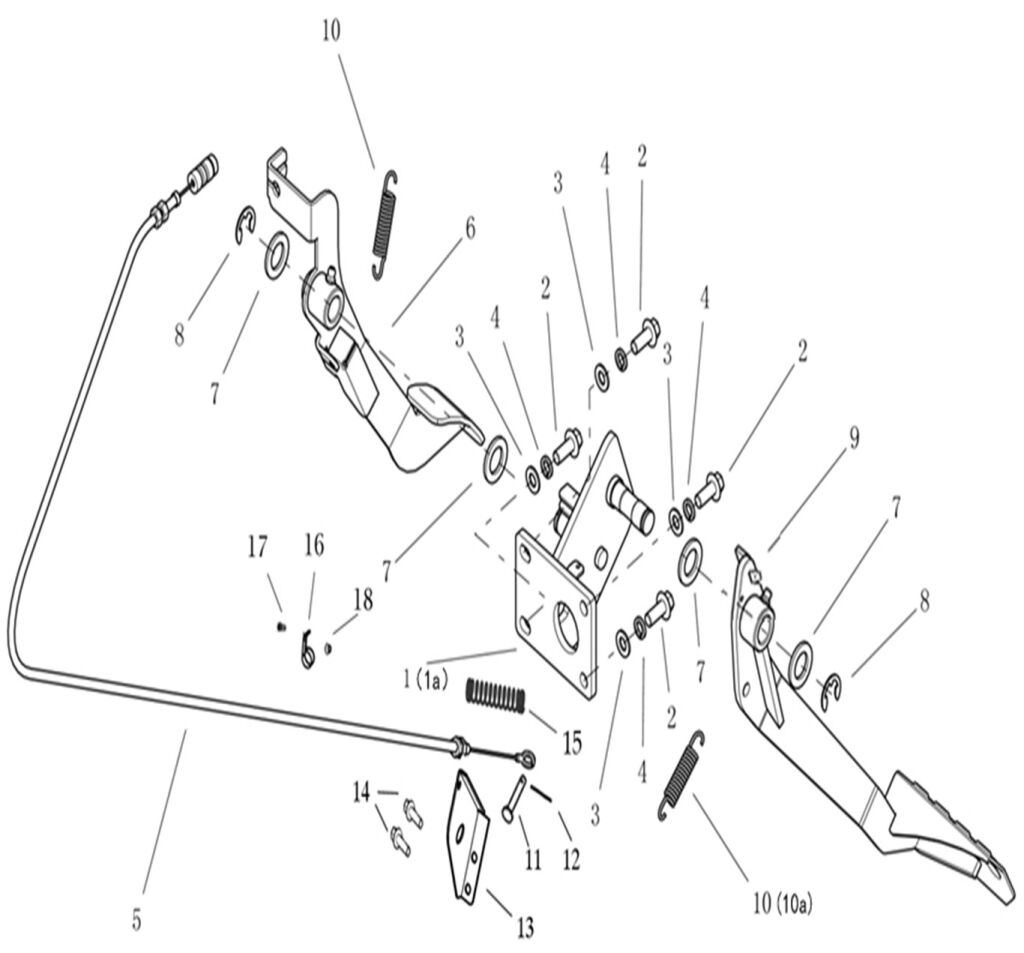

PEDAL Ver.24

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_2_221_LH1100U-24
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 73207 Pedal Mount Bracket  1 € 21,57 € 26
ON REQUEST
17 R/B 11028 Screw M6×16 (Item nr. 17) 73054 R/B 11028 Screw M6×16  1 € 2,40 € 3
IN STOCK
16 84263 Clip  1 € 2,40 € 3
ON REQUEST
15 Spring，Throttle Cable (Item nr. 15) 84253 Spring，Throttle Cable  1 € 4,05 € 5
ON THE WAY
14 10873 Bolt M10X1.5X20  2 € 10,17 € 12
ON REQUEST
13 86392 Bracket, Throttle Cable  1 € 20,99 € 25
ON REQUEST
12 11474 Cotter Pin 2×20  1 € 2,40 € 3
ON REQUEST
11 84230 Pin  1 € 3,72 € 5
ON REQUEST
10 Pedal Spring (Item nr. 10) 73204 Pedal Spring  1 € 2,40 € 3
ON THE WAY
9 73418 Brake Pedal Assy，only for France market  1 € 44,55 € 54
ON REQUEST
8 10811 Hexagon Flange Bolt M8×55  2 € 8,43 € 10
ON REQUEST
7 WASHER 16 (Item nr. 7) 10037 WASHER 16  4 € 2,40 € 3
IN STOCK
6 Accelerate Pedal Assy (Item nr. 6) 73206 Accelerate Pedal Assy  1 € 36,45 € 44
IN STOCK
5 Throttle Cable (Item nr. 5) 84180 Throttle Cable  1 € 28,93 € 35
ON THE WAY
4 11490 Spring Lock Washer 8  4 € 2,40 € 3
ON REQUEST
3 WASHER 8 (Item nr. 3) 10068 WASHER 8  4 € 7,19 € 9
IN STOCK
2 11461 Hexagon Flange Bolt M8×1.25×20 9.8  4 € 2,40 € 3
ON REQUEST
18 Prevailing Torque Type All-metal Hexagon Nut Fine Pitch M6 (Item nr. 18) 11477 Prevailing Torque Type All-metal Hexagon Nut Fine Pitch M6  1 € 2,40 € 3
IN STOCK
Product Code LINHAI_2_221_LH1100U-24
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select MODEL: T-BOSS LH1100U D T1b (EPS)
Select TYPE: LINHAI UTV 1100 Diesel
