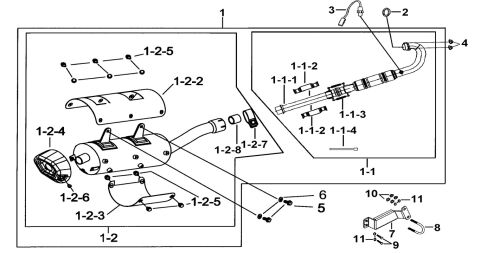

MUFFLER ASSY. (FOR EURO 5)

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_116_FBH-JJDLE
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 926265 MUFFLER ASSY.  1 € 2 058,68 € 2 491
ON REQUEST
01.2.8 GASKET PLUMBAGO (Item nr. 01-2-8) 910542 GASKET PLUMBAGO  1 € 49,42 € 60
IN STOCK
02 GASKET, EXHAUST PIPE (Item nr. 02) 910387 GASKET, EXHAUST PIPE  1 € 24,05 € 29
IN STOCK
03 O2 SENSOR (Item nr. 03) 910714Y O2 SENSOR  1 € 176,94 € 214
IN STOCK
04 NUT,FLANGE 8mm (Item nr. 04) N10801 NUT,FLANGE 8mm  2 € 4,79 € 6
IN STOCK
05 BOLT, FLANGE (Item nr. 05) S20814 BOLT, FLANGE  2 € 2,40 € 3
IN STOCK
06 SPRING WASHER (Item nr. 06) GA556WS04 SPRING WASHER  2 € 2,40 € 3
IN STOCK
07 926302 BRACKET, EXHAUST PIPE  1 € 37,52 € 45
ON REQUEST
08 926303 U BOLT  1 € 7,27 € 9
ON REQUEST
09 S70804 SCREW,HEX HEAD M8X50  2 € 7,44 € 9
ON REQUEST
01.2.7 CLAMP (Item nr. 01-2-7) 910549 CLAMP  1 € 26,53 € 32
IN STOCK
01.2.6 BOLT SET, HEX. SOCKET (Item nr. 01-2-6) 910597 BOLT SET, HEX. SOCKET  3 € 1,98 € 2
IN STOCK
01.1 926299 EXHAUST PIPE COMP.  1 € 715,95 € 866
ON REQUEST
01.1.1 926297 EXHAUST PIPE (unavailable)  1
ON REQUEST
Detail
01.1.2 910689 PROTECTOR COVER  2 € 29,09 € 35
ON REQUEST
01.1.3 SPRING (Item nr. 01-1-3) 910609 SPRING  4 € 11,49 € 14
ON REQUEST
01.1.4 CLAMP (Item nr. 01-1-4) 911179 CLAMP  4 € 4,38 € 5
IN STOCK
01.2 926300 BODY COMP., MUFFLER  1 € 1 910,58 € 2 312
ON REQUEST
01.2.2 926204 PROTECTOR COVER  1 € 47,27 € 57
ON REQUEST
01.2.3 PROTECTOR COVER (Item nr. 01-2-3) 910601 PROTECTOR COVER  1 € 29,59 € 36
ON REQUEST
01.2.4 REAR COVER, ORNAMENTAL (Item nr. 01-2-4) 910485 REAR COVER, ORNAMENTAL  1 € 80,99 € 98
IN STOCK
01.2.5 910602 SCREW SET, COVER  10 € 1,98 € 2
ON REQUEST
Product Code TGB_1_116_FBH-JJDLE
PARTS CATEGORY: ENGINE PARTS
Select BRAND: TGB
Select TYPE: BLADE 600LTX
Select MODEL: BLADE 600LTX MAX E5
