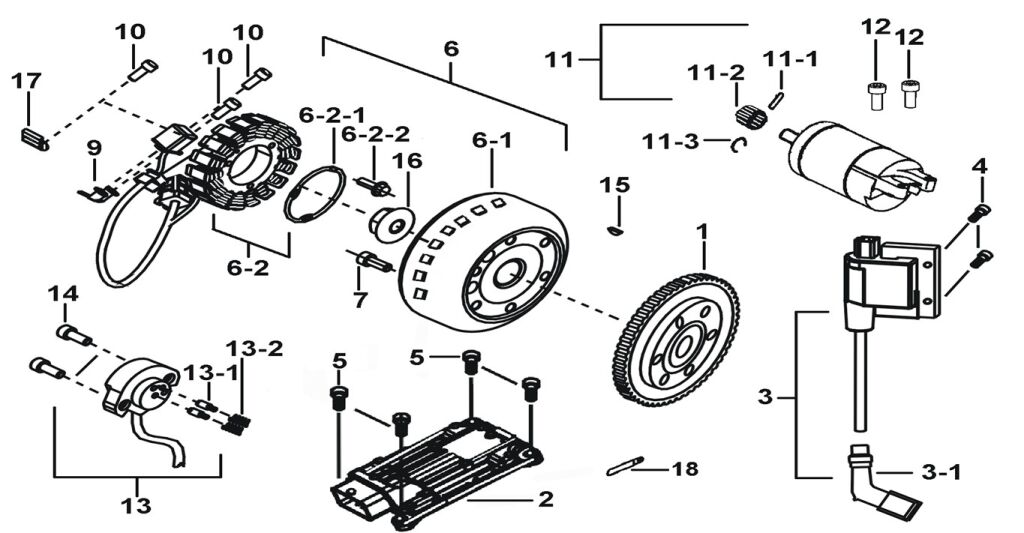

MOTOR STARTING、FLYWHEEL MAGNETO、ECU

TGB
  • Manufacturer  TGB
  • Product Code  TGB_3_110_FBG-HFE
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 CLUTCH ASSY (STARTING) (Item nr. 01) 925668 CLUTCH ASSY (STARTING)  1 € 214,30 € 259
IN STOCK
11.3 SNAP RING, C TYPE (Item nr. 11-3) R00201 SNAP RING, C TYPE  1 € 2,40 € 3
IN STOCK
12 BOLT, FLANGE 6X32 (Item nr. 12) S24607 BOLT, FLANGE 6X32  2 € 2,40 € 3
IN STOCK
13 GEAR SENSOR ASSY (Item nr. 13) 926748 GEAR SENSOR ASSY  1 € 37,85 € 46
IN STOCK
13.1 CONTACT, SWITCH, GEAR SELECT (Item nr. 13-1) 924246 CONTACT, SWITCH, GEAR SELECT  2 € 3,22 € 4
IN STOCK
13.2 SPRING, SWITCH, GEAR SELECT (Item nr. 13-2) 925858 SPRING, SWITCH, GEAR SELECT  2 € 2,40 € 3
IN STOCK
14 SCREW, SOCKET HEAD M5x16 (Item nr. 14) S79501 SCREW, SOCKET HEAD M5x16  2 € 2,40 € 3
IN STOCK
15 KEY (Item nr. 15) D9900040 KEY  1 € 4,13 € 5
IN STOCK
16 NUT, FLANGE (Item nr. 16) N10803 NUT, FLANGE  1 € 2,40 € 3
IN STOCK
17 924282 NO.2 CLAMP  1 € 2,15 € 3
ON REQUEST
18 CLAMP (Item nr. 18) 514410 CLAMP  3 € 2,40 € 3
IN STOCK

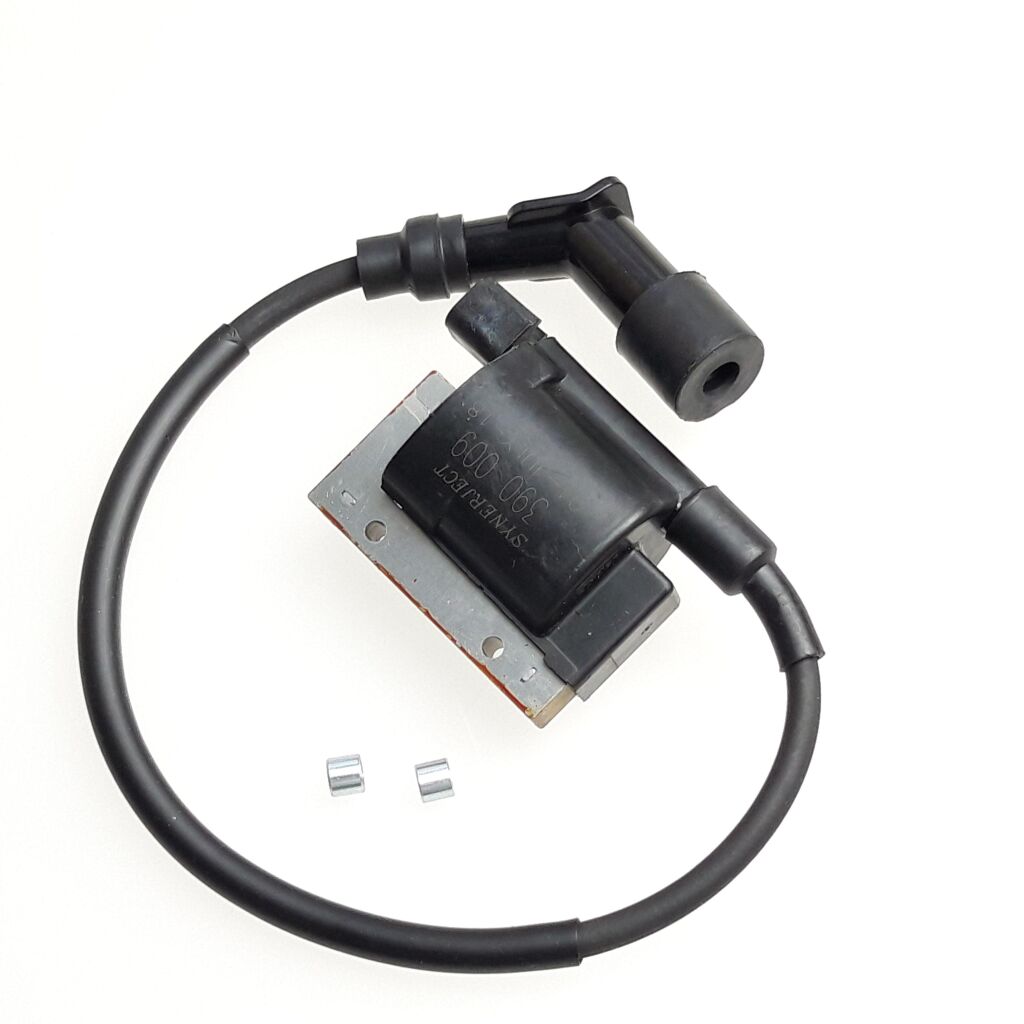

03 IGNITION COIL, F. CYN..(CONTAIN SPACER) (Item nr. 03) 910715MA IGNITION COIL, F. CYN..(CONTAIN SPACER)

←009988

1 € 60,58 € 73
ON REQUEST
03.1 910715M-10 IGNITION HIGH TENSION LINE ASSY.

←018439

1 € 82,48 € 100
ON REQUEST

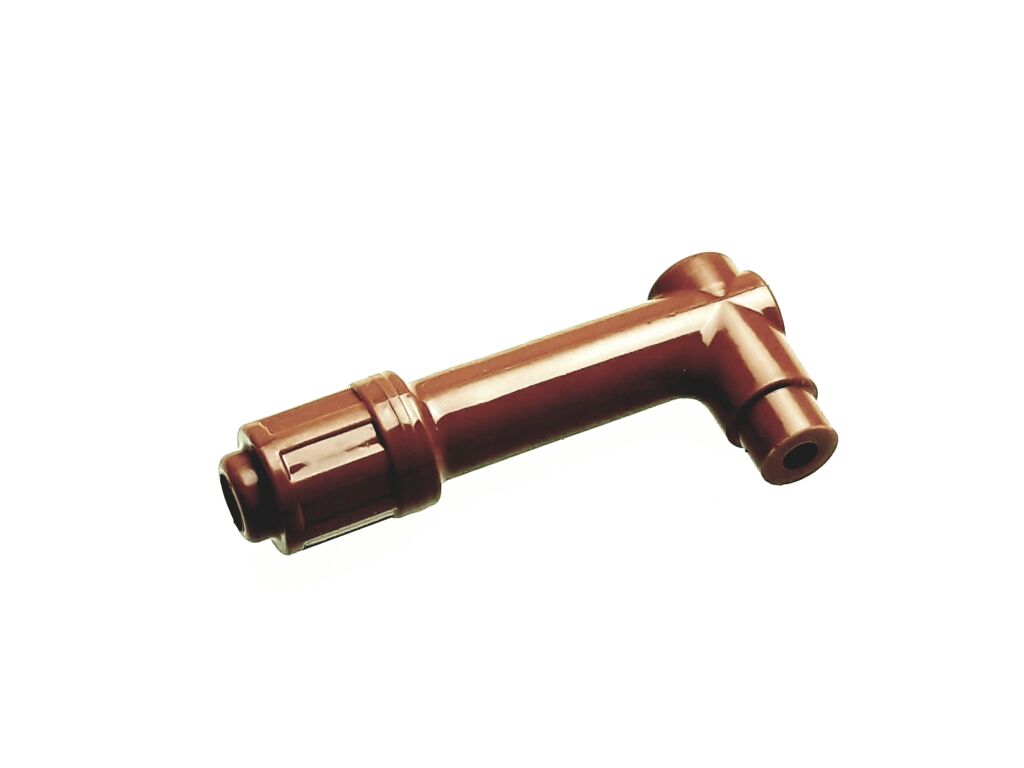

03.1A R/B 926752 SPARK PLUG ATTACHMENT (Item nr. 03-1A) 927999 R/B 926752 SPARK PLUG ATTACHMENT

018440→

1 € 24,79 € 30
IN STOCK
11.2 GEAR,STARTER (Item nr. 11-2) 925302 GEAR,STARTER  1 € 25,87 € 31
IN STOCK
11.1 PIN (Item nr. 11-1) P30405 PIN  1 € 2,89 € 3
IN STOCK IN 6 days
11 START MOTOR ASSY (Item nr. 11) 924470E START MOTOR ASSY  1 € 193,47 € 234
IN STOCK
02 R/B 926023YG ECU (Item nr. 02) 926023YA R/B 926023YG ECU  1 € 388,68 € 470
ON REQUEST
04 SCREW, SOCKET HEAD M4X25 (Item nr. 04) S70402 SCREW, SOCKET HEAD M4X25  2 € 2,40 € 3
IN STOCK
05 SCREW, SOCKET HEAD M6x20 (Item nr. 05) S70607 SCREW, SOCKET HEAD M6x20  4 € 2,40 € 3
IN STOCK
06 926714A FLYWHEEL MAGNETO ASSY

←012314

1 € 418,02 € 506
ON REQUEST
06.1 ROTOR ASSY (Item nr. 06-1) 926715 ROTOR ASSY  1 € 129,59 € 157
IN STOCK IN 6 days
06.2 STATOR ASSY (Item nr. 06-2) 926716A STATOR ASSY

←012314

1 € 193,47 € 234
IN STOCK
06.2.1 FIXING PLATE (Item nr. 06-2-1) 925809 FIXING PLATE  1 € 3,55 € 4
IN STOCK
06.2.2 BOLT, FLANGE M6X36 (Item nr. 06-2-2) S99616 BOLT, FLANGE M6X36  3 € 2,40 € 3
IN STOCK
06.2A STATOR ASSY. (Item nr. 06-2A) 927995A STATOR ASSY.

012315→

1 € 160,66 € 194
IN STOCK IN 6 days
06.2B STATOR ASSY. (Item nr. 06-2B) 927756A STATOR ASSY.

FOR W/EPS

1 € 160,66 € 194
ON THE WAY
06B FLYWHEEL MAGNETO ASSY. (Item nr. 06B) 927755A FLYWHEEL MAGNETO ASSY.

FOR W/EPS

1 € 348,84 € 422
IN STOCK
07 BOLT (Item nr. 07) S70811 BOLT  6 € 2,40 € 3
IN STOCK
09 CLAMP (Item nr. 09) 924937 CLAMP  1 € 3,55 € 4
ON REQUEST
10 SCREW OVAL HEAD M5X10 (Item nr. 10) S13502 SCREW OVAL HEAD M5X10  3 € 2,40 € 3
IN STOCK
06A 927991A FLYWHEEL MAGNETO ASSY.

012315→

1 € 249,92 € 302
ON REQUEST
Product Code TGB_3_110_FBG-HFE
PARTS CATEGORY: ELECTRICAL PARTS
