MOTOR STARTING、FLYWHEEL MAGNETO、ECU

TGB
  • Manufacturer  TGB
  • Product Code  TGB_3_110_FBG-DLE
Select MODEL:

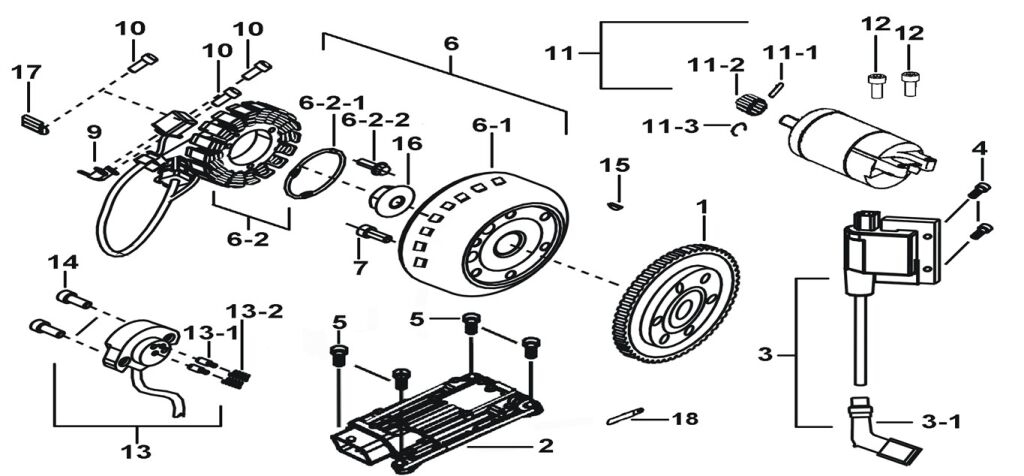

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 CLUTCH ASSY (STARTING) (Item nr. 01) 925668 CLUTCH ASSY (STARTING)  1 € 214,30 € 259
IN STOCK
11.1 PIN (Item nr. 11-1) P30405 PIN  1 € 2,89 € 3
IN STOCK IN 6 days
11.2 GEAR,STARTER (Item nr. 11-2) 925302 GEAR,STARTER  1 € 25,87 € 31
IN STOCK
11.3 SNAP RING, C TYPE (Item nr. 11-3) R00201 SNAP RING, C TYPE  1 € 2,40 € 3
IN STOCK
12 BOLT, FLANGE 6X32 (Item nr. 12) S24607 BOLT, FLANGE 6X32  2 € 2,40 € 3
IN STOCK
13 GEAR SENSOR ASSY (Item nr. 13) 926748 GEAR SENSOR ASSY  1 € 37,85 € 46
IN STOCK
13.1 CONTACT, SWITCH, GEAR SELECT (Item nr. 13-1) 924246 CONTACT, SWITCH, GEAR SELECT  2 € 3,22 € 4
IN STOCK
13.2 SPRING, SWITCH, GEAR SELECT (Item nr. 13-2) 925858 SPRING, SWITCH, GEAR SELECT  2 € 2,40 € 3
IN STOCK
14 SCREW, SOCKET HEAD M5x16 (Item nr. 14) S79501 SCREW, SOCKET HEAD M5x16  2 € 2,40 € 3
IN STOCK
15 KEY (Item nr. 15) D9900040 KEY  1 € 4,13 € 5
IN STOCK
16 NUT, FLANGE (Item nr. 16) N10803 NUT, FLANGE  1 € 2,40 € 3
IN STOCK
17 924282 NO.2 CLAMP  1 € 2,15 € 3
ON REQUEST
11 START MOTOR ASSY (Item nr. 11) 924470E START MOTOR ASSY  1 € 193,47 € 234
IN STOCK
10 SCREW OVAL HEAD M5X10 (Item nr. 10) S13502 SCREW OVAL HEAD M5X10  3 € 2,40 € 3
IN STOCK
09 CLAMP (Item nr. 09) 924937 CLAMP  1 € 3,55 € 4
ON REQUEST
02 926023Y R/B 926023YA M3C ECU  1 € 456,03 € 552
ON REQUEST
03 926029M R/B 910715M - IGNITION HIGH TENSION LINE ASSY  1 € 48,10 € 58
ON REQUEST
03.1 SPARK PLUG ATTACHMENT (Item nr. 03-1) 924285 SPARK PLUG ATTACHMENT  1 € 10,25 € 12
IN STOCK
04 SCREW, SOCKET HEAD M4X25 (Item nr. 04) S70402 SCREW, SOCKET HEAD M4X25  2 € 2,40 € 3
IN STOCK
05 S99612 SCREW,HEX HEAD  4 € 6,03 € 7
ON REQUEST
06 926714A FLYWHEEL MAGNETO ASSY  1 € 418,02 € 506
ON REQUEST
06.1 ROTOR ASSY (Item nr. 06-1) 926715 ROTOR ASSY  1 € 129,59 € 157
IN STOCK IN 6 days
06.2 STATOR ASSY (Item nr. 06-2) 926716A STATOR ASSY  1 € 193,47 € 234
IN STOCK
06.2.1 FIXING PLATE (Item nr. 06-2-1) 925809 FIXING PLATE  1 € 3,55 € 4
IN STOCK
06.2.2 BOLT, FLANGE M6X36 (Item nr. 06-2-2) S99616 BOLT, FLANGE M6X36  3 € 2,40 € 3
IN STOCK
07 BOLT (Item nr. 07) S70811 BOLT  6 € 2,40 € 3
IN STOCK
18 CLAMP (Item nr. 18) 514410 CLAMP  3 € 2,40 € 3
IN STOCK
Product Code TGB_3_110_FBG-DLE
PARTS CATEGORY: ELECTRICAL PARTS
Select TYPE: BLADE 550
Select BRAND: TGB
Select MODEL: BLADE 550EFI LT
