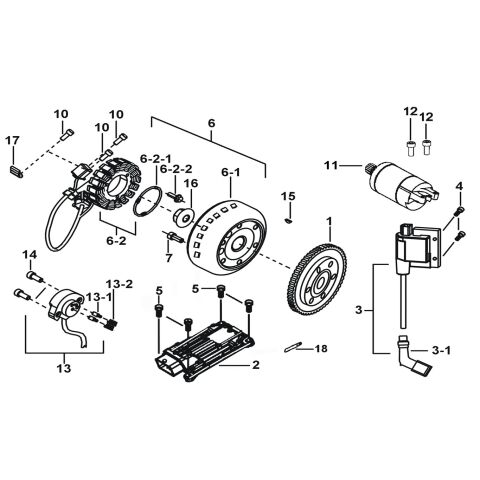

MOTOR STARTING、FLYWHEEL MAGNETO、ECU

TGB
  • Manufacturer  TGB
  • Product Code  TGB_3_110_VTH-DE
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 CLUTCH ASSY (STARTING) (Item nr. 01) 925668 CLUTCH ASSY (STARTING)  1 € 214,30 € 259
IN STOCK
12 BOLT, FLANGE 6X25 (Item nr. 12) S24605 BOLT, FLANGE 6X25  2 € 2,40 € 3
IN STOCK
13 GEAR SENSOR ASSY (Item nr. 13) 926748 GEAR SENSOR ASSY  1 € 37,85 € 46
IN STOCK
13.1 CONTACT, SWITCH, GEAR SELECT (Item nr. 13-1) 924246 CONTACT, SWITCH, GEAR SELECT  2 € 3,22 € 4
IN STOCK
13.2 SPRING, SWITCH, GEAR SELECT (Item nr. 13-2) 925858 SPRING, SWITCH, GEAR SELECT  2 € 2,40 € 3
IN STOCK
14 SCREW, SOCKET HEAD M5x16 (Item nr. 14) S79501 SCREW, SOCKET HEAD M5x16  2 € 2,40 € 3
IN STOCK
15 KEY (Item nr. 15) D9900040 KEY  1 € 4,13 € 5
IN STOCK
16 NUT, FLANGE (Item nr. 16) N10803 NUT, FLANGE  1 € 2,40 € 3
IN STOCK
17 924282 NO.2 CLAMP  1 € 2,15 € 3
ON REQUEST
18 CLAMP (Item nr. 18) 514410 CLAMP  3 € 2,40 € 3
IN STOCK
11 R/B 926799Y STARTING MOTOR (Item nr. 11) 926799 R/B 926799Y STARTING MOTOR  1 € 213,88 € 259
ON REQUEST
10 SCREW OVAL HEAD M5X10 (Item nr. 10) S13502 SCREW OVAL HEAD M5X10  3 € 2,40 € 3
IN STOCK
07 BOLT (Item nr. 07) S70811 BOLT  6 € 2,40 € 3
IN STOCK
02 ECU (Item nr. 02) 926023YHA ECU  1 € 487,85 € 590
ON REQUEST

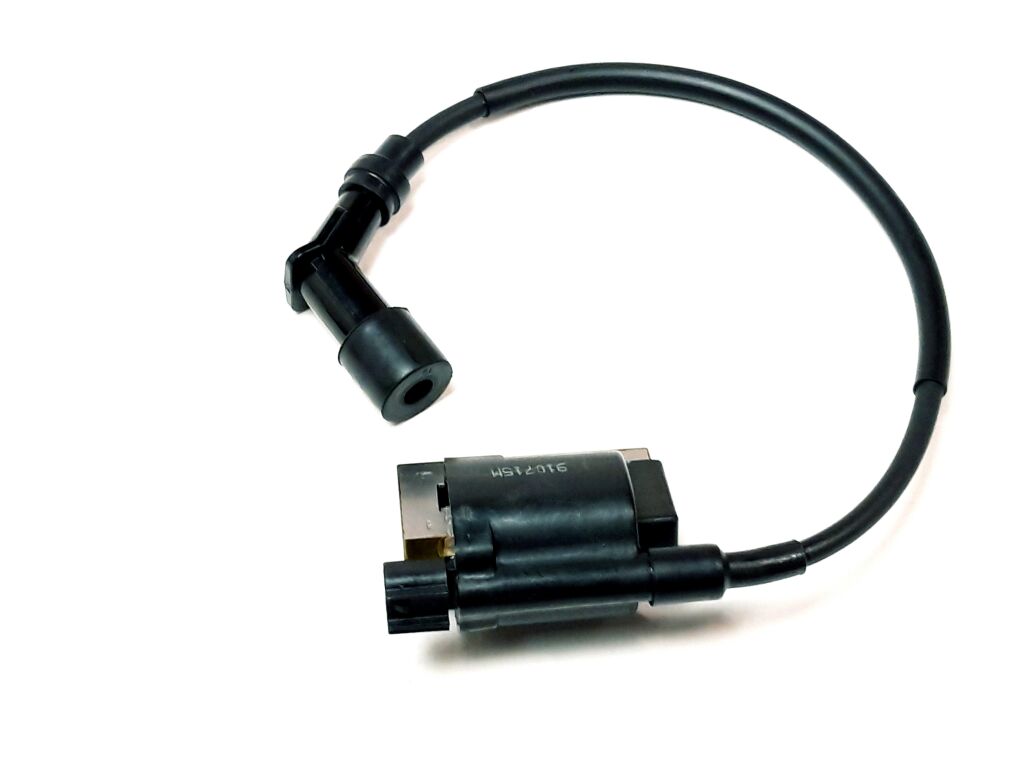

03 IGNITION HIGH TENSION LINE ASSY (Item nr. 03) 910715M IGNITION HIGH TENSION LINE ASSY  1 € 62,64 € 76
ON THE WAY

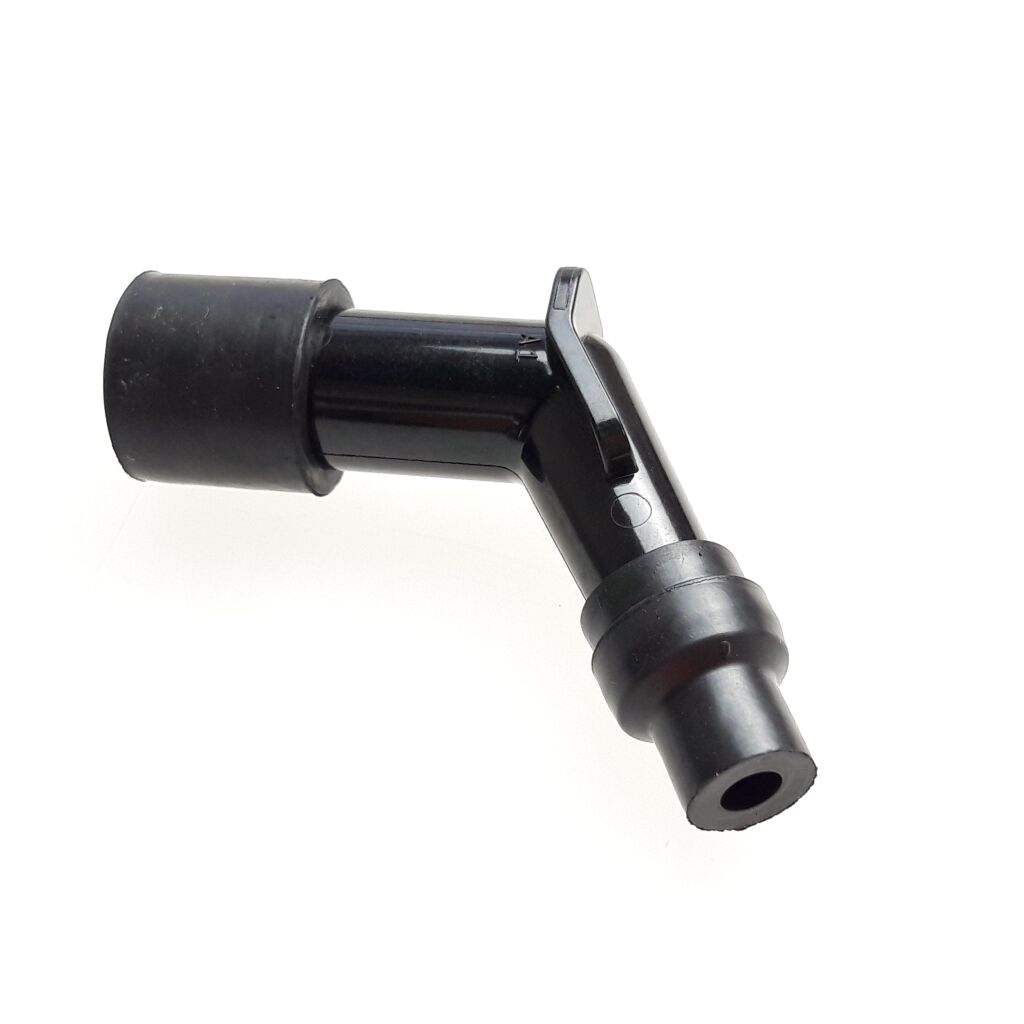

03.1 SPARK PLUG ATTACHMENT (Item nr. 03-1) 926752 SPARK PLUG ATTACHMENT  1 € 32,81 € 40
IN STOCK
04 SCREW, SOCKET HEAD M4X25 (Item nr. 04) S70402 SCREW, SOCKET HEAD M4X25  2 € 2,40 € 3
IN STOCK
05 SCREW, SOCKET HEAD M6x20 (Item nr. 05) S70607 SCREW, SOCKET HEAD M6x20  4 € 2,40 € 3
IN STOCK
06.1 ROTOR ASSY (Item nr. 06-1) 926715 ROTOR ASSY  1 € 129,59 € 157
ON THE WAY
06.2 STATOR ASSY. (Item nr. 06-2) 927995A STATOR ASSY.

(W/O EPS)

1 € 160,66 € 194
ON THE WAY
06.2.1 FIXING PLATE (Item nr. 06-2-1) 925809 FIXING PLATE  1 € 3,55 € 4
IN STOCK
06.2.2 BOLT, FLANGE M6X36 (Item nr. 06-2-2) S99616 BOLT, FLANGE M6X36  3 € 2,40 € 3
IN STOCK
06 927991A FLYWHEEL MAGNETO ASSY.

(W/O EPS)

1 € 249,92 € 302
ON REQUEST
Product Code TGB_3_110_VTH-DE
PARTS CATEGORY: ELECTRICAL PARTS
Select BRAND: TGB
Select TYPE: TARGET 600
Select MODEL: TARGET 600 E4, TARGET 600 T3b
