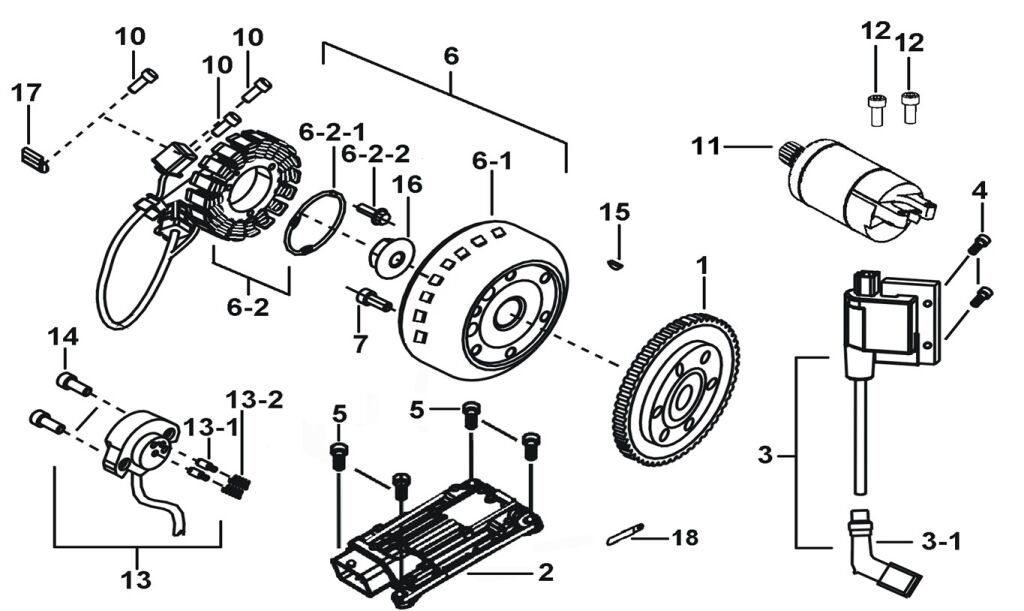

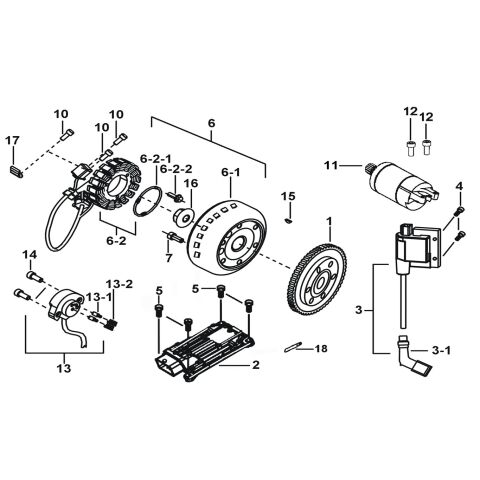

MOTOR STARTING、FLYWHEEL MAGNETO、ECU

TGB
  • Manufacturer  TGB
  • Product Code  TGB_3_110_FTH-JDLE
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 CLUTCH ASSY (STARTING) (Item nr. 01) 925668 CLUTCH ASSY (STARTING)  1 € 214,30 € 259
IN STOCK
14 SCREW, SOCKET HEAD M5x16 (Item nr. 14) S79501 SCREW, SOCKET HEAD M5x16  2 € 2,40 € 3
IN STOCK
15 KEY (Item nr. 15) D9900040 KEY  1 € 4,13 € 5
IN STOCK
16 NUT, FLANGE (Item nr. 16) N10803 NUT, FLANGE  1 € 2,40 € 3
IN STOCK
17 924282 NO.2 CLAMP  1 € 2,15 € 3
ON REQUEST
18 CLAMP (Item nr. 18) 514410 CLAMP  3 € 2,40 € 3
IN STOCK
02 R/B 926023YVJ ECU (Item nr. 02) 926023YHB R/B 926023YVJ ECU  1 € 328,60 € 398
ON REQUEST
03.1 SPARK PLUG ATTACHMENT ASSY. (Item nr. 03-1) 926829 SPARK PLUG ATTACHMENT ASSY.  1 € 28,02 € 34
ON REQUEST
06 927991A FLYWHEEL MAGNETO ASSY.

FOR W/O EPS

1 € 249,92 € 302
ON REQUEST
06.2A STATOR ASSY. (Item nr. 06-2A) 926892A STATOR ASSY.

FOR W/EPS

1 € 160 € 194
IN STOCK
06A 926891A FLYWHEEL MAGNETO ASSY.

FOR W/EPS

1 € 252,40 € 305
ON REQUEST
13.2 SPRING, SWITCH, GEAR SELECT (Item nr. 13-2) 925858 SPRING, SWITCH, GEAR SELECT  2 € 2,40 € 3
IN STOCK
13.1 CONTACT, SWITCH, GEAR SELECT (Item nr. 13-1) 924246 CONTACT, SWITCH, GEAR SELECT  2 € 3,22 € 4
IN STOCK
12 BOLT, FLANGE 6X25 (Item nr. 12) S24605 BOLT, FLANGE 6X25  2 € 2,40 € 3
IN STOCK
03 IGNITION COIL, F. CYN. (Item nr. 03) 910715M-8 IGNITION COIL, F. CYN.  1 € 100,08 € 121
IN STOCK
04 SCREW, SOCKET HEAD M4X25 (Item nr. 04) S70402 SCREW, SOCKET HEAD M4X25  2 € 2,40 € 3
IN STOCK
05 SCREW, SOCKET HEAD M6x20 (Item nr. 05) S70607 SCREW, SOCKET HEAD M6x20  4 € 2,40 € 3
IN STOCK
06.1 ROTOR ASSY (Item nr. 06-1) 926715 ROTOR ASSY  1 € 129,59 € 157
ON THE WAY
06.2 STATOR ASSY. (Item nr. 06-2) 927995A STATOR ASSY.

FOR W/O EPS

1 € 160,66 € 194
ON THE WAY
06.2.1 FIXING PLATE (Item nr. 06-2-1) 925809 FIXING PLATE  1 € 3,55 € 4
IN STOCK
06.2.2 BOLT, FLANGE M6X36 (Item nr. 06-2-2) S99616 BOLT, FLANGE M6X36  3 € 2,40 € 3
IN STOCK
07 BOLT (Item nr. 07) S70811 BOLT  6 € 2,40 € 3
IN STOCK
10 SCREW OVAL HEAD M5X10 (Item nr. 10) S13502 SCREW OVAL HEAD M5X10  3 € 2,40 € 3
IN STOCK
11 R/B 926799Y STARTING MOTOR (Item nr. 11) 926799 R/B 926799Y STARTING MOTOR  1 € 213,88 € 259
ON REQUEST
13 GEAR SENSOR ASSY (Item nr. 13) 926851 GEAR SENSOR ASSY  1 € 39,09 € 47
IN STOCK
Product Code TGB_3_110_FTH-JDLE
PARTS CATEGORY: ELECTRICAL PARTS
Select BRAND: TGB
Select TYPE: BLADE 600LTX
Select MODEL: BLADE 600LTX T3b
