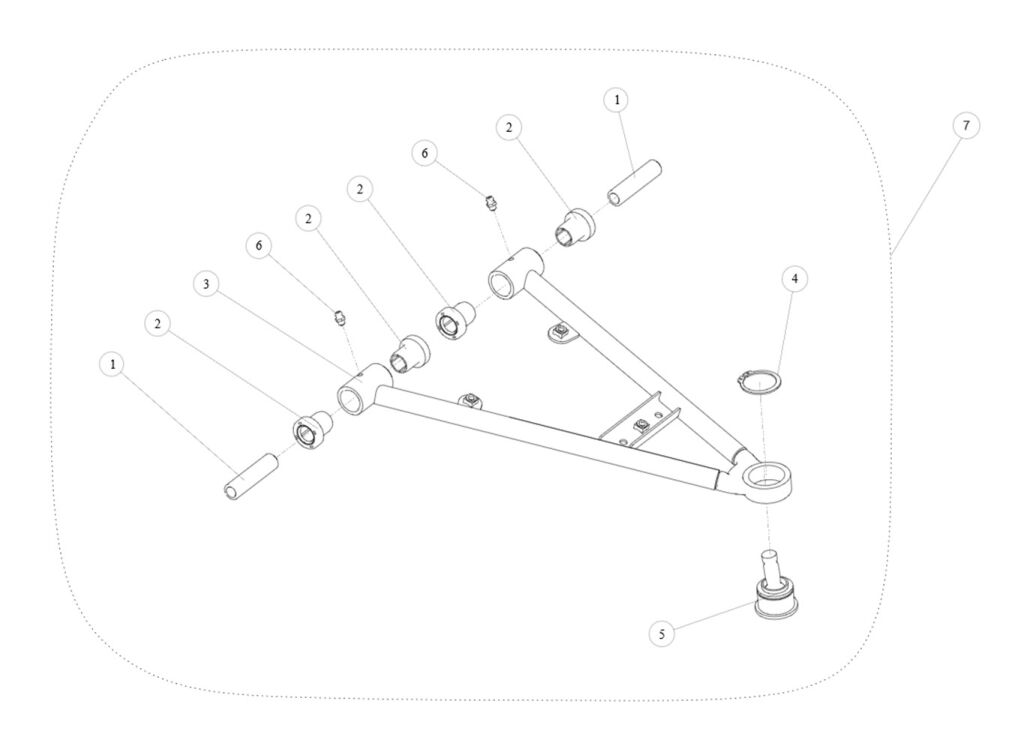

Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 FRONT ARM TUBE (Item nr. 1) U01D11002001 FRONT ARM TUBE  2 € 2,15 € 3
ON REQUEST

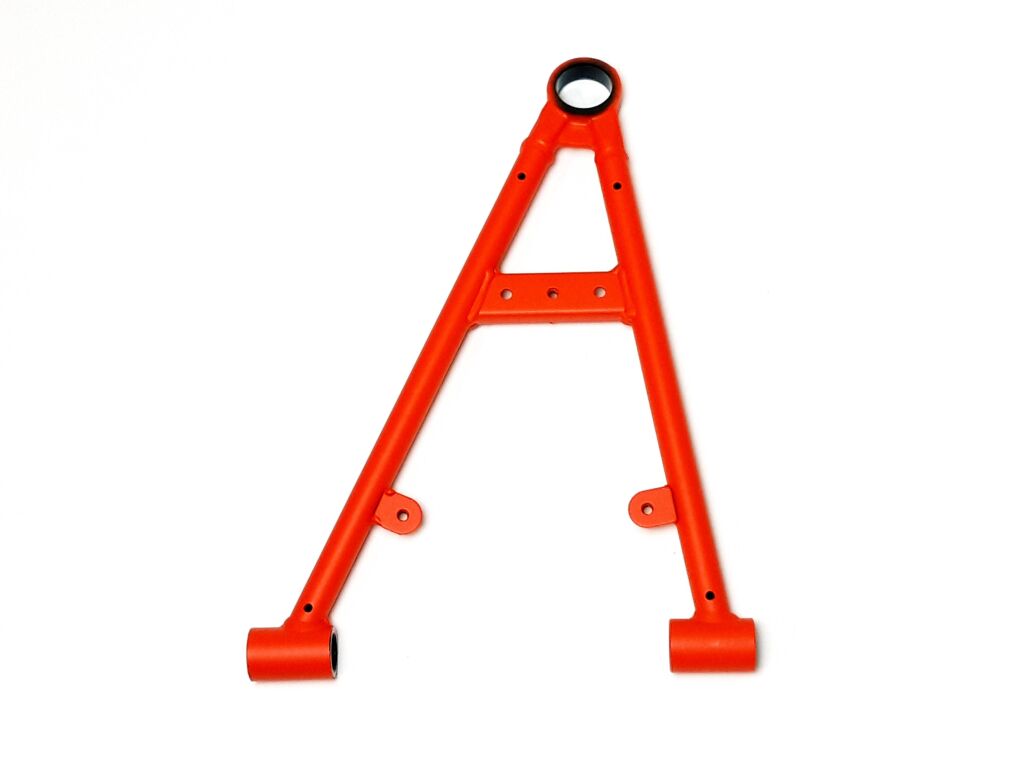

7.2 RED LOWER WELD ARM FR (Item nr. 7-2) A01D14002001 RED LOWER WELD ARM FR  1 € 84,38 € 102
IN STOCK

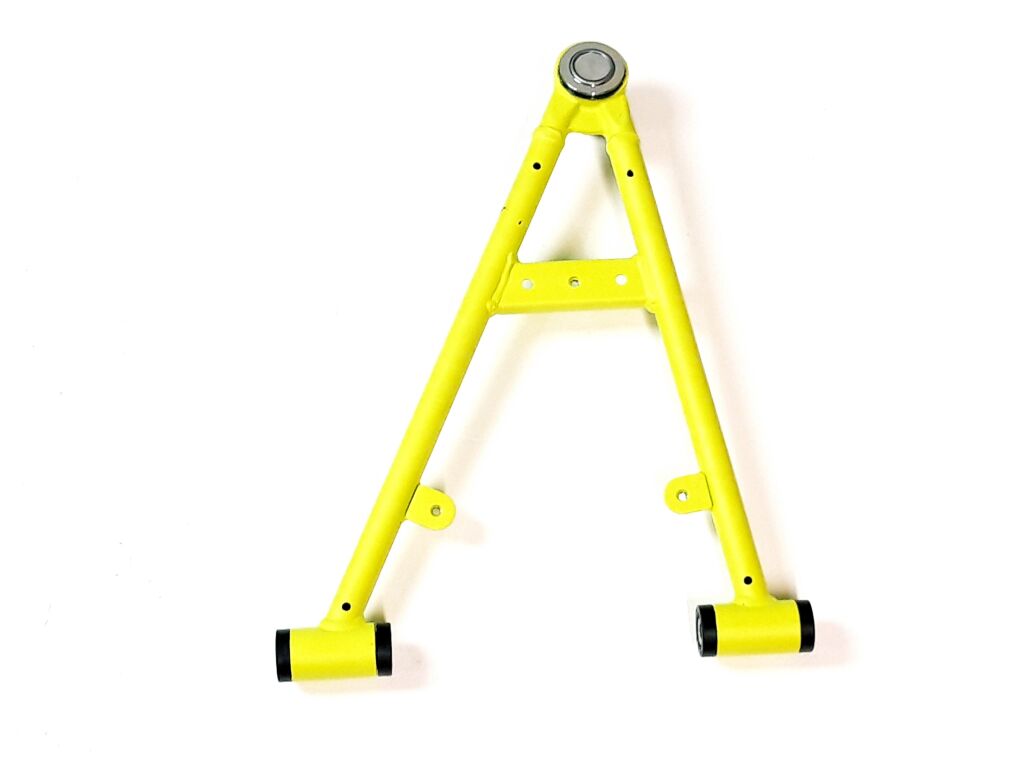

7.1 A01D14001001 PEAK GREEN LOWER WELD ARM FR  1 € 84,38 € 102
IN STOCK
6 Straight pressure oil cup (Item nr. 6) GBT001152001 Straight pressure oil cup  2 € 5,04 € 6
IN STOCK
5 MAIN PIN,LOWER (Item nr. 5) A01D12010001 MAIN PIN,LOWER  1 € 14,96 € 18
IN STOCK
4 A-RING,SNAP (Item nr. 4) GBT000894004 A-RING,SNAP  1 € 2,15 € 3
IN STOCK

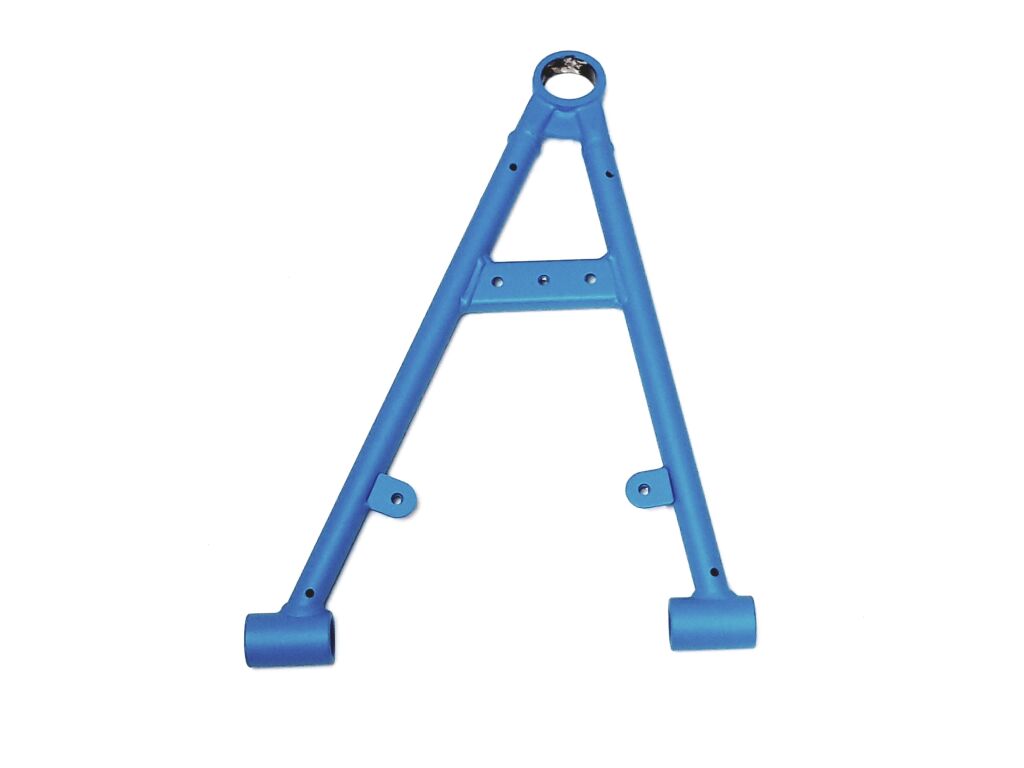

3.5 BLUE LOWER WELD ARM FR (Item nr. 3-5) A01D14104001 BLUE LOWER WELD ARM FR  1 € 75,54 € 91
ON REQUEST
3.3 RED LOWER WELD ARM FR (Item nr. 3-3) A01D14102001 RED LOWER WELD ARM FR  1 € 75,54 € 91
ON REQUEST
3.2 A01D14101001 PEAK GREEN LOWER WELD ARM FR  1 € 75,54 € 91
IN STOCK IN 6 days
2 FRONT ARM TUBE (Item nr. 2) U01D11001001 FRONT ARM TUBE  4 € 5,95 € 7
IN STOCK
7.3 BLUE LOWER WELD ARM FR (Item nr. 7-3) A01D14004001 BLUE LOWER WELD ARM FR  1 € 84,38 € 102
IN STOCK
Product Code SGW_2_255_ATV570F-A2
PARTS CATEGORY: FRAME PARTS
Select BRAND: SEGWAY
Select TYPE: AT6
Select MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
