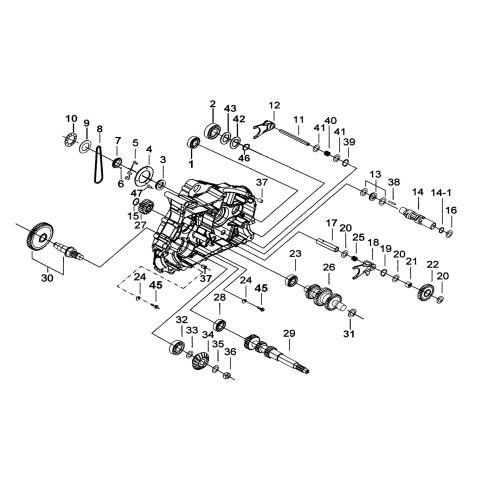

L CRANK CASE ( 2 )

TGB
Manufacturer: TGB
Product Code: TGB_1_112_FBH-JJDLE
Select MODEL:
BLADE 600LTX MAX E5
Item nr. Pic. Part nr. Description Count in the table Price for 1 pc Availability
47 PIN (Item nr. 47) 927401 PIN  1 € 3,55 € 4,30
IN STOCK
33B SHIM 24X48X0.3T (Item nr. 33B) W99415 SHIM 24X48X0.3T  1 € 2,40 € 2,90
IN STOCK
33A SHIM 24X48X0.5T (Item nr. 33A) W99414 SHIM 24X48X0.5T  1 € 2,40 € 2,90
IN STOCK
33 SHIM 24X48X1T (Item nr. 33) W99413 SHIM 24X48X1T  2 € 2,40 € 2,90
IN STOCK
32 BEARING ?35X?72X17 (Item nr. 32) 924066 BEARING ?35X?72X17  1 € 35,95 € 43,50
IN STOCK
31 WASHER (Item nr. 31) W99012 WASHER  1 € 2,40 € 2,90
IN STOCK
30 925307B OUTPUT COUNTERSHAFT ASSY.(41T)  1
ON REQUEST
Detail
29 925558Y SHAFT, TRANSMISSION(26T)  1
ON REQUEST
Detail
28 BEARING 20X47X14 (Item nr. 28) 924114 BEARING 20X47X14  1 € 33,97 € 41,10
ON THE WAY
27 GEAR(20T) (Item nr. 27) 925305 GEAR(20T)  1 € 47,44 € 57,40
IN STOCK
26 GEAR COMP, TRANSMISSION(31T) (Item nr. 26) 925165 GEAR COMP, TRANSMISSION(31T)  1 € 270,08 € 326,80
IN STOCK
33C SHIM 24X48X0.05T (Item nr. 33C) W99417 SHIM 24X48X0.05T  1 € 2,40 € 2,90
IN STOCK
34 GEAR, SEC DRIVE BEVEL(17T) (Item nr. 34) 924203 GEAR, SEC DRIVE BEVEL(17T)  1 € 41,32 € 50
IN STOCK
35 SHIM (Item nr. 35) W99304 SHIM  1 € 2,40 € 2,90
IN STOCK
46 O RING (Item nr. 46) 925746 O RING  1 € 4,63 € 5,60
IN STOCK
45 SCREW M6 (Item nr. 45) S46603 SCREW M6  2 € 2,40 € 2,90
IN STOCK
43 WASHER 0.2t (Item nr. 43) W99437 WASHER 0.2t  1 € 3,31 € 4
IN STOCK
42 RETAINING PLATE (Item nr. 42) 927400B RETAINING PLATE  1 € 10,66 € 12,90
IN STOCK
41 WASHER (Item nr. 41) W99015 WASHER  2 € 2,40 € 2,90
IN STOCK
40 FORK SPRING (Item nr. 40) 924700 FORK SPRING  1 € 2,40 € 2,90
IN STOCK
39 "C" RING (Item nr. 39) 924149 "C" RING  1 € 2,40 € 2,90
IN STOCK
38 PIN, DOWEL (Item nr. 38) 924645 PIN, DOWEL  1 € 3,80 € 4,60
IN STOCK
37 PIN, DOWEL (Item nr. 37) P40301 PIN, DOWEL  2 € 2,40 € 2,90
IN STOCK
36 NUT, HEX HEAD (Item nr. 36) N33803 NUT, HEX HEAD  1 € 7,19 € 8,70
IN STOCK
25 SPRING, FORK (Item nr. 25) 924699 SPRING, FORK  1 € 2,89 € 3,50
IN STOCK
24 CHUCK, BEARING (Item nr. 24) 924185 CHUCK, BEARING  2 € 2,40 € 2,90
IN STOCK
11 924235 FORK POLE  1 € 6,36 € 7,70
ON REQUEST
10 WASHER (Item nr. 10) 924366 WASHER  1 € 2,40 € 2,90
IN STOCK
09 WASHER (Item nr. 09) 924718 WASHER  1 € 6,20 € 7,50
ON REQUEST
08 CHAIN, WATER PUMP (Item nr. 08) 924351 CHAIN, WATER PUMP  1 € 32,23 € 39
IN STOCK
07 CHAIN WHEEL WATER PUMP. (Item nr. 07) D9900071 CHAIN WHEEL WATER PUMP.  1 € 24,88 € 30,10
IN STOCK
06 PIN, DOWEL (Item nr. 06) P30303 PIN, DOWEL  1 € 2,40 € 2,90
IN STOCK
05 SCREW (Item nr. 05) S46601 SCREW  3 € 2,40 € 2,90
IN STOCK
04 RETAINER, CRANK CASE LH (Item nr. 04) 925664 RETAINER, CRANK CASE LH  1 € 8,51 € 10,30
IN STOCK
03 OIL SEAL ?34X?52X6 (Item nr. 03) 924068 OIL SEAL ?34X?52X6  1 € 14,96 € 18,10
IN STOCK
02 BEARING (Item nr. 02) 927398 BEARING  1 € 58,93 € 71,30
IN STOCK
12 FORK (Item nr. 12) 924237 FORK  1 € 41,65 € 50,40
IN STOCK
13 THRUST BEARING (Item nr. 13) 924364 THRUST BEARING  1 € 15,54 € 18,80
IN STOCK
14 927374 CAM ASSY.GEAR SHAFT  1 € 96,28 € 116,50
ON REQUEST
23 BEARING?25x52x15 (Item nr. 23) 924182 BEARING?25x52x15  1 € 19,50 € 23,60
IN STOCK
22 IDLER GEAR(28T) (Item nr. 22) 925052 IDLER GEAR(28T)  1 € 32,81 € 39,70
IN STOCK
21 BEARING?17x?24x15 (Item nr. 21) 924643 BEARING?17x?24x15  1 € 24,21 € 29,30
IN STOCK
20 WASHER?17X30X1t (Item nr. 20) W99709 WASHER?17X30X1t  3 € 2,40 € 2,90
IN STOCK
19 “C” CLIP (Item nr. 19) R00501 “C” CLIP  1 € 2,40 € 2,90
IN STOCK
18 FORK, REVERSE GEAR (Item nr. 18) 924636 FORK, REVERSE GEAR  1 € 32,73 € 39,60
IN STOCK
17 SHAFT, REVERSE GEAR (Item nr. 17) 924186 SHAFT, REVERSE GEAR  1 € 12,56 € 15,20
IN STOCK
16 SHIM, REVERSE SHAFT (Item nr. 16) W99517 SHIM, REVERSE SHAFT  1 € 2,40 € 2,90
IN STOCK
15 “C” CLIP, REVERSE GEAR (Item nr. 15) R00206 “C” CLIP, REVERSE GEAR  1 € 2,40 € 2,90
IN STOCK
14.1 “C” CLIP, REVERSE GEAR (Item nr. 14-1) R00206 “C” CLIP, REVERSE GEAR  5 € 2,40 € 2,90
IN STOCK
01 BEARING (Item nr. 01) 927315 BEARING  1 € 39,26 € 47,50
IN STOCK
