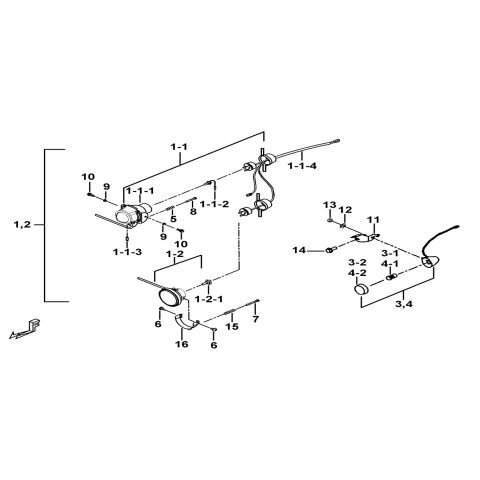

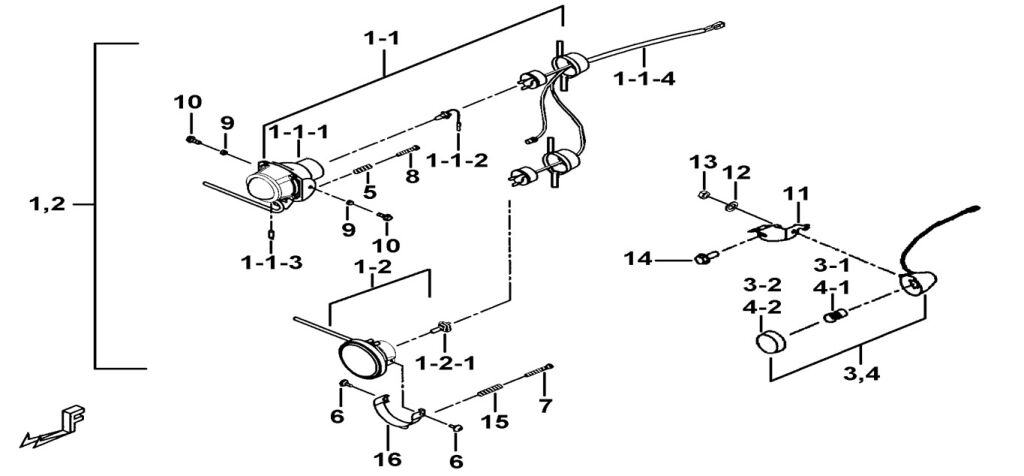

HEAD LAMP ASSY.

TGB
  • Manufacturer  TGB
  • Product Code  TGB_3_202_FBG-D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 HEAD LAMP ASSY LH (Item nr. 01) 511776 HEAD LAMP ASSY LH  1 € 149,50 € 181
IN STOCK
05 511725 SPRING  2 € 2,15 € 3
ON REQUEST
06 511721 BOLT  4 € 2,15 € 3
ON REQUEST
07 S46507 BOLT M5X40L  2 € 2,98 € 4
ON REQUEST
08 S46505 BOLT  2 € 2,15 € 3
ON REQUEST
09 512431 SPACER  4 € 2,15 € 3
ON REQUEST
10 BOLT, FLANGE (Item nr. 10) S07601 BOLT, FLANGE  4 € 2,40 € 3
IN STOCK
11 511727 BRKT.  2 € 2,15 € 3
ON REQUEST
12 WASHER, SPRING (Item nr. 12) W10501 WASHER, SPRING  2 € 2,40 € 3
IN STOCK

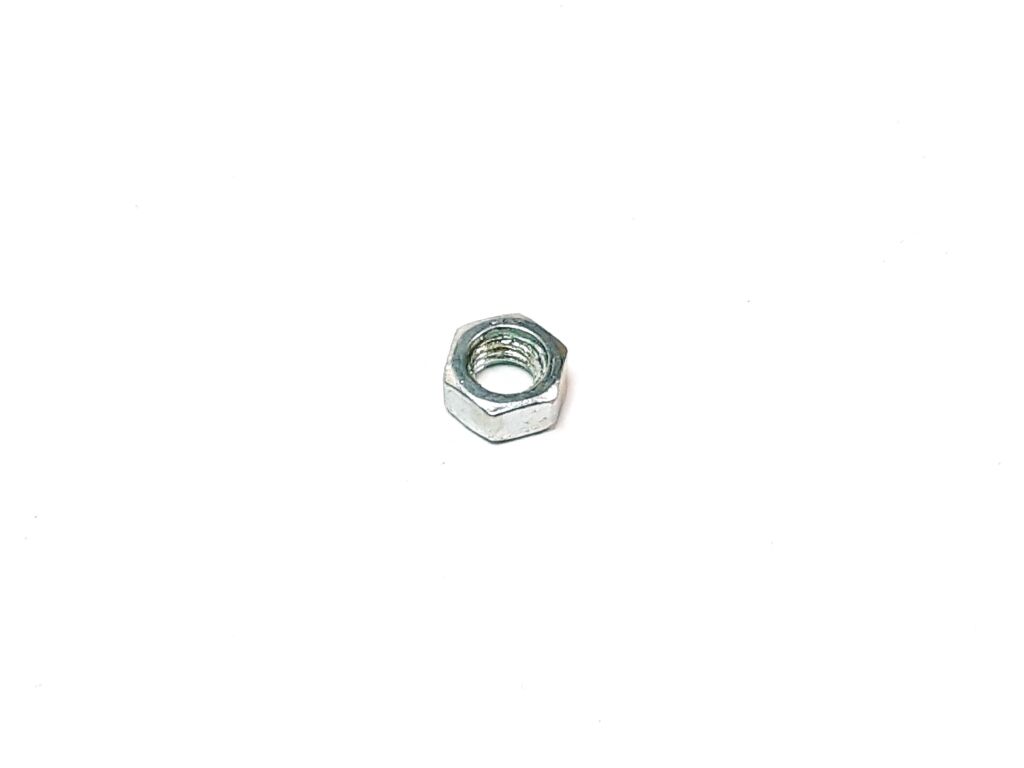

13 NUT, FLANGE M5 (Item nr. 13) GA552NT05 NUT, FLANGE M5  2 € 2,40 € 3
IN STOCK
14 SCREW, OVAL HEAD, TAPPING M5X14 (Item nr. 14) S57501 SCREW, OVAL HEAD, TAPPING M5X14  2 € 2,40 € 3
IN STOCK
15 511760 SPRING  2 € 6,03 € 7
ON REQUEST

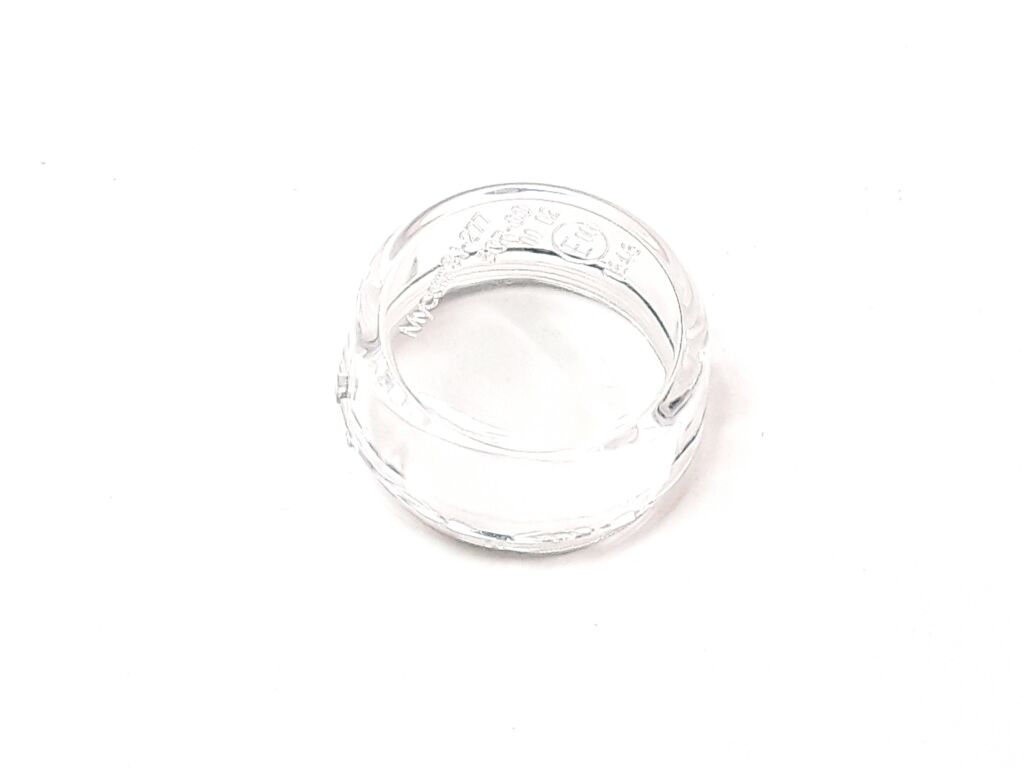

04.2 LENS, TURN SIGNAL, RH (Item nr. 04-2) 515253 LENS, TURN SIGNAL, RH  1 € 13,22 € 16
IN STOCK

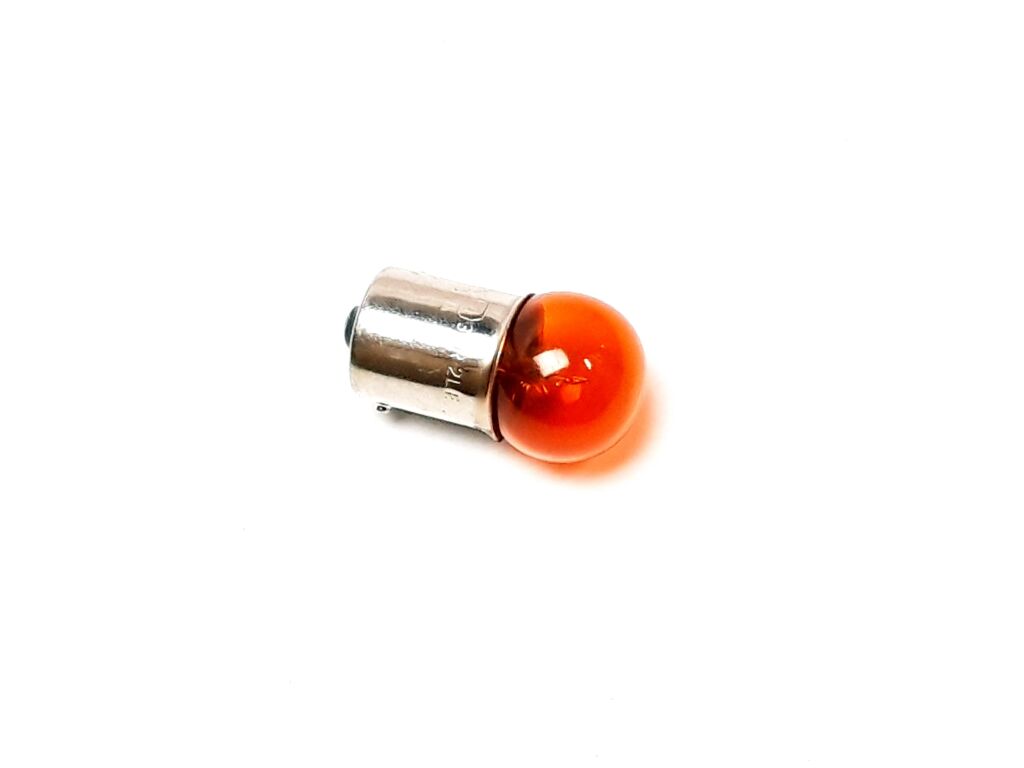

04.1 BULB (Item nr. 04-1) 514030 BULB  1 € 3,80 € 5
IN STOCK

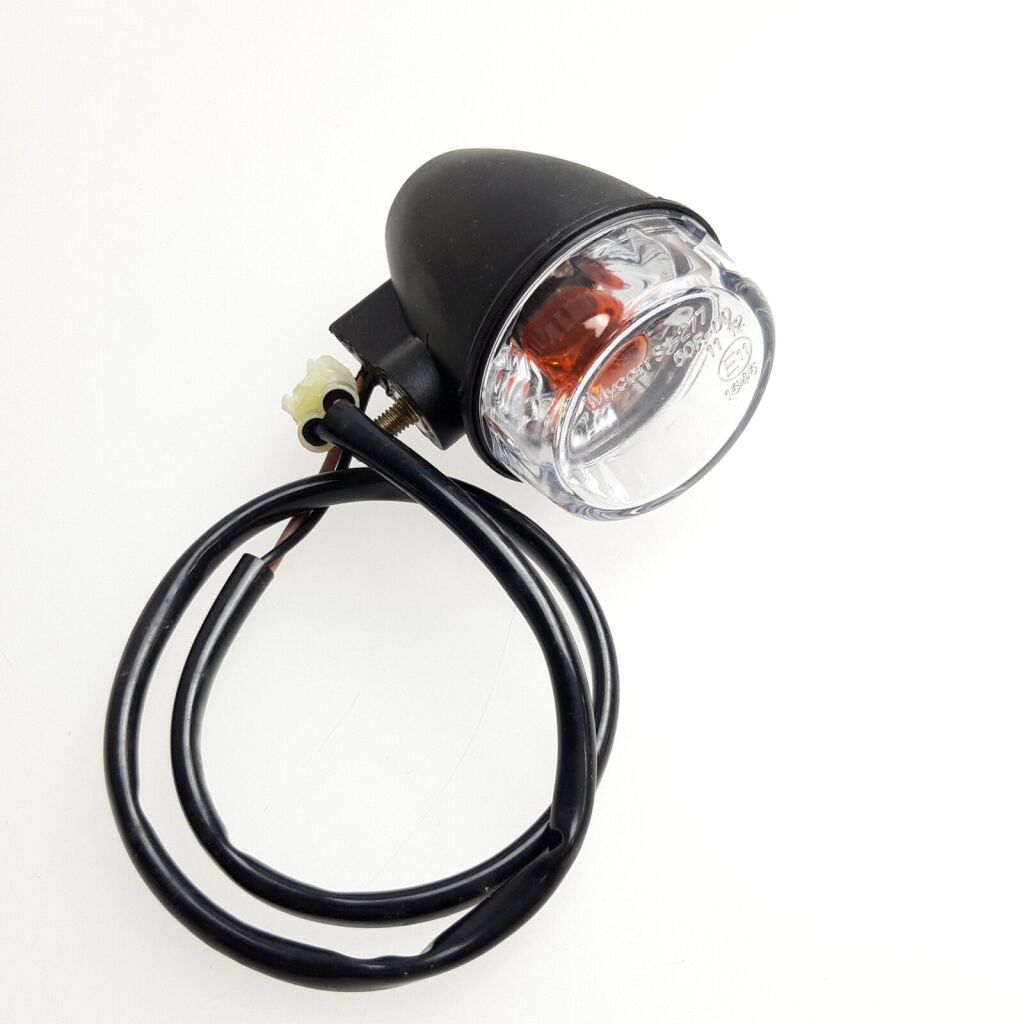

04 TURN SIGNAL LAMP COMP, RH (Item nr. 04) 511754 TURN SIGNAL LAMP COMP, RH  1 € 36,45 € 44
IN STOCK

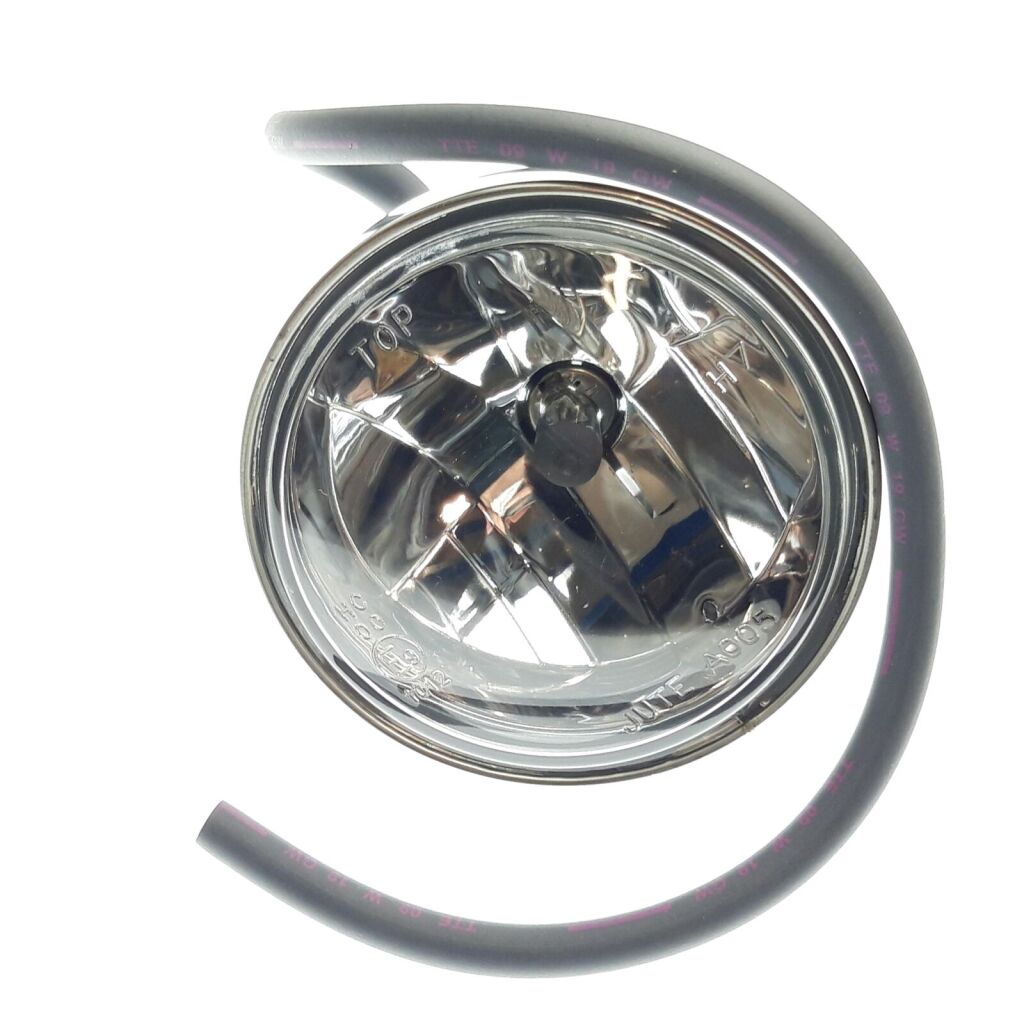

01.1 MAIN-BEAM HEAD LAMP COMP., LH & RH (Item nr. 01-1) 515323 MAIN-BEAM HEAD LAMP COMP., LH & RH  1 € 130,33 € 158
IN STOCK
01.1.1 MAIN BEAM (Item nr. 01-1-1) 515004 MAIN BEAM  1 € 83,97 € 102
IN STOCK
01.1.2 BULB (Item nr. 01-1-2) 450058 BULB  1 € 5,21 € 6
IN STOCK
01.1.3 BULB (Item nr. 01-1-3) 514026 BULB  1 € 4,13 € 5
IN STOCK

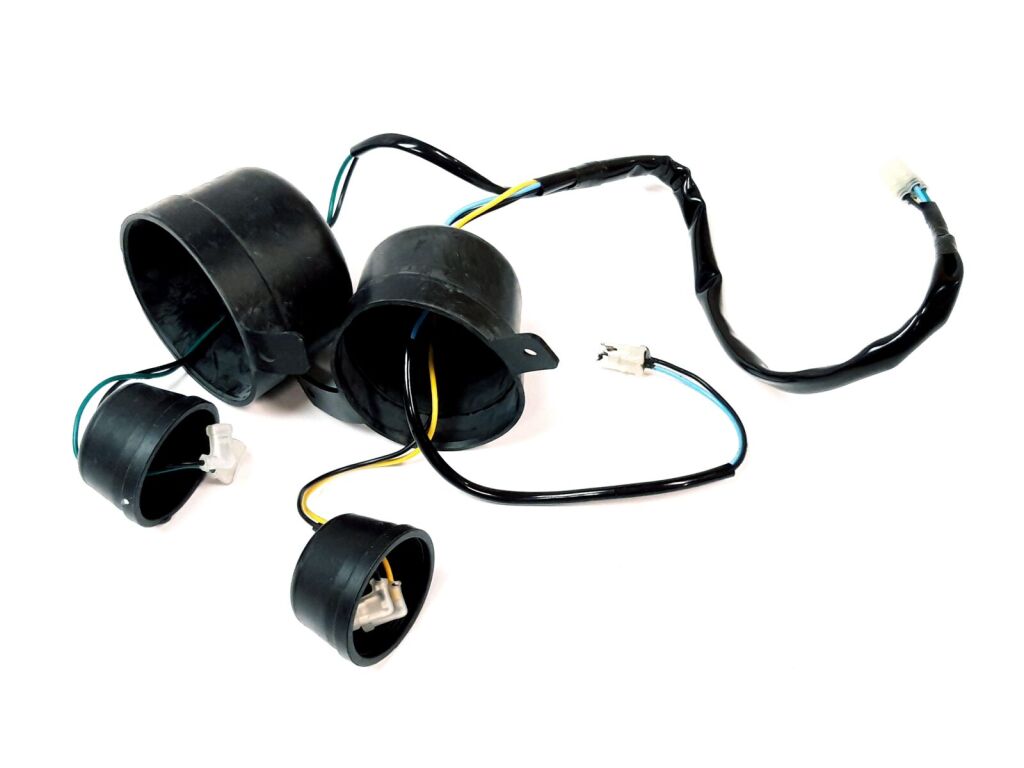

01.1.4 WIRING ASSY, HEAD LAMP (Item nr. 01-1-4) 515043 WIRING ASSY, HEAD LAMP  1 € 19,92 € 24
IN STOCK
01.2 DIPPED-BEAN HEAD LAMP, LH a RH (Item nr. 01-2) 515322 DIPPED-BEAN HEAD LAMP, LH a RH  1 € 88,84 € 108
IN STOCK
01.2.1 BULB (Item nr. 01-2-1) 514029 BULB  1 € 37,44 € 45
IN STOCK
02 511777 HEAD LAMP ASSY. RH  1 € 190,17 € 230
ON REQUEST

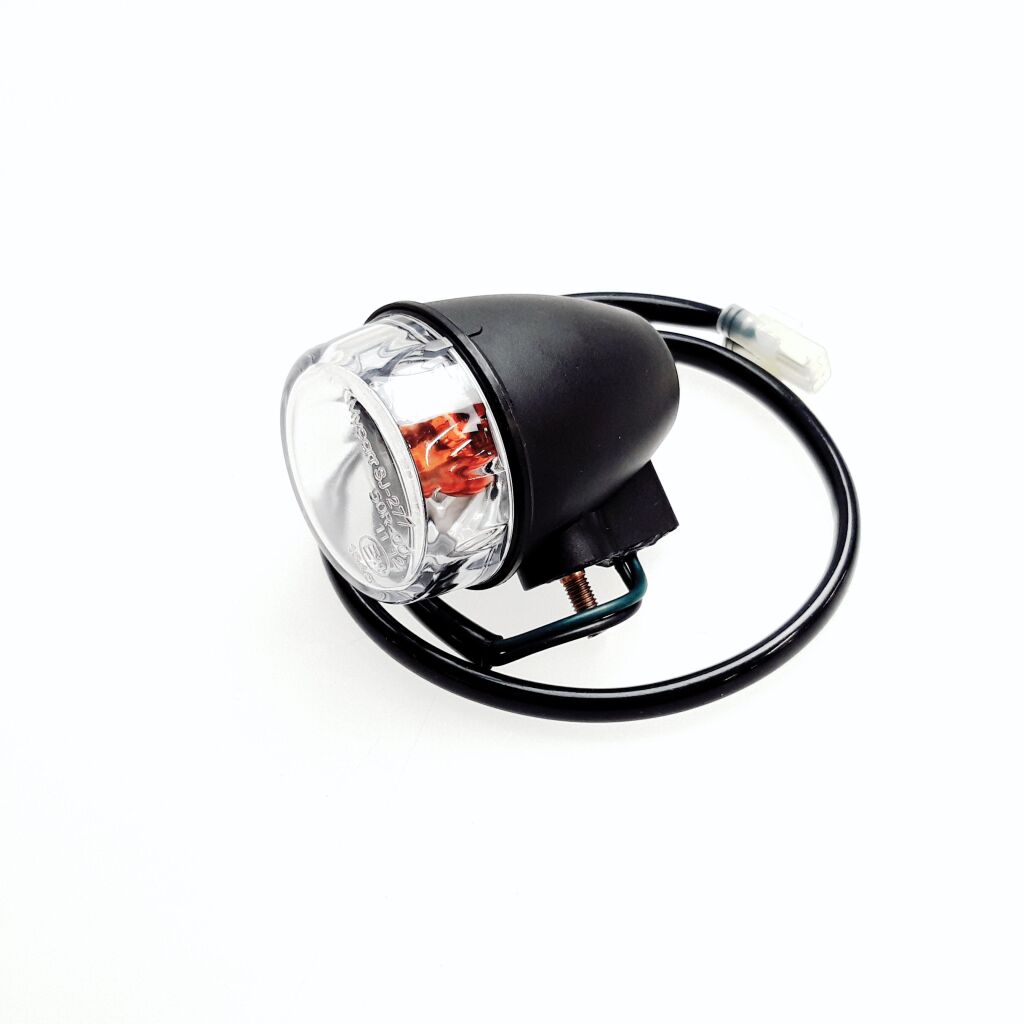

03 TURN SIGNAL LAMP COMP, LH (Item nr. 03) 511753 TURN SIGNAL LAMP COMP, LH  1 € 35,79 € 43
ON REQUEST
03.2 LENS, TURN SIGNAL (Item nr. 03-2) 515157 LENS, TURN SIGNAL  1 € 8,51 € 10
IN STOCK
16 511761 ADJUST SEAT  2 € 14,13 € 17
ON REQUEST
Product Code TGB_3_202_FBG-D
PARTS CATEGORY: ELECTRICAL PARTS
Select TYPE: BLADE 550
Select BRAND: TGB
Select MODEL: BLADE 550
