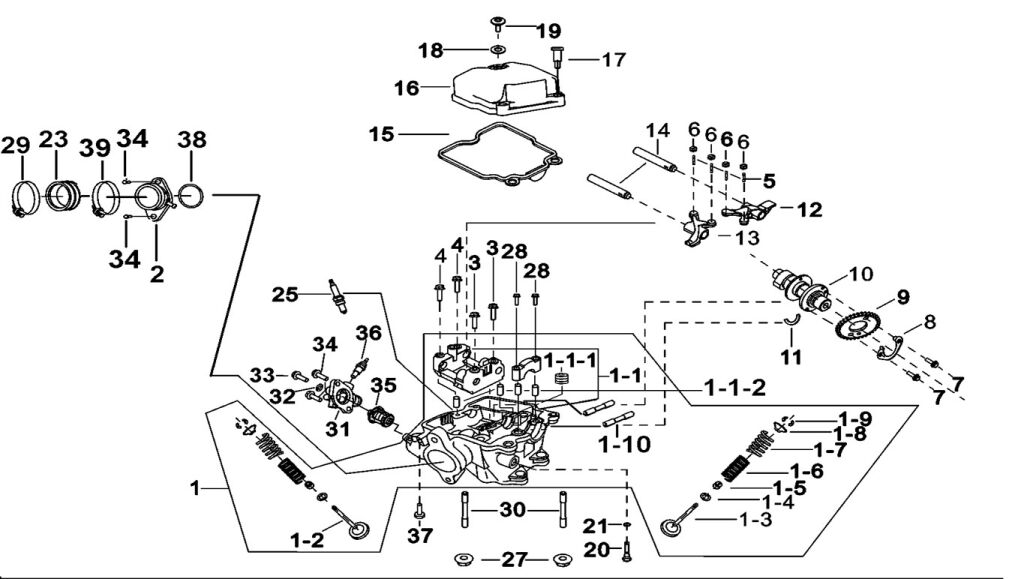

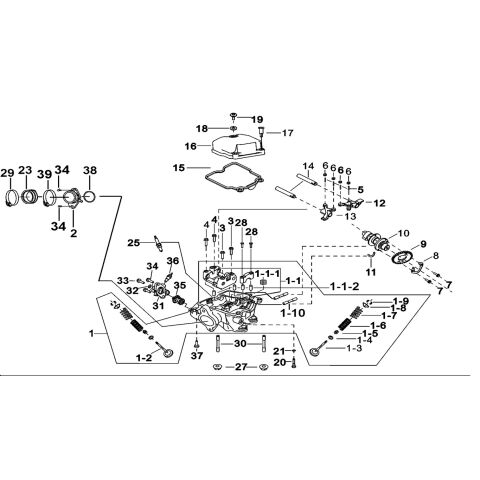

HEAD ASSY, CYLINDER

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_102_VSF
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
04A BOLT, FLANGE M6X60 (Item nr. 04A) S20625 BOLT, FLANGE M6X60

006892→

2 € 2,40 € 3
ON REQUEST
BOLT, FLANGE (Item nr. ) S20616 BOLT, FLANGE  € 2,15 € 3
IN STOCK
NUT,FLANGE 8mm (Item nr. ) N10801 NUT,FLANGE 8mm  € 4,79 € 6
IN STOCK
924090 SPARK PLUG (NGK CR7E)  € 23,88 € 29
ON REQUEST
RUBBER TUBE (CONTAIN CLIP) (Item nr. ) 927312-S RUBBER TUBE (CONTAIN CLIP)  € 18,18 € 22
IN STOCK
GASKET (Item nr. ) W99818 GASKET  € 2,40 € 3
IN STOCK
BOLT, CAM CHAIN TENSIONER (Item nr. ) S96806 BOLT, CAM CHAIN TENSIONER  € 2,40 € 3
IN STOCK
BOLT M7X23.5 (Item nr. ) 924018 BOLT M7X23.5  € 2,40 € 3
ON REQUEST
GASKET (Item nr. ) 924297 GASKET  € 2,40 € 3
IN STOCK
BOLT M7X31 (Item nr. ) 924019 BOLT M7X31  € 2,40 € 3
IN STOCK IN 6 days
HEAD, CYLINDER (Item nr. ) 924017 HEAD, CYLINDER  € 37,44 € 45
IN STOCK IN 6 days
CLAMP (Item nr. ) R66004 CLAMP  € 14,71 € 18
IN STOCK
STUD (Item nr. ) S95807 STUD  € 3,55 € 4
ON THE WAY
THERMOSTAT COVER (Item nr. ) 924088 THERMOSTAT COVER  € 22,40 € 27
ON REQUEST
01.1A 927330B HEAD COMP., CYLINDER

006892→

1 € 307,44 € 372
ON REQUEST
CLIP (Item nr. ) 926120 CLIP  € 10,25 € 12
IN STOCK
O-RING ?2x41.5 (Item nr. ) 924076 O-RING ?2x41.5  € 2,89 € 3
ON REQUEST
S77601 BOLT ,FLANGE  € 6,28 € 8
ON REQUEST
THERMISTOR M6X20 (Item nr. ) 924089 THERMISTOR M6X20  € 29,59 € 36
IN STOCK IN 6 days
THERMOSTAT (Item nr. ) 924294 THERMOSTAT  € 52,64 € 64
IN STOCK IN 6 days
SCREW, SOCKET HEAD M6x20 (Item nr. ) S24616 SCREW, SOCKET HEAD M6x20  € 4,79 € 6
IN STOCK
BOLT, FLANGE (Item nr. ) S96605 BOLT, FLANGE  € 2,15 € 3
IN STOCK
WASHER (Item nr. ) 925115 WASHER  € 2,40 € 3
IN STOCK
GASKET, CYLINDER HEAD (Item nr. ) 924016 GASKET, CYLINDER HEAD  € 15,21 € 18
IN STOCK IN 6 days
PIN, ROCKER ARM AXLE (Item nr. ) 927333 PIN, ROCKER ARM AXLE  € 21,57 € 26
IN STOCK
PIN, ROCKER ARM AXLE (Item nr. ) 924035 PIN, ROCKER ARM AXLE  € 11,24 € 14
IN STOCK
UPPER CUP (Item nr. ) 924027 UPPER CUP  € 5,45 € 7
ON REQUEST
SPRING, VALVE, OUTER (Item nr. ) 924026 SPRING, VALVE, OUTER  € 5,70 € 7
IN STOCK
SPRING, VALVE, INNER (Item nr. ) 924025 SPRING, VALVE, INNER  € 4,30 € 5
IN STOCK
SEAL, VALVE STEM (Item nr. ) 924024 SEAL, VALVE STEM  € 6,78 € 8
IN STOCK IN 6 days
LOWER CUP (Item nr. ) 924023 LOWER CUP  € 4,13 € 5
IN STOCK
VALVE, EXHAUST (Item nr. ) 924021 VALVE, EXHAUST  € 36,03 € 44
IN STOCK IN 6 days
VALVE, INTAKE (Item nr. ) 924020 VALVE, INTAKE  € 24,21 € 29
IN STOCK
S95808 STUD ?10.5  € 2,15 € 3
ON REQUEST
PIN, DOWEL (Item nr. ) P40803 PIN, DOWEL  € 2,40 € 3
IN STOCK
SCREW (Item nr. ) 927109 SCREW  € 7,52 € 9
IN STOCK
D9900002A HEAD COMP., CYLINDER  € 303,22 € 367
ON REQUEST
COTTER, VALVE (Item nr. ) 400093 COTTER, VALVE  € 2,40 € 3
IN STOCK
HEAD ASSY., CYLINDER (Item nr. ) 927341 HEAD ASSY., CYLINDER  € 337,44 € 408
IN STOCK

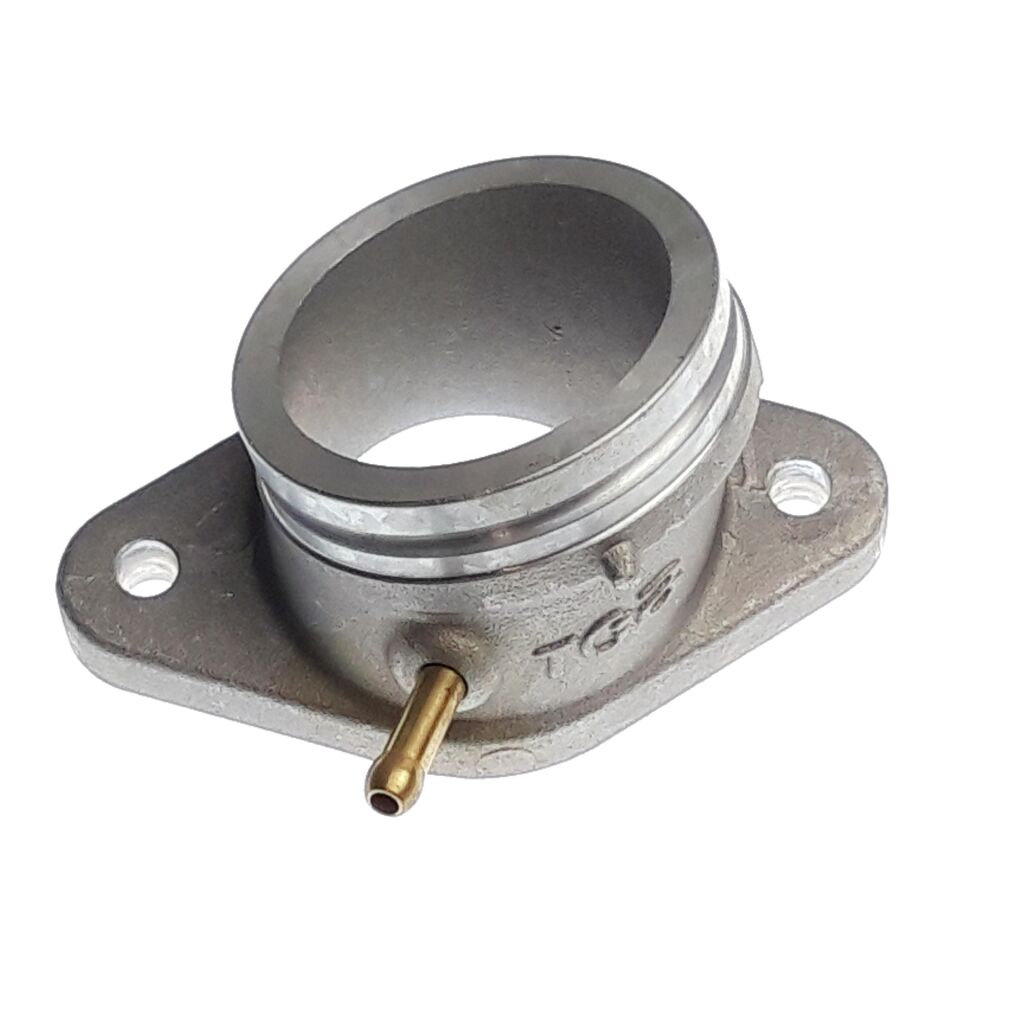

PIPE INTAKE (Item nr. ) D9900007 PIPE INTAKE  € 41,74 € 51
IN STOCK
ARM, VALVE ROCKER, IN (Item nr. ) 924034 ARM, VALVE ROCKER, IN  € 31,74 € 38
IN STOCK
ARM, VALVE ROCKER, EX (Item nr. ) 924033 ARM, VALVE ROCKER, EX  € 42,23 € 51
IN STOCK
“C” RING (Item nr. ) 924032 “C” RING  € 4,96 € 6
IN STOCK
CAM SHAFT SET (Item nr. ) 924994 CAM SHAFT SET  € 187,11 € 226
IN STOCK
TIMING SPROCKET 34T GB-69 (Item nr. ) 924036 TIMING SPROCKET 34T GB-69  € 20 € 24
IN STOCK IN 6 days
FIXING PLATE (Item nr. ) 924031 FIXING PLATE  € 2,40 € 3
IN STOCK IN 6 days
BOLT (Item nr. ) S99605 BOLT  € 2,40 € 3
IN STOCK
NUT, HEX (Item nr. ) N03501 NUT, HEX  € 2,40 € 3
IN STOCK
BOLT,ADJUSTING (Item nr. ) S06501 BOLT,ADJUSTING  € 2,40 € 3
IN STOCK
BOLT, FLANGE M6X45 (Item nr. ) S20615 BOLT, FLANGE M6X45  € 2,40 € 3
IN STOCK
BOLT, FLANGE M8X60 (Item nr. ) 927325 BOLT, FLANGE M8X60  € 2,73 € 3
IN STOCK
HEAD ASSY., CYLINDER (Item nr. ) D9900003 HEAD ASSY., CYLINDER  € 394,63 € 478
IN STOCK IN 6 days
Product Code TGB_1_102_VSF
PARTS CATEGORY: ENGINE PARTS
