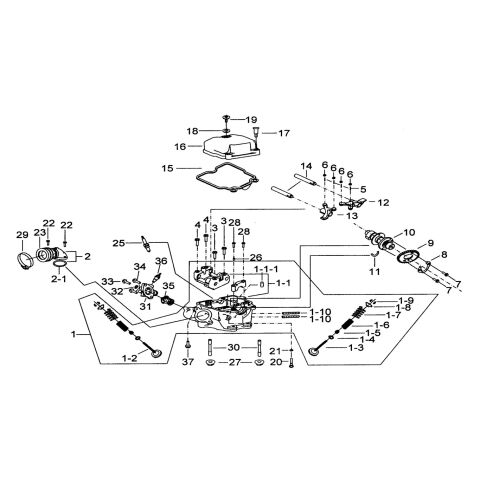

HEAD ASSY, CYLINDER

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_102_FBE
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
37 S77601 BOLT ,FLANGE  1 € 6,28 € 8
ON REQUEST
22 BOLT, FLANGE 6X25 (Item nr. 22) S24605 BOLT, FLANGE 6X25  2 € 2,40 € 3
IN STOCK
21 GASKET (Item nr. 21) W99818 GASKET  1 € 2,40 € 3
IN STOCK
20 BOLT, CAM CHAIN TENSIONER (Item nr. 20) S96806 BOLT, CAM CHAIN TENSIONER  1 € 2,40 € 3
IN STOCK
19 BOLT M7X23.5 (Item nr. 19) 924018 BOLT M7X23.5  1 € 2,40 € 3
ON REQUEST
18 GASKET (Item nr. 18) 924297 GASKET  1 € 2,40 € 3
IN STOCK
17 BOLT M7X31 (Item nr. 17) 924019 BOLT M7X31  2 € 2,40 € 3
IN STOCK IN 4 days
16 HEAD, CYLINDER (Item nr. 16) 924017 HEAD, CYLINDER  1 € 37,44 € 45
IN STOCK
15 GASKET, CYLINDER HEAD (Item nr. 15) 924016 GASKET, CYLINDER HEAD  1 € 15,21 € 18
ON THE WAY
14 PIN, ROCKER ARM AXLE (Item nr. 14) 924035 PIN, ROCKER ARM AXLE  2 € 11,24 € 14
IN STOCK
25 924090 SPARK PLUG (NGK CR7E)  1 € 23,88 € 29
ON REQUEST
26 PIN, DOWEL (Item nr. 26) P40803 PIN, DOWEL  4 € 2,40 € 3
IN STOCK
36 THERMISTOR M6X20 (Item nr. 36) 924089 THERMISTOR M6X20  1 € 29,59 € 36
IN STOCK
35 THERMOSTAT (Item nr. 35) 924294 THERMOSTAT  1 € 52,64 € 64
IN STOCK
34 SCREW, SOCKET HEAD M6x20 (Item nr. 34) S24616 SCREW, SOCKET HEAD M6x20  2 € 4,79 € 6
IN STOCK
33 BOLT, FLANGE (Item nr. 33) S96605 BOLT, FLANGE  1 € 2,15 € 3
IN STOCK
32 WASHER (Item nr. 32) 925115 WASHER  1 € 2,40 € 3
IN STOCK
31 THERMOSTAT COVER (Item nr. 31) 924088 THERMOSTAT COVER  1 € 22,40 € 27
ON REQUEST
30 STUD (Item nr. 30) S95807 STUD  2 € 3,55 € 4
IN STOCK
29 CLAMP (Item nr. 29) R66602 CLAMP  2 € 6,78 € 8
IN STOCK
28 BOLT, FLANGE (Item nr. 28) S20616 BOLT, FLANGE  2 € 2,15 € 3
IN STOCK
27 NUT,FLANGE 8mm (Item nr. 27) N10801 NUT,FLANGE 8mm  2 € 4,79 € 6
IN STOCK
13 ARM, VALVE ROCKER, IN (Item nr. 13) 924034 ARM, VALVE ROCKER, IN  1 € 31,74 € 38
IN STOCK
12 ARM, VALVE ROCKER, EX (Item nr. 12) 924033 ARM, VALVE ROCKER, EX  1 € 42,23 € 51
ON THE WAY
01.8 UPPER CUP (Item nr. 01-8) 924027 UPPER CUP  4 € 5,45 € 7
ON REQUEST
01.7 SPRING, VALVE, OUTER (Item nr. 01-7) 924026 SPRING, VALVE, OUTER  4 € 5,70 € 7
IN STOCK
01.6 SPRING, VALVE, INNER (Item nr. 01-6) 924025 SPRING, VALVE, INNER  4 € 4,30 € 5
IN STOCK
01.5 SEAL, VALVE STEM (Item nr. 01-5) 924024 SEAL, VALVE STEM  4 € 6,78 € 8
IN STOCK
01.4 LOWER CUP (Item nr. 01-4) 924023 LOWER CUP  4 € 4,13 € 5
IN STOCK
01.3 VALVE, EXHAUST (Item nr. 01-3) 924021 VALVE, EXHAUST  2 € 36,03 € 44
IN STOCK
01.2 VALVE, INTAKE (Item nr. 01-2) 924020 VALVE, INTAKE  2 € 24,21 € 29
IN STOCK
01.1.1 924336 SCREW  1 € 2,89 € 3
ON REQUEST
01.10 S95808 STUD ?10.5  2 € 2,15 € 3
ON REQUEST
01.9 COTTER, VALVE (Item nr. 01-9) 400093 COTTER, VALVE  8 € 2,40 € 3
ON THE WAY
02 PIPE ASSY, INTAKE (Item nr. 02) 924676 PIPE ASSY, INTAKE  1 € 26,28 € 32
ON REQUEST
11 “C” RING (Item nr. 11) 924032 “C” RING  1 € 4,96 € 6
ON THE WAY
10 CAM SHAFT SET (Item nr. 10) 925254 CAM SHAFT SET  1 € 187,60 € 227
ON REQUEST
09 TIMING SPROCKET 34T GB-69 (Item nr. 09) 924036 TIMING SPROCKET 34T GB-69  1 € 20 € 24
IN STOCK
08 FIXING PLATE (Item nr. 08) 924031 FIXING PLATE  1 € 2,40 € 3
IN STOCK
07 BOLT (Item nr. 07) S99605 BOLT  2 € 2,40 € 3
IN STOCK
06 NUT, HEX (Item nr. 06) N03501 NUT, HEX  4 € 2,40 € 3
IN STOCK
05 BOLT,ADJUSTING (Item nr. 05) S06501 BOLT,ADJUSTING  4 € 2,40 € 3
IN STOCK
04 BOLT, FLANGE M6X45 (Item nr. 04) S20615 BOLT, FLANGE M6X45  2 € 2,40 € 3
IN STOCK
03 BOLT, FLANGE M6X60 (Item nr. 03) S20614 BOLT, FLANGE M6X60  2 € 2,40 € 3
IN STOCK
02.1 O-RING ?2x41.5 (Item nr. 02-1) 924076 O-RING ?2x41.5  1 € 2,89 € 3
ON REQUEST
01 924602 HEAD ASSY., CYLINDER (unavailable)  1 € 315,79 € 382
ON REQUEST
Product Code TGB_1_102_FBE
PARTS CATEGORY: ENGINE PARTS
Select TYPE: BLADE 425
Select BRAND: TGB
Select MODEL: BLADE 425
