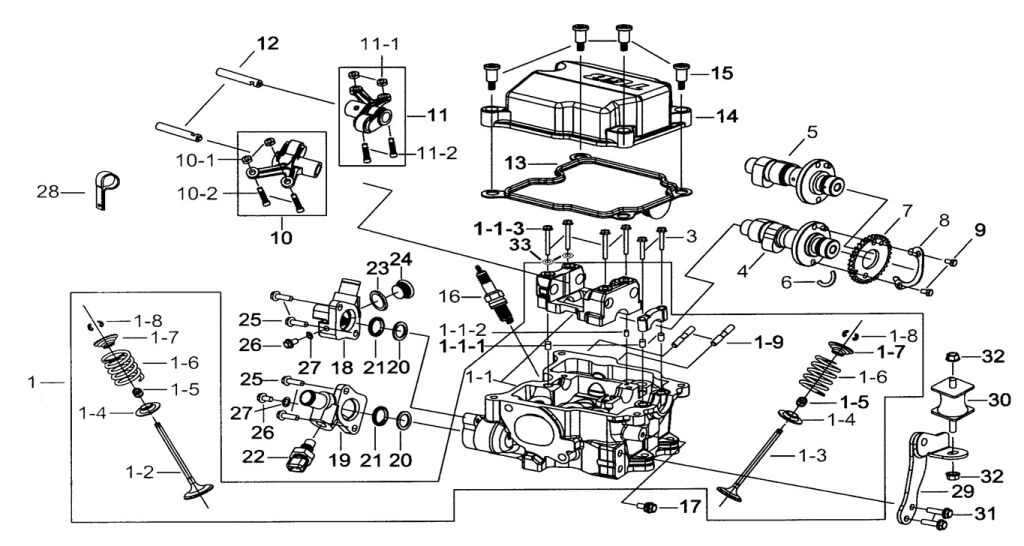

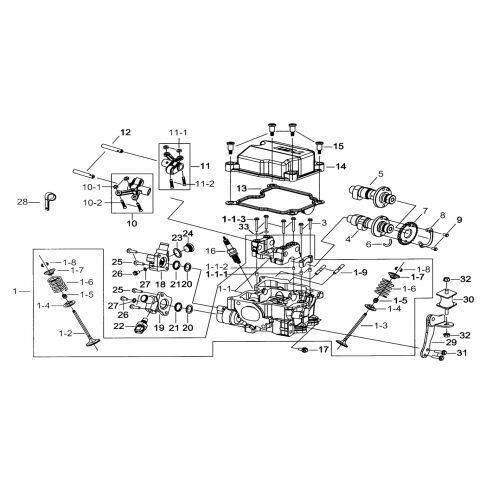

HEAD ASSY, CYLINDER(1)

TGB
  • Manufacturer  TGB
  • Product Code  TGB_1_102_EST-JJ
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
20 WASHER (Item nr. 20) 910343 WASHER  2 € 3,88 € 5
IN STOCK
19 THERMOSTAT COVER , REAR (Item nr. 19) 910466 THERMOSTAT COVER , REAR  1 € 31,32 € 38
IN STOCK
18 THERMOSTAT COVER , FRONT (Item nr. 18) 910464 THERMOSTAT COVER , FRONT  1 € 30,50 € 37
IN STOCK
17 S77601 BOLT ,FLANGE  1 € 6,28 € 8
ON REQUEST
16 910528 SPARK PLUG (NGK DCPR8E) (unavailable)  2 € 36,94 € 45
ON REQUEST
15 BOLT M7X31 (Item nr. 15) 924019 BOLT M7X31  8 € 2,40 € 3
IN STOCK
14 COVER, HEAD CYLINDER (Item nr. 14) 910289 COVER, HEAD CYLINDER  2 € 40,83 € 49
IN STOCK
13 R/B 912104 WASHER, CYLINDER HEAD (Item nr. 13) 911597 R/B 912104 WASHER, CYLINDER HEAD  2 € 17,69 € 21
ON THE WAY
12 ROCKER ARM SHAFT (Item nr. 12) 910420 ROCKER ARM SHAFT  4 € 58,02 € 70
IN STOCK
11.2 910219 BOLT, ADJUSTING  4 € 9,17 € 11
ON REQUEST
21 SEAL (Item nr. 21) 910398 SEAL  2 € 2,31 € 3
IN STOCK
22 COOLANT TEMPERATURE SENSOR (Item nr. 22) 926022Y COOLANT TEMPERATURE SENSOR  1 € 39,59 € 48
IN STOCK
32 N10804 NUT M8X1.25  2 € 2,15 € 3
ON REQUEST
31 BOLT, FLANGE (Item nr. 31) S20814 BOLT, FLANGE  2 € 2,40 € 3
IN STOCK
30 CUSHIONING BUSH (Item nr. 30) 910638 CUSHIONING BUSH  1 € 22,89 € 28
IN STOCK
29 BRACKET (Item nr. 29) 910497 BRACKET  1 € 13,97 € 17
IN STOCK
28 CLIP "P" (Item nr. 28) 924833 CLIP "P"  1 € 8,51 € 10
IN STOCK
27 911373 WASHER 8.5X14.5X1.15t  2 € 1,98 € 2
ON REQUEST
26 S96815 BOLT, FLANGE M8X12  2 € 2,56 € 3
ON REQUEST
25 SCREW, SOCKET HEAD M6x20 (Item nr. 25) S24616 SCREW, SOCKET HEAD M6x20  4 € 4,79 € 6
IN STOCK
24 SCREW (Item nr. 24) 924339 SCREW  1 € 5,79 € 7
IN STOCK
23 WASHER (Item nr. 23) W99639 WASHER  1 € 1,98 € 2
IN STOCK
11.1 910319 NUT, HEX  4 € 1,98 € 2
ON REQUEST
11 ROCKER ARM EXHAUST (Item nr. 11) 910268 ROCKER ARM EXHAUST  2 € 91,32 € 110
IN STOCK
01.7 910269 VALVE SPRING RETAINER  8 € 4,71 € 6
ON THE WAY
01.6 SPRING, VALVE (Item nr. 01-6) 910286 SPRING, VALVE  8 € 4,38 € 5
ON THE WAY
01.5 SEAL, VALVE STEM (Item nr. 01-5) 924024 SEAL, VALVE STEM  8 € 6,78 € 8
IN STOCK
01.4 TRUST WASHER (Item nr. 01-4) 910270 TRUST WASHER  8 € 3,22 € 4
IN STOCK
01.3 VALVE, EXHAUST (Item nr. 01-3) 910284 VALVE, EXHAUST  4 € 19,67 € 24
IN STOCK
01.2 VALVE, INTAKE (Item nr. 01-2) 910283 VALVE, INTAKE  4 € 9,50 € 11
ON REQUEST
01.1.3 BOLT, FLANGE M6X60 (Item nr. 01-1-3) S20625 BOLT, FLANGE M6X60  4 € 2,40 € 3
IN STOCK
01.1.2 P30502 PIN, DOWEL  2 € 1,98 € 2
ON REQUEST
01.1.1 PIN, DOWEL (Item nr. 01-1-1) P40803 PIN, DOWEL  6 € 2,40 € 3
IN STOCK
01.1 HEAD COMP., CYLINDER(INCLUDING PIN) (Item nr. 01-1) 910266A HEAD COMP., CYLINDER(INCLUDING PIN)  2 € 274,96 € 333
ON REQUEST
01.8 COTTER, VALVE (Item nr. 01-8) 400093 COTTER, VALVE  16 € 2,40 € 3
IN STOCK
01.9 S95808 STUD ?10.5  4 € 2,15 € 3
ON REQUEST
10 ROCKER ARM INLET (Item nr. 10) 910267 ROCKER ARM INLET  2 € 91,32 € 110
ON REQUEST
09 BOLT (Item nr. 09) S99605 BOLT  4 € 2,40 € 3
IN STOCK
08 FIXING PLATE (Item nr. 08) 924031 FIXING PLATE  2 € 2,40 € 3
IN STOCK
07 TIMING GEAR 42T (Item nr. 07) 910062 TIMING GEAR 42T  2 € 33,47 € 40
ON THE WAY
06 “C” RING (Item nr. 06) 924032 “C” RING  2 € 4,96 € 6
ON THE WAY
05 CAM SHAFT (B), REAR (Item nr. 05) 910282 CAM SHAFT (B), REAR  1 € 134,96 € 163
ON REQUEST
04 CAM SHAFT COMP (Item nr. 04) 910281 CAM SHAFT COMP  1 € 114,38 € 138
IN STOCK
03 BOLT, FLANGE (Item nr. 03) S20616 BOLT, FLANGE  4 € 2,15 € 3
IN STOCK
01 HEAD ASSY., CYLINDER (Item nr. 01) 910596 HEAD ASSY., CYLINDER  2 € 559,34 € 677
IN STOCK
Product Code TGB_1_102_EST-JJ
PARTS CATEGORY: ENGINE PARTS
Select BRAND: TGB
Select TYPE: BLADE 1000LTX
Select MODEL: BLADE 1000LTX MAX E5
