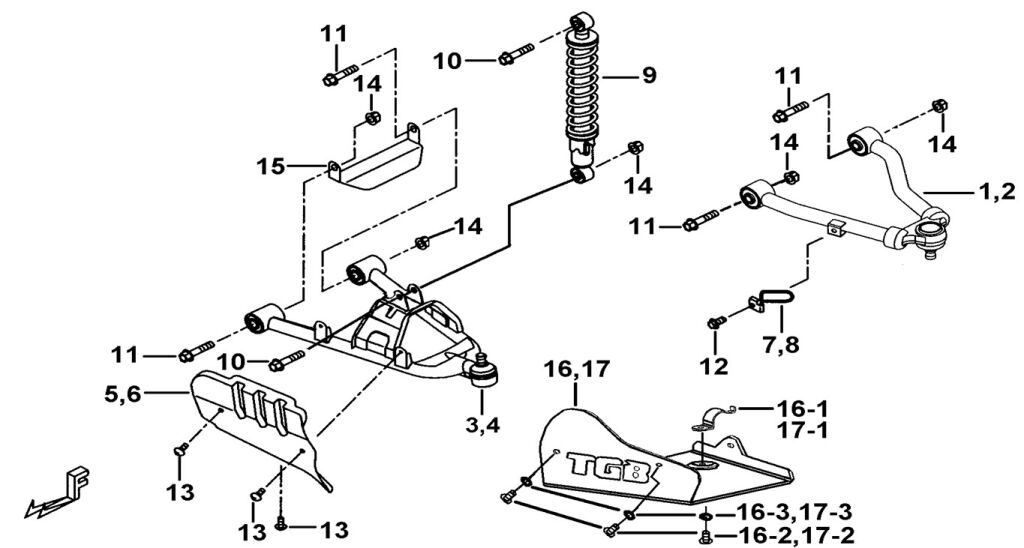

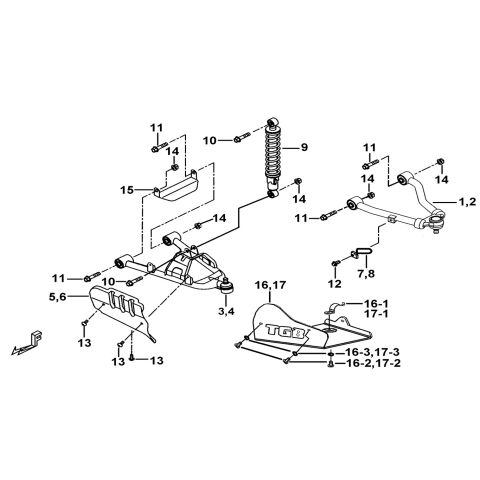

FRONT SUSPENSION

TGB
  • Manufacturer  TGB
  • Product Code  TGB_2_211_FBF-D
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 516311 ARM SET, UPPER, LH

←007046

1 € 178,68 € 216
ON REQUEST
11 BOLT, FLANGE (Item nr. 11) S20017 BOLT, FLANGE  8 € 2,40 € 3
IN STOCK
12 BOLT, FLANGE (Item nr. 12) S21605 BOLT, FLANGE  2 € 2,40 € 3
IN STOCK
13 BOLT, FLANGE (Item nr. 13) S07601 BOLT, FLANGE  6 € 2,40 € 3
IN STOCK
14 NUT, SELF LOCK (Item nr. 14) GA551NT01 NUT, SELF LOCK  10 € 2,40 € 3
ON THE WAY
15 STEEL PROTECTOR (Item nr. 15) 511951 STEEL PROTECTOR  1 € 4,88 € 6
IN STOCK
16 511405A ALLOY A ARMS PROTECTIONS (LH)

OPTION

1 € 95,95 € 116
ON REQUEST
16.1 513363 ANCHOR PLATE

OPTION

1 € 5,79 € 7
ON REQUEST
16.2 SCREW, FLANGE, HEX HEAD (Item nr. 16-2) S20603 SCREW, FLANGE, HEX HEAD

OPTION

3 € 2,40 € 3
IN STOCK
16.3 WASHER (Item nr. 16-3) GA555WS02 WASHER

OPTION

3 € 2,40 € 3
IN STOCK
17 511406A ALLOY A ARMS PROTECTIONS (RH)

OPTION

1 € 95,95 € 116
ON REQUEST
10 BOLT, FLANGE, HEX HEAD M10X1,25x48L (Item nr. 10) S20009 BOLT, FLANGE, HEX HEAD M10X1,25x48L  4 € 5,54 € 7
ON THE WAY

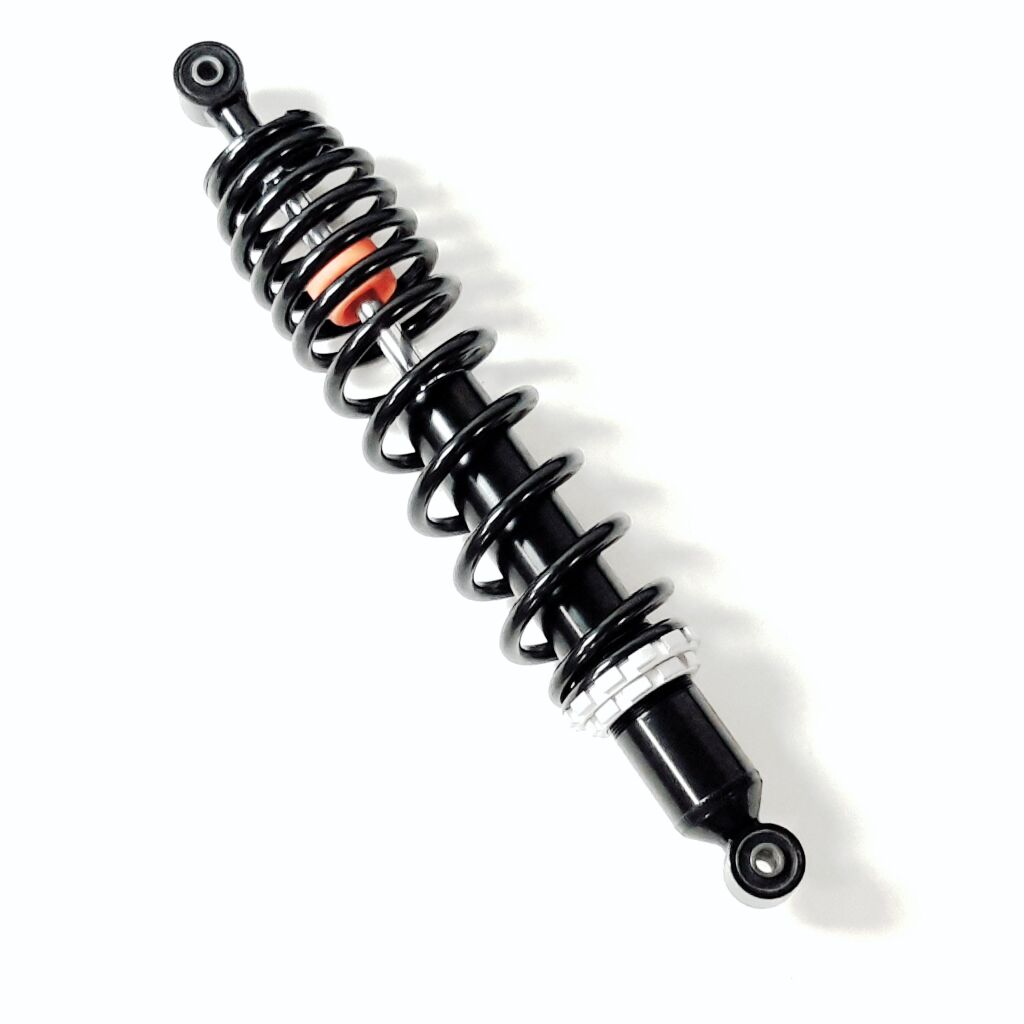

09A SHOCK ABSORBER ASSY., FRONT (Item nr. 09A) 513346 SHOCK ABSORBER ASSY., FRONT

007047→

2 € 273,47 € 331
IN STOCK
01A R/B 511107Y ARM SET, UPPER, LH. (FRONT) (Item nr. 01A) 511107 R/B 511107Y ARM SET, UPPER, LH. (FRONT)

007047→

1 € 135,54 € 164
ON REQUEST
02 ARM SET, UPPER, RH (Item nr. 02) 516312 ARM SET, UPPER, RH

←007046

1 € 168,60 € 204
ON REQUEST
02A R/B 511108Y ARM SET, UPPER, RH. (FRONT) (Item nr. 02A) 511108 R/B 511108Y ARM SET, UPPER, RH. (FRONT)

007047→

1 € 135,54 € 164
ON REQUEST

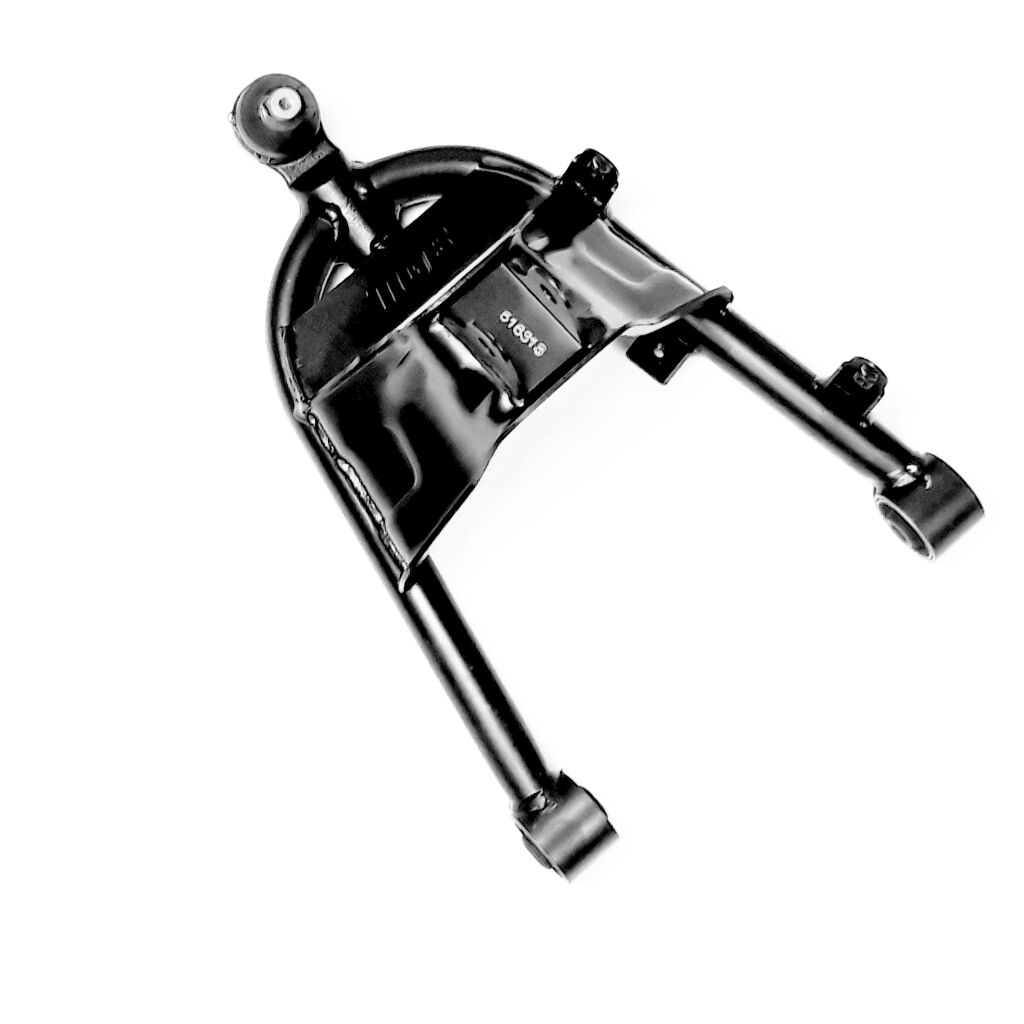

03 ARM SET, LOWER, LH (Item nr. 03) 516313 ARM SET, LOWER, LH

←007046

1 € 178,68 € 216
IN STOCK
03A R/B 516380Y ARM SET, LOWER, LH.(FRONT) (Item nr. 03A) 516380 R/B 516380Y ARM SET, LOWER, LH.(FRONT)

007047→

1 € 188,93 € 229
IN STOCK
04 516314 ARM SET, LOWER, RH (unavailable)

←007046

1 € 168,60 € 204
ON REQUEST
04A 516381 R/B 516363 ARM SET, LOWER, RH.(FRONT)

007047→

1 € 188,93 € 229
ON REQUEST
05 TGB PROTECTOR, COVER LH. (Item nr. 05) 516306 TGB PROTECTOR, COVER LH.  1 € 10,33 € 13
IN STOCK
06 TGB PROTECTOR, COVER RH. (Item nr. 06) 516307 TGB PROTECTOR, COVER RH.  1 € 10,33 € 13
IN STOCK
07 CLAMP (LH.) (Item nr. 07) 513329 CLAMP (LH.)  1 € 2,81 € 3
IN STOCK
08 CLAMP (RH.) (Item nr. 08) 513330 CLAMP (RH.)  1 € 2,73 € 3
IN STOCK
09 R/B 513346 SHOCK ABSORBER ASSY,FRONT (Item nr. 09) 513386 R/B 513346 SHOCK ABSORBER ASSY,FRONT

←007046

2 € 230,74 € 279
ON REQUEST
Product Code TGB_2_211_FBF-D
PARTS CATEGORY: FRAME PARTS
Select TYPE: BLADE 550
Select BRAND: TGB
Select MODEL: BLADE 550
