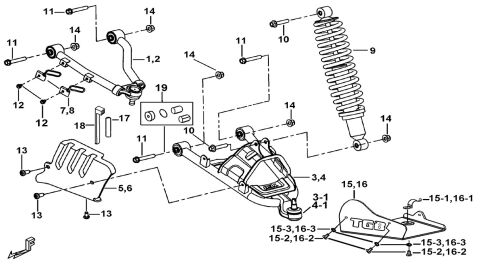

FRONT SUSPENSION

TGB
  • Manufacturer  TGB
  • Product Code  TGB_2_211_EST-J
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
01 R/B 511137Y ARM SET, UPPER, LH. (FRONT) (unavailable) (Item nr. 01) 511137 R/B 511137Y ARM SET, UPPER, LH. (FRONT) (unavailable)  1 € 168,76 € 204
ON REQUEST
14 NUT, SELF LOCK (Item nr. 14) GA551NT01 NUT, SELF LOCK  10 € 2,40 € 3
IN STOCK IN 4 days
15.1 513363 ANCHOR PLATE

OPTION

1 € 5,79 € 7
ON REQUEST
15.2 BOLT, FLANGE M6X1.0X20L (Item nr. 15-2) S21604 BOLT, FLANGE M6X1.0X20L

OPTION

3 € 2,15 € 3
IN STOCK
15.3 WASHER (Item nr. 15-3) GA555WS02 WASHER

OPTION

3 € 2,40 € 3
IN STOCK
18 CLAMP L200 (Item nr. 18) 518739 CLAMP L200  2 € 3,06 € 4
IN STOCK
19 ARM SET MAINTENANCE PACKAGE (Item nr. 19) 518712B ARM SET MAINTENANCE PACKAGE

OPTION

4 € 19,30 € 23
IN STOCK IN 4 days
15 511405B COVER COMP., ORNAMENTAL(LH)(AL)

OPTION

1 € 67,85 € 82
ON REQUEST
16 511406B COVER COMP., ORNAMENTAL(RH)(AL)

OPTION

1 € 67,85 € 82
ON REQUEST
13 BOLT, FLANGE (Item nr. 13) S07601 BOLT, FLANGE  6 € 2,40 € 3
IN STOCK
12 BOLT, FLANGE (Item nr. 12) S21605 BOLT, FLANGE  4 € 2,40 € 3
IN STOCK
11 BOLT, FLANGE (Item nr. 11) S20017 BOLT, FLANGE  8 € 2,40 € 3
IN STOCK
02 R/B 511138Y ARM SET, UPPER, RH. (FRONT) (Item nr. 02) 511138 R/B 511138Y ARM SET, UPPER, RH. (FRONT)  1 € 183,72 € 222
ON REQUEST
03 R/B 511139Y ARM SET, LOWER, LH. (FRONT) (Item nr. 03) 511139 R/B 511139Y ARM SET, LOWER, LH. (FRONT)  1 € 170,25 € 206
ON REQUEST
03.1 BALL JOINT (Item nr. 03-1) 511153 BALL JOINT  1 € 58,68 € 71
IN STOCK IN 4 days
04 R/B 511140Y ARM SET, LOWER, RH. (FRONT) (Item nr. 04) 511140 R/B 511140Y ARM SET, LOWER, RH. (FRONT)  1 € 192,81 € 233
ON REQUEST
05 TGB PROTECTOR, COVER LH. (Item nr. 05) 516306 TGB PROTECTOR, COVER LH.  1 € 10,33 € 13
IN STOCK
06 TGB PROTECTOR, COVER RH. (Item nr. 06) 516307 TGB PROTECTOR, COVER RH.  1 € 10,33 € 13
IN STOCK
07 CLAMP (LH.) (Item nr. 07) 513329 CLAMP (LH.)  2 € 2,81 € 3
IN STOCK
08 CLAMP (RH.) (Item nr. 08) 513330 CLAMP (RH.)  2 € 2,73 € 3
IN STOCK
09 SHOCK ABSORBER ASSY., FRONT (Item nr. 09) 511163SY SHOCK ABSORBER ASSY., FRONT  2 € 208,84 € 253
IN STOCK IN 4 days
10 BOLT, FLANGE, HEX HEAD M10X1,25x48L (Item nr. 10) S20009 BOLT, FLANGE, HEX HEAD M10X1,25x48L  4 € 5,54 € 7
IN STOCK IN 4 days
17 516519 HOSE  2 € 3,14 € 4
ON REQUEST
Product Code TGB_2_211_EST-J
PARTS CATEGORY: FRAME PARTS
Select MODEL: BLADE 1000LTX E4
Select BRAND: TGB
Select TYPE: BLADE 1000LTX
