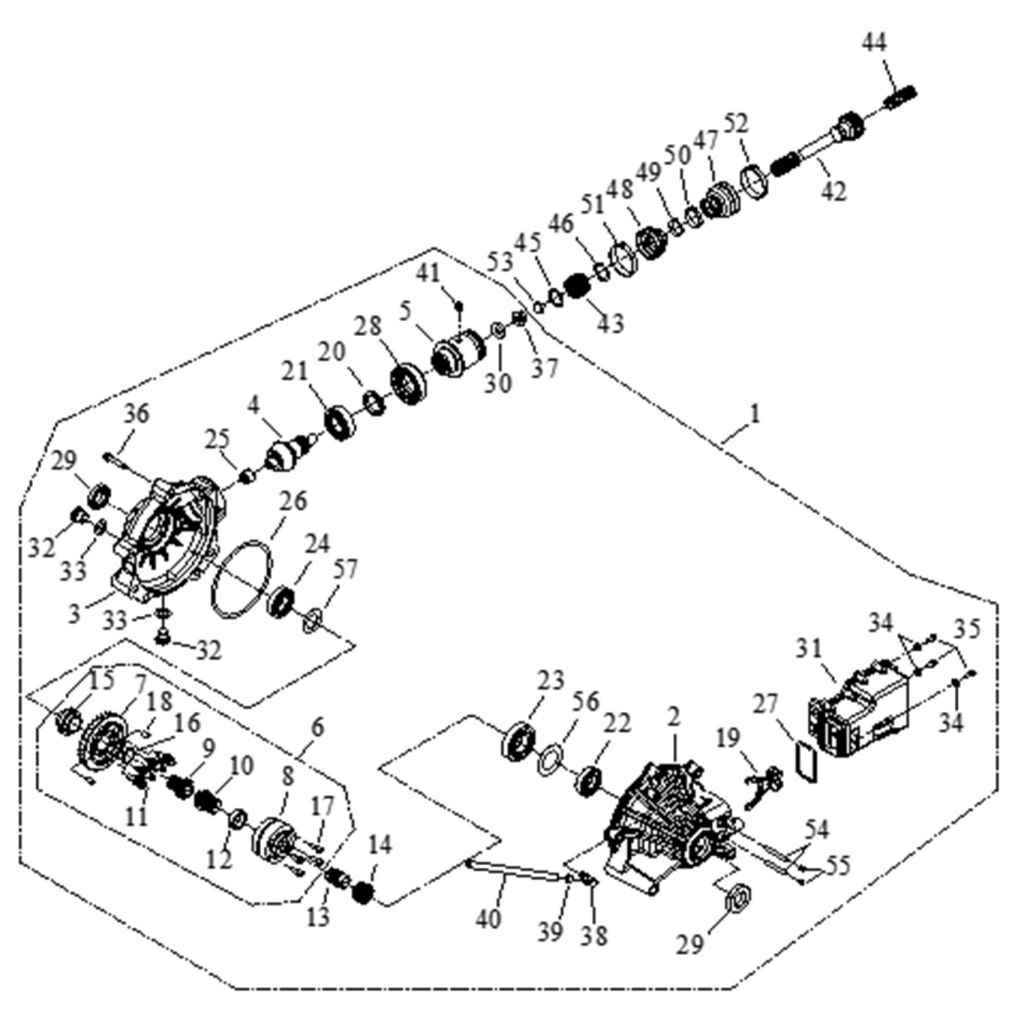

FRONT DIFFERENTIAL

ACCESS MOTOR
  • Manufacturer  ACCESS MOTOR
  • Product Code  ACCESS_5_125_MAX_750i_Forest
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
56 93100-63272-01 Washer , Plate  1
ON REQUEST
Detail
40 15108-A06-000 Hose, Pressure Release  1 € 2,48 € 3
ON REQUEST
39 97411-085-06 Clip  1 € 2,48 € 3
ON REQUEST
38 33315-A13-001 Hose, Breather (unavailable)  1 € 5,54 € 7
ON REQUEST
37 Nut, Insert Lock (Item nr. 37) 92130-12S-17G Nut, Insert Lock  1 € 2,48 € 3
IN STOCK
36 91700-08045-12G Hex Washer Face Bolt (unavailable)  5 € 1,90 € 2
ON REQUEST
35 Hex Washer Face Bolt (unavailable) (Item nr. 35) 91700-06016-10G Hex Washer Face Bolt (unavailable)  3 € 2,48 € 3
IN STOCK
34 93300-A27-000 Spacer (unavailable)  3 € 1,90 € 2
ON REQUEST
33 Washer, Plate (AL) (unavailable) (Item nr. 33) 93105-14222-20 Washer, Plate (AL) (unavailable)  2 € 2,48 € 3
ON REQUEST

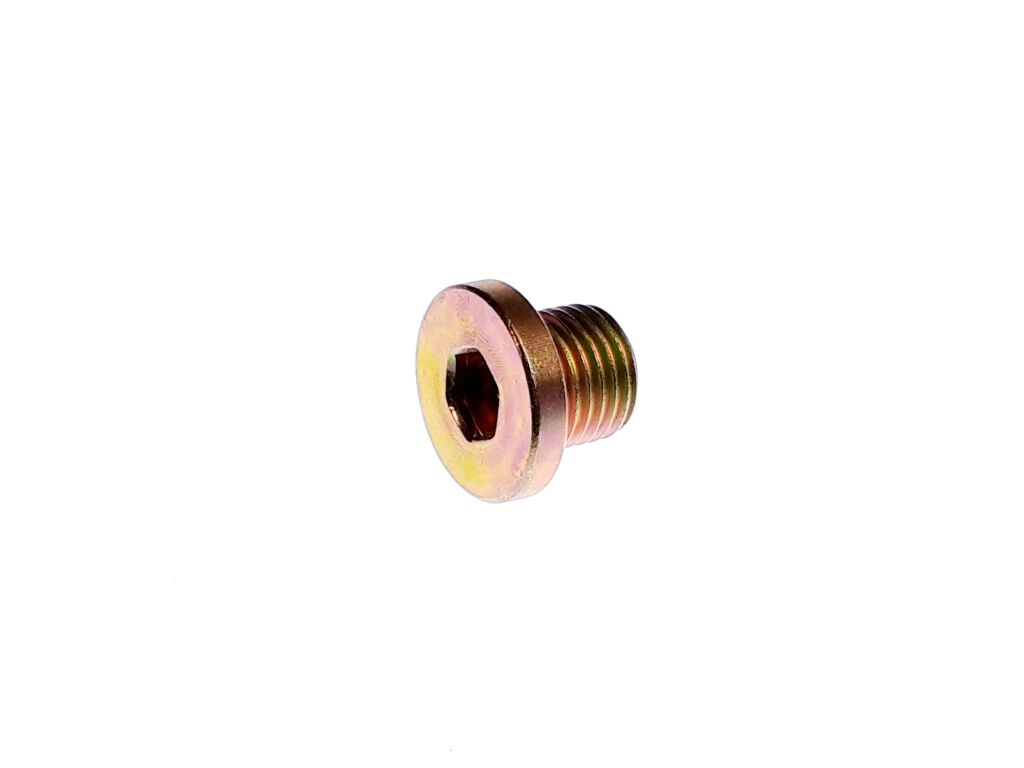

32 Drain Bolt (unavailable) (Item nr. 32) 91833-A13-000 Drain Bolt (unavailable)  2 € 4,96 € 6
IN STOCK
31 R/B 34540-A27-100 SERVO MOTOR COMP (Item nr. 31) 34540-A27-000 R/B 34540-A27-100 SERVO MOTOR COMP  1 € 614,88 € 744
ON REQUEST

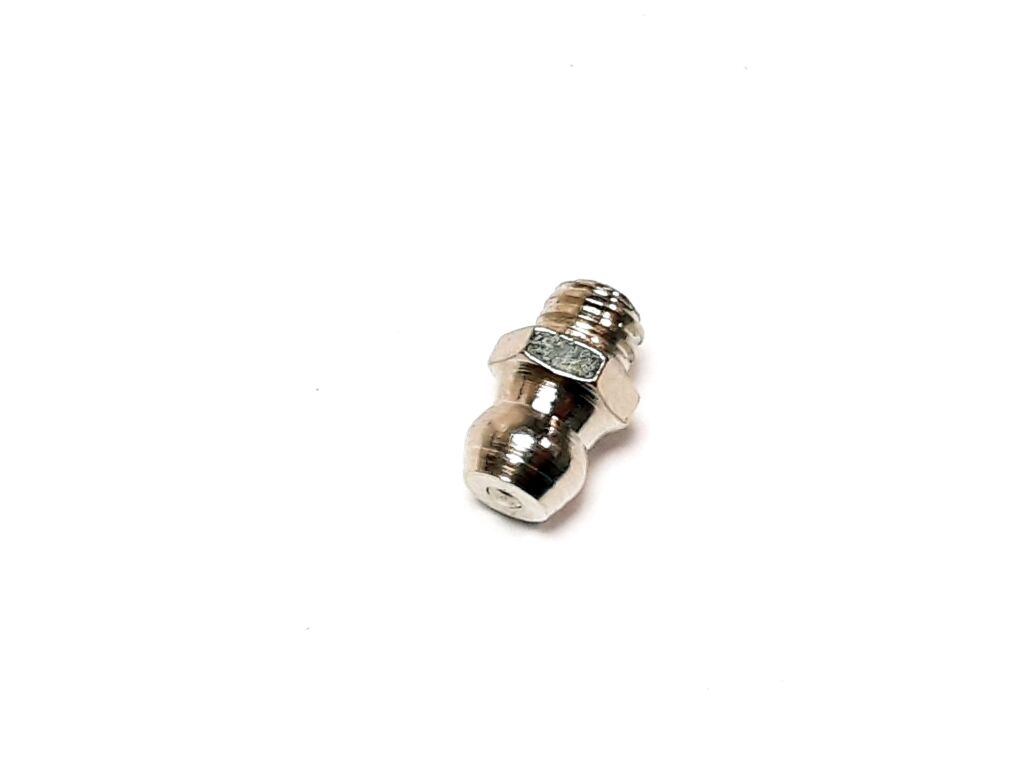

41 R/B 91805-A01-100 Grease Valve (Item nr. 41) 91805-A01-000 R/B 91805-A01-100 Grease Valve  1 € 2,48 € 3
IN STOCK
43 Sleeve, Coupling Shaft (Item nr. 43) 33602-A27-000 Sleeve, Coupling Shaft  1 € 12,40 € 15
IN STOCK
44 Spring, Axle (Item nr. 44) 97214-A27-000 Spring, Axle  1 € 2,48 € 3
IN STOCK
54 94002-050400 Pin, Dowel  2 € 1,90 € 2
ON REQUEST
53 Grommet (Item nr. 53) 33355-A27-000 Grommet  1 € 2,48 € 3
IN STOCK
52 Clip (Item nr. 52) 97416-535-07 Clip  1 € 2,48 € 3
IN STOCK
51 Clip (Item nr. 51) 97416-500-07 Clip  1 € 2,48 € 3
IN STOCK
50 Clip (Item nr. 50) 97416-316-07 Clip  1 € 2,48 € 3
IN STOCK
49 Clip (Item nr. 49) 97416-271-07 Clip  1 € 2,48 € 3
IN STOCK
48 Dust Cap, Shaft, Outer (unavailable) (Item nr. 48) 33354-A27-010 Dust Cap, Shaft, Outer (unavailable)  1 € 2,48 € 3
ON REQUEST
47 Dust Cap, Shaft, Inner (unavailable) (Item nr. 47) 33354-A27-000 Dust Cap, Shaft, Inner (unavailable)  1 € 3,31 € 4
ON REQUEST
46 Cir Clip (Item nr. 46) 93406-STW22A Cir Clip  1 € 2,48 € 3
IN STOCK
45 Cir Clip (Item nr. 45) 93406-STW19A Cir Clip  1 € 2,48 € 3
IN STOCK
30 93100-12530-30G Washer,Plate  1 € 2,48 € 3
ON REQUEST

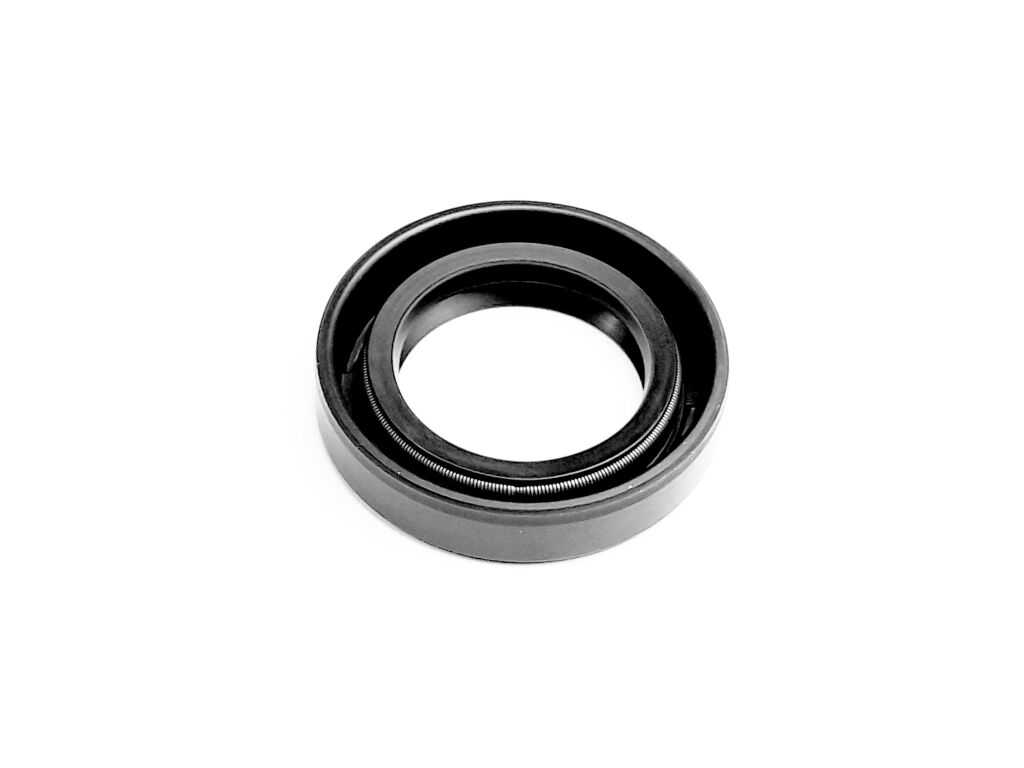

29 Oil Seal (unavailable) (Item nr. 29) 96100-243808 Oil Seal (unavailable)  2 € 2,48 € 3
IN STOCK
14 34508-A27-000 differential coupling (unavailable)  1 € 38,76 € 47
ON REQUEST
11 Pinion Gear (Item nr. 11) 34504-A27-001 Pinion Gear  4 € 25,62 € 31
IN STOCK
10 Differential Gear (Item nr. 10) 34501-A27-000 Differential Gear  1 € 73,55 € 89
ON REQUEST
8 34500-A27-000 Differential Case  1
ON REQUEST
Detail

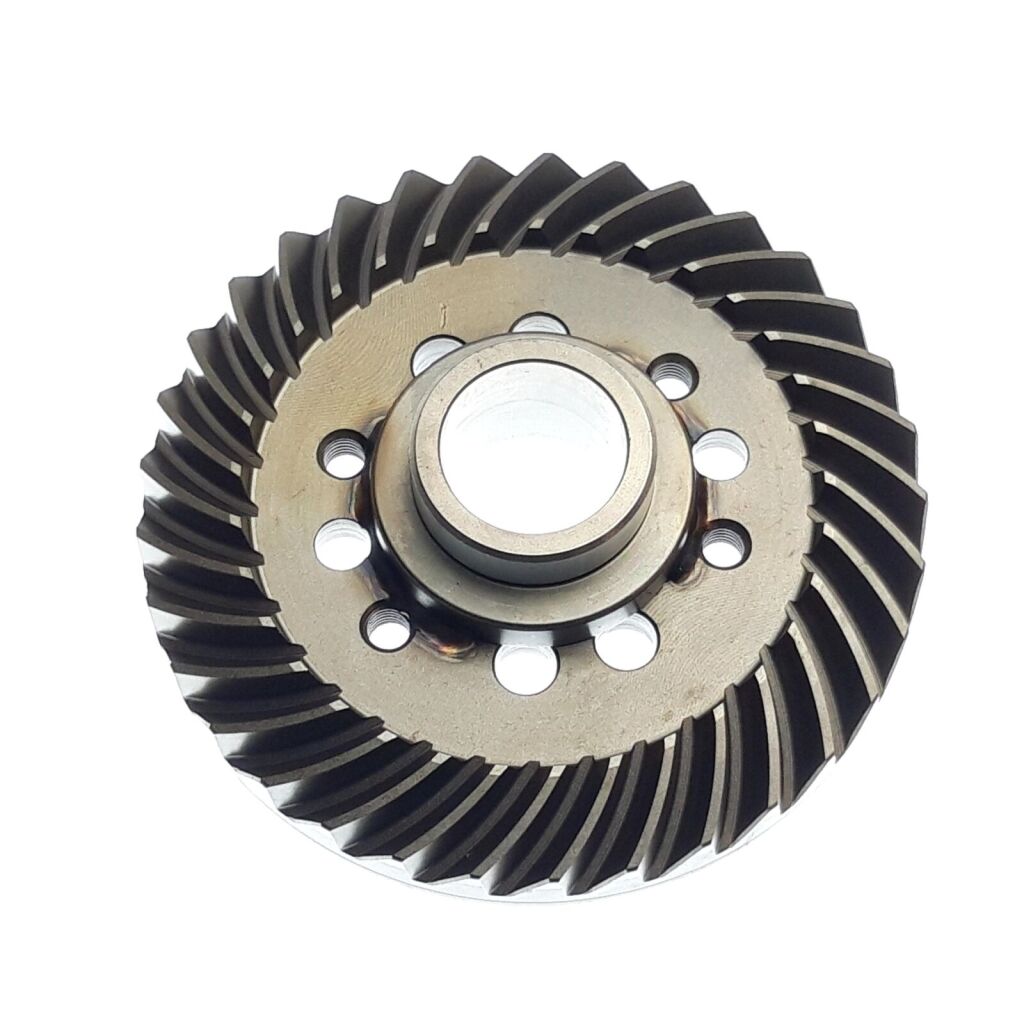

7 Spiral bevel gear (Item nr. 7) 34515-A27-000 Spiral bevel gear  1 € 280,17 € 339
IN STOCK
6 34400-A27-001 Differential (unavailable) (can be use 34000-A37-000 + 34601-A37-000 +23200-A37-000 - 2pcs)  1
ON REQUEST
Detail
5 33405-A27-000 Shaft coupling  1 € 57,85 € 70
ON REQUEST
4 Shaft, Spiral bevel gear (Item nr. 4) 34510-A27-000 Shaft, Spiral bevel gear  1 € 217,36 € 263
IN STOCK
3 R/B 34200-A27-001 Cover, Differential Gear Case (Item nr. 3) 34200-A27-000 R/B 34200-A27-001 Cover, Differential Gear Case  1 € 84,30 € 102
ON REQUEST
2 34250-A27-000 HOUSING, BEARING 2  1
ON REQUEST
Detail
16 93107-30238-10 Washer , Plate(SK5)  1
ON REQUEST
Detail
18 94002-100160-1 spacer 10*16  2 € 2,48 € 3
ON REQUEST
28 Oil Seal (unavailable) (Item nr. 28) 96100-355708 Oil Seal (unavailable)  1 € 2,48 € 3
ON REQUEST
27 Ring (unavailable) (Item nr. 27) 96301-A27-000 Ring (unavailable)  1 € 2,48 € 3
ON REQUEST
26 O-RING (unavailable) (Item nr. 26) 96201-1504-031 O-RING (unavailable)  1 € 2,48 € 3
IN STOCK
25 bearing, Needle (unavailable) (Item nr. 25) 95200-15BM2112 bearing, Needle (unavailable)  1 € 18,18 € 22
ON REQUEST
24 bearing, Ball (unavailable) (Item nr. 24) 95100-6908 bearing, Ball (unavailable)  1 € 20,66 € 25
IN STOCK
23 95100-6910 Bearing,Ball  1
ON REQUEST
Detail
22 Bearing, Ball (unavailable) (Item nr. 22) 95100-60/29CS22 Bearing, Ball (unavailable)  1 € 28,93 € 35
IN STOCK
21 bearing, Ball (unavailable) (Item nr. 21) 95100-6205Z bearing, Ball (unavailable)  1 € 10,74 € 13
IN STOCK
20 Nut (Item nr. 20) 11265-E13-000 Nut  1 € 11,57 € 14
IN STOCK
19 Gear Shift Fork (unavailable) (Item nr. 19) 34532-A27-000 Gear Shift Fork (unavailable)  1 € 29,75 € 36
IN STOCK
1 34000-A27-000 R/B 34000-A37-000 Front Differential Assy  1 € 904,96 € 1 095
ON REQUEST
Product Code ACCESS_5_125_MAX_750i_Forest
PARTS CATEGORY: ENGINE PARTS
Select BRAND: ACCESS
Select TYPE: ACCESS MAX
Select MODEL: MAX 750 EFI FOREST
