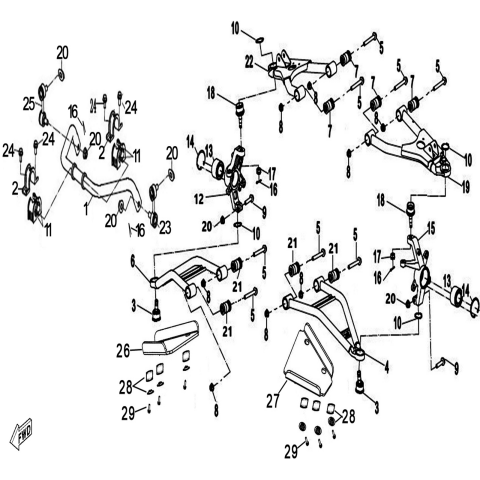

FRONT ARM

  • Product Code  LIN_5_V06_Landforce-1000
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
2 27090 HOLDER,STABILIZER BUSH (NEW MODEL)  2 € 4,55 € 5
ON REQUEST
25 JOINT，STABILIZER 2 (Item nr. 25) 27196 JOINT，STABILIZER 2  1 € 22,56 € 27
IN STOCK
24 11461 Hexagon Flange Bolt M8×1.25×20 9.8  4 € 2,40 € 3
ON REQUEST
23 JOINT，STABILIZER 1 (Item nr. 23) 27195 JOINT，STABILIZER 1  1 € 19,75 € 24
IN STOCK

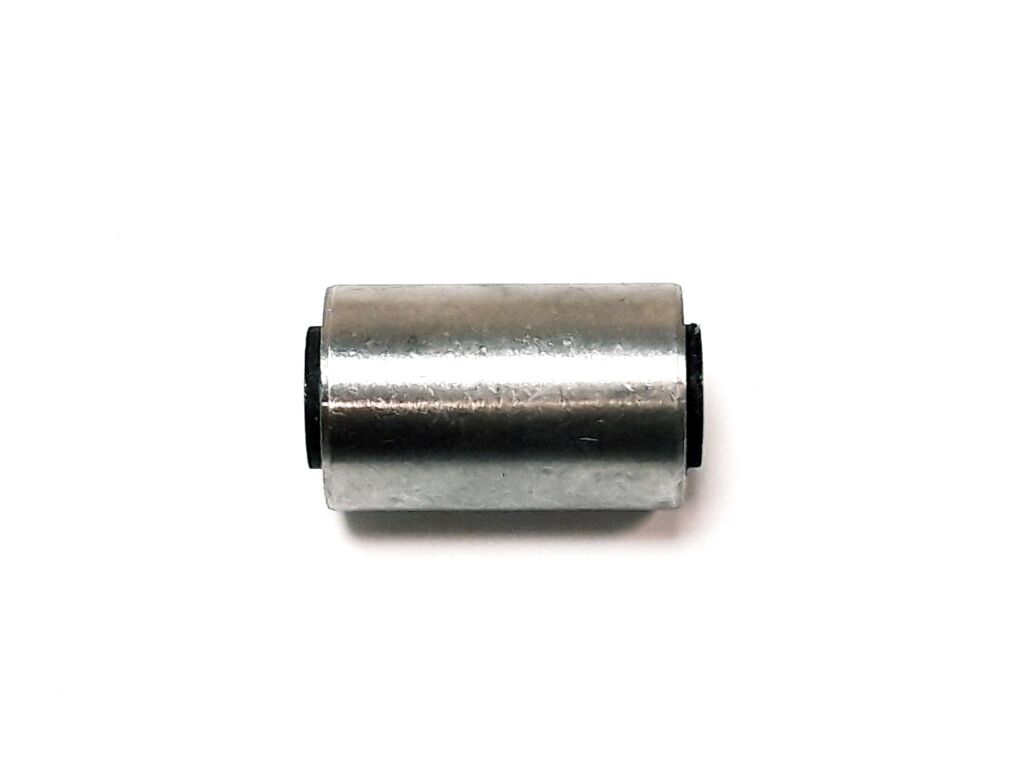

21 BUSHING (Item nr. 21) 38572 BUSHING  4 € 5,37 € 6
ON THE WAY
20 NUTM10X1.25 (Item nr. 20) 11287 NUTM10X1.25  6
IN STOCK
18 Ball Joint（upper） (Item nr. 18) 38570 Ball Joint（upper）  2 € 15,70 € 19
ON THE WAY
17 11546 NUT M10X1.25  2
ON REQUEST
16 COTTER PIN 2.5X25 (Item nr. 16) 27215 COTTER PIN 2.5X25  6 € 7,19 € 9
IN STOCK
14 CIRCLIP 68 (Item nr. 14) 26912 CIRCLIP 68  2 € 2,40 € 3
IN STOCK
13 BEARING (Item nr. 13) 26913 BEARING  2 € 116,86 € 141
IN STOCK
11 BUSH,RR.STABILIZER (NEW MODEL) (Item nr. 11) 27091 BUSH,RR.STABILIZER (NEW MODEL)  4 € 6,69 € 8
IN STOCK
10 CIRCLIP 34 (Item nr. 10) 70046 CIRCLIP 34  4 € 2,40 € 3
IN STOCK
9 11982 BOLT M10x1.25×40  2 € 0,66 € 1
ON REQUEST
8 NUT M12X1.25 (Item nr. 8) 10136 NUT M12X1.25  8 € 2,40 € 3
IN STOCK
7 Bushing Arm，H (Item nr. 7) 20524f Bushing Arm，H  4 € 6,36 € 8
IN STOCK
5 Shaft (Item nr. 5) 20522F Shaft  8 € 8,93 € 11
IN STOCK
3 Ball Joint（lower） (Item nr. 3) 38565 Ball Joint（lower）  2 € 16,03 € 19
ON THE WAY
29 BOLT M6X30 (Item nr. 29) 11496 BOLT M6X30  6 € 2,40 € 3
IN STOCK
Product Code LIN_5_V06_Landforce-1000
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select TYPE: LINHAI 1000
Select MODEL: Landforce 1000
