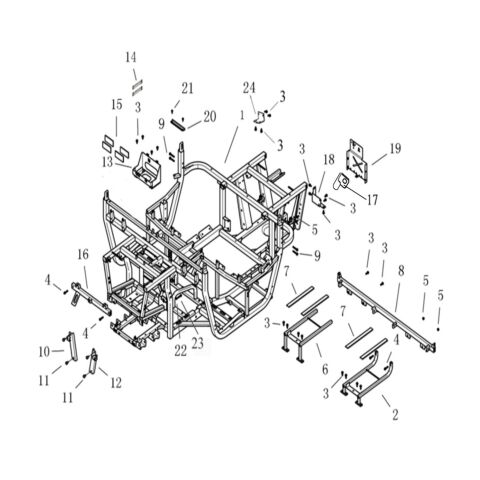

FRAME Ver.24

LINHAI
  • Manufacturer  LINHAI
  • Product Code  LINHAI_2_205_LH1100U-24
Select MODEL:
Item nr. Pic. Part nr. Description Count in the table Cena za 1 ks Availability
1 86300 Frame  1 € 1 781,57 € 2 156
ON REQUEST
13 86419 Battery Box  1 € 50,66 € 61
ON REQUEST
14 73396 Battery Belt, Match For Battery 30Ah  2 € 2,89 € 3
ON REQUEST
15 73395 Sponge  4 € 3,06 € 4
ON REQUEST
16 73110 Bracket, Support, Upper  1 € 14,38 € 17
ON REQUEST
17 86449 Licence Bracket 3 (USED FOR LOF)  1 € 4,71 € 6
ON REQUEST
18 84151 Licence Bracket 1  1 € 36,94 € 45
ON REQUEST
19 84152 Licence Bracket 2  1 € 54,30 € 66
ON REQUEST
20 84226 Bracket  1 € 20,99 € 25
ON REQUEST
21 Hexagon Flange Bolt M8×20 (Item nr. 21) 11492 Hexagon Flange Bolt M8×20  2 € 2,40 € 3
IN STOCK
22 Hexagon Nut M8×1.25 (Item nr. 22) 11483 Hexagon Nut M8×1.25  1 € 2,40 € 3
IN STOCK
23 26255 Hexagon Head Bolt M8×1.25×40  1 € 8,02 € 10
ON REQUEST
12 86303 Bracket, Support, LH  1 € 15,37 € 19
ON REQUEST
12 73108 Bracket, Support, LH  1 € 7,19 € 9
ON REQUEST
2 84227 Bracket，L  1 € 148,51 € 180
ON REQUEST
3 BOLT M8X20 (Item nr. 3) 10081 BOLT M8X20  23 € 2,40 € 3
IN STOCK
4 Hexagon Flange Bolt M8×1.25×40 (Item nr. 4) 11465 Hexagon Flange Bolt M8×1.25×40  4 € 2,40 € 3
ON REQUEST
5 Prevailing Torque Type All-metal Hexagon Nut Fine Pitch M8×1.25 (Item nr. 5) 10794 Prevailing Torque Type All-metal Hexagon Nut Fine Pitch M8×1.25  4 € 40,66 € 49
ON REQUEST
6 84228 Bracket，R  1 € 148,51 € 180
ON REQUEST
7 73106 Rubber Damper  4 € 2,89 € 3
ON REQUEST
8 86301 Bracket  1 € 77,36 € 94
ON REQUEST
9 Hexagon Flange Bolt M8×1.25×55 (Item nr. 9) 10780 Hexagon Flange Bolt M8×1.25×55  4 € 9,59 € 12
IN STOCK
10 73107 Bracket, Support, RH  1 € 7,19 € 9
ON REQUEST
10 86302 Bracket, Support, RH  1 € 15,37 € 19
ON REQUEST
11 10785 Hexagon Flange Bolt M10×1.25×20  4 € 2,23 € 3
ON REQUEST
24 86306 Bracket ，Rear Gearbox  1 € 49,26 € 60
ON REQUEST
Product Code LINHAI_2_205_LH1100U-24
PARTS CATEGORY: FRAME PARTS
Select BRAND: LINHAI
Select MODEL: T-BOSS LH1100U D T1b (EPS)
Select TYPE: LINHAI UTV 1100 Diesel
